【Technical parameters of the vehicle】 | |||||

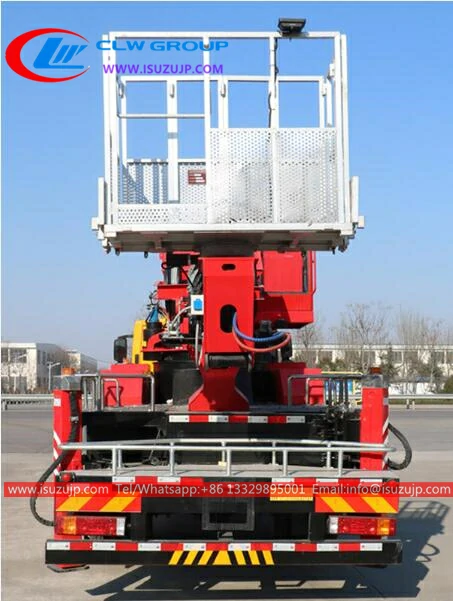

product name | SZB5180JGKSX6 Shacman 45meters elevated work platform truck Botswana | ||||
Total mass(kg) | 17505 | Tank volume(m3) | |||
Rated mass(kg) | Dimensions(mm) | 9865X2500X4000 | |||
Curbweight (kg) | 17310 | Cargo size(mm) | XX | ||
Number of occupants in the cab(person) | 3 | Maximum load of saddle(kg) | |||
Approach angle/Departure angle (°) | 23/8 | Front suspension/rear suspension(mm) | 1450/2990 | ||
Axle load(kg) | 6500/11500 | Maximum speed(km/h) | 89,95 | ||
Remark: | Remarks: The special device for this vehicle is an aerial work device, which is mainly composed of an upper loading platform, a turntable, a boom, a hydraulic system system, etc. It is used for electric power, road administration, etc. Equal height working area. Only optional 4600mm wheelbase. Rear extension 825mm. The material of the side guards is aluminum alloy, and the connection method is bolts Connection: The material of the rear protection device is Q235, the connection method is welding connection, the size of the rear protection section (mm): 160 × 80, the bottom The height of the edge from the ground is450mm. ABS model / manufacturer: ABS model: ZQFB-V, manufacturer: Xi’an Zhengchang Electronics Co., Ltd. Company, the maximum speed when the speed limiting device is installed with the chassis is: 89km/h. This model can be equipped with ETC on-board device. Optional driving with the chassis room. | ||||
【Chassis technical parameters】 | |||||
Chassis model | SX1180GP6501 | Chassis name | truck chassis | ||
brand name | Shaanxi Automobile | manufacturer | Shaanxi Automobile Group Co., Ltd. | ||
number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 5000,5200,5600,4600,5700,4200,3950,4500,4700,5300 | ||||
Tire specifications | 11R22.5, | ||||
Number of leaf springs | 9/10+8 | Front track(mm) | 1930, 1950, 1970 | ||
Fuel type | diesel fuel | Rear Track(mm) | 1810, 1860, 1830 | ||
Emissions according to standards | GB17691-2018 National VI | ||||
engine model | engine manufacturer | engine capacity | engine power | ||
YCK05210-60 B6.2NS6B210 YCS06200-60 YCK05240-60 D4.5NS6B220 YCS06245-60A B6.2NS6B230 YCS04200-68 WP4.6NQ220E61A YCS06270-60 B6.2NS6B260 | Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Weichai Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 5132 6200 6234 5132 4500 6234 6200 4156 4580 6234 6200 | 157 154 147 176 162 180 169 147 162 199 191 | ||
