【Technical parameters of the whole vehicle】 | |||||

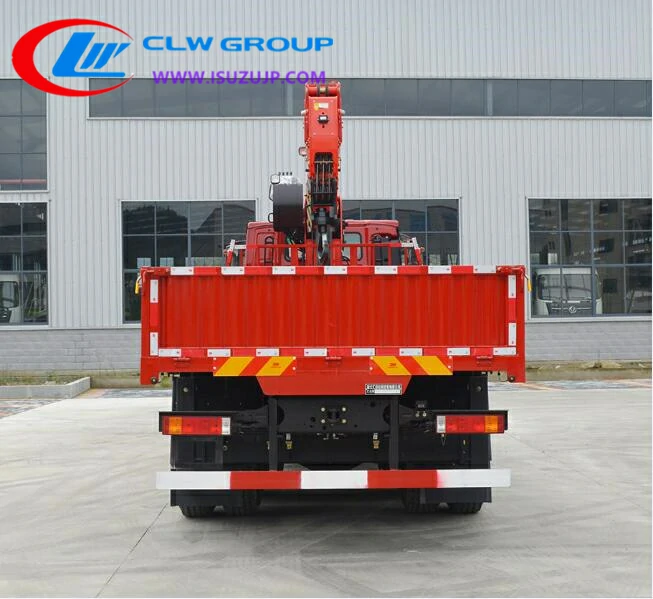

product name | HHH5311JSQSX6 Shacman 14T recovery crane for sale Algeria | ||||
Total mass(kg) | 31000 | Tank volume(m3) | |||
Rated mass(kg) | 10070 | Dimensions(mm) | 12000X2550X3990 | ||
Curbweight (kg) | 20800 | Cargo compartment size(mm) | 8500X2450X600 | ||
The number of passengers in the cab(person) | 2 | Maximum load of saddle(kg) | |||
Approach angle/departure angle (°) | 21/12 | Front suspension/rear suspension (mm) | 1525/2400 | ||
Axle load(kg) | 6500/6500/18000 (two-axis group) | Maximum speed(km/h) | 89 | ||
Remark: | Remarks:1. The corresponding relationship between engine model/fuel consumption value (L/100km) is: YCK08350-60/37.12,Y CK08300-60/37.12,YCK08330-60/37.12; 2. Crane model: SPS3 5000, hoist mass (kg): 5500, hoist maximum lifting load (kg): 14000; 3. Side/rear protection device The materials used are all: Q235, the connection method is all bolt connection, the cross-sectional size of the rear guard (length × width) mm: 120×60 , The ground clearance of the rear protective device (mm): 490; 4. ABS model: ZQFB-V; ABS manufacturer: Xi’an Zhengchang Electric Sub Ltd.; 5 ETC vehicle-mounted device of the vehicle can be direct power supply installation; 6 rows having mounted satellite positioning function Driving recorder; 7. Special functions and devices: The special device of the truck is a truck-mounted crane, which is used to realize the function of cargo loading and unloading; 8. Only the bottom is selected. Disc enginesYCK08350-60, YCK08300-60, YCK08330-60. | ||||
【Chassis technical parameters】 | |||||
Chassis model | SX1312MP6466 | Chassis name | Truck chassis | ||
Brand name | Shaanxi Automobile | manufacturer | Shaanxi Automobile Group Co., Ltd. | ||
Number of axes | 4 | Number of tires | 12 | ||
Wheelbase(mm) | 2100+4575+1400 | ||||
Tire specifications | 12.00R20 18PR, 11.00R20 18PR, 12R22.5 18PR | ||||
Number of leaf spring | 14/13/10 | Front track(mm) | 2058/2058 | ||
Fuel type | diesel fuel | Rear track(mm) | 1860/1860 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
YCK08350-60 YCK08300-60 YCK08330-60 L9NS6B340 | Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 7698 7698 7698 8900 | 257 221 243 251 | ||
