[Technical parameters of the vehicle] | |||||

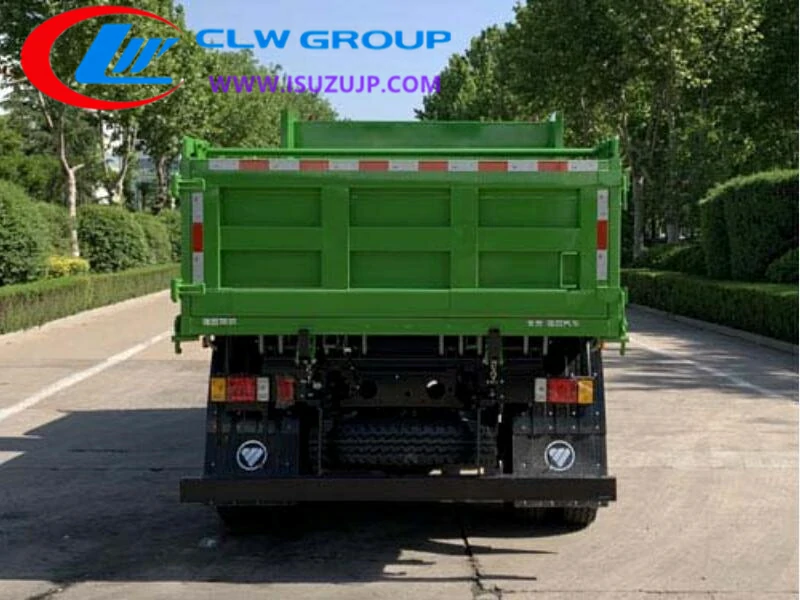

product name | BJ3124DEPFA-02 ROWOR bobtail dump truck | ||||
Total mass (kg) | 11995 | Tank volume (m3) | |||
Rated mass (kg) | 4950 | Dimensions (mm) | 6085, 6285, 6485, 6635X2310,2410X2650,2700,2750 | ||
Curb weight (kg) | 6850 | Cargo compartment size (mm) | 3800, 4000, 4200, 4350X2100, 2200X800 | ||
The number of passengers in the cab (person) | 3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 20/18 | Front suspension/rear suspension (mm) | 1260/1425, 1260/1625, 1260/1675 | ||
Axle load (kg) | 4800/7195 | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: After unloading, the material used for the side and rear lower protective device is Q235, the connection method is bolt connection, the cut-off of the rear lower protective device The size of the surface is 120×60mm, and the height above the ground is 470mm (450mm, 430mm are optional). The lower protective equipment is optional. The cross-sectional size of the set is 100×50mm, the material used for the lower rear protective device is Q235, and the height from the ground is 470mm (optional Install 450mm, 430mm). The ABS model is CM4XL-4S/4M, and the manufacturer is Guangzhou Ruili Komi Automotive Electronics Co., Ltd. optional cargo compartment style. Engine WP4.1NQ190E61, F3.8NS6B190, YCS0 The fuel consumption values corresponding to 4200-68 are 21.8L/100km, 20.2L/100km, 21.8L/1 00km. Choose the style of loading box. | ||||
【Chassis technical parameters】 | |||||
Chassis model | BJ3124DEPFA-02 | Chassis name | Dump truck chassis | ||
Trade name | Futian | manufacturer | Beiqi Foton Motor Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3400,3600,3700 | ||||
Tire specifications | 9.00R20 16PR,8.25R20 16PR | ||||
Number of leaf spring | 10/12+9 | Front track (mm) | 1780,1815 | ||
Fuel type | diesel fuel | Rear track (mm) | 1740 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
WP4.1NQ190E61 F3.8NS6B190 YCS04200-68 | Weichai Power Co., Ltd. Beijing Foton Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 4088 3800 4156 | 140 140 147 | ||
