How does a garbage truck compactor work?

The working principle of the Garbage compactor truck is basically divided into two types: loading and unloading.

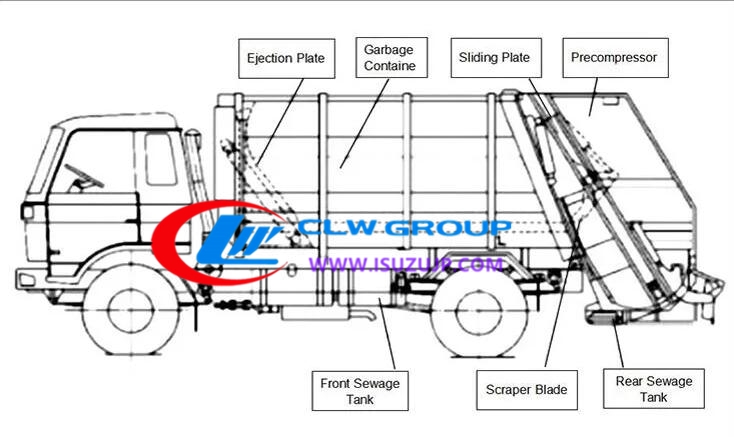

                                 Garbage compactor truck structure diagram

The Garbage compactor truck has five key actions in total, which are the flipping and retracting of the flip plate, the opening and closing of the scraper, the lowering and raising of the scraper, the retracting and pushing out of the push plate, and the lifting and locking of the tail. This is the garbage truck. The main 5 actions.

When the filling bucket is filled with garbage, the scraper is opened, the sliding plate drives the scraper to move down together, inserts into the garbage for crushing and first compression, the scraper rotates forward to further compact the garbage, and the scraper moves up with the sliding plate after it is in place. Compact and fill the litter into the bin and return to the starting position.

The whole working process is automatically controlled. When the garbage is continuously pressed and filled, the push shovel will gradually retreat against the back pressure under the action of the squeezing force, so as to realize the two-way compression of the garbage and evenly fill the entire garbage box.

Garbage compactor truck brings us great convenience in our daily life.

It compresses the daily garbage in the garbage pressing truck, which completely solves the problem of secondary pollution in the process of garbage transportation.

The operation process of garbage truck work: 1. Hang the neutral gear and start the Garbage compactor truck, step on the clutch, hang the power take-off, and hold the handbrake.

2. Operate the control box or the multi-way valve to hang the trash can on the turning mechanism, and turn it over and pour the trash into the arc bucket

3. Operate the slide plate and scraper to make the garbage enter the curved box to complete a working loading (continuous loading can be carried out when there is a lot of garbage)

4. After the loading is completed, operate the push plate inside the curved box to compress. After a while to check around the car body, no one can turn off the power take-off and drive the car away.

5. When unloading, hang up the power take-off to operate the multi-way valve or the CAN electronic control box to lift the bucket body.

6. Use the multi-way valve or the CAN control box to push the garbage out.

7. After the unloading is completed, the bucket body will be returned to the position through the multi-way valve or the CAN control box, the power take-off will be turned off to complete the unloading operation, and the vehicle will be checked around the body.

Garbage compactor truck operating manual：

https://www.isuzujp.com/wp-content/uploads/2021/09/Manual-for-Isuzu-Garbage-Compactor-Truck.pdf
