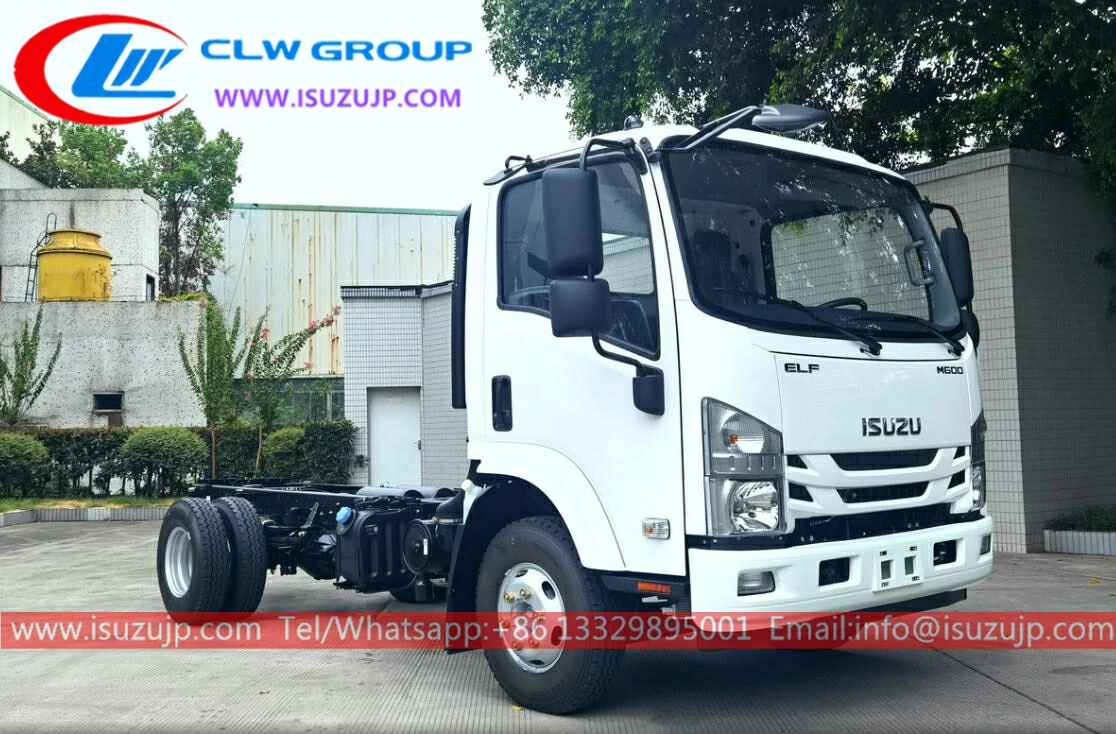

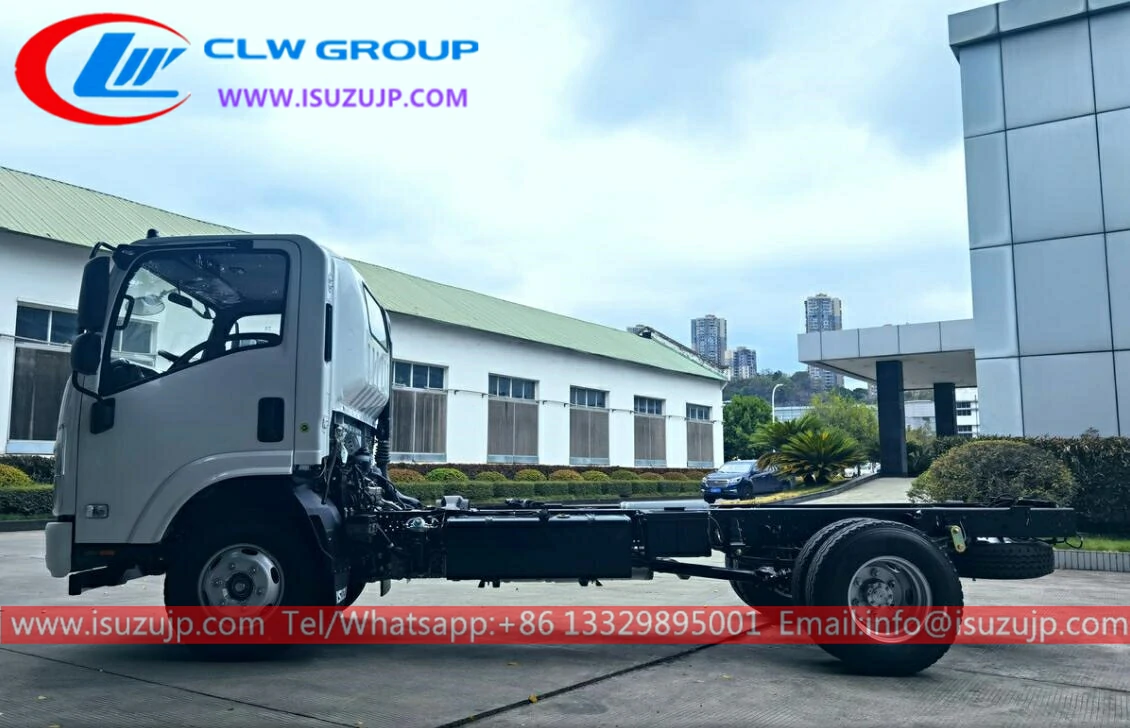

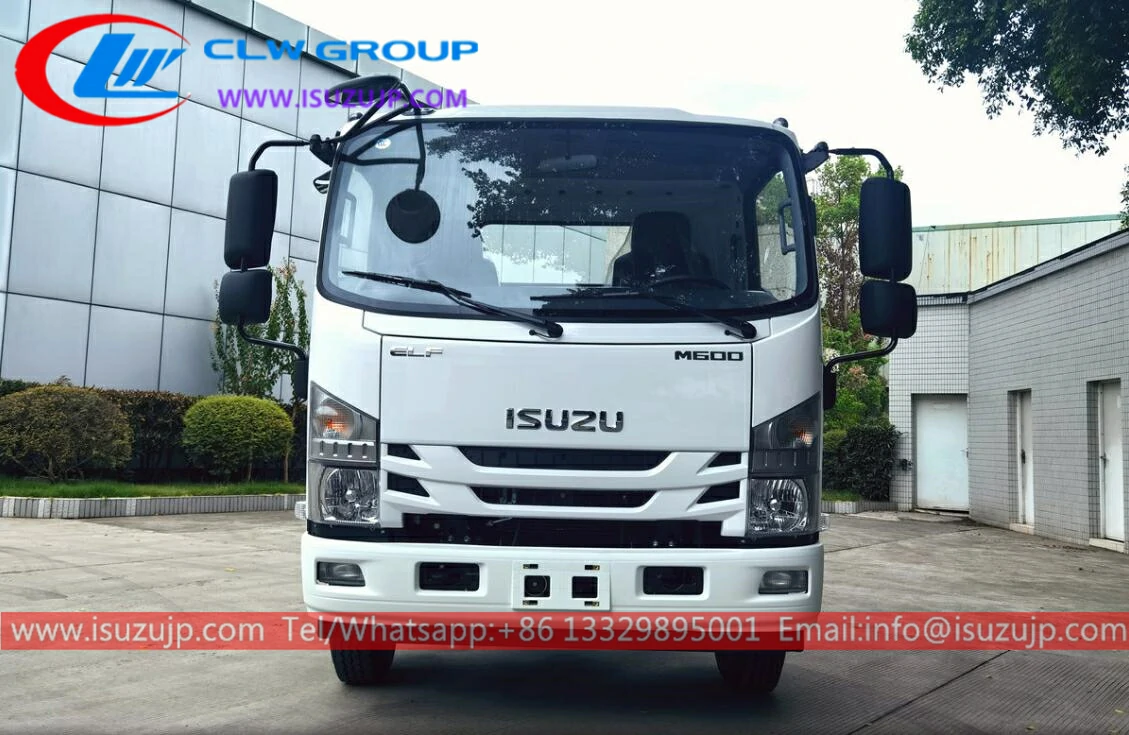

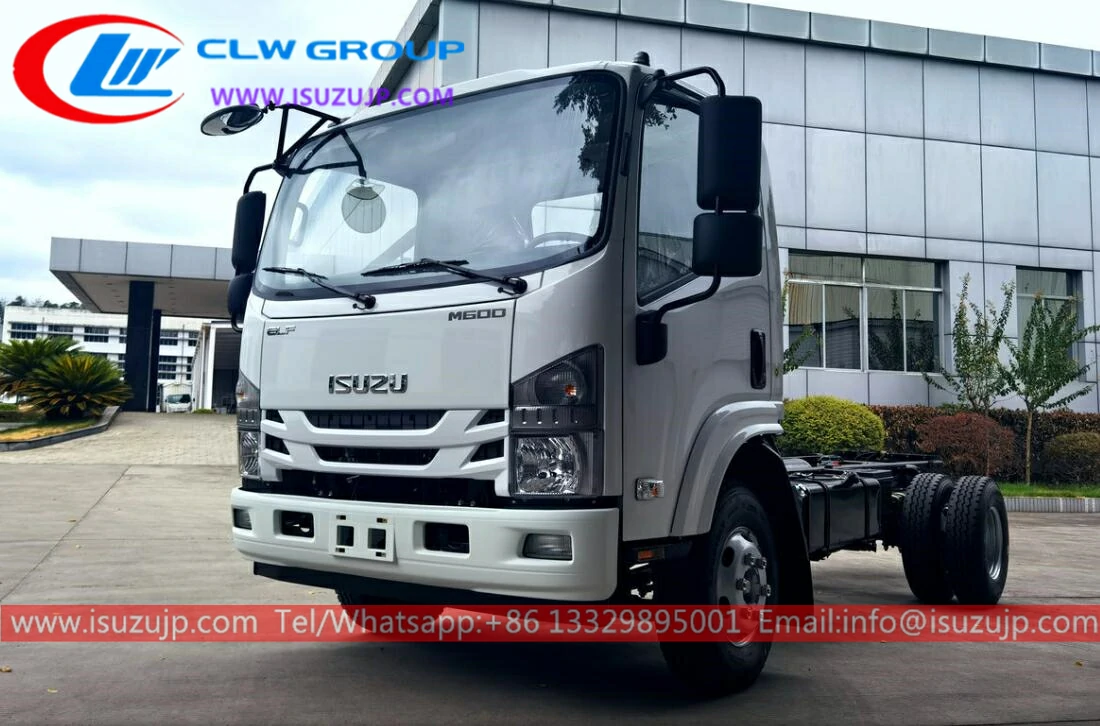

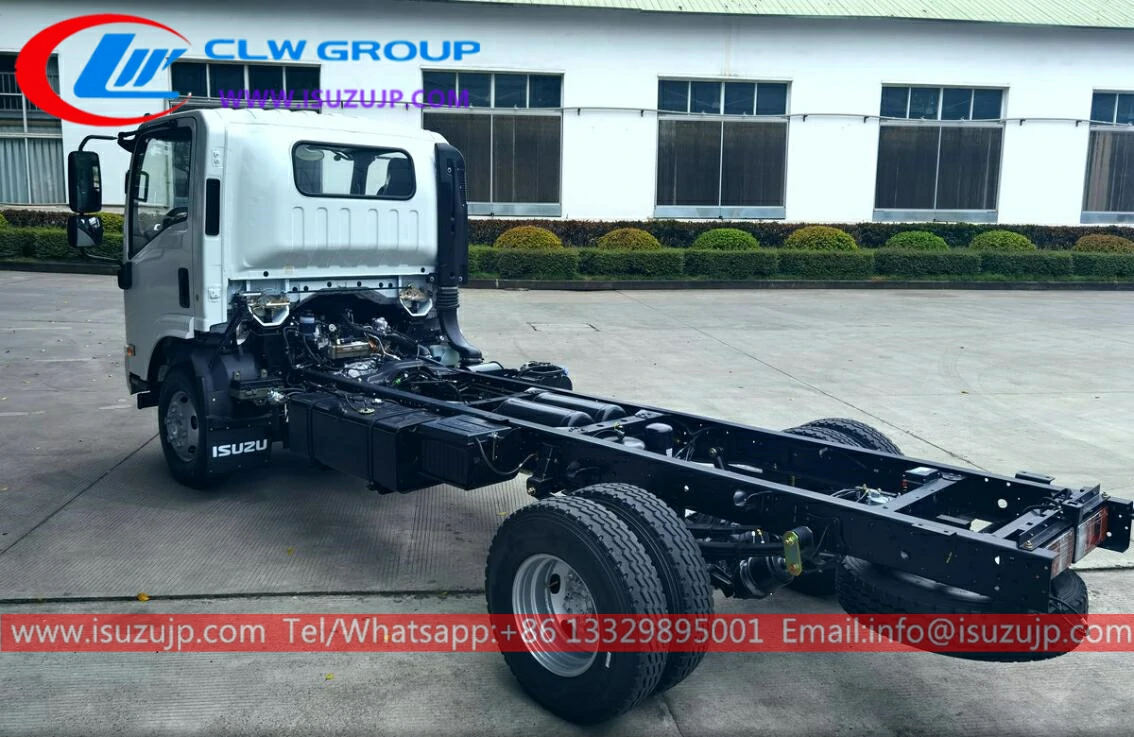

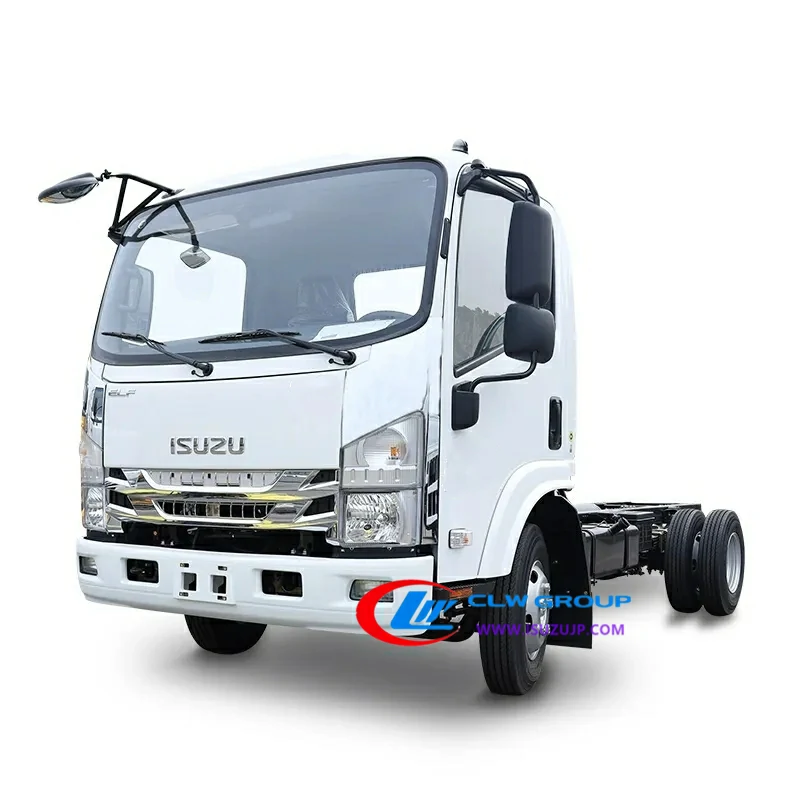

QINGLING ISUZU M600 Truck Chassis Description:
QINGLING ISUZU M600 Truck Chassis newly developed Euro 6 chassis 3 seats, wheelbase 3365mm, GVW 8.2ton, 130hp, 2.1m width; aerodynamic body design, low fuel consumption, low maintenance cost, highly maneuverable, fitting for many vocational modifications. Combining many famous international brand parts make this truck a reliable helper for your business..
Advantage:
- 100% custom-made
- ISUZU M600 truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 5Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
Specification:
| QINGLING ISUZU M600 Truck Chassis Vehicle Model: | QL1080BUHAY | |
| Dimensions and Parameters | Overall Dimension(L x W x H) | 5875×2130×2315mm |
| Wheelbase: | 3365mm | |
| Front/ Rear Wheel Distance: | 1640/1655mm | |
| Front/Rear Suspension | 1120/1390mm | |
| Approach/Departure angle: | 23/19° | |
| Leaf Spring: | 6/6+6 | |
| Weights and Capacities | Curb Weight: | 2560kg |
| Payload: | 5525kg | |
| GVW: | 8280kg | |
| Axle Loads: | 3000/5280kg | |
| Engine | Model: | 4KH1CN6HB |
| Cylinder | 4 cylinders in line | |
| Torque(N.m/rpm) | 320/1400 | |
| Max output: | 97Kw | |
| Displacement: | 2999ml | |
| Horsepower: | 130hp | |
| Exhaust Technology： | SCR+DPF | |
| Transmission | Forward Gear: | 6 Speed Gear |
| Brake | Air Brake | |
| Cab | Number of Seats: | 3 |
| Chassis | Tires: | 7(Including Spare Tire) |
| Tire Model: | 7.50R16LT 14PR | |
| Fuel Tank | Capacity: | 100L |
| Configurations: | Power Steering System | |
| AC | ||
| Retro-Reflective Marking | ||
| ABS | ||
| Free Maintenance Battery | ||
M600 Advantage:
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Freight truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
