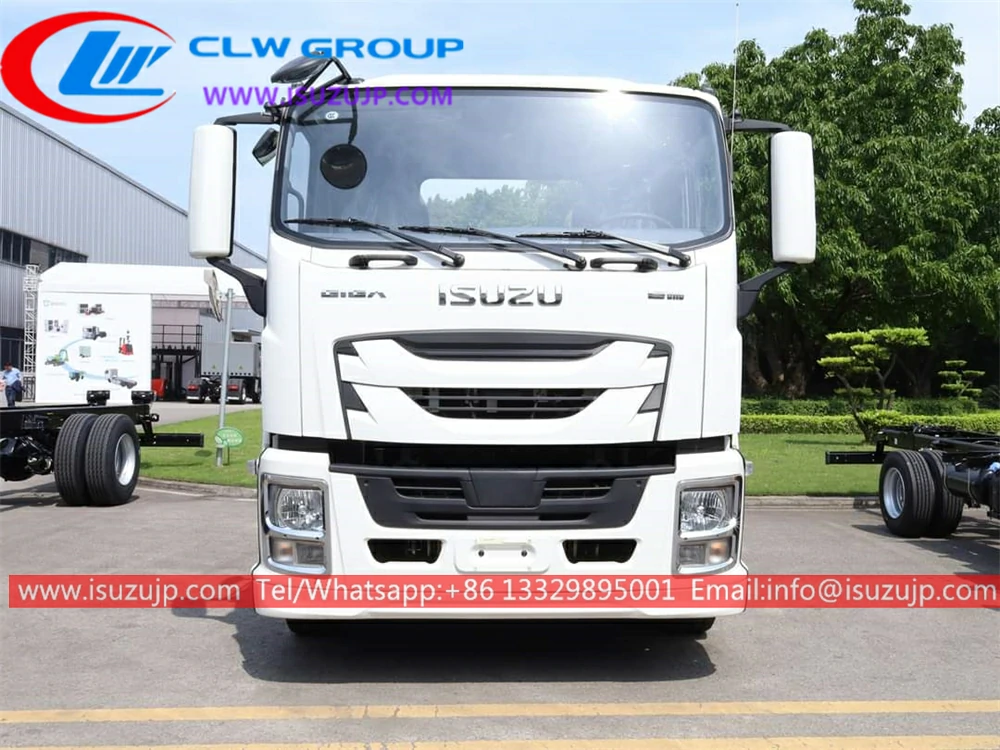

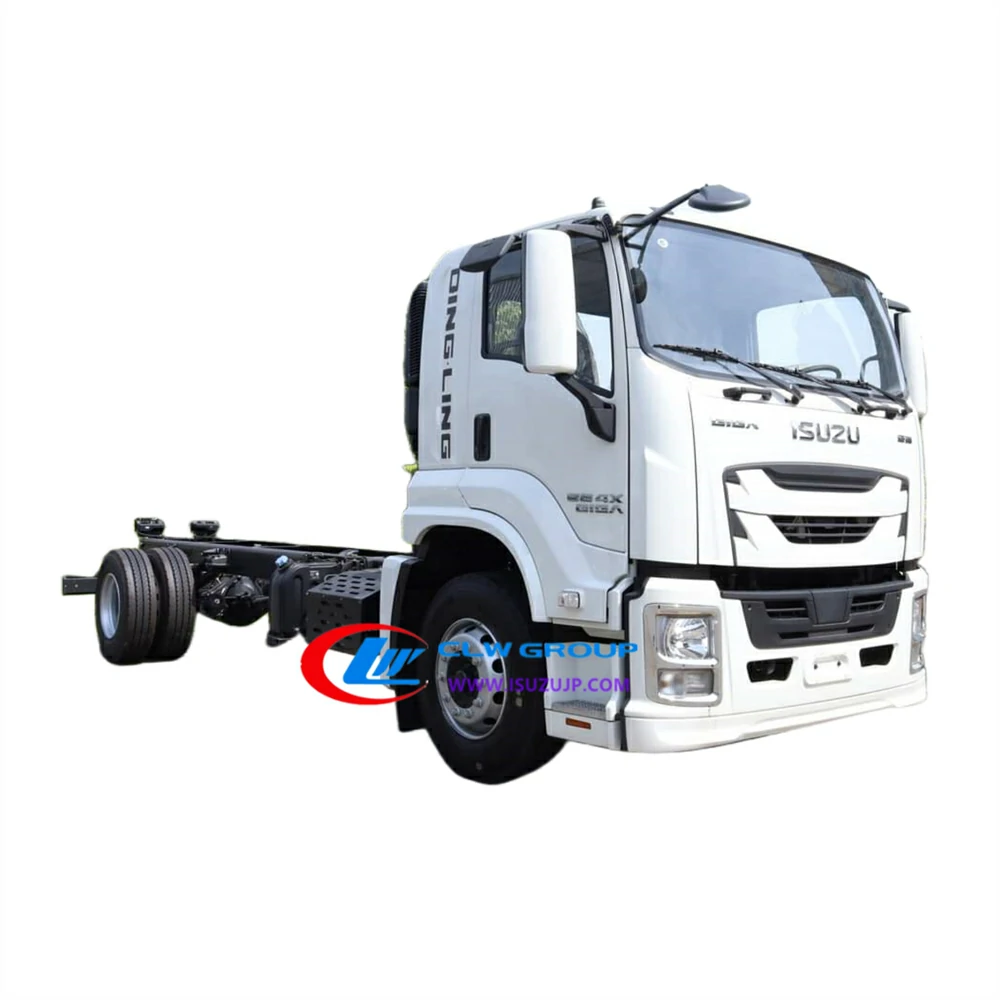

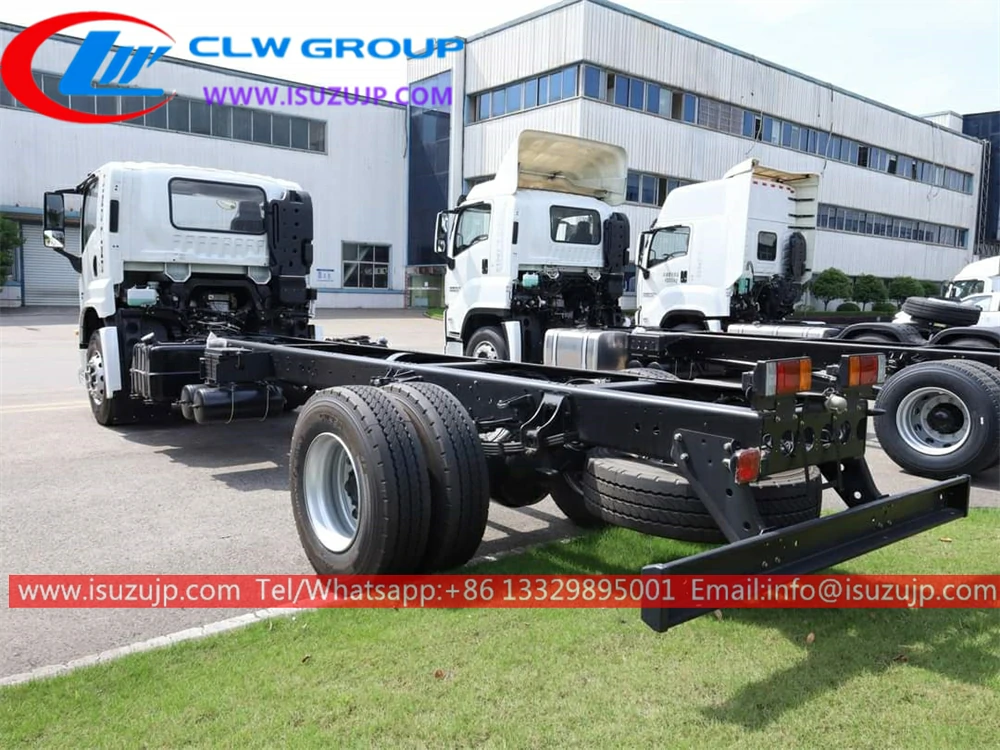

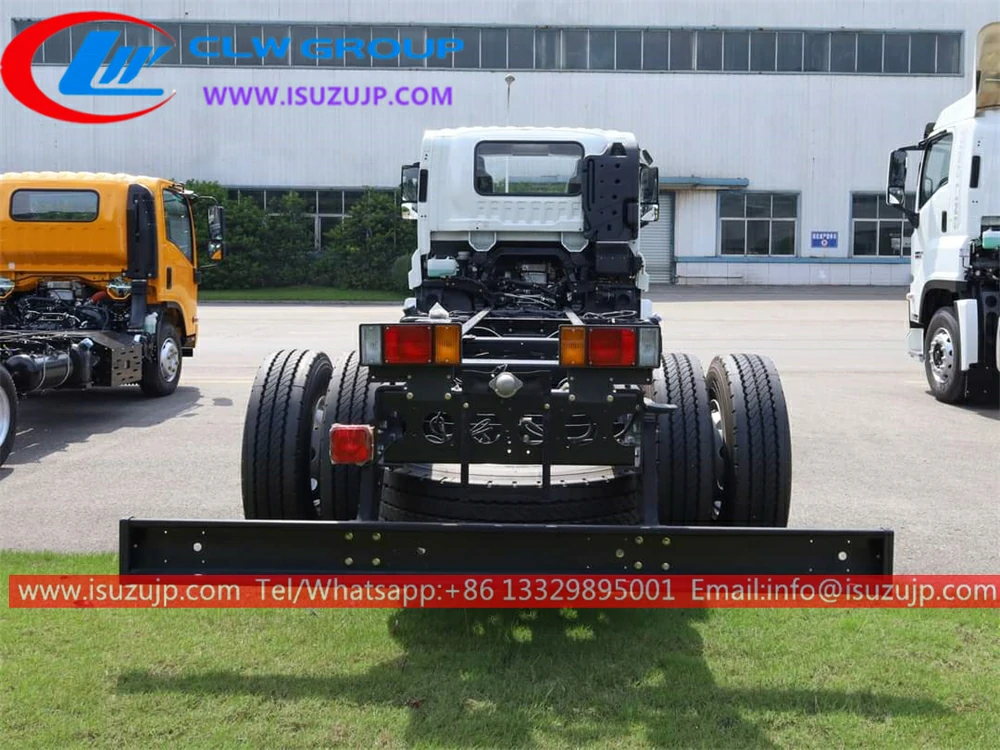

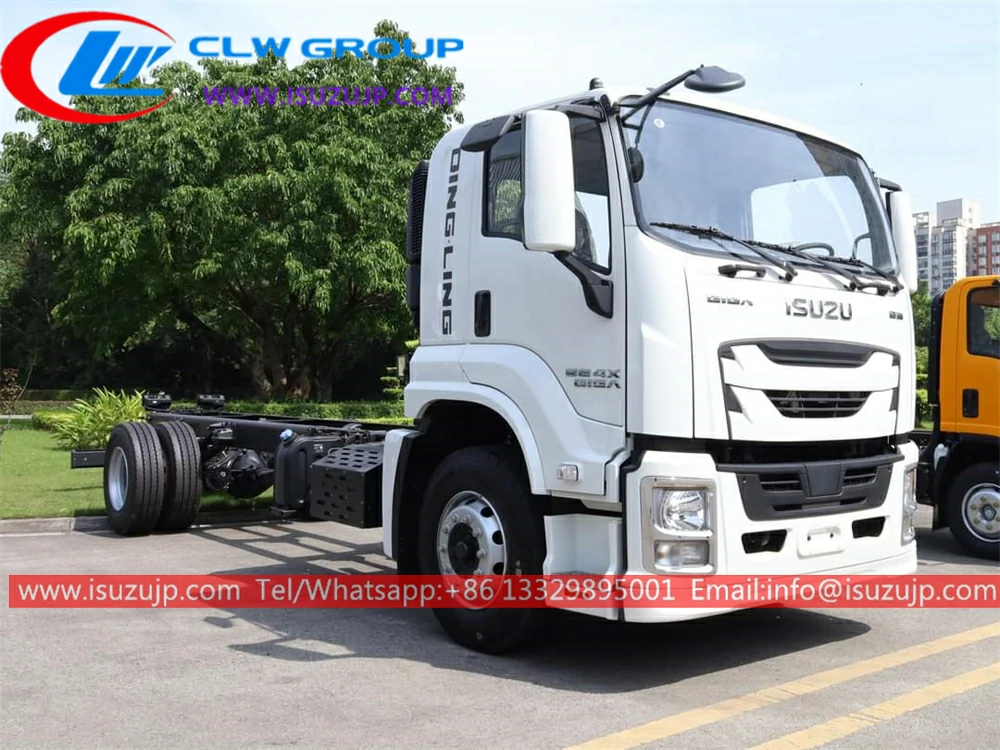

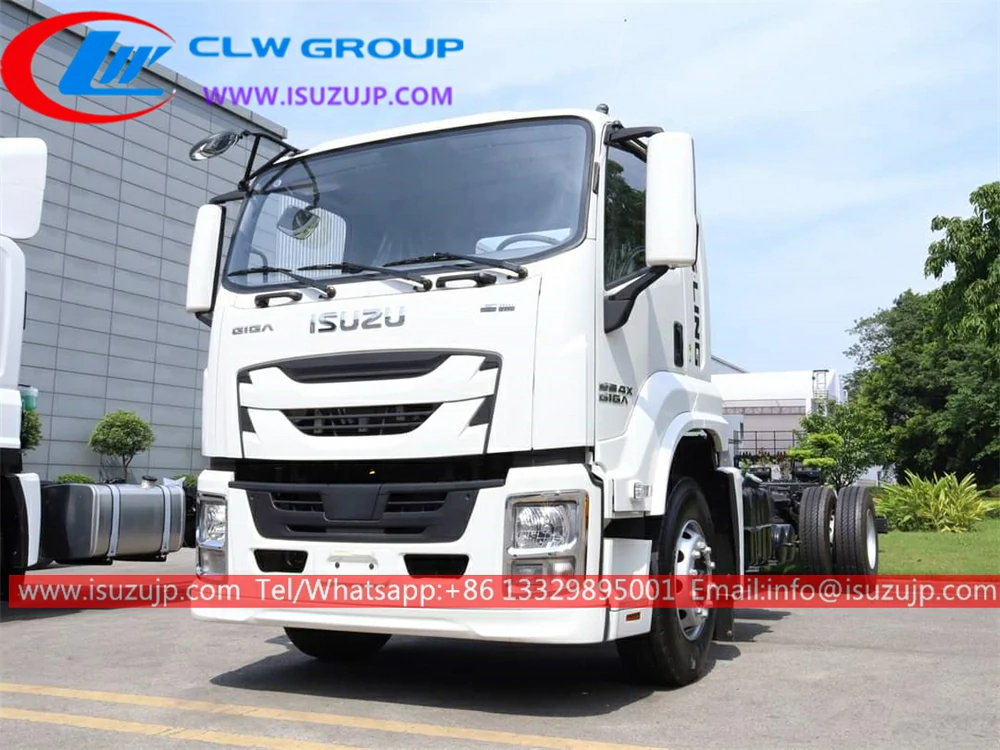

QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis Description:
QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis will provide you with more wheelbase options such as 3900 and 7300. The size of the short axle FTR vehicle (length x width x height) is 6835x2540x2810mm, and the wheelbase is only 3.9 meters. Such a short chassis is mainly used for the modification of special vehicles, not for ordinary logistics purposes. It is convenient for customers to choose more suitable trucks according to their own needs under the same horsepower and load capacity.
Advantage:
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 10-15Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
- The new FTR model is based on Isuzu’s original world-leading quality 4HK1-TC50 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
- The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.
Specification:
| Truck Brand | QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis |
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 6980-9000*2500*2800mm |
| GVW | 16000-18000Kg |
| Curb Weight | 5200Kg |
| Axle loading: | 7000/13000Kg |
| Wheelbase | 3900 4500 5000 5550 6200 7000mm |
| F/R Track | 1680/1650mm |
| Approaching Angle/Departure Angle(o) | 22/19 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 295/80R22.5 |
| Color: | Optional |
| Max Speed（Km/h） | 105Km/h |
| Engine | |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TCG60 |
| Fuel Type | Diesel Engine |
| Max output | 150Kw |
| Horsepower： | 250HP |
| Max Torque | 790N.m/2000rpm |
| Emission Standard | Euro Vi |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cabin | |

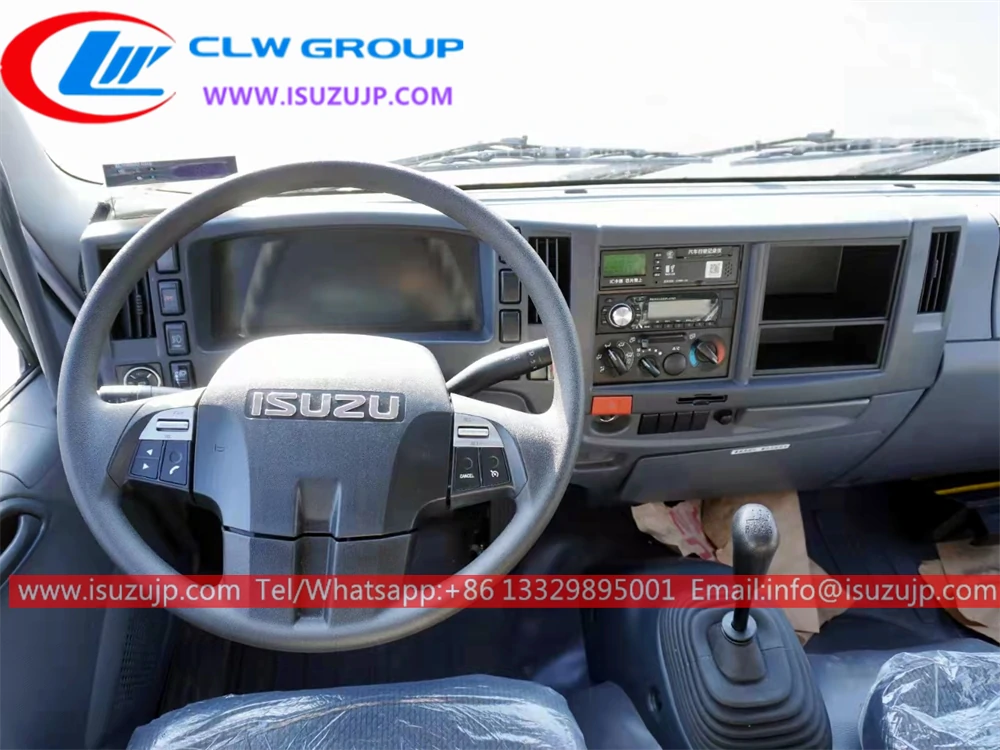

| Single Cabin with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
