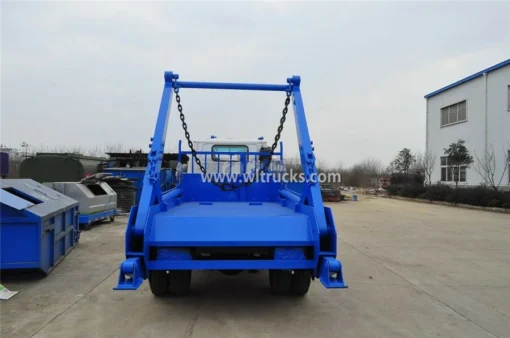

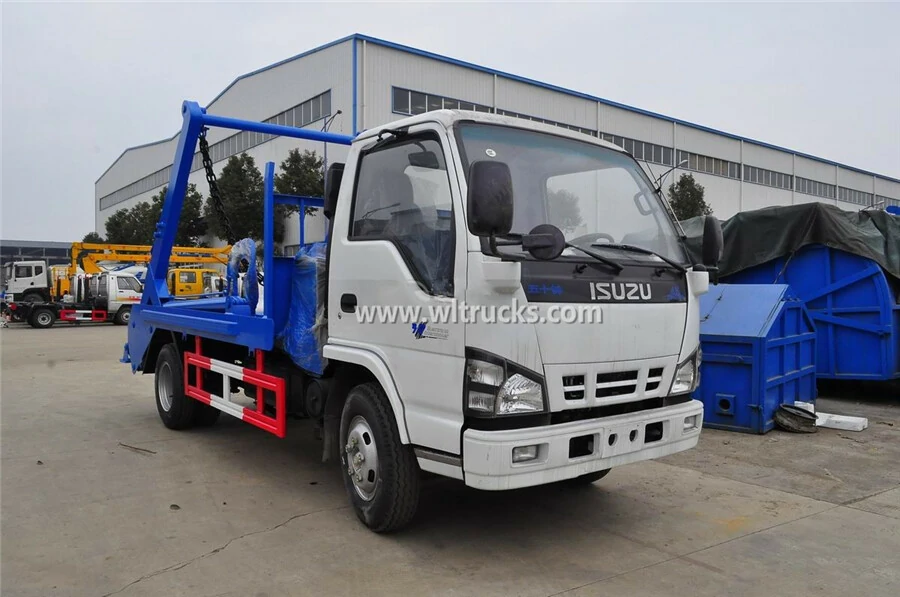

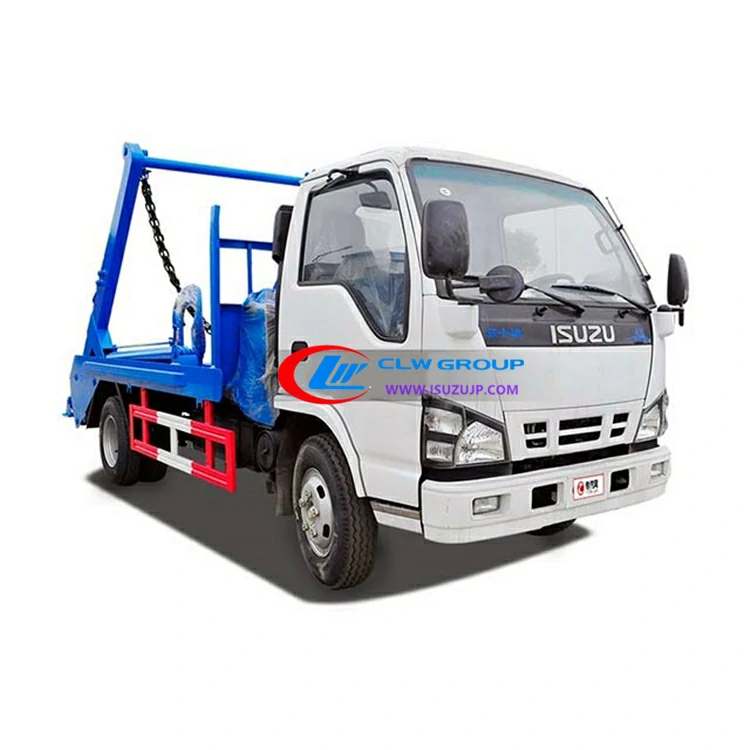

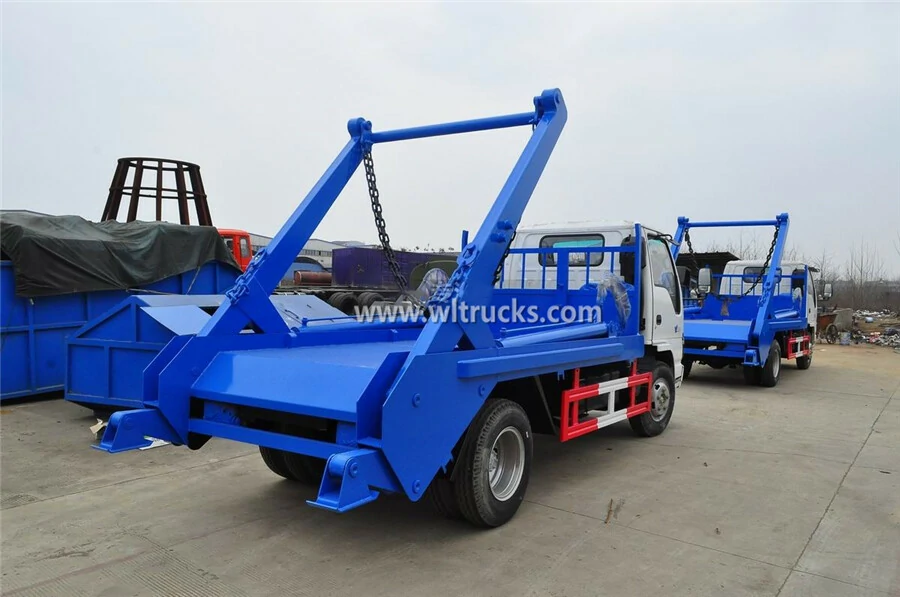

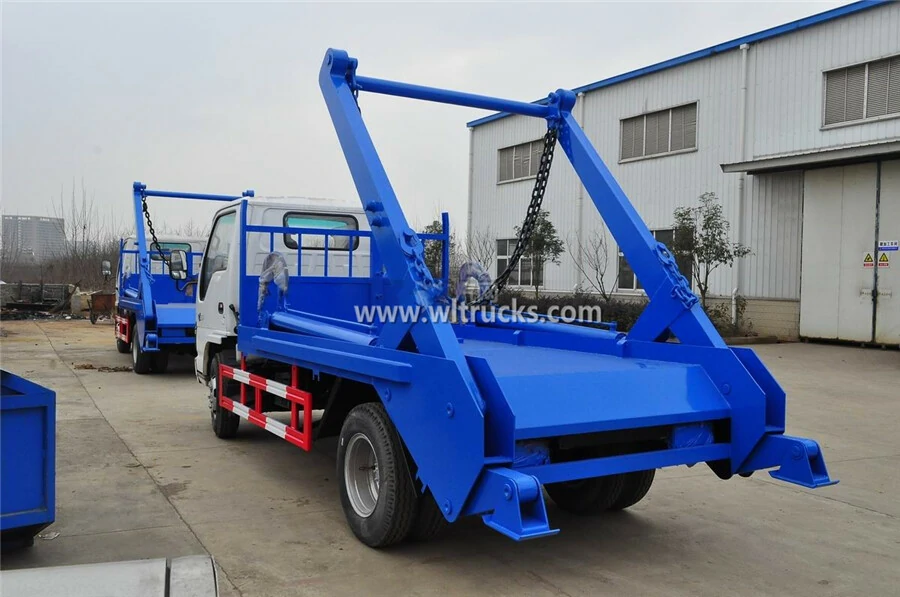

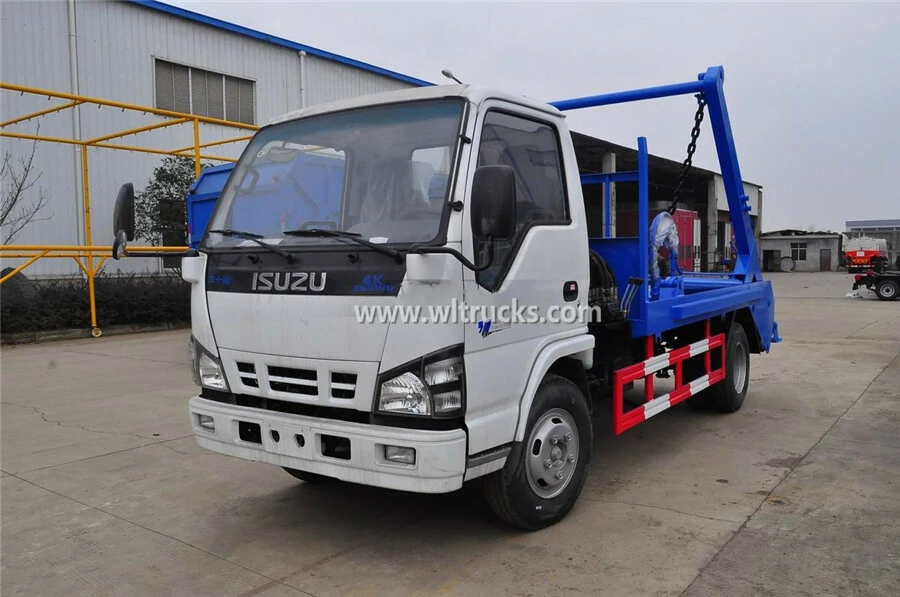

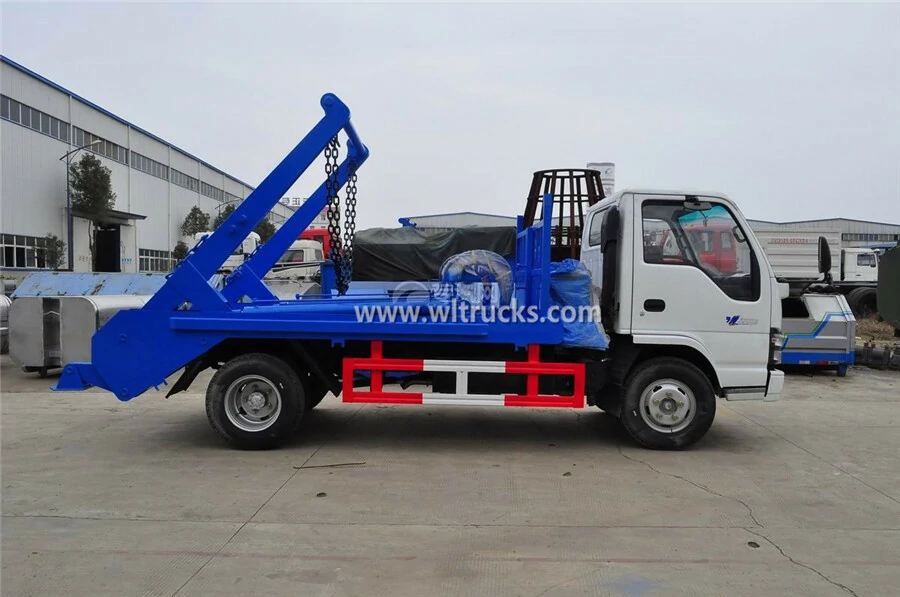

Japan Isuzu 5 ton swing arm garbage truck Description:
- Isuzu swing arm garbage truck is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage:
- ISUZU NKR 600P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A, more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid to re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo bodies, to recycle transport, improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.
Specification:
| Japan Isuzu 5 ton swing arm garbage truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000x2270X3010 mm | |
| GVW / Kerb Weight | 10,000 kg / 5,680 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2 left or right-hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3800 mm / 2 | |
| Tyre Specification | 7.50R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Container Capacity | 6 CBM, |
| Waste Box Material | Carbon steel | |
| Waste Box Thickness | Floor plate: 4 mm; side and top plate: 3 mm | |
| All other standard accessories: English manual, tool kit | ||
| Optional | Container material could be stainless steel. A sealed cover for the container. A truck with several containers. | |
structure diagram:
Skip loader Operation status:
skip lorries Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
