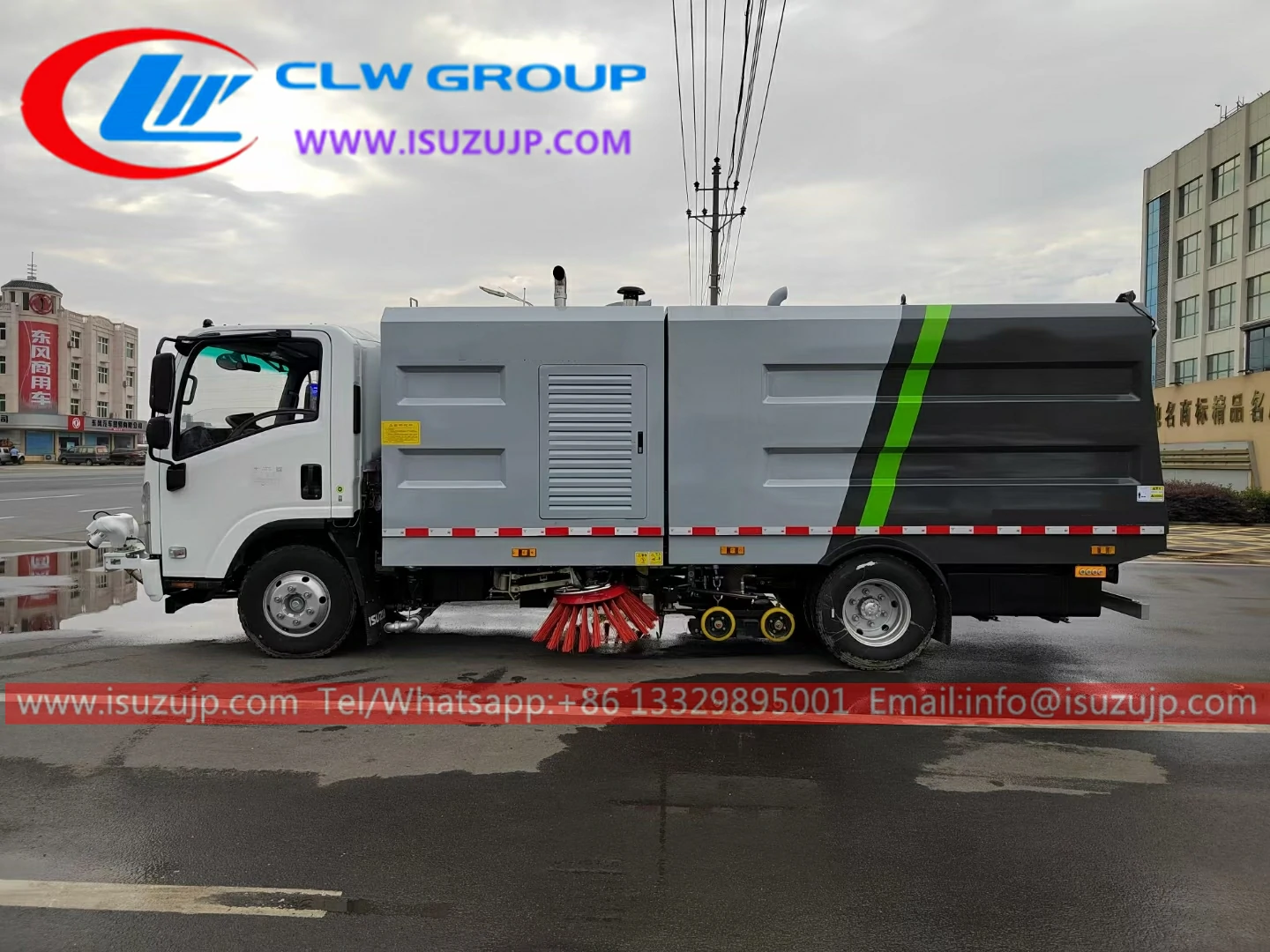

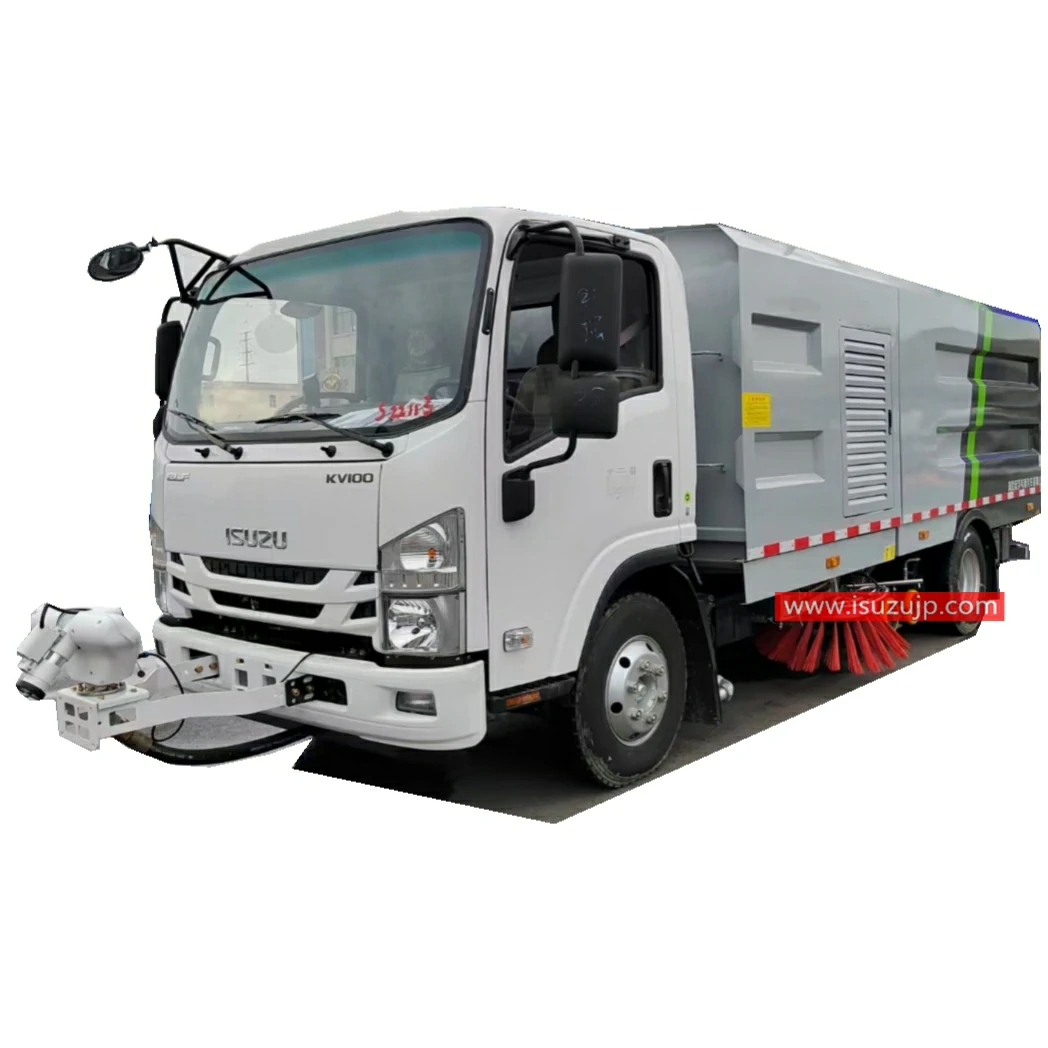

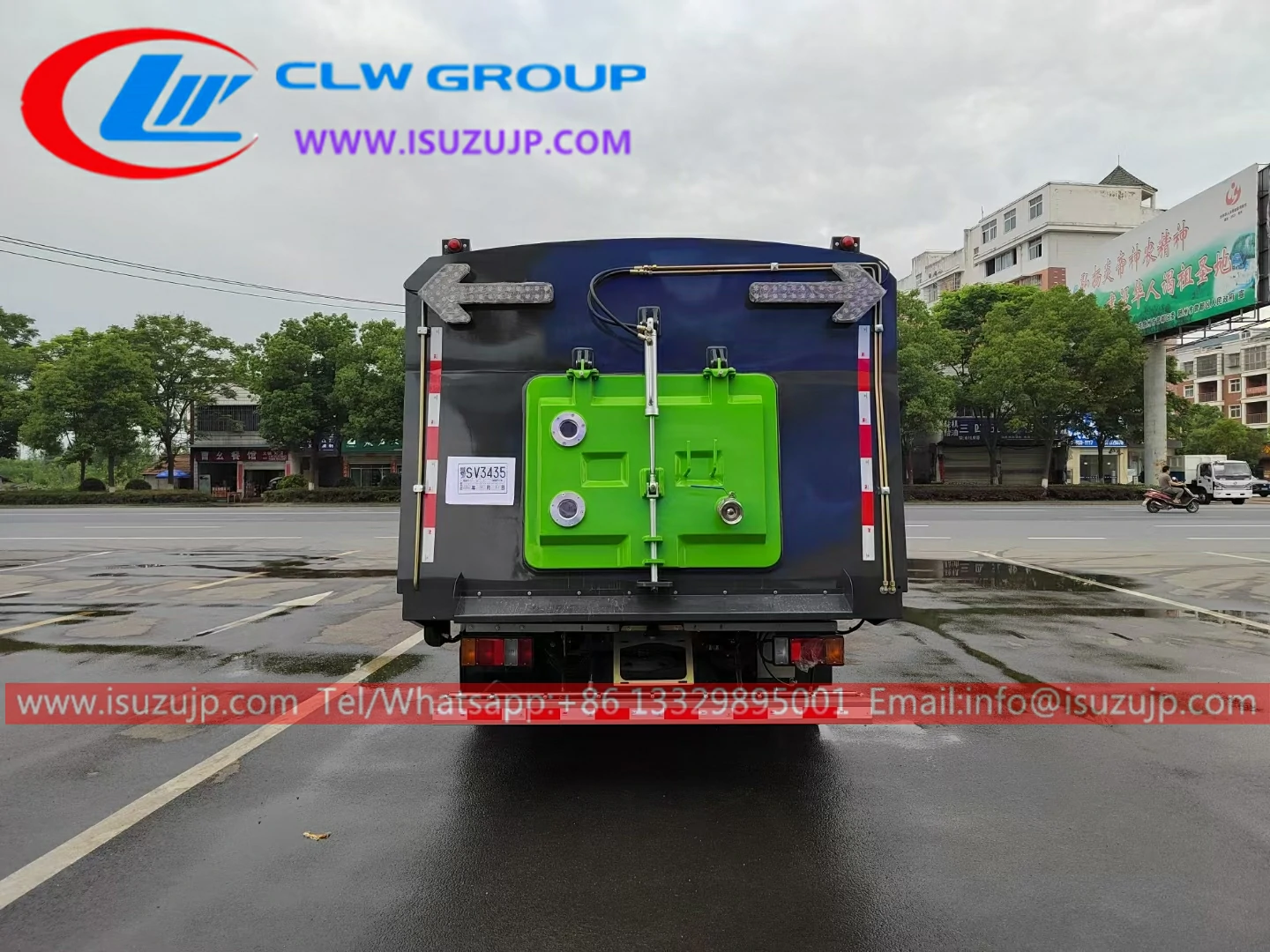

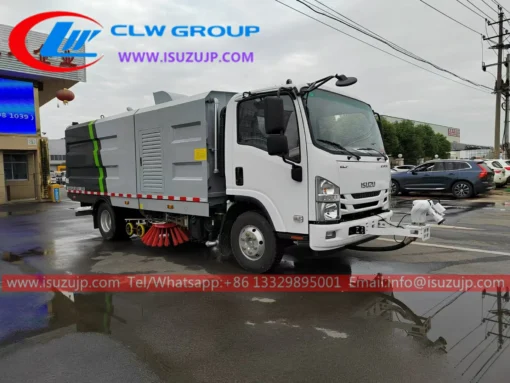

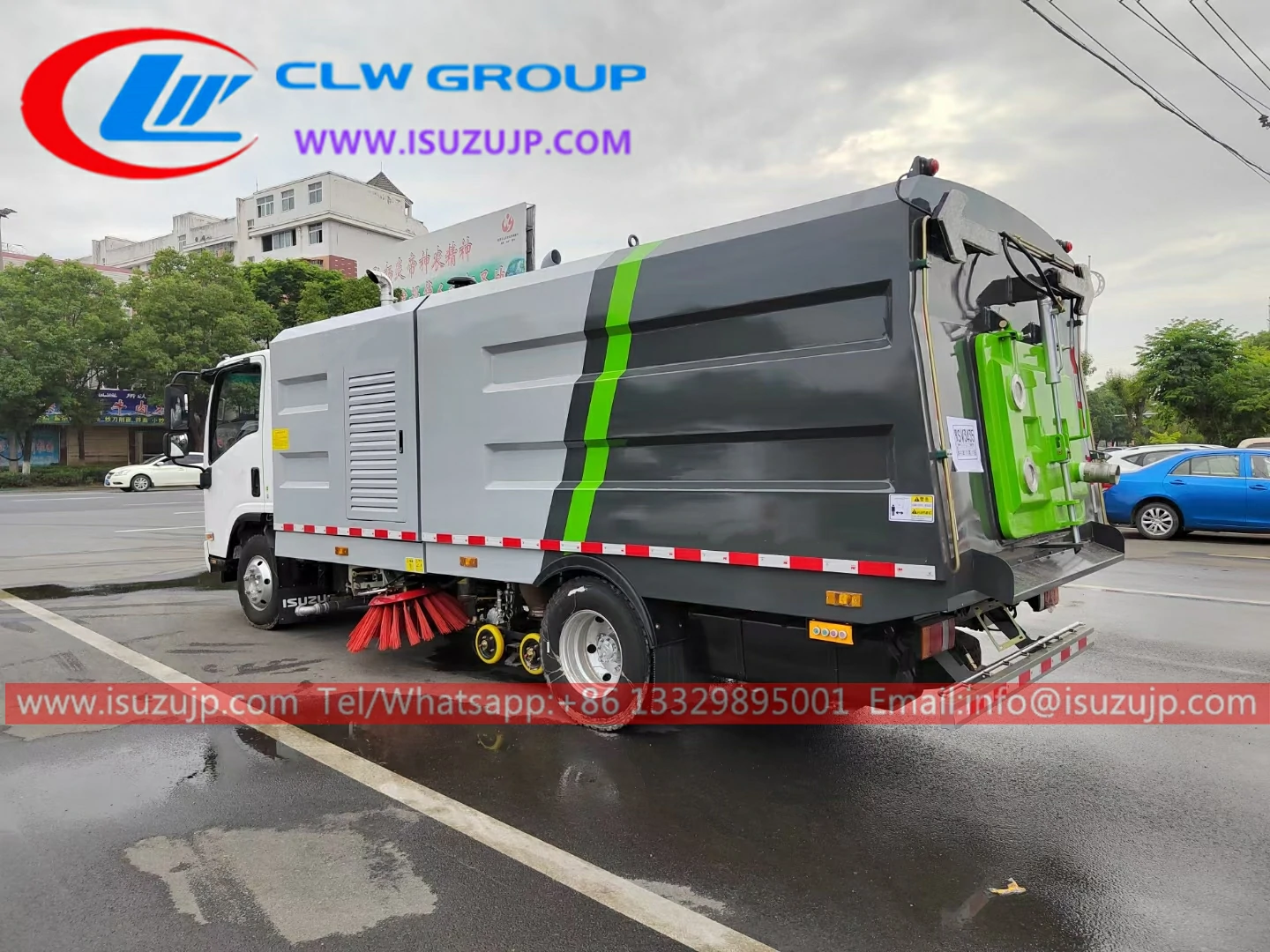

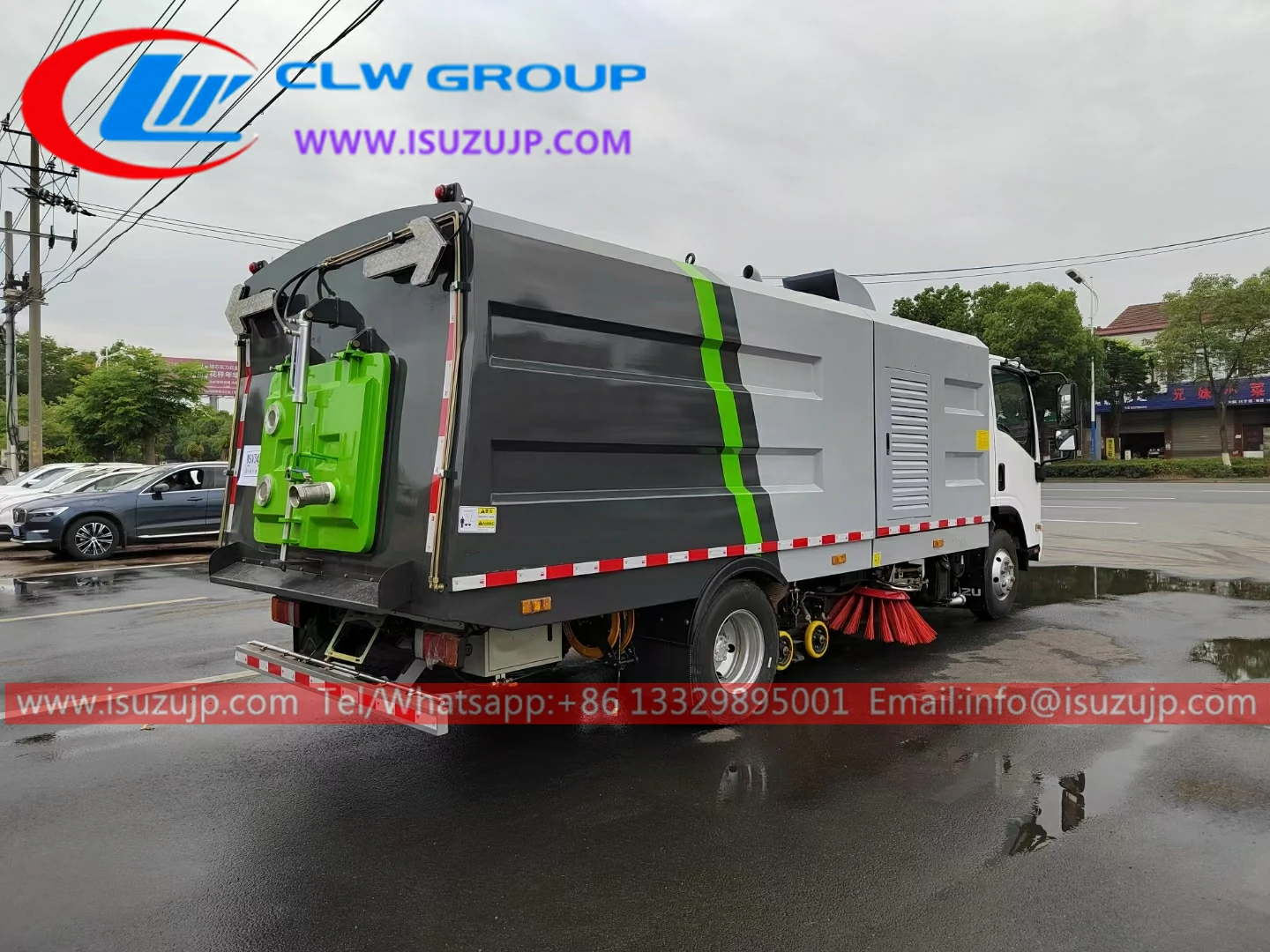

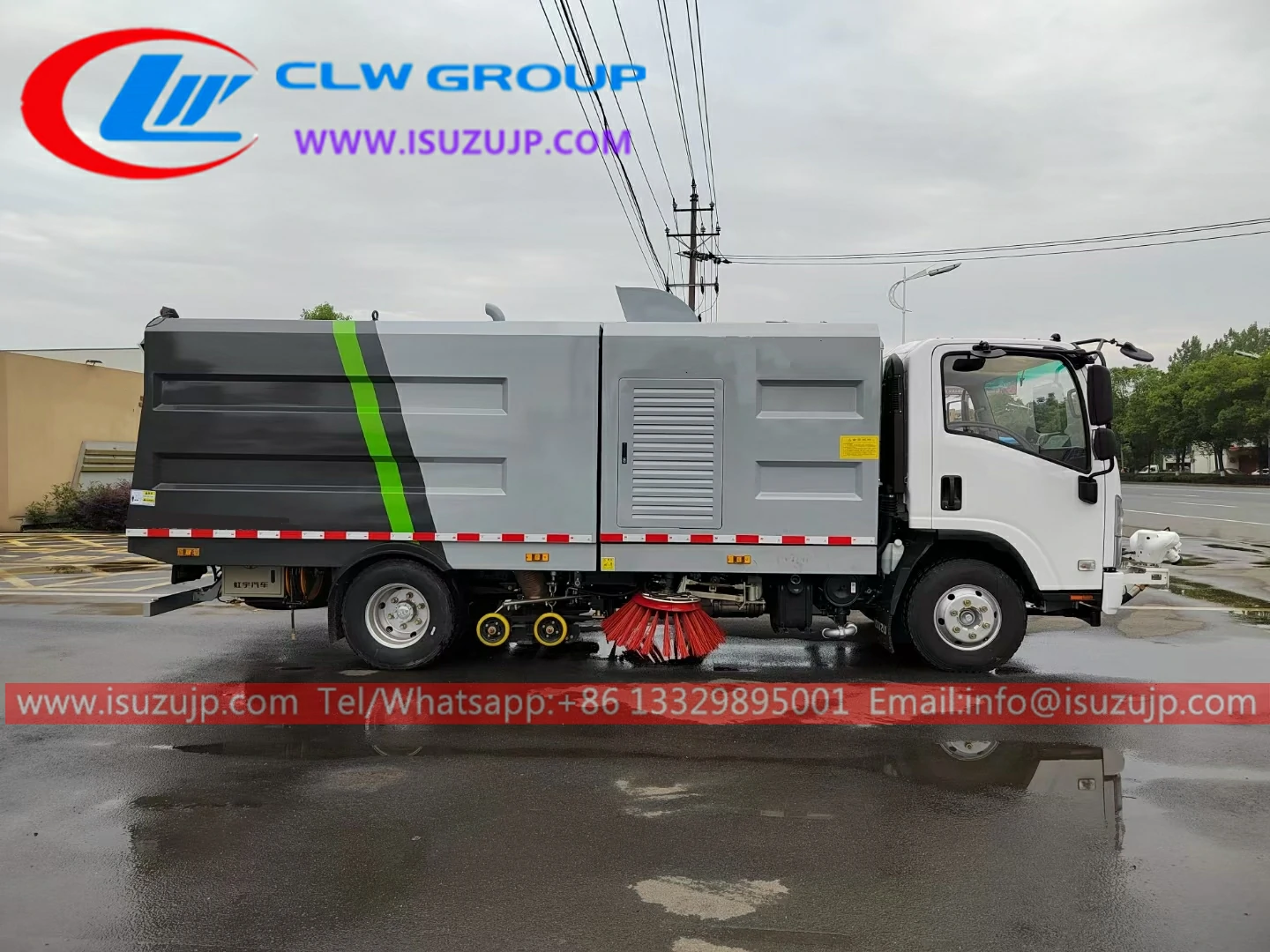

ISUZU NQR medium duty truck mounted sweeper Description:
- ISUZU NQR medium duty truck mounted sweeper also called road cleaning truck, street washing truck, street cleaning truck, vacuum washing truck, road washing and cleaning truck, cleaning and sweeping truck, Airport sweeper truck.
- A road washing sweeper truck is used for washing, cleaning and vacuum collecting of surface dust, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of the city, municipal roads and areas.
- Meantime, it has a high-pressure jetting function – washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of its convenient operation and high efficiency.
- It is equipped with an auxiliary engine, air blower, imported high-pressure plunger pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.
- The street washing truck has a self-cleaning system that could tip garbage and washing the dustbin automatically.
Advantage:
- ISUZU ELF 700P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported a high-pressure pump, a super-powerful, efficient pump in and out with Strong, durable, and perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU NQR medium duty truck mounted sweeper for sale | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7600x2400x3000 mm | |
| GVW / Kerb Weight | 12,055kg / 6,440kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tire Specification | 8.25R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 110 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 6 cbm water tank & 3 cbm dust tank |
| Tanker material | Stainless steel | |
| Sweeping capacity | 42,000 cbm/h | |
| Sweeping speed | 3-15 km/h | |
| Max. sweeping width | 3200 mm | |
| Brooms | 2 set at each side, at diameter 800 mm | |
| Auxiliary engine | Cummins 140HP, super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | Back alarm and Camera can be equipped. Italy Brevini motor can be optional. Air blower can be of stainless steel | |
composition structure:
Core components introduction:
Road sweeping vehicle Optional configuration:
Technical training support:
Road Sweeper accessories,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Sweeper machine shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
