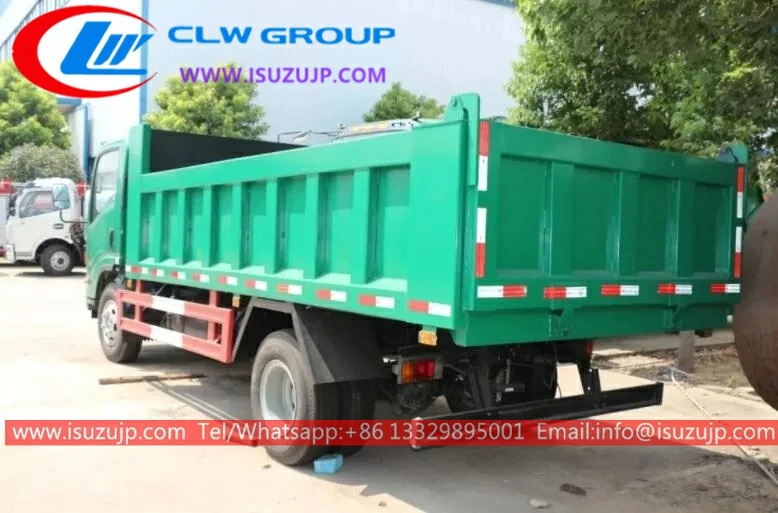

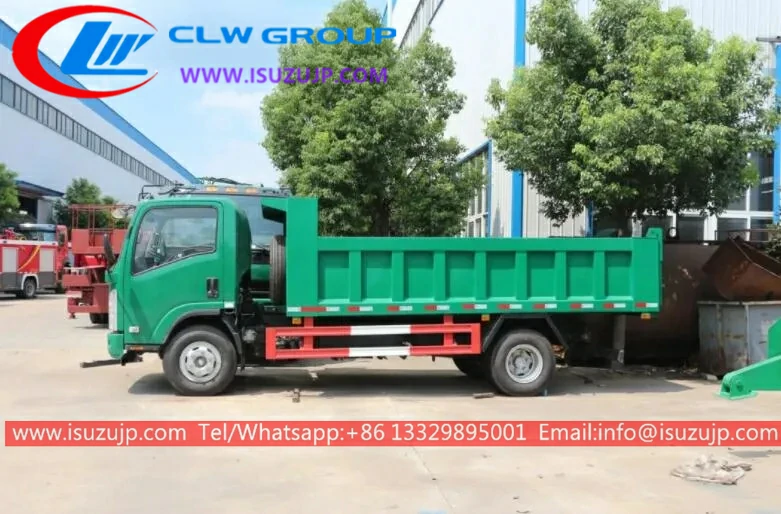

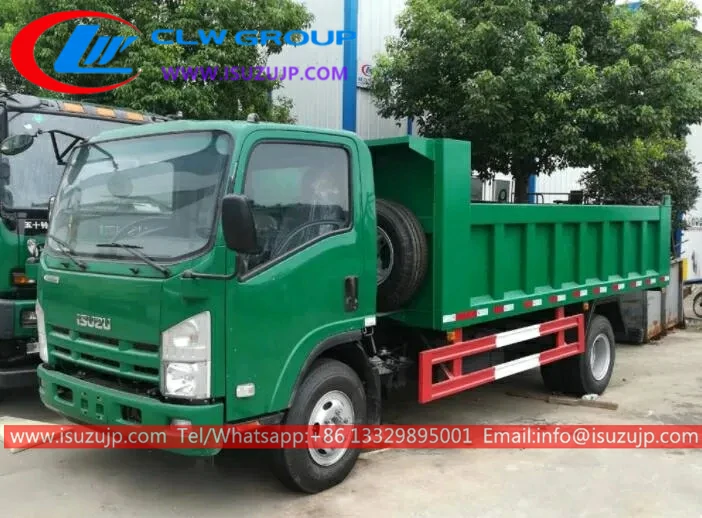

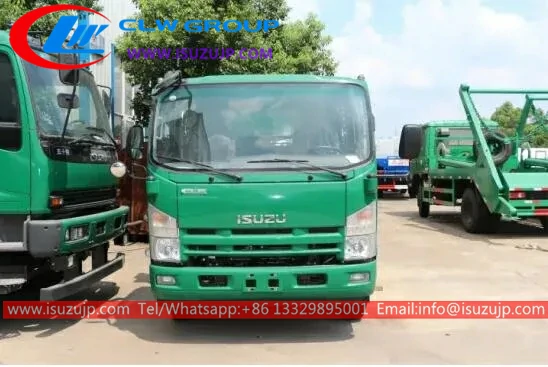

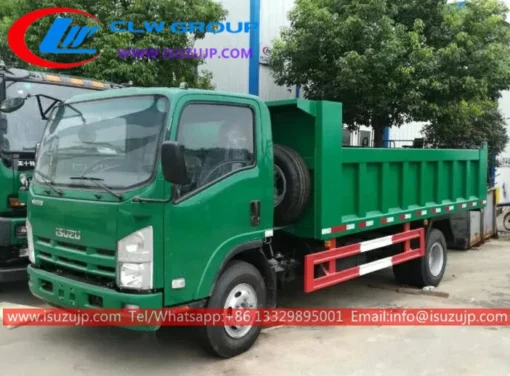

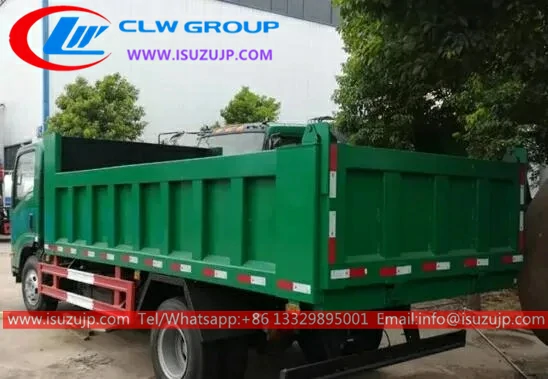

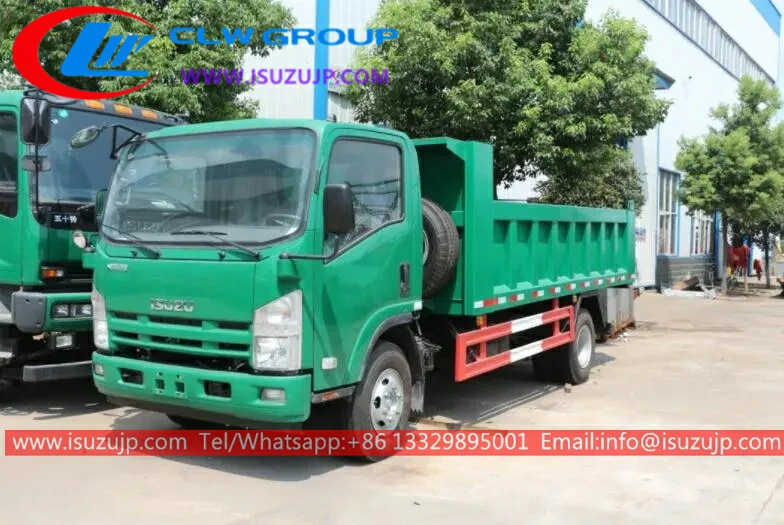

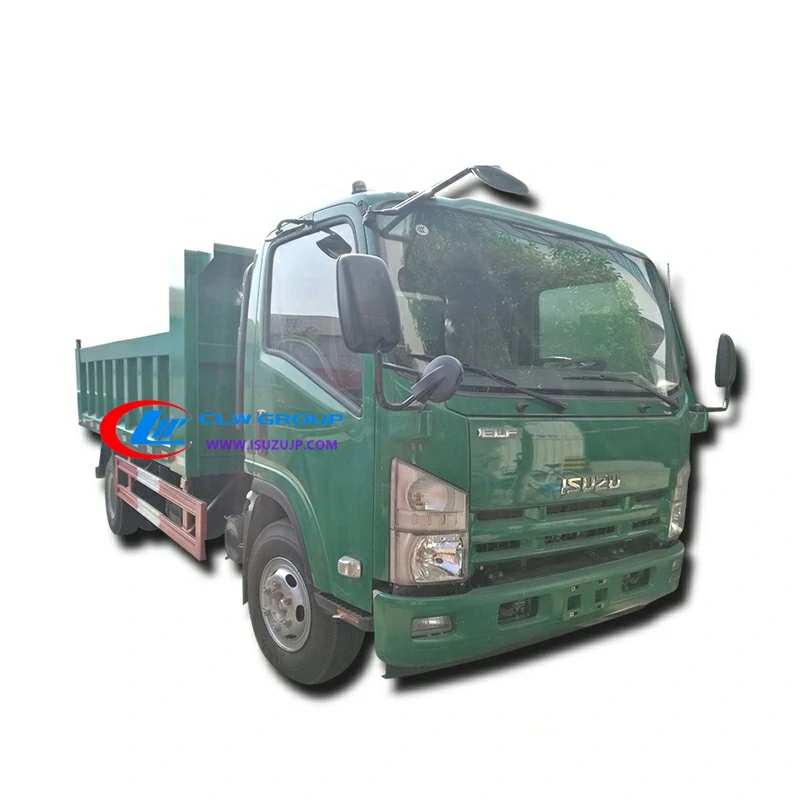

ISUZU NQR Light Duty 6 cube drop side tipper truck Description:
- Isuzu 6 cube drop side tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage:
- ISUZU NQR light-duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
Chassis Parameters | Vehicle: | ISUZU NQR Light Duty 6 cube drop side tipper truck for sale |
Overall Dimension(L x W x H) | 6605x2276x2450mm | |
Curb Weight: | 5380Kg | |
GVW: | 10000Kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4×2 | |
Engine | Engine Model: | 4HK1-TC40, Euro 4 |
Engine Power: | 139(kW) | |
Delivery Capacity: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | Isuzu MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Seats | Front Seat: | 3 |
Chassis | Front Wheel Distance: | 1680mm |
Rear Wheel Distance: | 1650mm | |
Axle Loads: | Double Axles | |
Rear Axle Ratio: | 4.1 | |
Tires: | 7(including the spare tire) | |
Tire Model: | 8.25R20 14PR | |
Configuration | Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance Battery | |
Top Parameter | Dumper Capacity: | 6.4m3 |
Box Dimension(L x W x H) | 4000x2000x800mm | |
Cylinder | Middle Lift, Single Hydraulic Jack | |
The thickness of the Dump body | Bottom 4 side 3 |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
