Introduction:

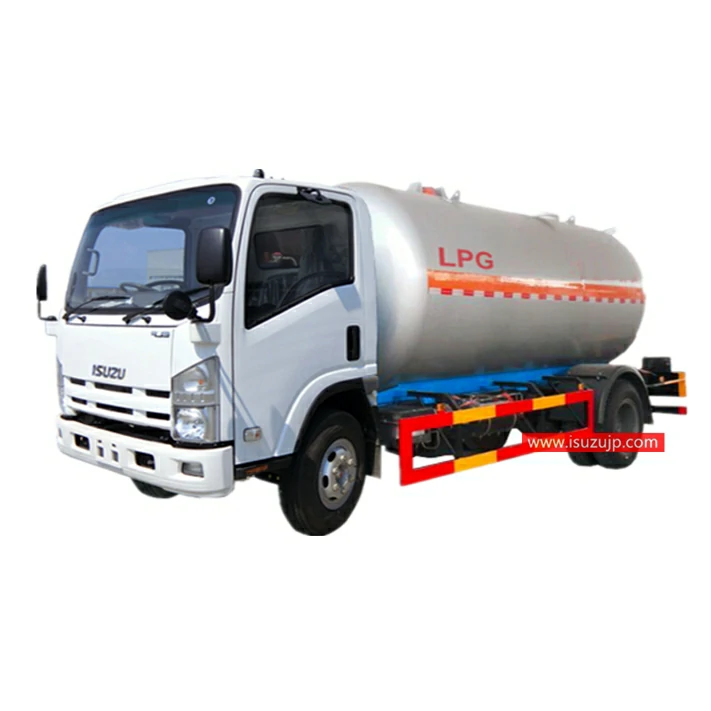

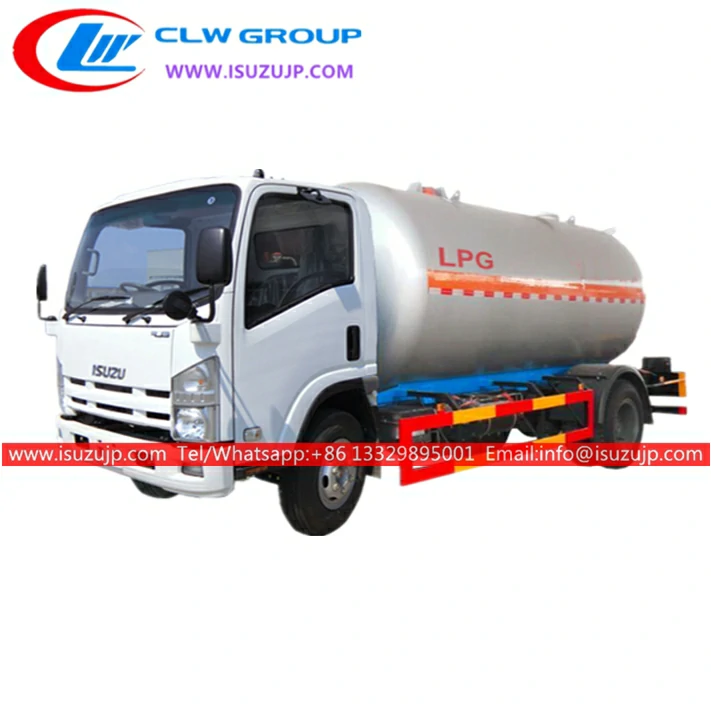

ISUZU NQR 8000liters LPG truck also called LPG tanker, GAS delivery vehicle, propane tanker, etc
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic Meter.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
lpg truck Specifications:
ISUZU NQR 8000liters lpg truck for sale | ||
General | Vehicle Brand | CHENG LI |
Chassis Brand | ISUZU | |
Overall Dimension | 7600X2500X2700 mm | |
GVW / Kerb Weight | 15,000 kg / 9,500 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ Air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 190 Hp (140 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, left-hand drive |
Transmission | 6-speed forward, 1-reverse | |
Wheelbase/No. of axle | 4175 mm / 2 | |
Tyre Specification | 8.25-16 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 110 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 8,000 Liters |
Tank Material | Specialized steel for high-pressure gas tank | |
Tank Thickness | 8 mm | |
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape… | ||
Optional | Separate inlet and outlet. Pump, gas dispenser…. |
Lpg trucks Different designs:
ISUZU gas truck design diagram:
Lpg truck Type exhibition:
lpg tanker Production Process:
Export Document:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
