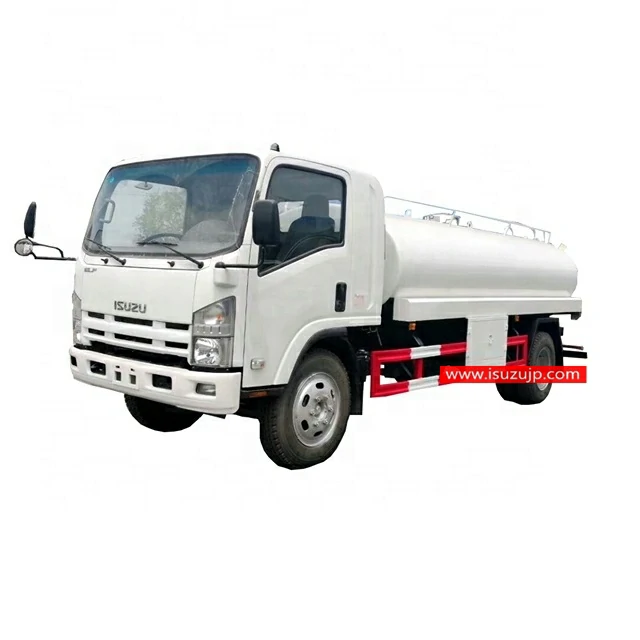

ISUZU NQR 2500 gallon stainless steel water tanker Application:
- Isuzu stainless steel water tanker (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.

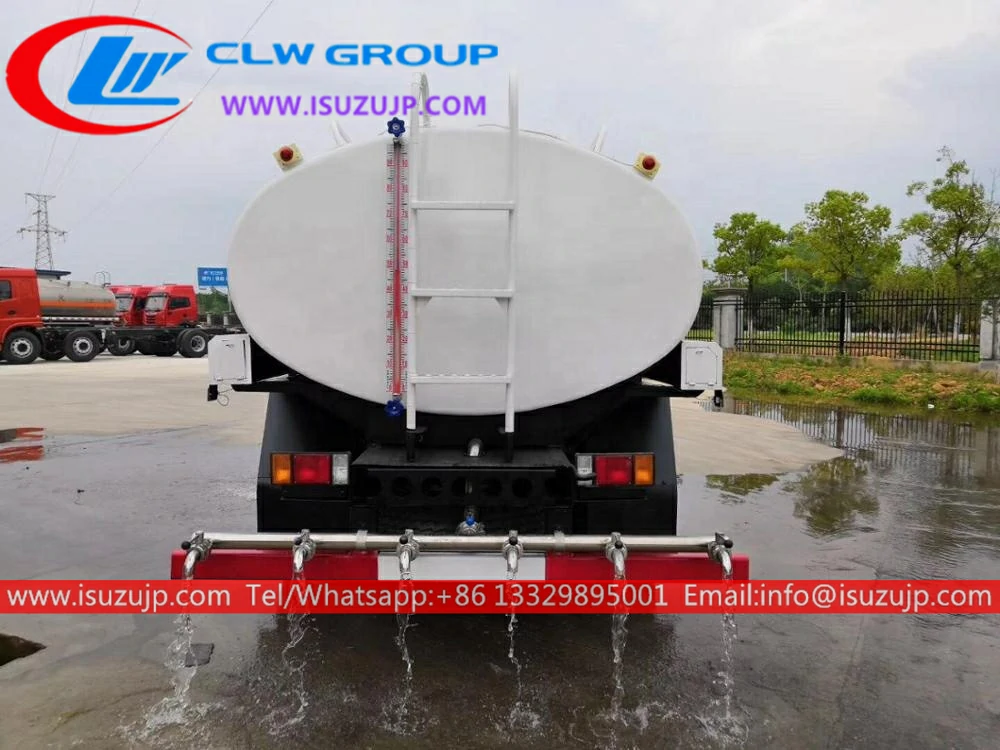

- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called a water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage:
- ISUZU NQR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
ISUZU NQR 2500 gallon stainless steel water tanker | ||
General | Vehicle Brand | CHENG LI |
Chassis Brand | ISUZU | |
Overall Dimension | 7650X2500X2900 mm | |
GVW / Kerb Weight | 16,000kg / 6,000kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | With air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine, 4HK1 | |
Power | 190 HP (139 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2 left-hand drive |
Transmission | ISUZU gearbox, no overhaul within 500,000km | |
Wheelbase/No. of axle | 4175 mm / 2 | |
Tyre Specification | 235/75R17.5 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 110 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 10,000 Litres ( 2,500gallons) |
Tank Material | Carbon steel | |
Flow Speed | 1000 liters / min | |
Delivery Head | 90 m | |
Suction Head | 6 m | |
Hose | High-quality PVC hose, anti-aging | |
All other standard accessories: manhole, ladder, inlet, discharge. etc | ||
Optional | Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for the human body. |
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Water pump brand | International well-known brand pump | Waterway | Self-priming water, fire water injection, tank topwater injection |
Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts:
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
water supply truck Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
