Introduction:

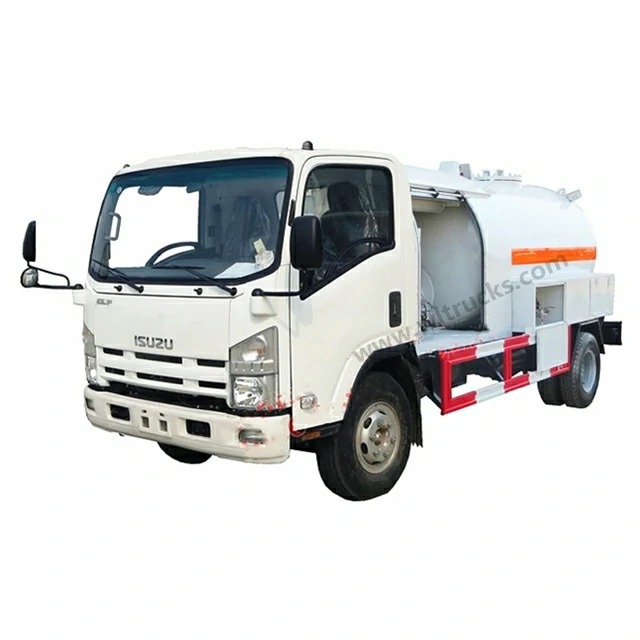

ISUZU NPR 5000liters propane tanker truck also called LPG tanker, LPG delivery vehicle, GAS tanker, etc
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic Meter.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
lpg truck Specifications:
ISUZU NPR 5000liters propane tanker truck | ||
Chassis Model /Manufacturer | QL1090 | |
Overall Dimension | 7360*2200*2700mm | |
Total Mass | 12350Kg | |
Loading weight | 6000kg | |
Kerb Weight | 6200Kg | |
front overhang/rear overhang | 1110/2235 | |
Engine | Model/Rated Power | 4HK1-TCG40 / 140kw 190Hp |
Emission Standard | Euro 4 | |
Displacement | 5193L | |
manufacturer | ISUZU Motor Co., Ltd. | |
driving type | 4*2 | |
Steering Type | Powering steering | |
Type & Size of Tyre | 8.25-16 | |
Tread( front/rear) | 1680/1650 | |
Front axle | 4T front axle | |
Rear-axle | 7T rear axle | |
Wheel Base | 3815mm | |
Number of leaf spring of the suspension | 8/10+6 | |
Max Speed | 120Km/h | |
Other | Capacity:5,000Litres to 6000Liters | |
With LPG Pump, LPG Dispenser, LPG Filling Nozzle | ||
Other | ISUZU MSB Five forwards the transmission | |
Power steering. air condition | ||
Oil brake with vacuum booster pump |
Lpg trucks Different designs:
ISUZU gas truck design diagram:
Lpg truck Type exhibition:
lpg tanker Production Process:
Export Document:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
