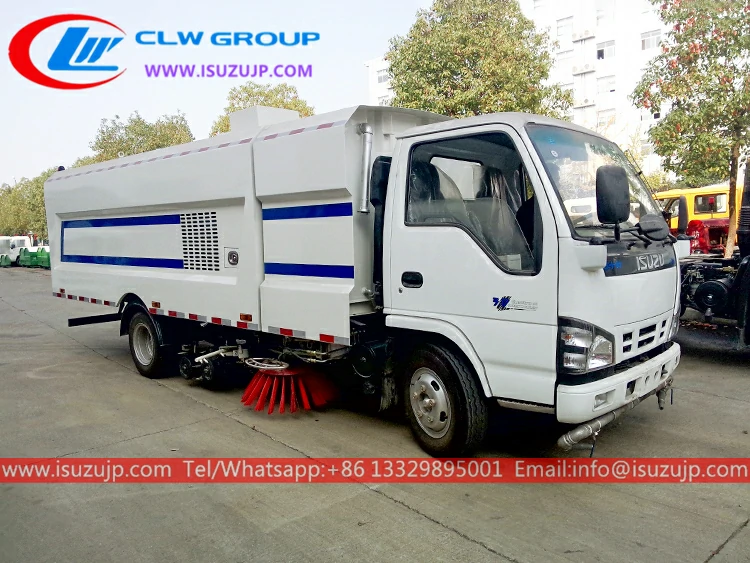

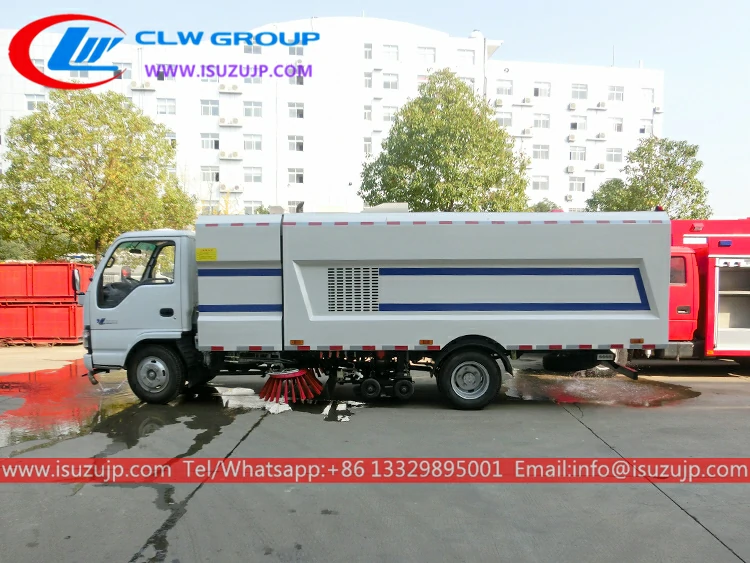

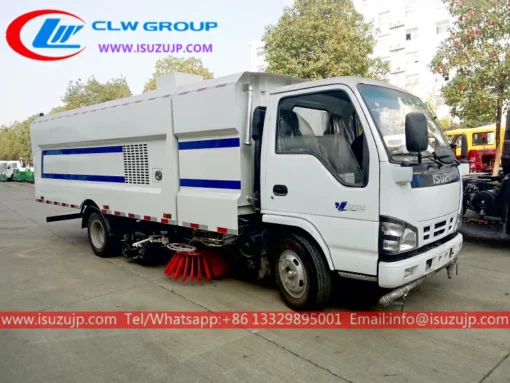

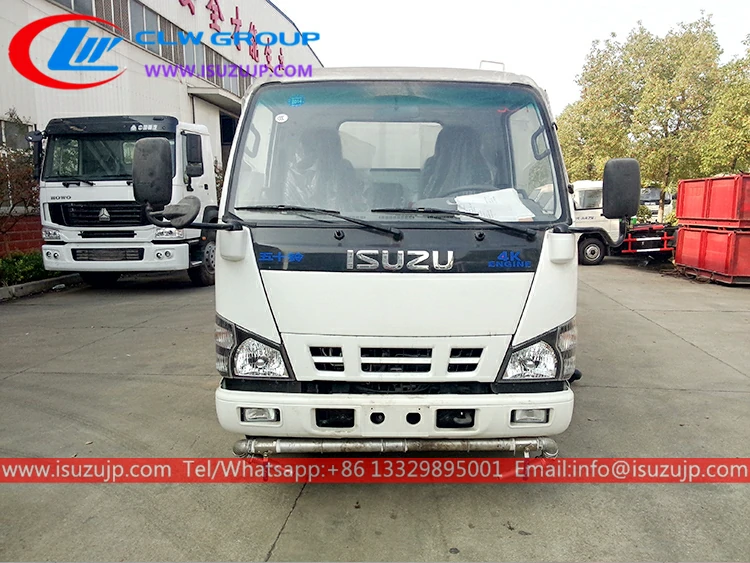

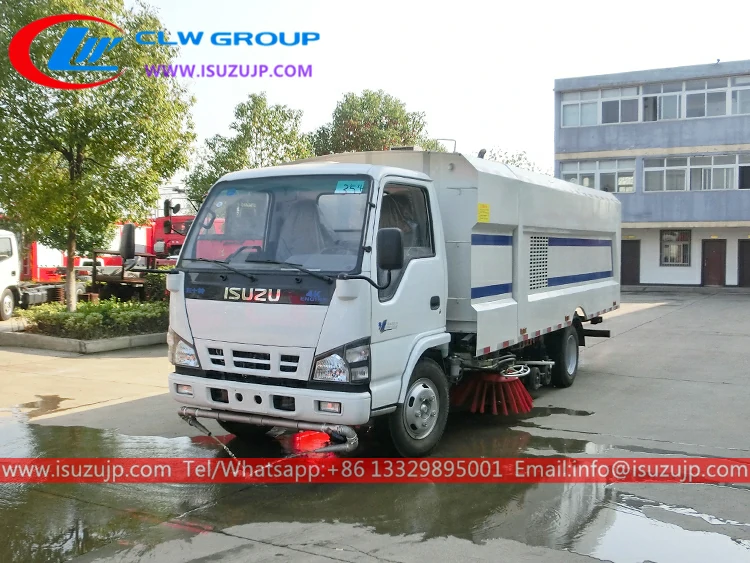

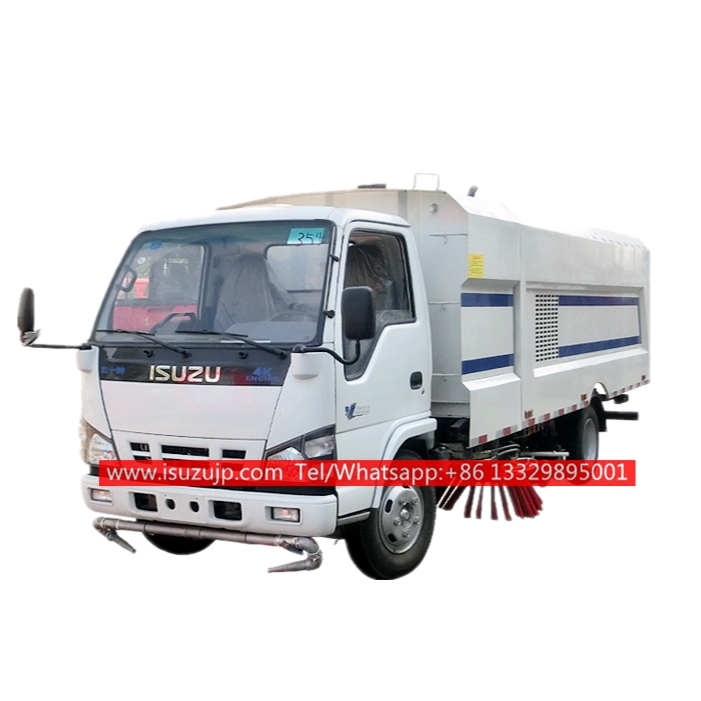

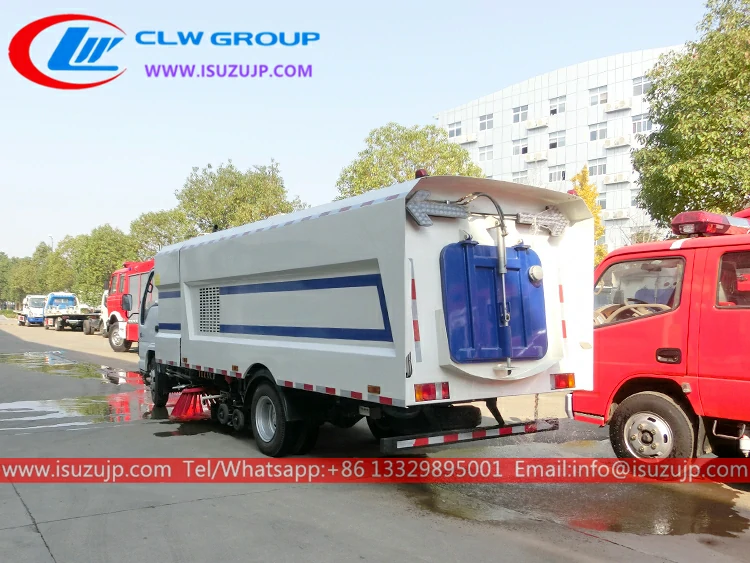

ISUZU NKR 8m3 cleaning and sweeping vehicle Description:
- ISUZU cleaning and sweeping vehicle also called road cleaning truck, street washing truck, street cleaning truck, vacuum washing truck, road washing and cleaning truck, cleaning and sweeping truck, Airport sweeper truck.
- A road washing sweeper truck is used for washing, cleaning and vacuum collecting of surface dust, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of the city, municipal roads and areas.
- Meantime, it has a high-pressure jetting function – washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of its convenient operation and high efficiency.
- It is equipped with an auxiliary engine, air blower, imported high-pressure plunger pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.
- The street washing truck has a self-cleaning system that could tip garbage and washing the dustbin automatically.
Advantage:
- ISUZU NKR 600P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification:
| ISUZU NKR 8m3 cleaning and sweeping vehicle (4 CBM Dustbin and 4 CBM Water Tank) | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7200x 2300×2900 mm | |
| GVW / Kerb Weight | 10,500 kg / 6,860 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 4 CBM (1,000 gallons) |
| Dustbin Material | 4 CBM , Stainless Steel | |
| High Pressure Pump | Imported Italian high pressure water pump | |
| Working Speed | 3-13 km/h | |
| Working Width | 3150 – 3500 mm | |
| Sweeping Capacity | 63,000 m³/h | |
| Brooms | 2 sets | |
| Suction Plate | Big diameter 180mm, Hydraulic controll | |
| Auxiliary Engine | Cummins 140HP, super powerful | |
| All standard accessories: hose, high-pressure hose reel, high-pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Front snowplow. Elevating Platform. High cannon. | |
composition structure:
Core components introduction:
Road sweeping vehicle Optional configuration:
Technical training support:
Road Sweeper accessories,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Sweeper machine shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
