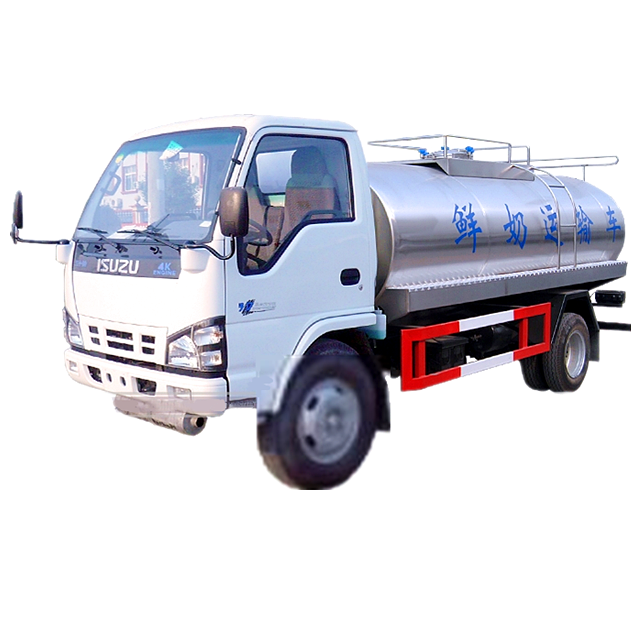

Milk tanker truck Application:
- Isuzu Milk tanker truck Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
- Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage:
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- Strong, durable, perfect performance
- Prolonged service life
Specification:

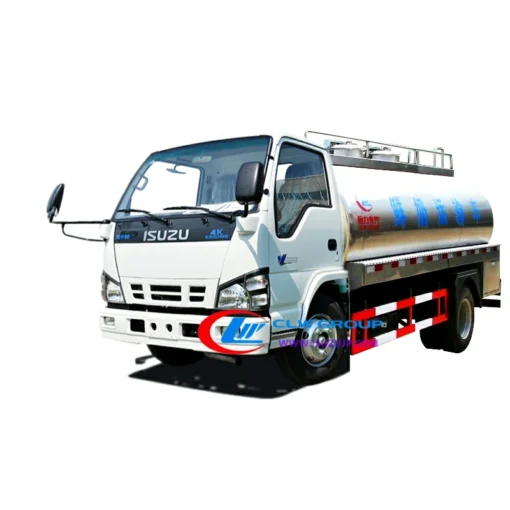

| ISUZU 8000liters Milk Tanker Truck | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6990X2200X2800 mm | |
| GVW / Kerb Weight | 9,800 kg / 4,300 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With AC | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 130 HP (96KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.50R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres ( 2,000 gallons) |
| Tank Material | Stainless Steel or Aluminum | |
| Pump | Stainless steel pump | |
| All standard accessories: English manual, tool kit…… | ||
| Optional | ** Tank material could be stainless steel, aluminum…… ** It can be divided into many compartments. | |
Tank manufacturing standards:
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
- The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.

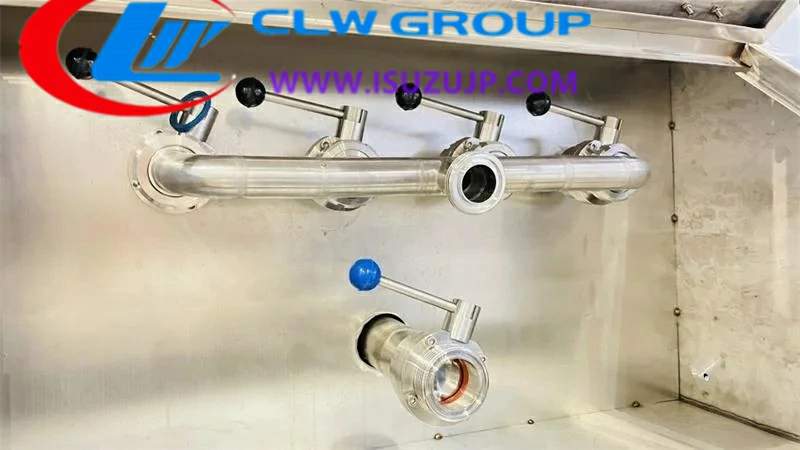

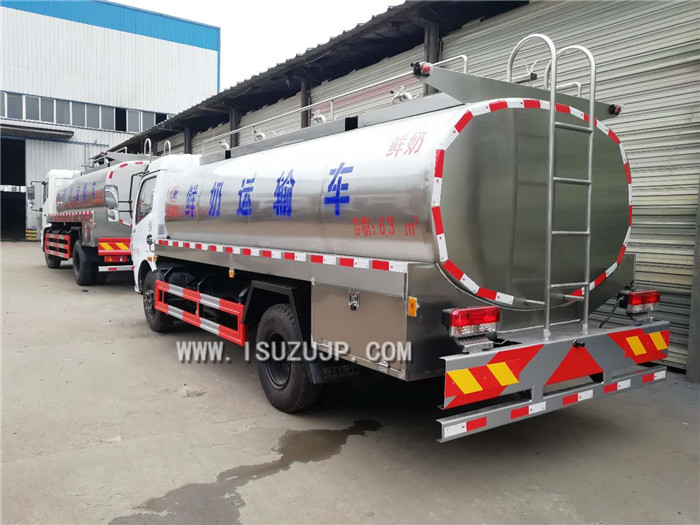

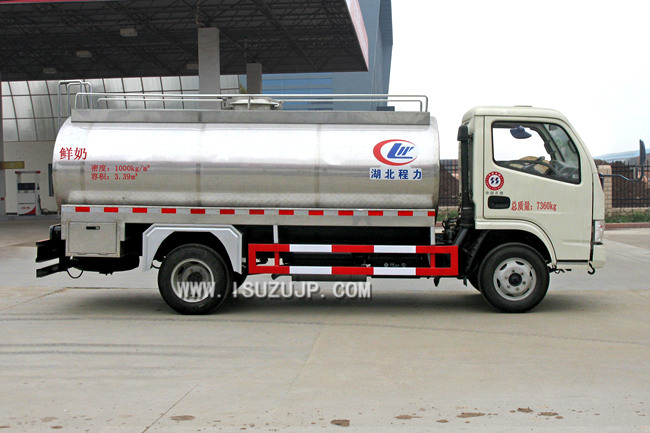

Milk tank truck detailed picture:
Milk transportation truck technical training support:
Milk cooler truck tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Small milk truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Mini milk truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Isuzu milk tank truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Milk truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
