Introduction:
ISUZU NJR 3000liters airport fuel truck suitable for helicopter kerosene transportation. with high capacity, reasonable structure, excellent and stable performance, easy loading and discharge, convenient operation and high safety enhancement.
Advantage:
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications:
Condition | New condition/LHD/4X2 | ||
Chassis | Brand | ISUZU NJR 3000liters airport fuel truck | |
Curb weight(kg) | 5260kg | ||
Wheelbase(mm) | 3360 mm | ||
Dimensions(mm) | 5300X2000X2400 mm | ||
Front/Rear Axle loading(kg) | 2500/4800 kg | ||
Wheel track (front/rear) (mm) | 1880/1800 mm | ||
Front/Rear overhang(mm) | 1430/2370 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 700R16 | ||
Transmission | Manual type, 6 Forwards and 1 reverse | ||
Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Isuzu engine | |
Model | 4KH1-TCG40 | ||
Fuel type | Diesel | ||
Displacement(ml) | 2999 ml | ||
Power(kw) | 88kw | ||
Horsepower(HP) | 120HP | ||
Cylinder number | 4 | ||
Emission standard | Euro V | ||
Fuel Tank | |||
Fuel tank | Capacity(cbm/liters) | 4~5cbm/4000~5000Liters | |
Tank material | Tank material: Q235 high tensile strength steel. | ||
Thickness(mm) | 5mm of the tank and 6mm of endplate | ||
Compartment No. | 1 | ||
Baffle | 1 No,4 mm carbon steel | ||
Manhole cover | 1 manhole cover, ∮500mm 1 set with breather valve | ||
Bottom Valve | 1 set of API Pneumatic Bottom Valve | ||
Discharging valve | 1 set ∮ discharging valve | ||
Handrail | Two sides | ||

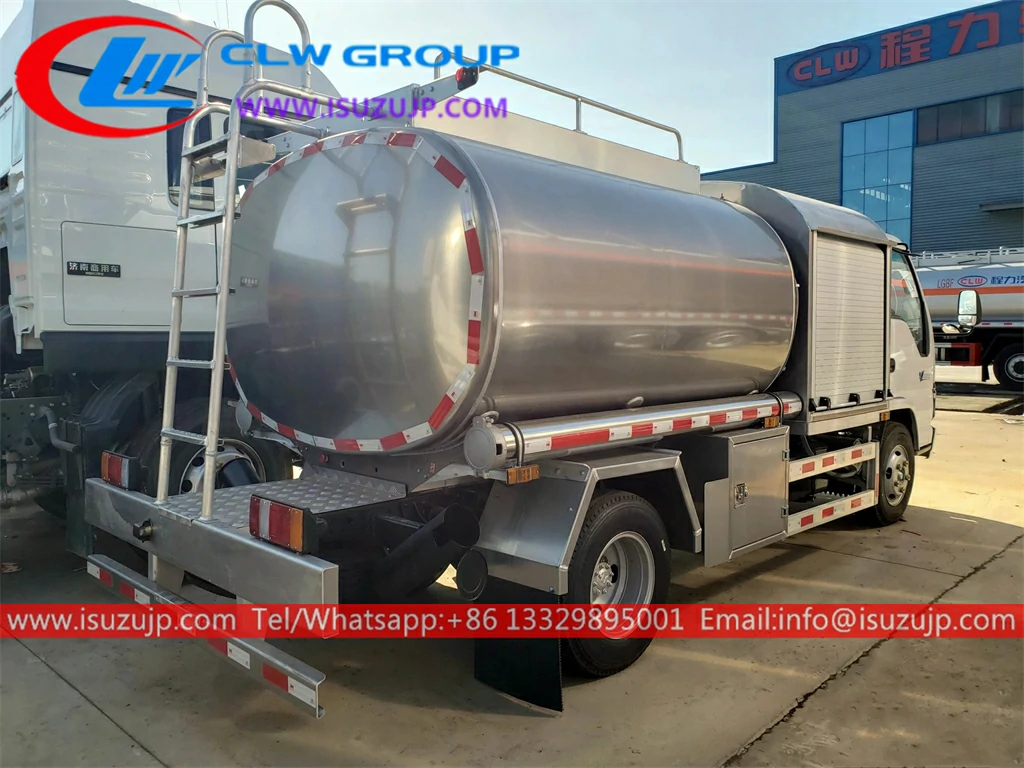

Ladder | At rear of the tank | ||
Painting | Color and design as customer’s requirement |

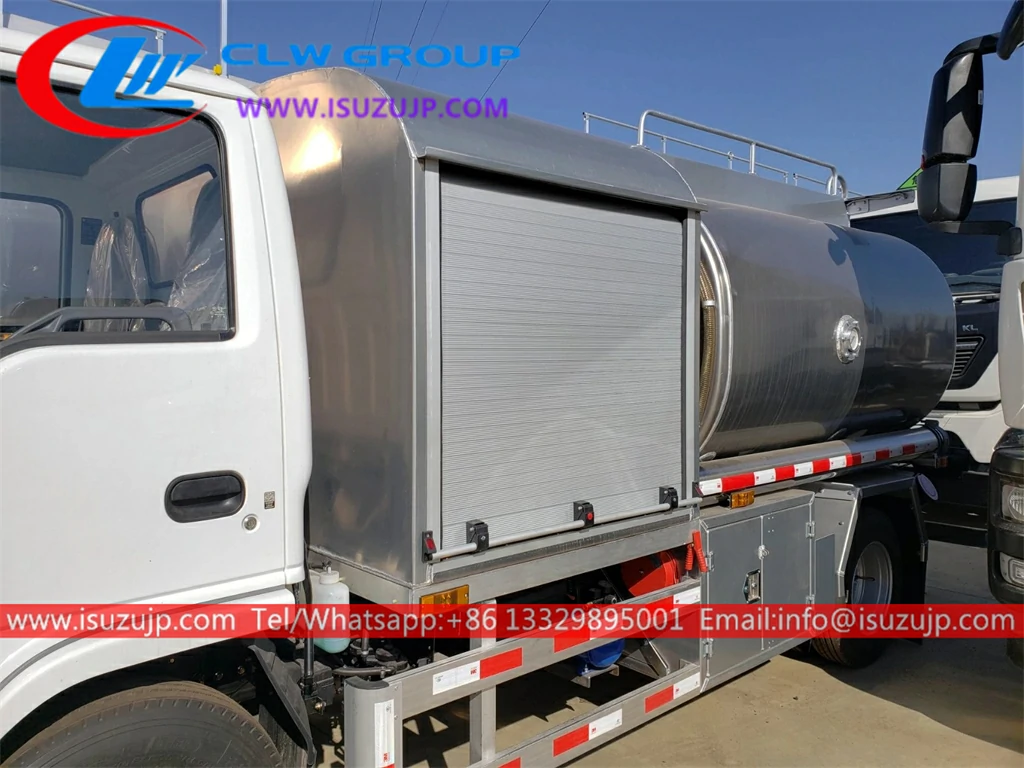

Aircraft refueling truck structure picture:
technical training support:
Factory Advantage:
Export Document:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Truck Shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Fuel truck Batch delivery case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
