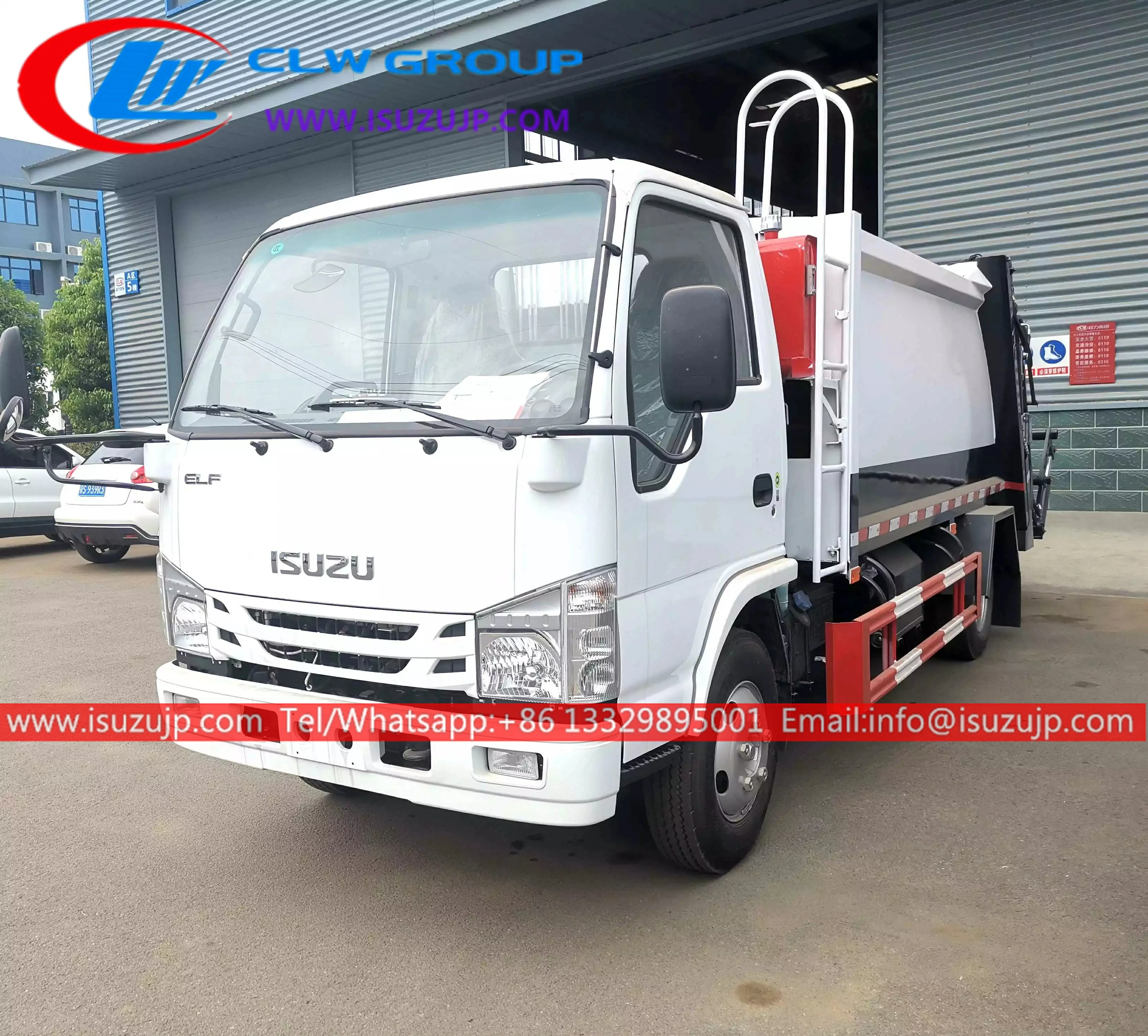

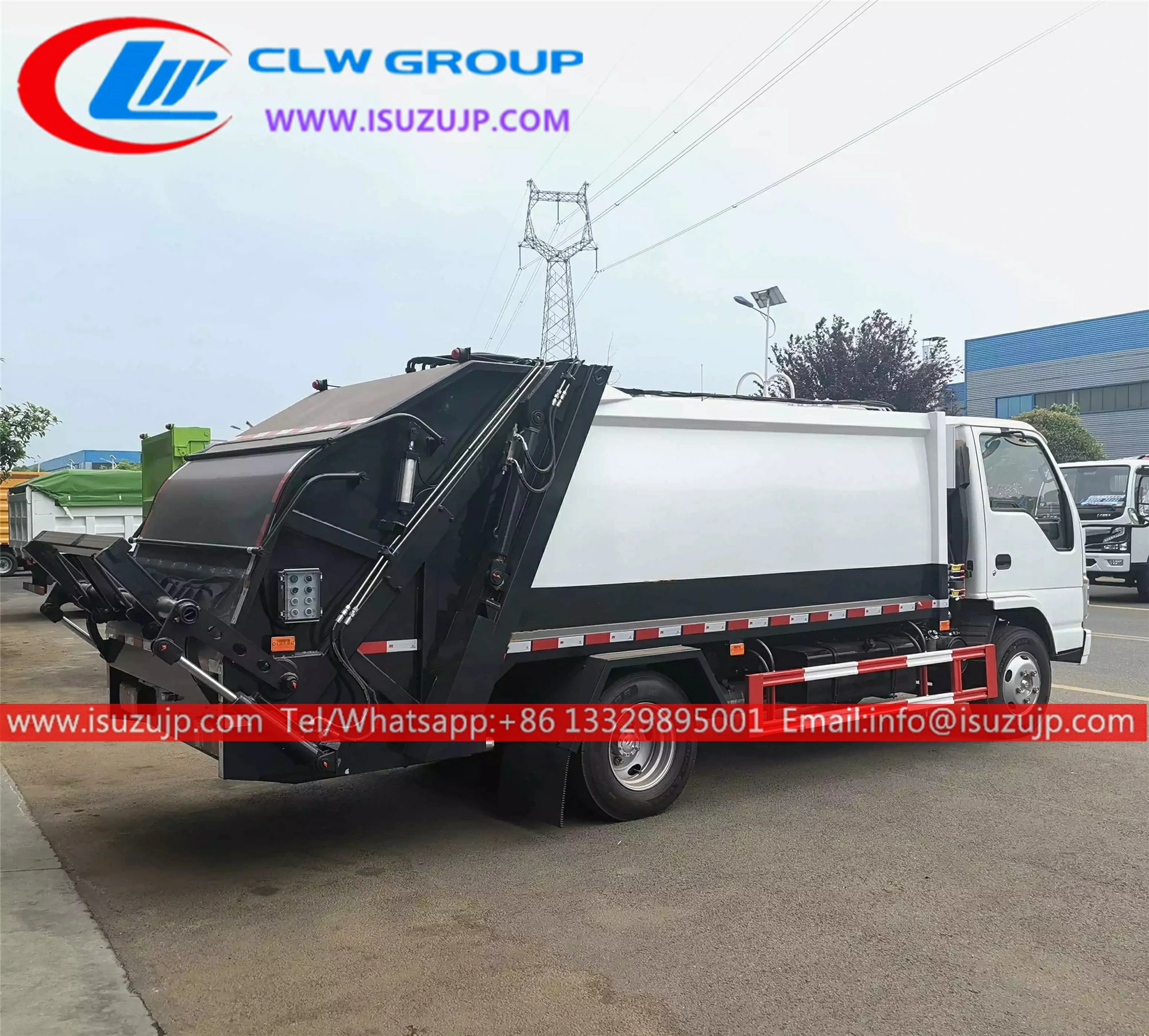

ISUZU NHR 6cbm dumpster compactor truck Description:
- Isuzu NHR 6cbm dumpster compactor truck also called Truck-mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharfs, airport, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- ISUZU ELF Light chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU NHR 6cbm dumpster compactor truck | ||
Chassis | ||
Chassis model number | ISUZU NHR chassis(QL10703HARY) | |
Cabin | Brand: ISUZU | |
100P single cabin, 4×2 left-hand drive | ||
2 seats, with air conditioner, USB connector radio | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm: 6190*1880*2320 mm | |
Wheelbase: 3360 (mm) | ||
Overhang (front/rear): 1015/1525 (mm) | ||
Approach angle: 24° | ||
Departure angle: 16° | ||
Weight in KGS | Curb Weight:4210 kg | |
Payload: 4-5tons | ||
Max. driving speed(km/h) | 90 | |
Engine | Brand | ISUZU |
Model | 4JB1CN, EURO IV | |
Emission | 2999 ml | |
Type | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging, and inter-cooling | |
Horse Power(HP) | 98HP | |
Gearbox | ISUZU MSB, 5 Forwards gear & 1 reverse gear | |
Tire | 7.00-16, 6 pcs+1 spare tire | |
Axle | Front axles 2~2.5t, rear axle 3~4.8t | |
Garbage box parameters | ||
Volume | 6 m3 | |
Material | Carbon steel and high tensile steel | |
Standard equipment | 1. Dustbin volume: 6m³ 2. hydraulic control device | |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
