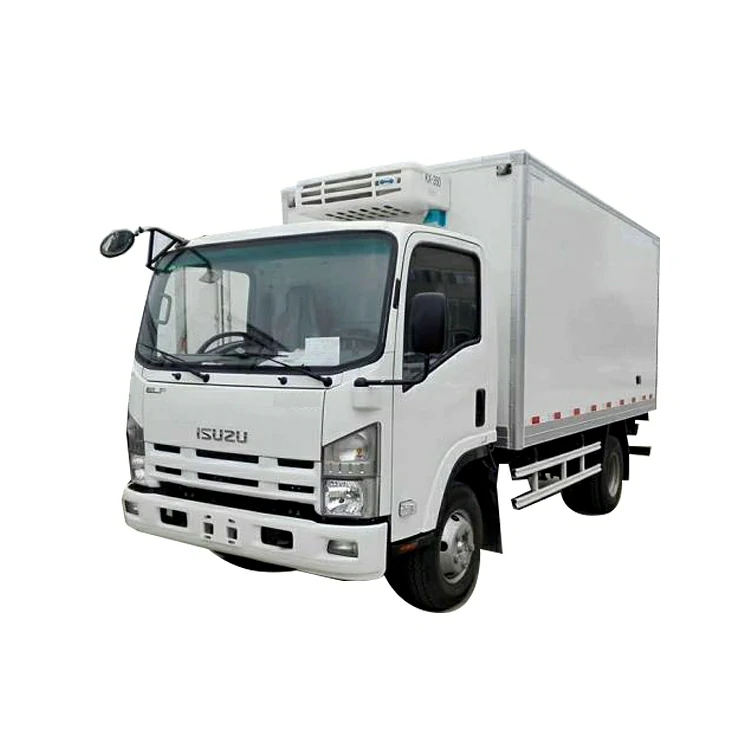

ISUZU M600 5000kg reefer truck Description:
- Isuzu reefer truck also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| ISUZU M600 5000kg reefer truck for sale | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X2280X3200 mm | |
| GVW / Kerb Weight | 7,300kg / 3,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 130 HP (96 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | MSB 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body size | 4070×2100×2100(mm) |
| Load Capacity | 5 Tons | |
| Panel Structure | Fiber glass sandwich polyurethane | |
| Front/Side/Rear panel | Panel Thickness: 85mm | |
| Roof/Floor panel | Panel Thickness: 105mm | |
| Lights & Switch | Led, Water-proof, 12V/24V convertible | |
| Lowest temperature | -5°C or -25 | |
| Equipment | Standard: Aluminum alloy flooring, rear doors. Optional: 1. Hydraulic Tailift and Cargo Control System. 2. Side doors, side steps and ladders. 3. Different temperature area control. 4. Customized floor roller design for convenient working. | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:

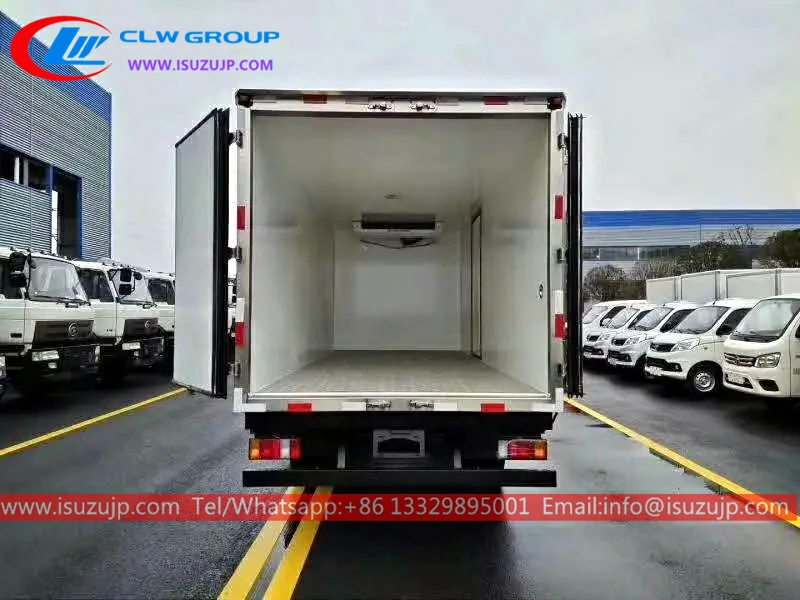

Isuzu Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
