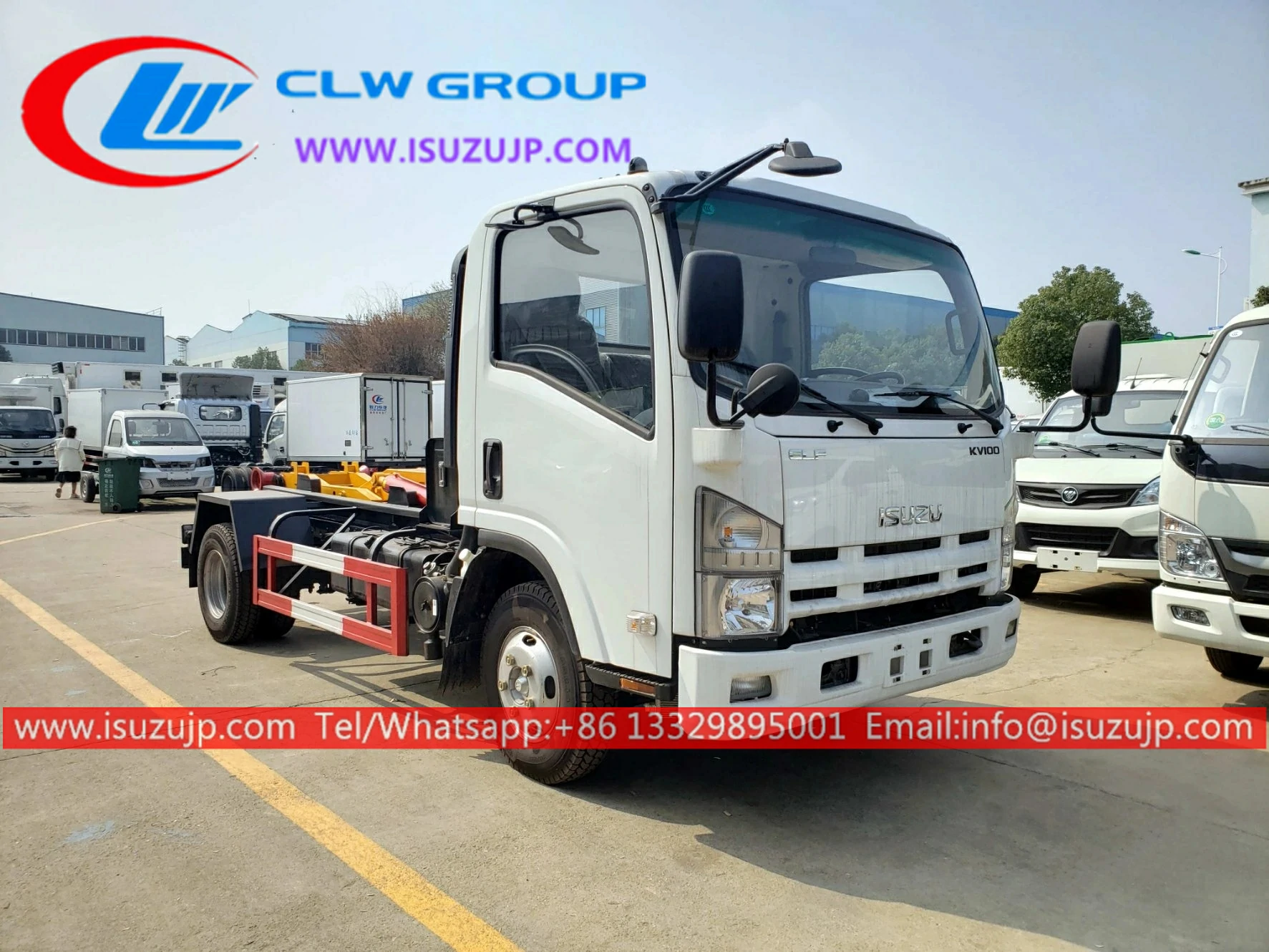

ISUZU KV100 5m3 roll off garbage truck Description:
- Isuzu KV100 5m3 roll off garbage truck is designed to collect and transport municipal solid waste, widely used in residence communities, hospitals, municipal environmental section, garbage collection and transportation stations, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage:
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Drive type | 4*2, New condition, LHD ISUZU KV100 5m3 roll off garbage truck | |
| Vehicle Main Dimensions | (L x W x H)mm | 4835*1870*2120 |
| Wheelbase (mm) | 2800 | |
| F/R Axle-Load | 1335/1340kg, | |
| Curb weight | 2390 kg | |
| GVW | 4015 kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Horse Power(HP) | 68 |
| Emission standard | Euro IV | |
| Gearbox | 5 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 6.00R16, 7 pc including 1 spare tire | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Garbage Compactor Standard configuration | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Thickness of box | 4mm | |
| Garbage Box Volume | 3cbm | |
| Container Roll on time(s) | 50-60 | |
| Container Roll off time(s) | 40-50 | |
| Hydraulic System | Consists of an oil pump, oil cylinder, front valve, rear valve, pressure gauge, oil box, filter, and pipelines. The front valve controls the push panel and strike-off board. | |
Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
New craft:
Roll on roll off garbage truck Optional configuration:
detachable garbage truck detailed images:
carriage removable garbage truck Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
