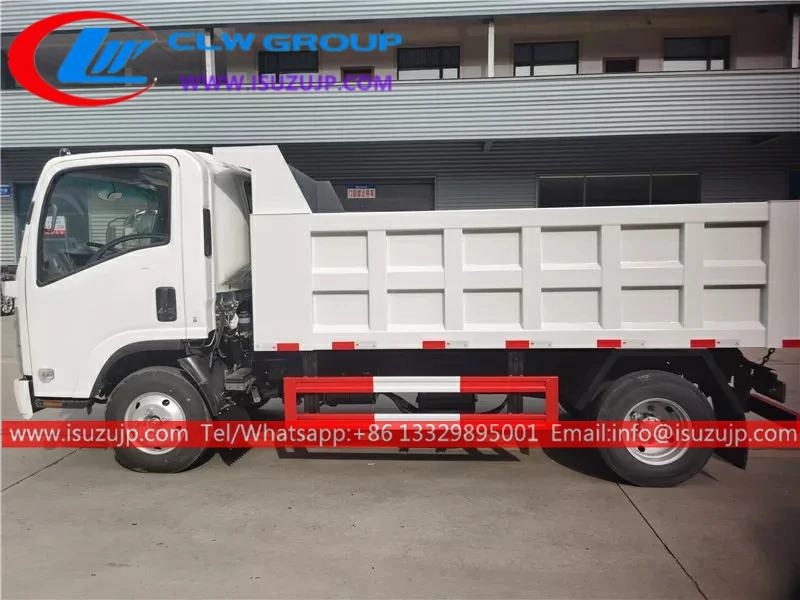

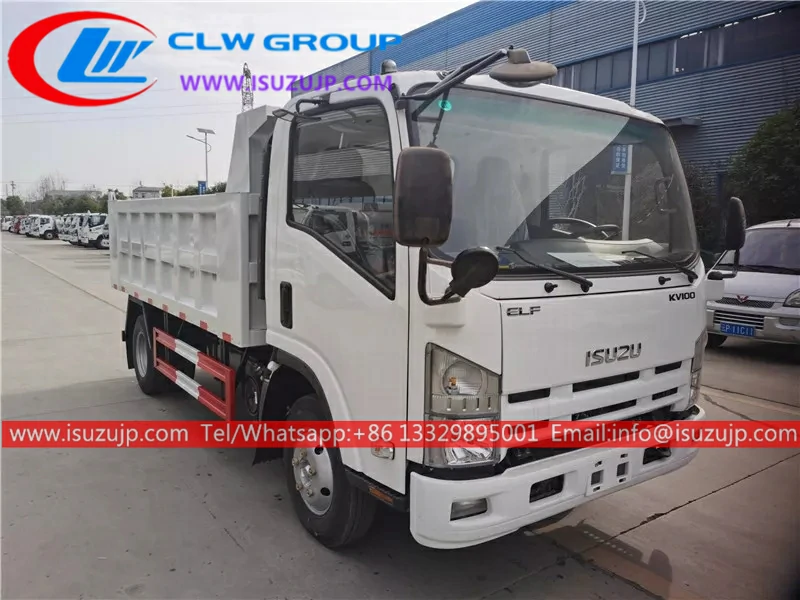

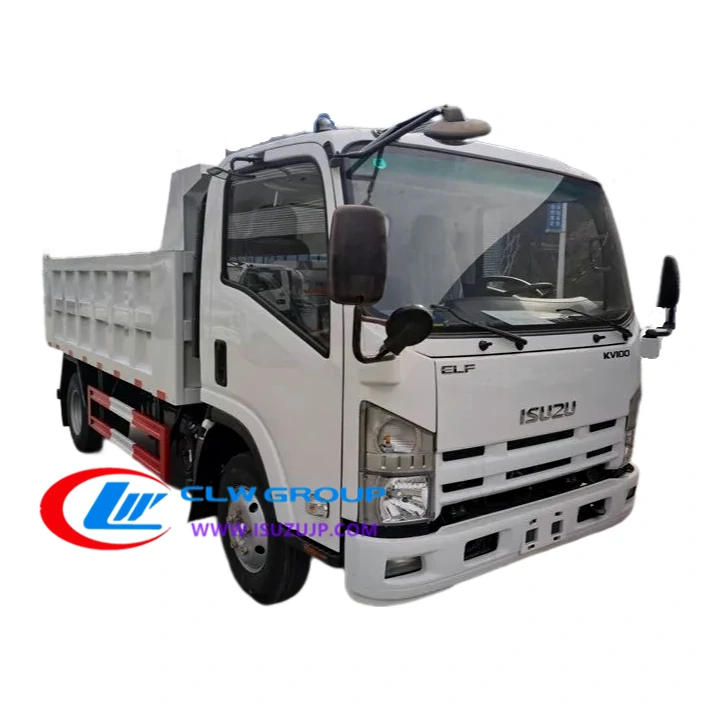

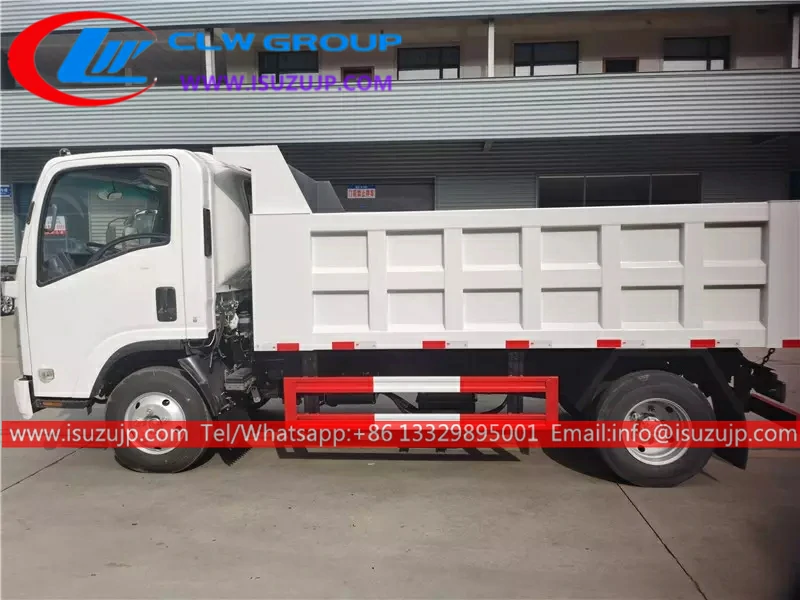

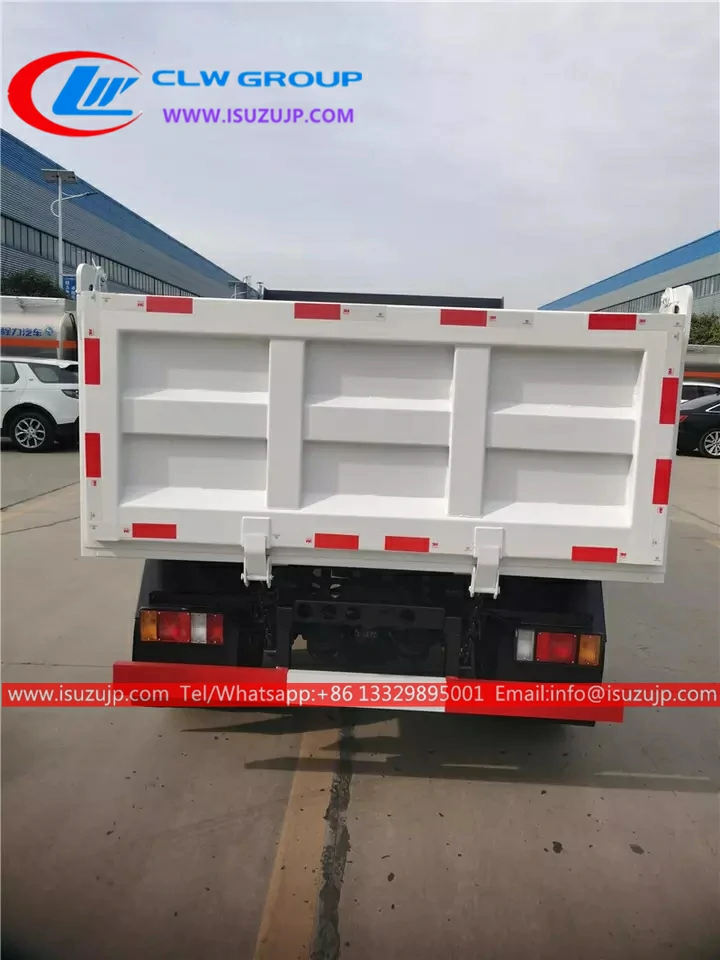

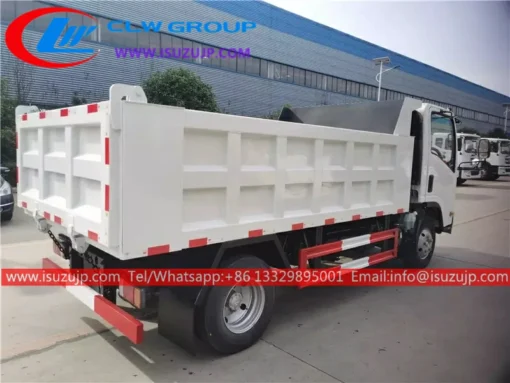

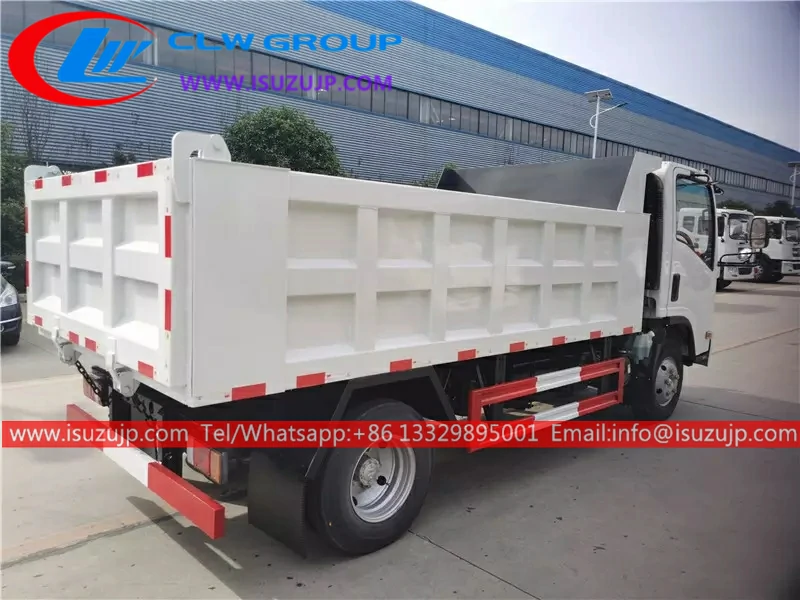

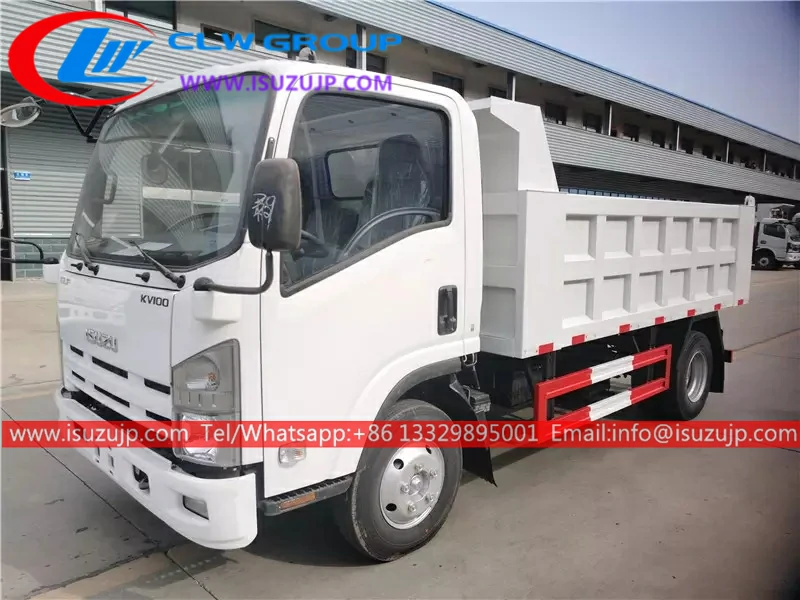

Isuzu KV100 4 ton tipper truck Description:
- Isuzu 4 ton tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage:
- ISUZU KV100 light-duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
ITEM | UNIT | PARAMETER | |
Vehicle | 4 ton Isuzu tipper truck for sale | ||
Overall dimensions | mm | 5800×2000×2260 | |
Box dimension | mm | 3600x2000x600 | |
GVW | kg
| 4500 | |
Curb weight | 2500 | ||
Payload | 2000 | ||
Wheelbase | mm
| 3360 | |
F/R track base | 1385/1395 | ||
F/R Suspension | 1200/1080 | ||
Approach/departure angle | ° | 20/12 | |
Max speed | km/h | 90 | |
Axle Load | kg | 2500/4800 | |
Drive model | 4×2 | Fuel type | Diesel |
Tire specification | 7.00R16 | Number of axles | 2 |
Engine model
| Manufacturer | Qingling Isuzu (Chongqing) Engine Co. LTD | |
Engine | 4KH1CN5MD | ||
Emission/kw | 2999ml/85Kw, 115Hp | ||
type | MSB 5F/1R | ||
Rate speed rpm | 2900 | ||
Max Torque N.M/ rpm | 277/1500 | ||
Standard Configuration | Tank material Q235 Air condition available Single row Left-hand driving Middle lifting system Bucket side 3mm and bottom 4mm |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
