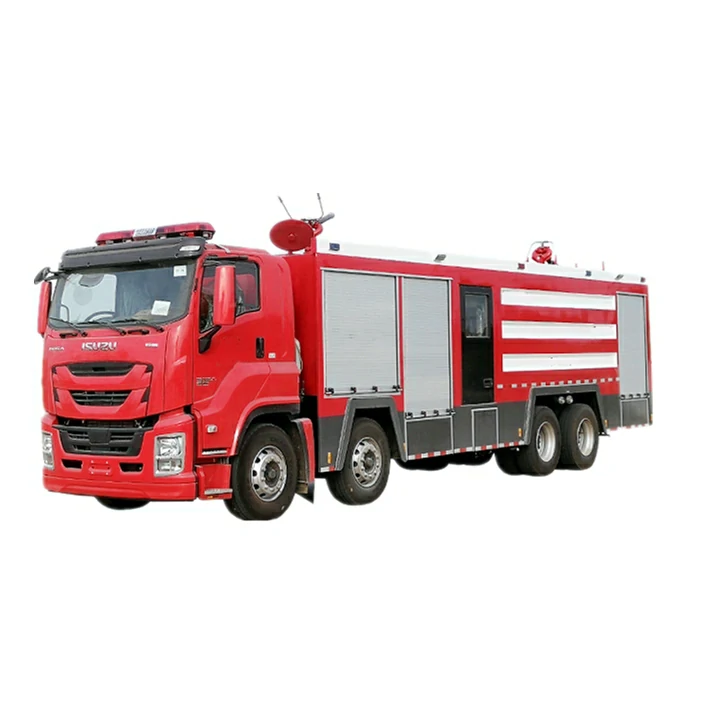

ISUZU GIGA 5000 gallon fire tanker Description:
- ISUZU 5000 gallon fire tanker also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- ISUZU GIGA heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
ISUZU GIGA 5000 gallon fire tanker(22,000 litres) | ||||
General | Vehicle Brand | CHENG LI | ||
Chassis Brand | ISUZU | |||
Overall Dimension | 12000X2500X3600 mm | |||
GVW / Kerb Weight | 31,000 kg / 16,050 kg | |||
Cab | Cab Capacity | 2+4 persons allowed | ||
Air Conditioner | W/ air conditioner | |||
Engine | Fuel Type | Diesel | ||
Engine Brand | ISUZU engine, 6HK1 | |||
Power | 380HP (279 KW) | |||
Displacement | 10259 ml | |||
Emission Standard | Euro V | |||
Chassis | Drive Type | 8X4, left hand drive | ||
Transmission | ISUZU gear box, no overhaul within 500,000km | |||
Wheelbase/No. of axle | 4300+1300+1500 mm / 3 | |||
Tyre Specification | 12.00-20 | |||
Tyre Number | 12 tyres and 1 spare tyre | |||
Max Speed | 90 km/h | |||
Paint | Metallic paint | |||
Superstructure | Water Capacity | 20,000 Litres ( About 5,000 gallons) | ||
Foam Capacity | 2,000 Litres (About 500 gallons) | |||
Tank Material | Carbon steel | |||
Fire Pump | Flow speed | 60 L/s | ||
Pressure | 1.0M Pa | |||
Fire Cannon | Flow speed | 48 L/s | ||
Shot | Water | ≥ 60 m | ||
foam | ≥ 55 m | |||
Suction Head | 6 m | |||
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |||
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | ||||
Optional | Ladders, floodlights… |
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
Serial number | name | specification | Quantity | unit | Remarks |
1 | straw | 125×4 meters | 2 | root | Threaded |
2 | Water filter | FLF125 | 1 | Piece | Threaded |
3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
9 | Hose hook | 4 | Piece | ||
10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
12 | Suction pipe wrench | FS100 | 2 | Piece | |
13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
15 | Fire extinguisher | 3KG | 1 | With | |
16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
17 | Rubber hammer | 1 | Piece | ||
18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
Serial number | name | specification | Quantity | unit | Remarks |
1 | Automatic charging device | 12V | 1 | set | |
2 | Air backrest | 3 | set | ||
3 | Air breathing apparatus | Number of members | set | ||
4 | Hose bridge | rubber | 2 | vice | |
5 | Telescopic ladder | 1 | vice | ||
6 | Hand lift the pump | 1 | station | ||
7 | Breaking tools | 1 | set | ||
8 | Other fire equipment |

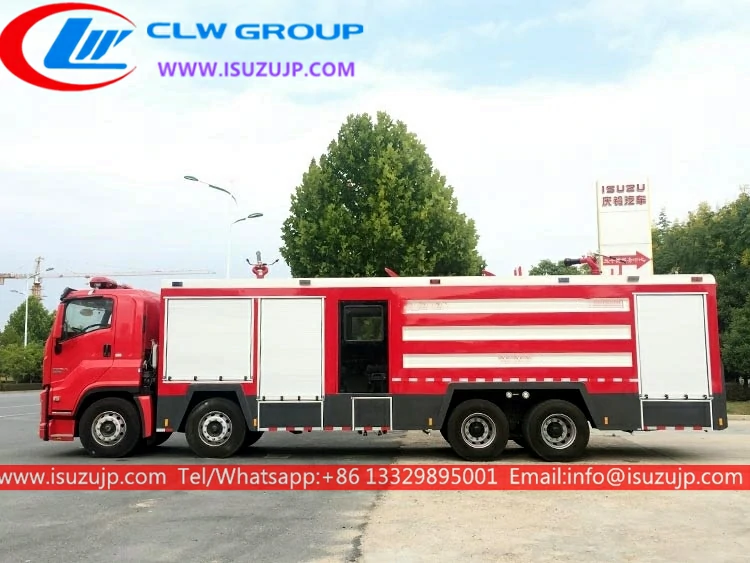

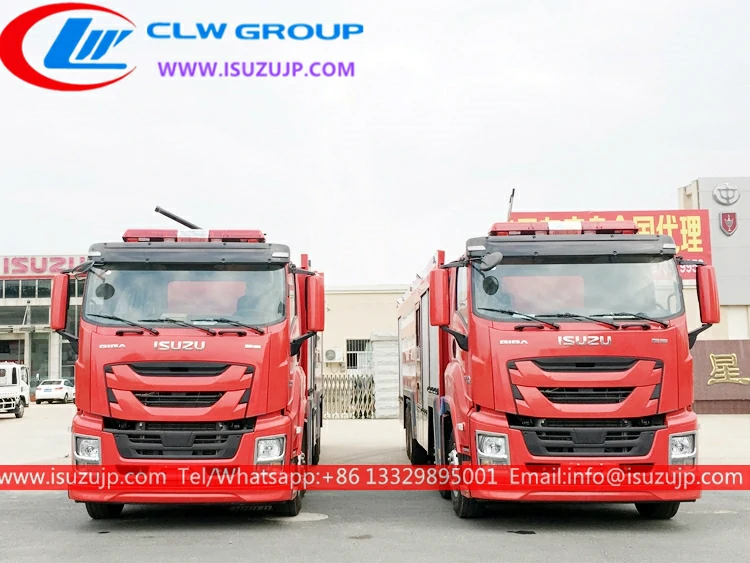

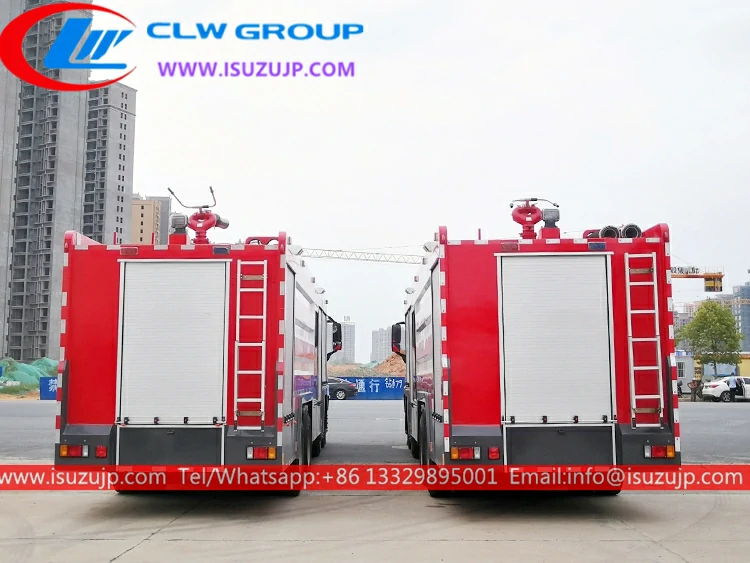

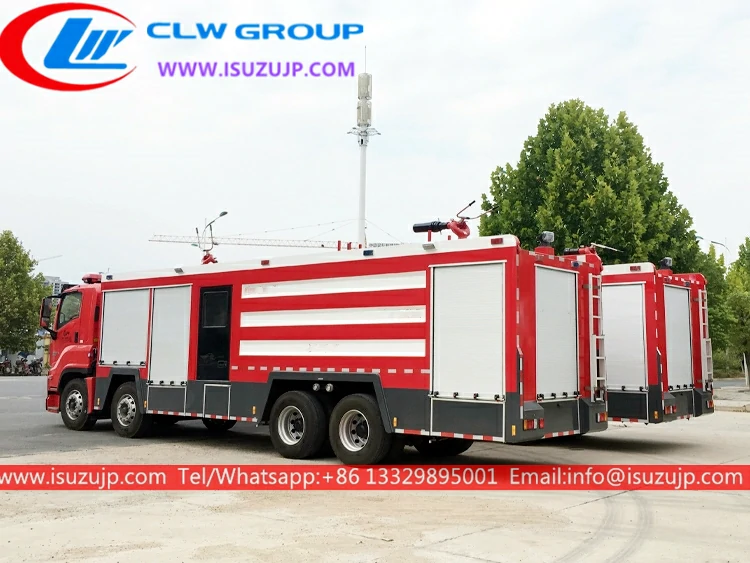

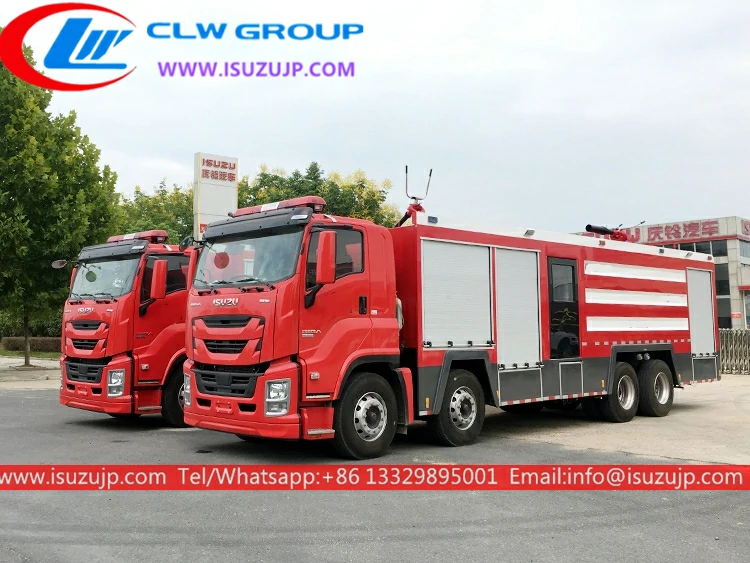

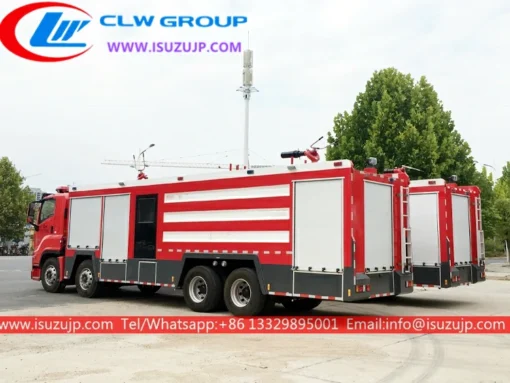

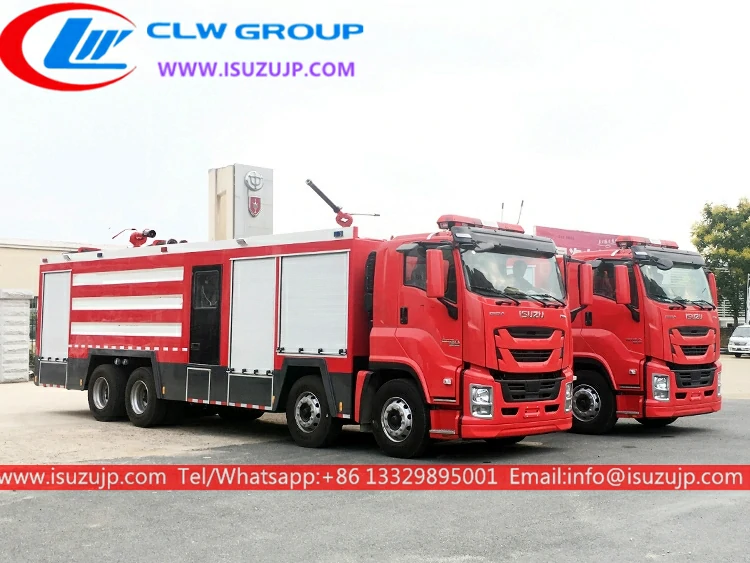

fire fighting engine Parts Picture:
