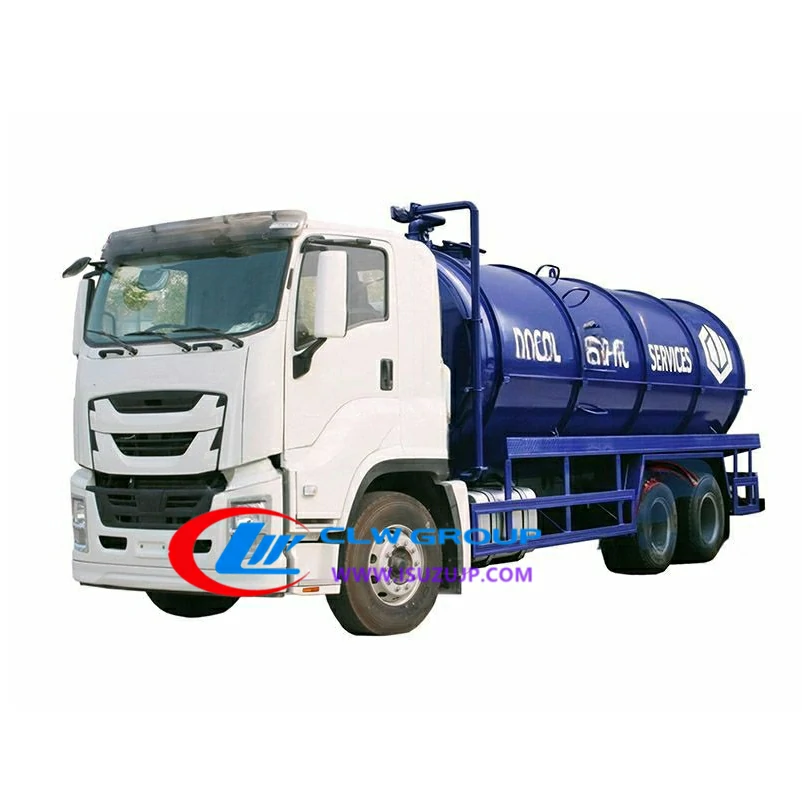

ISUZU GIGA 460HP 20t super sucker vacuum truck Description:
- ISUZU GIGA 460HP 20t super sucker vacuum truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification:
| Manufacturer | CHENGLI Trucks | |
| Item | ISUZU GIGA 460HP 20t super sucker vacuum truck | |
| Brand | ISUZU GIGA | |
| Model | CLW5250GSSD6 | |
| Production Time | 25 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 10500*2550*3390 mm |
| Gross weight | 25,000 kg | |
| Kerb weight | 14,800 kg | |
| Wheelbase | 4565+1370 mm | |
| Driving type | 6*4 | |
| Chassis model | ISUZU GIGA | |
| Tire size | 315/80R22.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6WG1-TCG51 |
| Type of fuel | Diesel | |
| Power | 460 HP | |
| Gearbox | FAST 12-shift gearbox | |
| Upper Structure | ||
| Water Tanker performance | Tank Capacity | 22,000L |
| Tank Material | 6mm carbon steel with antiseptic treatment | |
| Vacuum Pump | Italy brand JUROP | |
| Optional Italy, Euro brand | ||
| Suction Time | 350 s | |
| Tank lifting angle | ≥45° | |
| Self-suction height | 7 m | |
| Suction hose | 7m length with DN 100 mm | |
| Rear cover | Hydraulic control | |
| Control Panel | English | |
| Discharging system | Gravity discharge or pump out from tank body. | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:

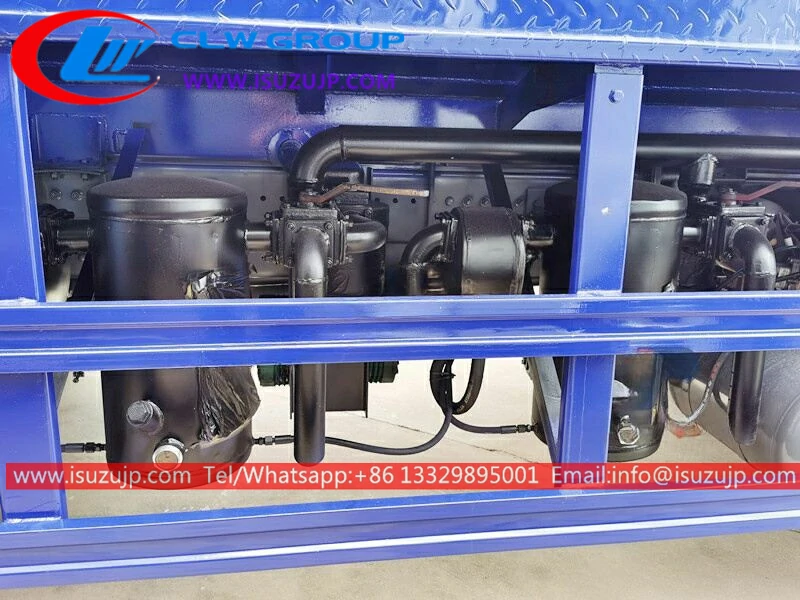

Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
