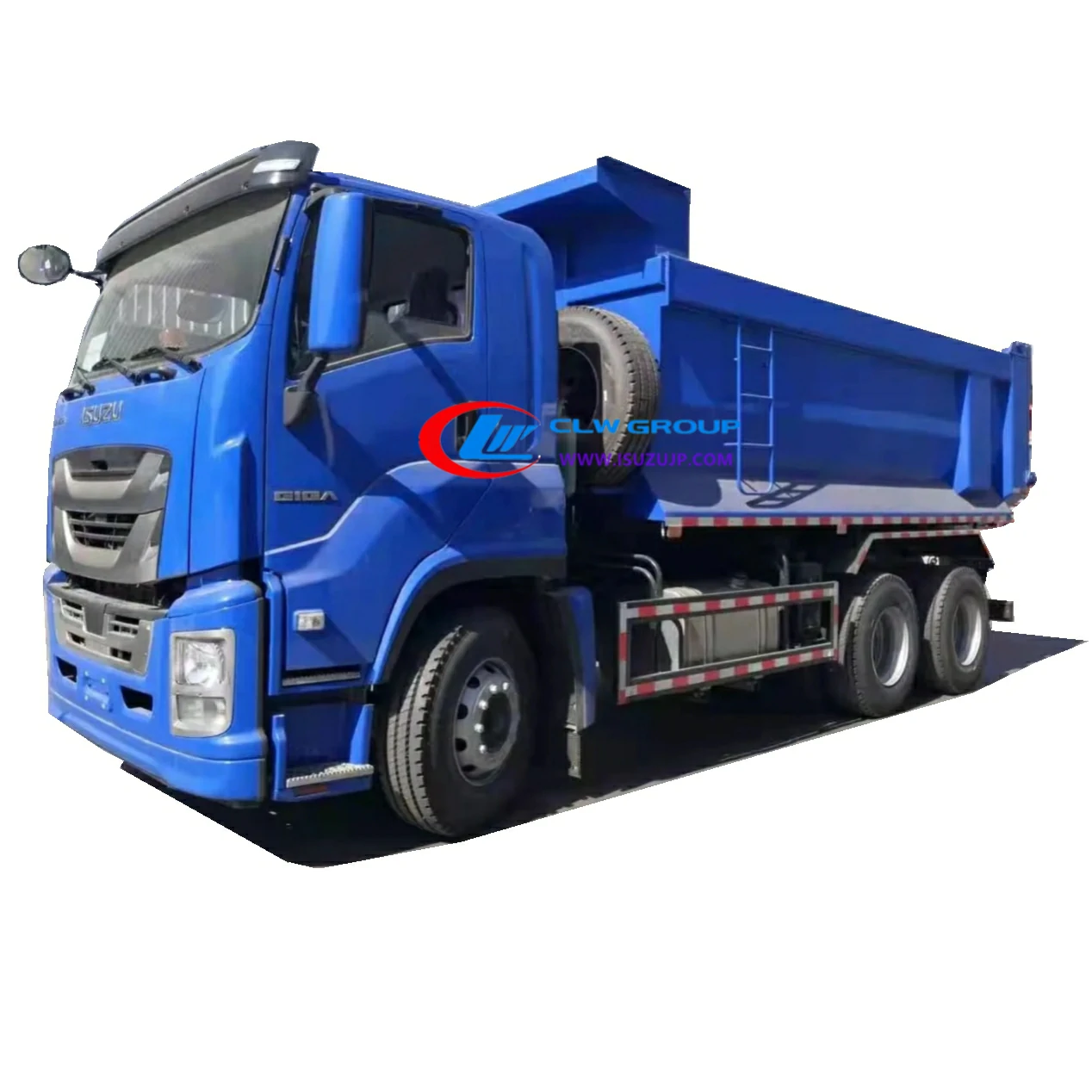

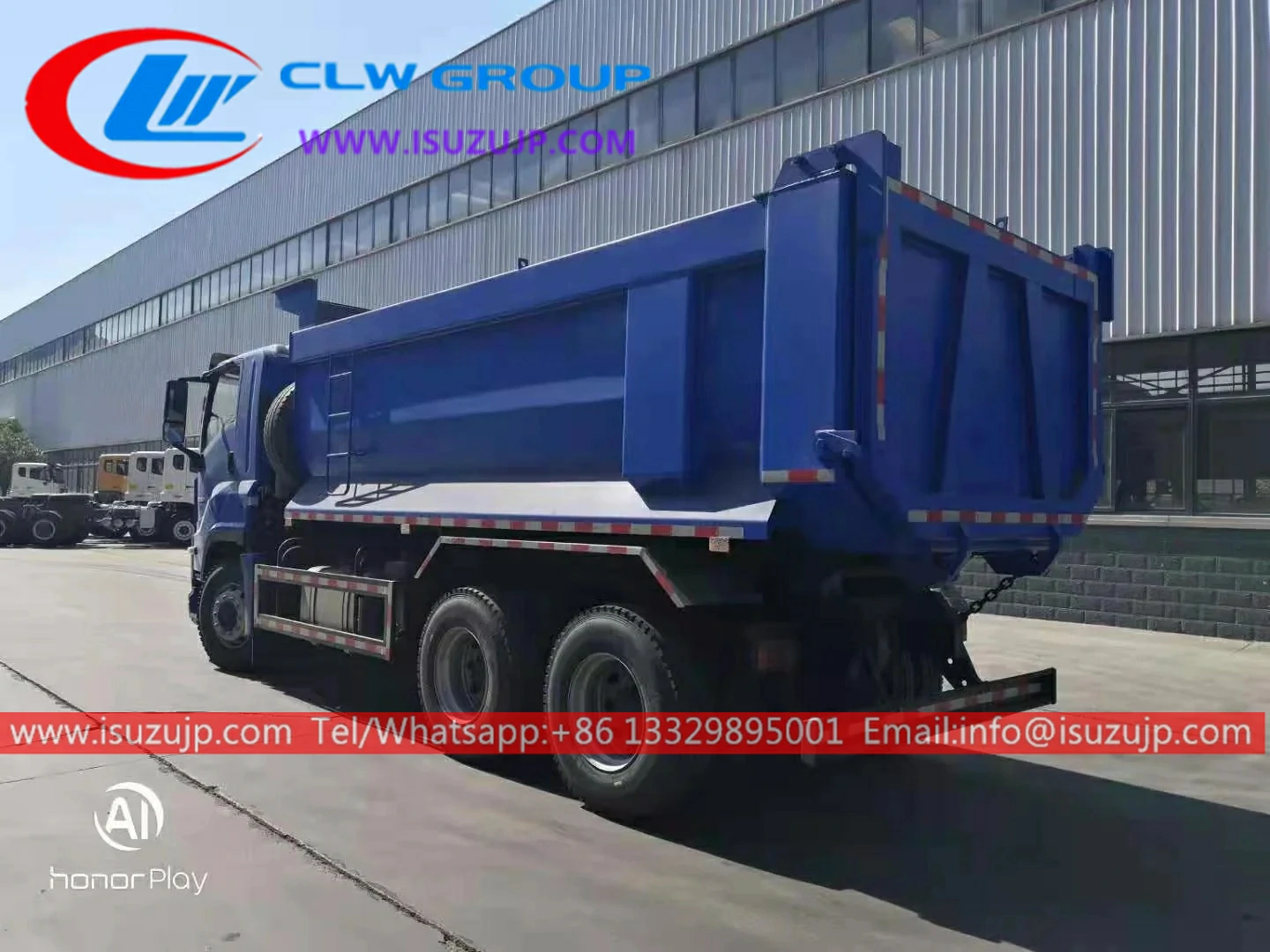

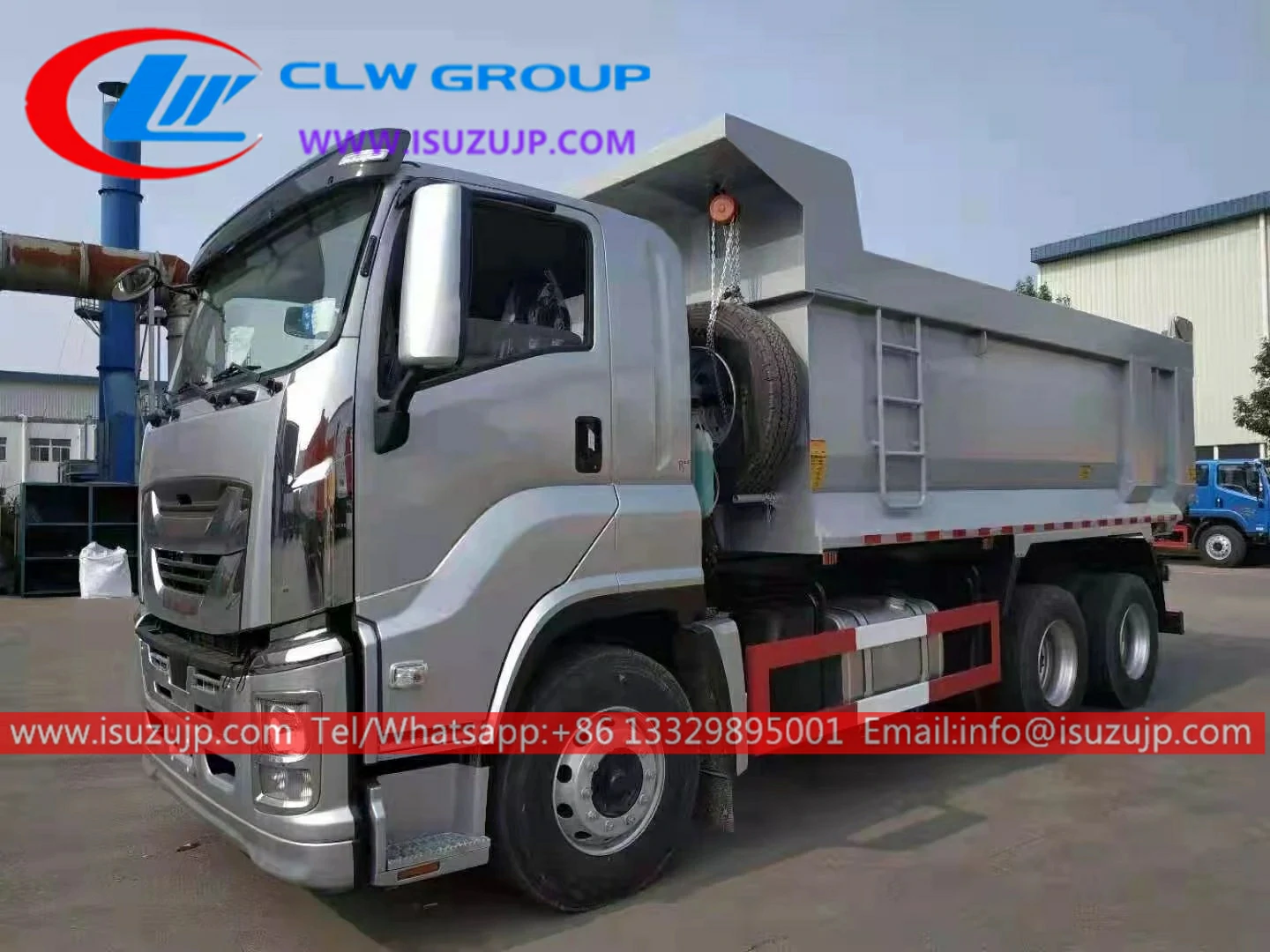

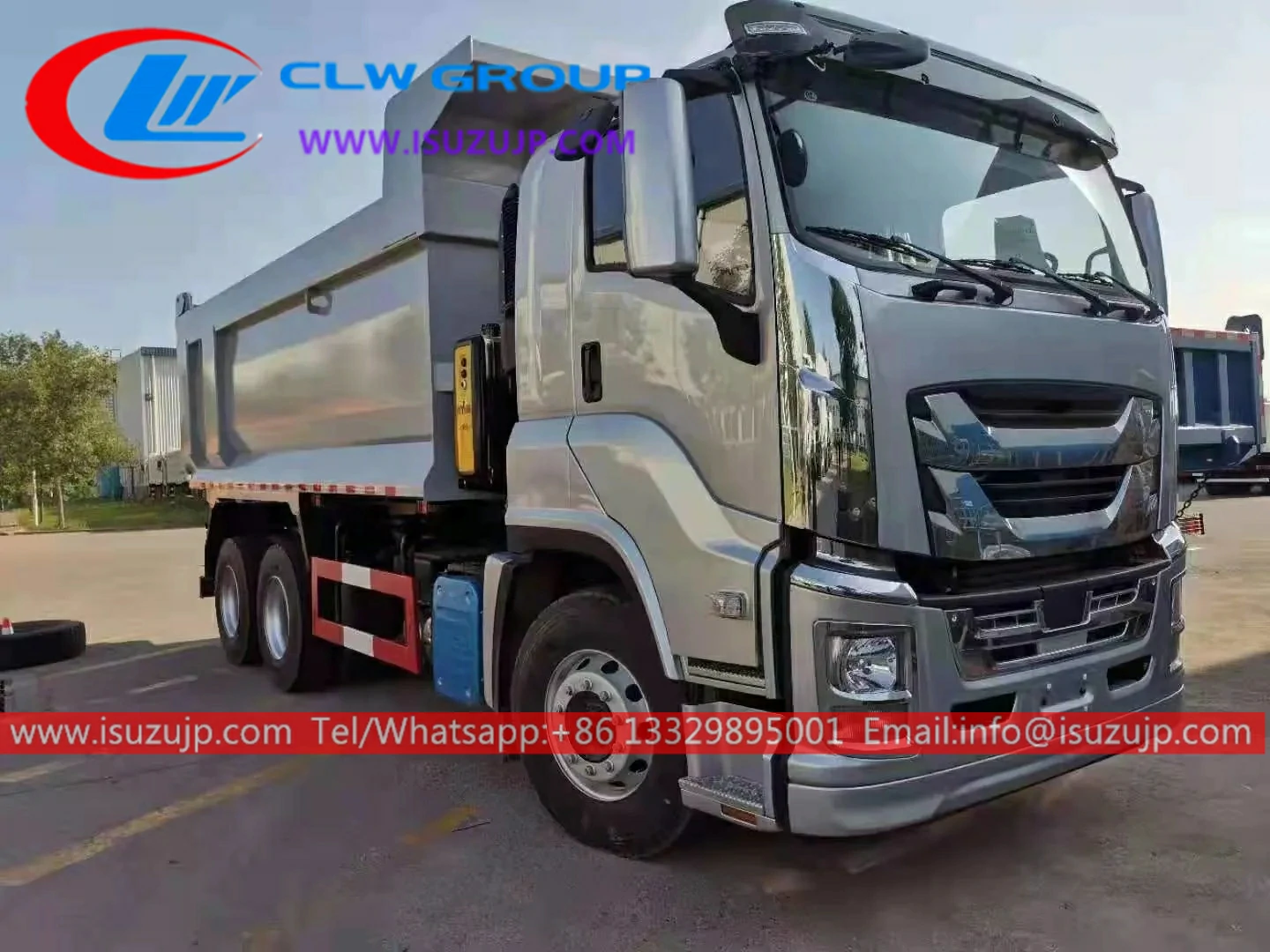

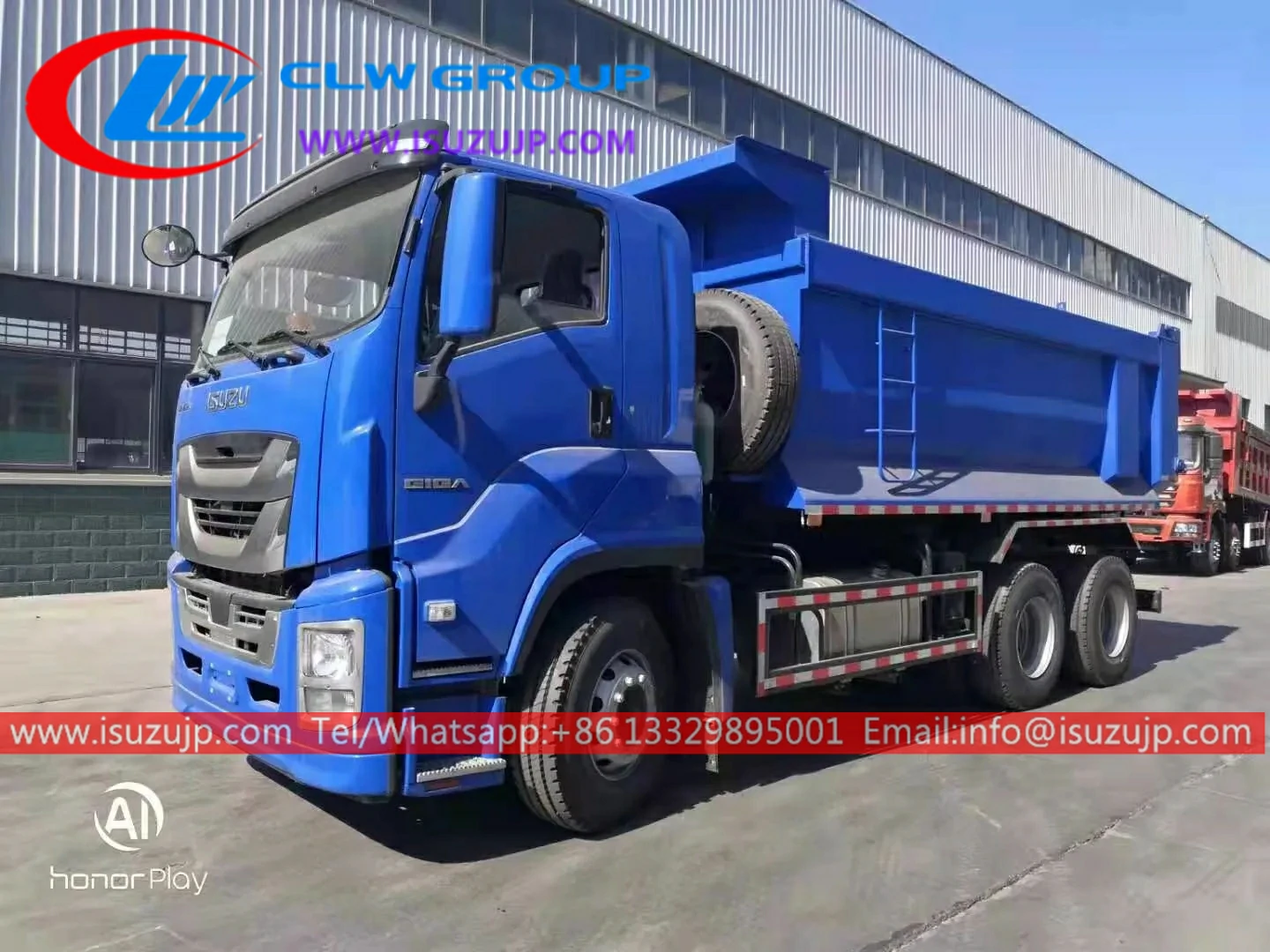

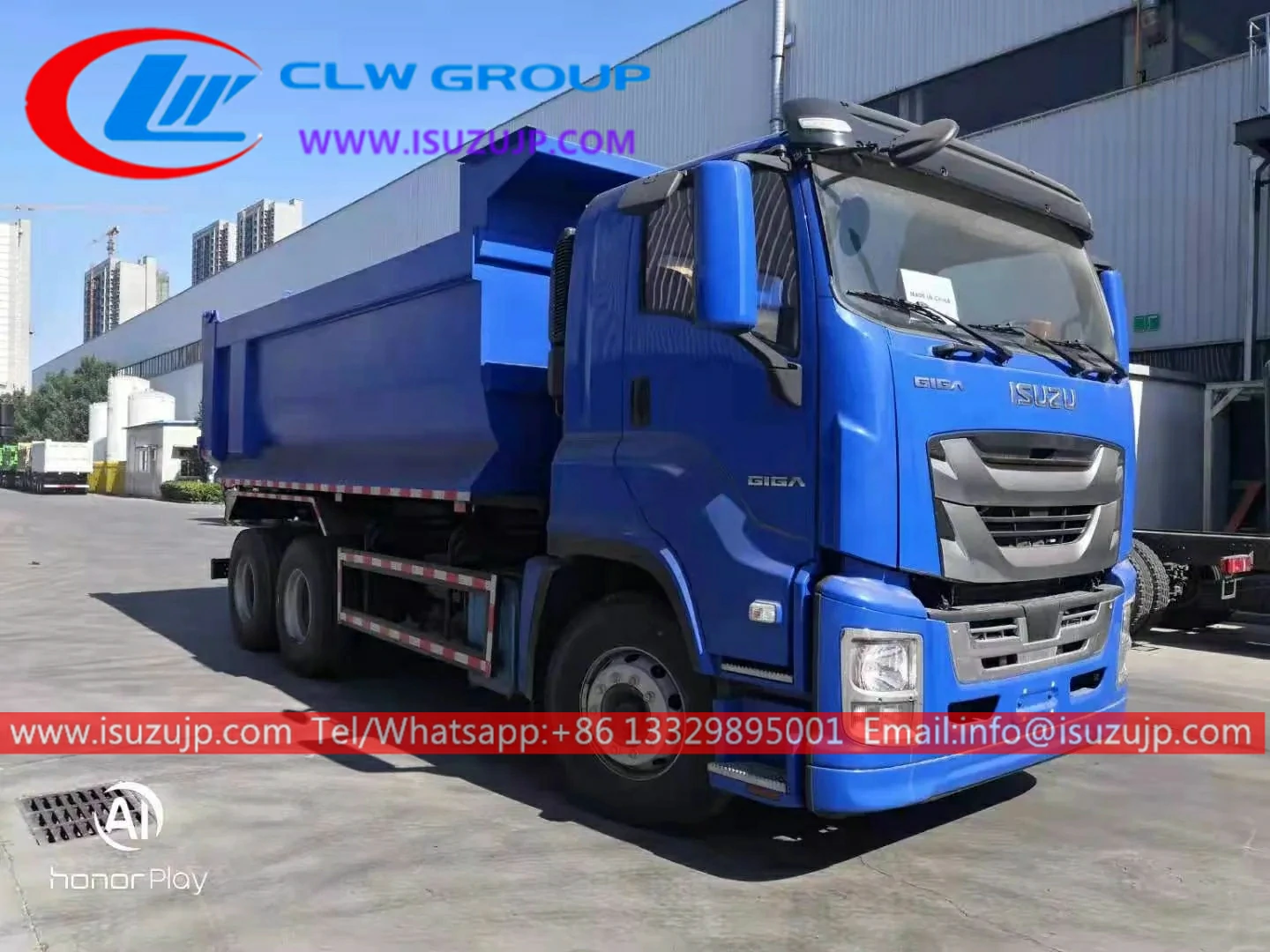

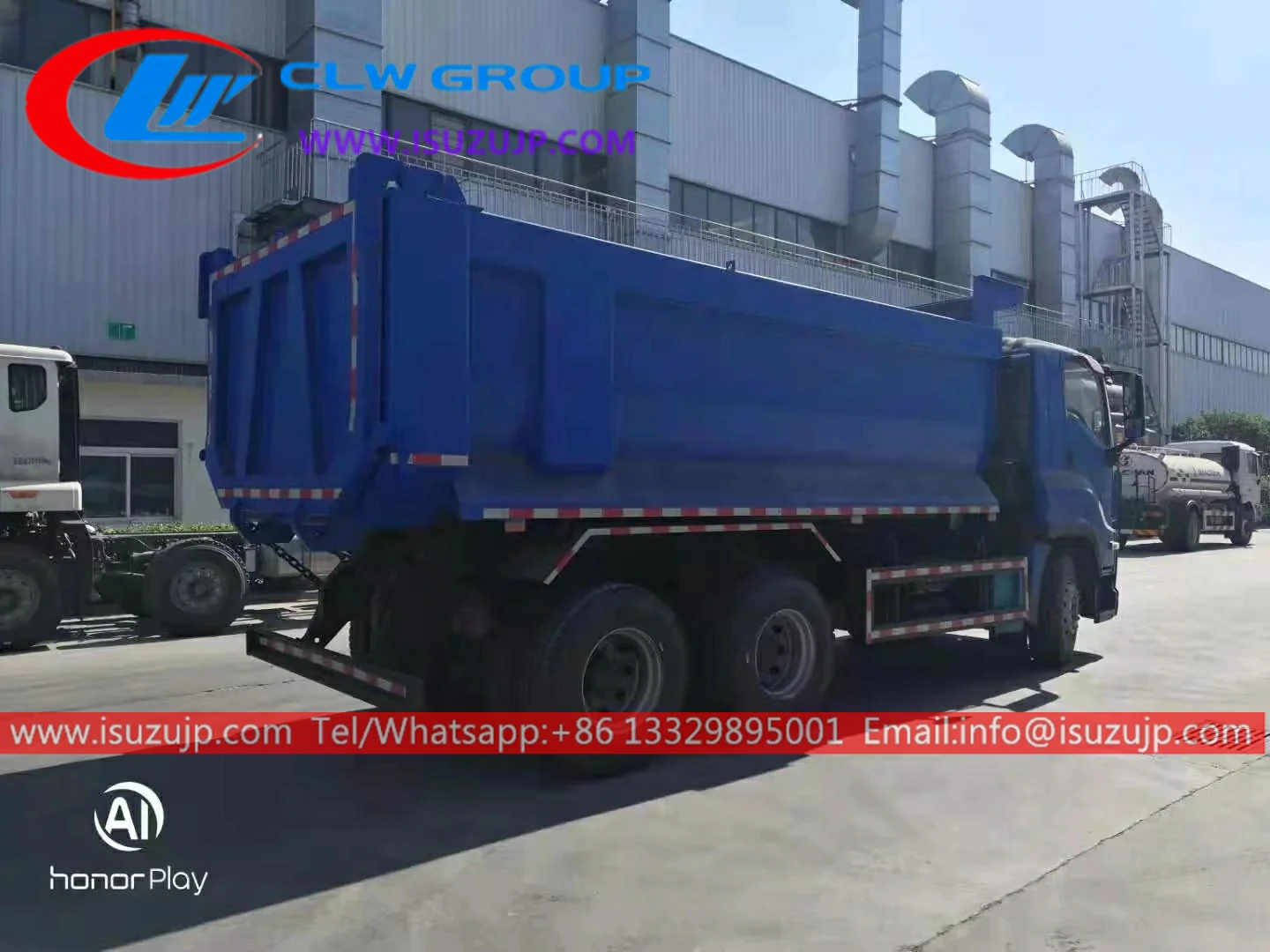

Isuzu Giga 30tons quarry dump truck Description:
- Isuzu Giga 30tons quarry dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU GIGA chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
| Model | 30tons quarry Isuzu Giga dump truck | ||
| Engine | Make: ISUZU | ||
| Diesel 4-stroke direct injection diesel engine, electronic control common rail | |||
| Engine model:6UZ1-TCG50 | |||
| 6-cylinder in-line with water-cooled, turbocharging and intercooler | |||
| Maximum output: 380 hp (279 kW) | |||
| Maximum torque: 1800 Nm | |||
| Displacement: 9.839 L | |||
| Transmission | ZF8S2030TO, 8 forwards and 1 reverse,mannual | ||
| Front Axle | F075,7.5 Ton Loading Capacity | ||
| Rear Axle | RT210,21 Tons Loading Capacity, Speed Ratio 3.07-5.571 | ||
| Chassis | Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8MM | ||
| Front suspension: semi-elliptic leaf springs | |||
| Rear suspension:semi-elliptic leaf springs | |||
| Aluminum fuel tank: 600 L capacity with locking fuel cap, fitted to the off side of the chassis | |||
| Wheels & Tyres | Tire:315/80R22.5,12.00R22.5 for option | ||
| Driver’s Cab | ISUZU GIGA Flat roof cab, 2 seats+1 bed,central lock,electric glass,A/C,ABS | ||
| Dimensions mm | Wheelbase | 3985+1370 MM | |
| Overall length | 7900 MM | ||
| Overall width | 2500 MM | ||
| Overall height | 3500 MM | ||
| Dump box dimension | Center hydraulic lift,5400*2300*1500MM,18M3, bottom 8mm, side 6mm | ||
| Weight kg | Deadweight | 12000 KG | |
| Rated Loading Capacity | 16500 KG | ||
| Gross vehicle weight(GVW) | 28500 KG | ||
| Front axle loading capacity | 7500 KG | ||
| Rear-axle loading capacity | 21000 KG | ||
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
