Introduction:
ISUZU GIGA 25000liters lpg gas tanker also called LPG tanker, GAS delivery vehicle, propane tanker, etc
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, and Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
lpg truck Specifications:
ISUZU GIGA 25000liters lpg gas tanker General Technical Parameters | ||
Overall Dimension | 9400*2500*3600 (mm) | |
Gross Vehicle Weight | 21735 kg | |
Curb Weight | 7240 kg | |
Loading Weight | 10000 kg | |
Chassis Specification | ||
Chassis Brand | Isuzu | |
Cabin | Row and half, 3 passengers allowed, Left-hand drive | |
Engine | Model | 6UZ1-TCG51, 6 Cylinders |
Power | 350hp | |
Emission standard | Euro II | |
Displacement | 9.839L | |
Fuel type | Diesel | |
Gearbox | Manual, 6 Forward & 1 Reverse Gear | |
Front and Rear Axle load | 7T/13-26T | |
Wheelbase | 3985+1370(mm) | |
Brake System | Air brake system | |
Steering Gear | Power Assistant | |
Tire | 315/80R22.5, 10 Pieces with 1 Spare Tire | |
Maximum speed | 90(km/h) | |
Superstructure | ||
Tank Capacity | 20 CBM | |
Filling Content | Liquefied Petroleum Gas (Propane) | |
Tank Dimension(inner diameter*thickness*length) | 2050*10*7644 mm | |
Tank Material | Q345R high tension steel | |
Tank Specification | Designed Pressure: 1.61Mpa Filling Ratio: 420kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm | |

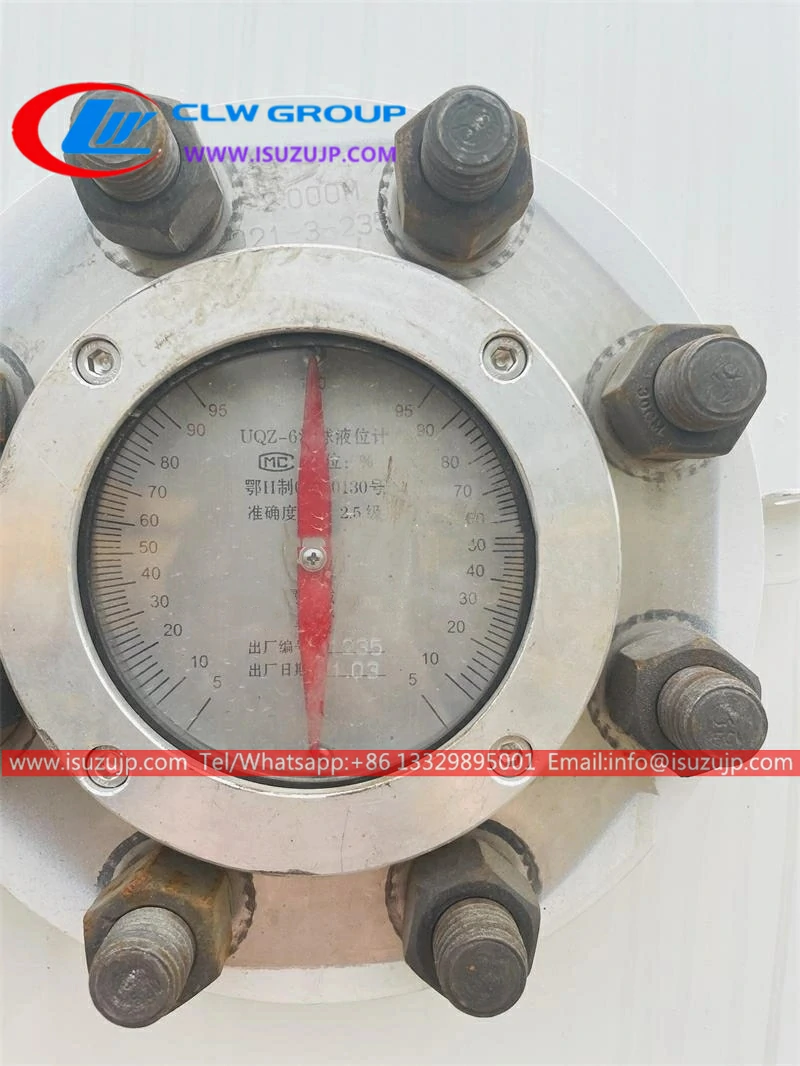

Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes |
Lpg trucks Different designs:
ISUZU gas truck design diagram:
Lpg truck Type exhibition:
lpg tanker Production Process:
Export Document:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
