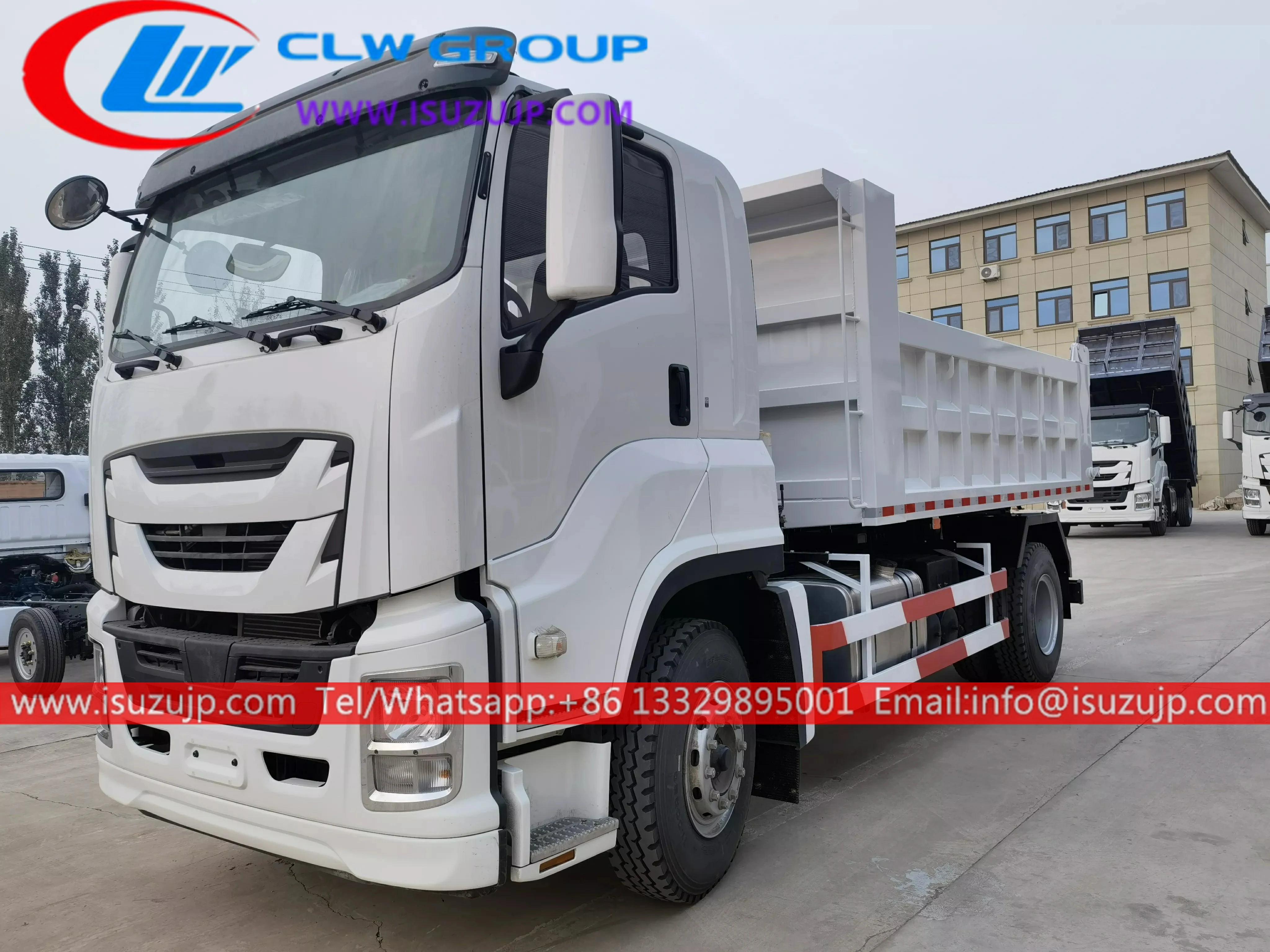

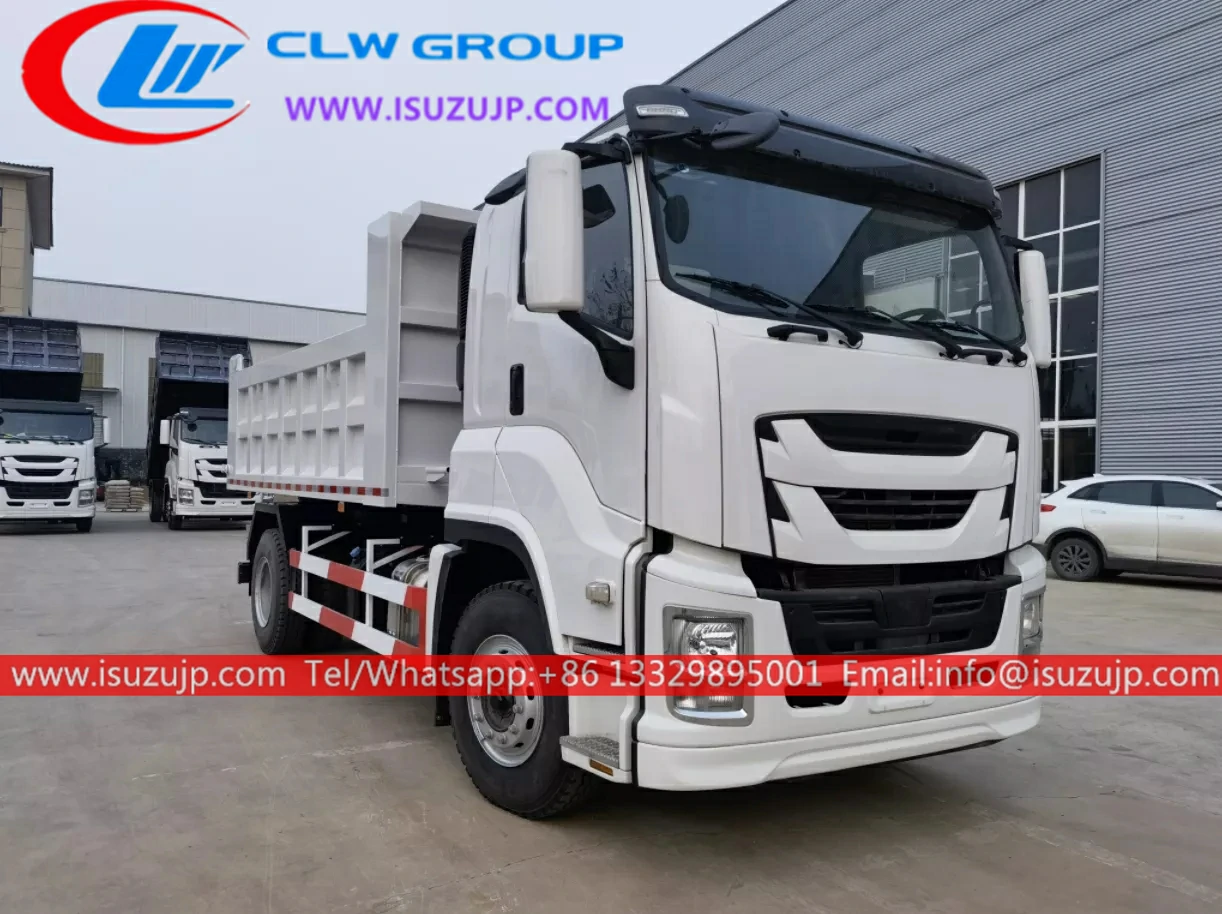

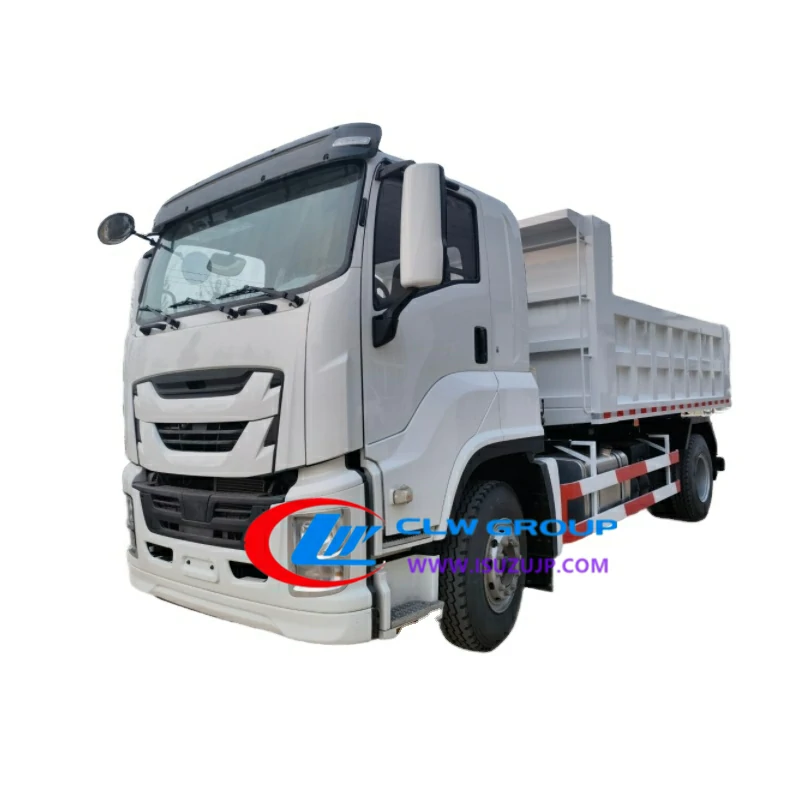

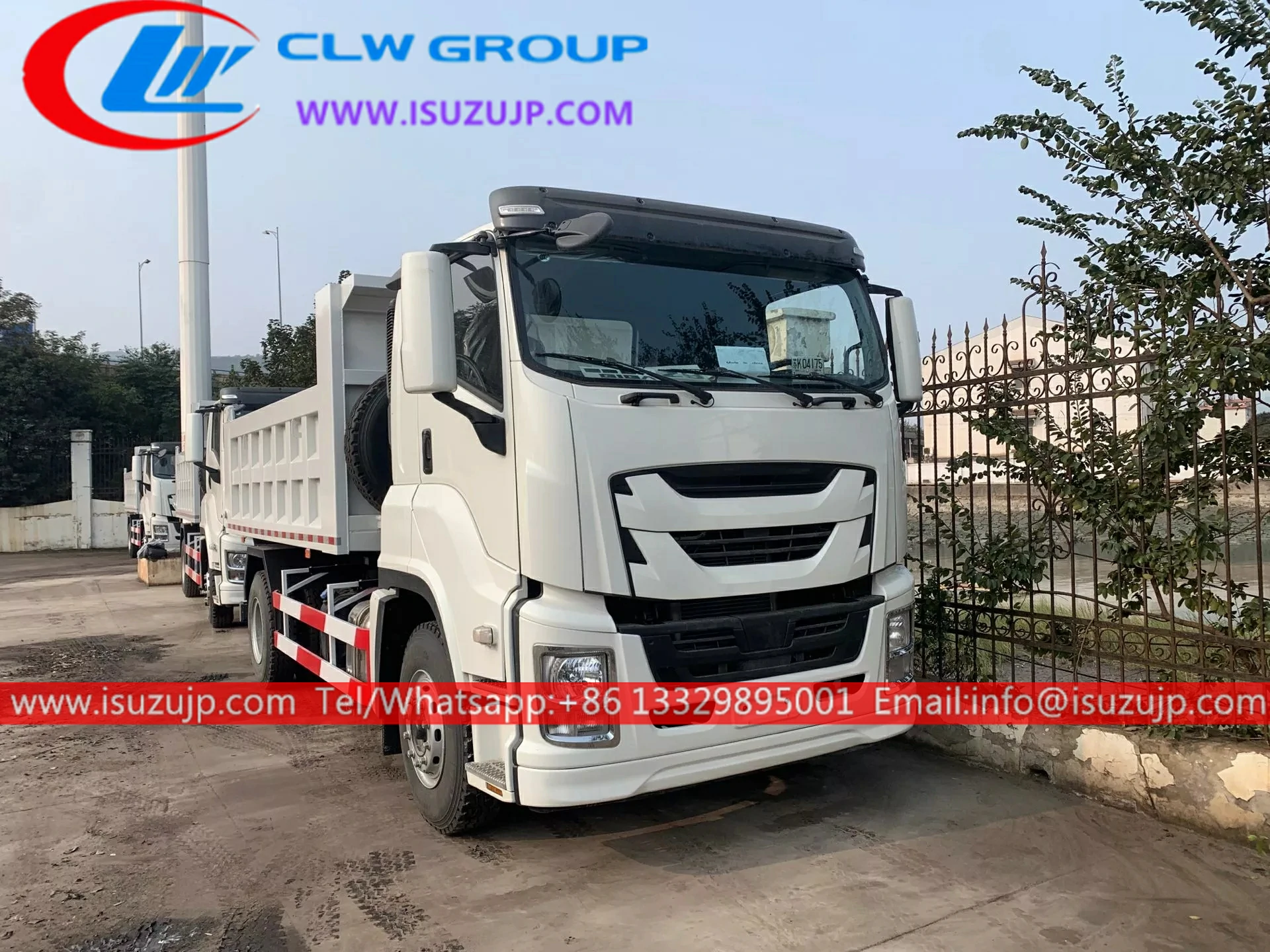

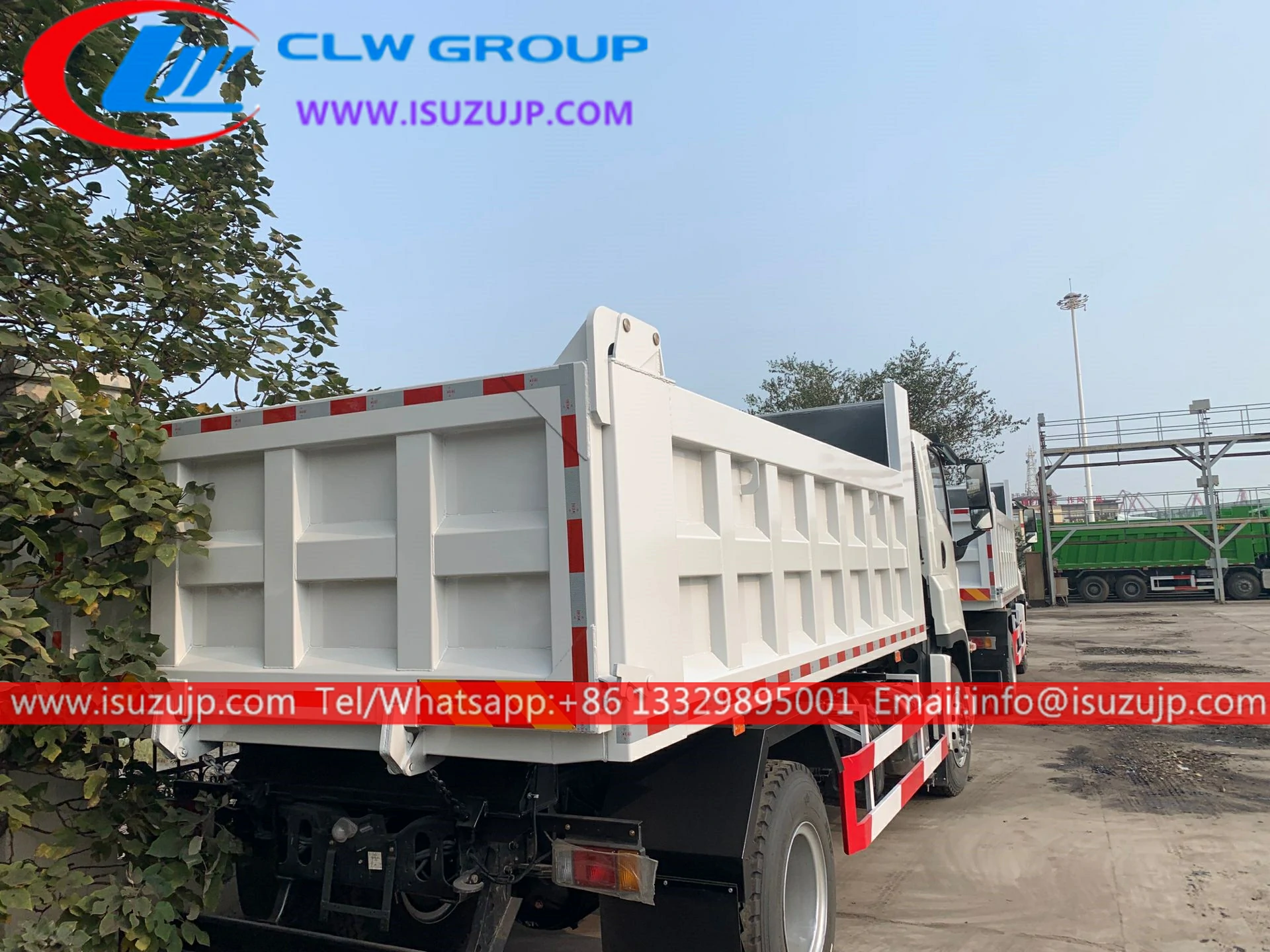

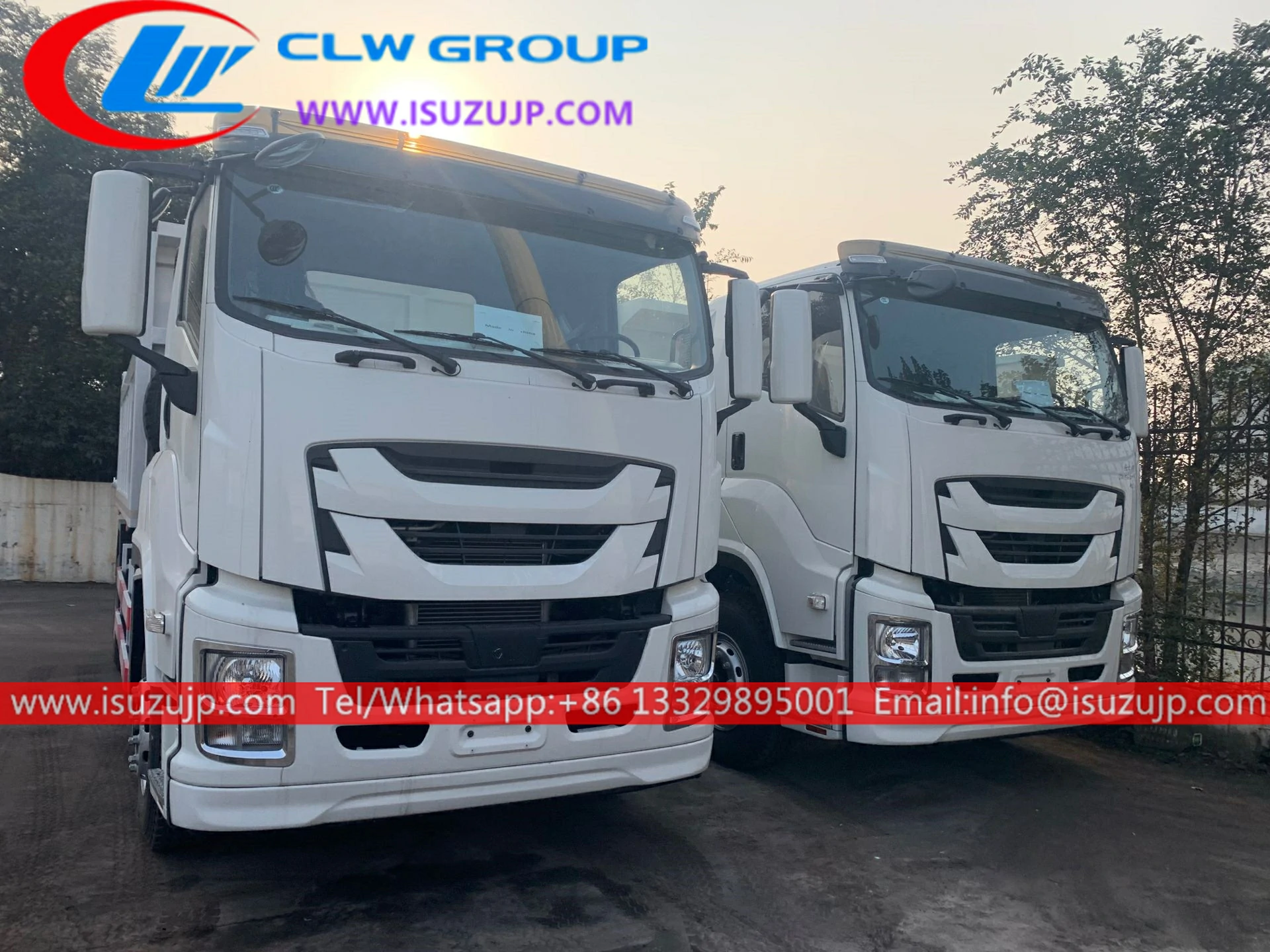

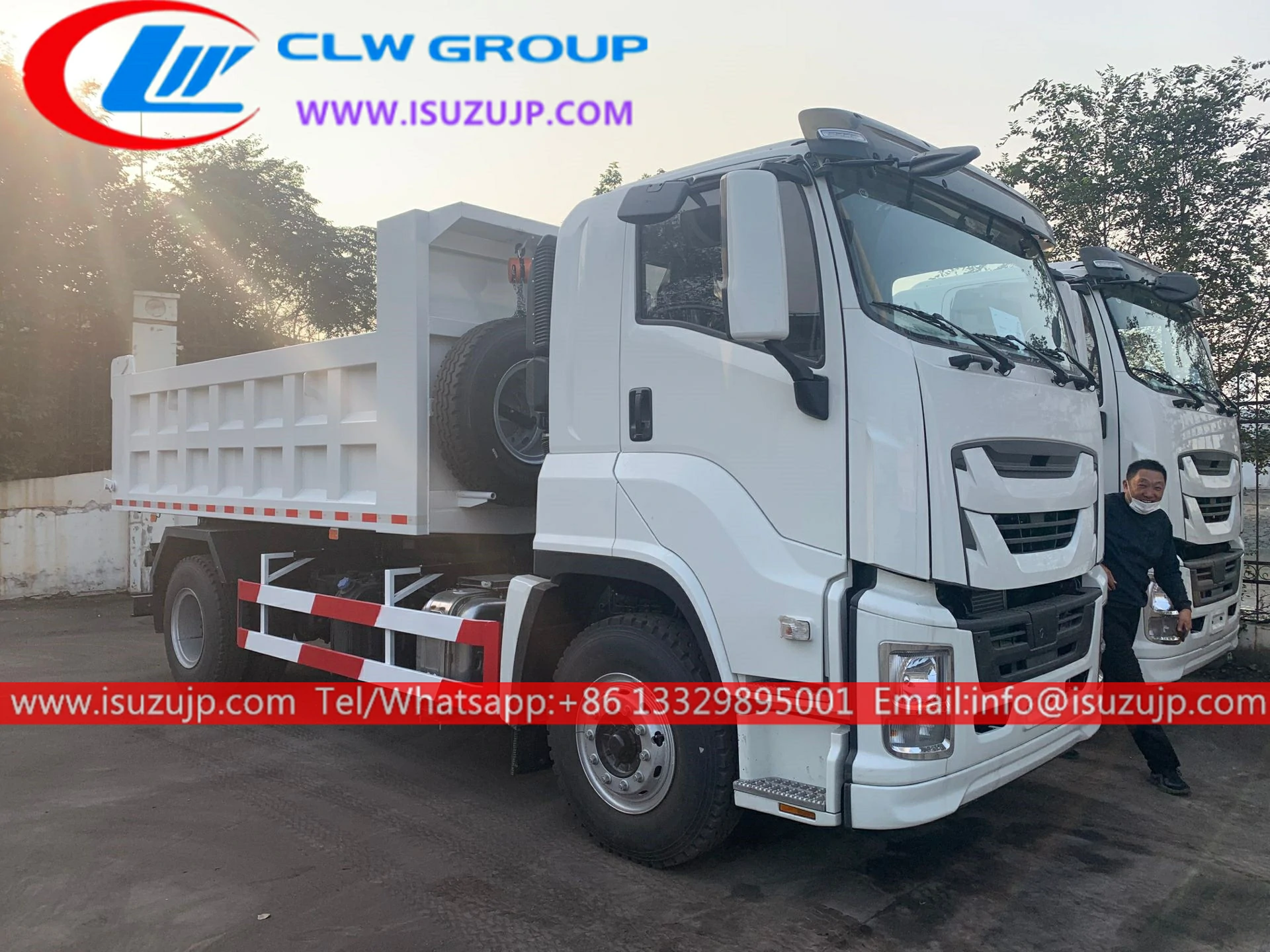

ISUZU GIGA 15 cube single axle dump truck Description:
- Isuzu single axle dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU GIGA heavy duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payloading from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
ISUZU dump truck Specification:
Chassis Dimensions and Parameters | ITEM | ISUZU GIGA 15 cube single axle dump truck for sale |
Overall Dimension(L x W x H) | 7500×2500x3040mm | |
Wheelbase: | 4500mm | |
Front/ Rear Wheel Distance: | 2060/1855mm | |
Front/Rear Suspension | 1335/1735mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 17/22° | |
Leaf Spring: | 7+6/8 | |
Weights and Capacities | Curb Weight: | 7500kg |
GVW: | 18000kg | |
Axle Loads: | 6500/11500kg | |
Engine | Engine Model: | 6HK1-TCG61 EURO VI |
Cylinder: | 6 | |
Max output: | 175Kw | |
Displacement: | 7790ml | |
Horsepower: | 240Ps | |
Exhaust Gas Treatment Technology: | DPF+SCR | |
With VGT | ||
Transmission | Transmission: | FAST |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Cab | Number of Seats: | 2 |
Chassis | Drive Type: | 4×2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 11.00R20 | |
Fuel Tank | Number: | 1 |
Capacity: | 200L | |
Top Parameters | Box Volume: | 10m³ |
Box Dimension: | 4500*2300*1000mm | |
Lifting Type: | Middle Lifting | |
Thickness: | Bottom 6mm, Side 4mm | |
Configurations: | Power Steering System | |
Air Conditioning | ||
Speed Light & Large Indoor Light | ||
ABS |

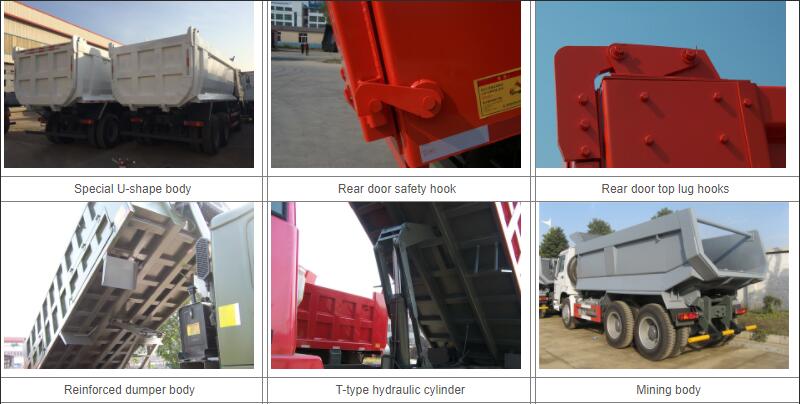

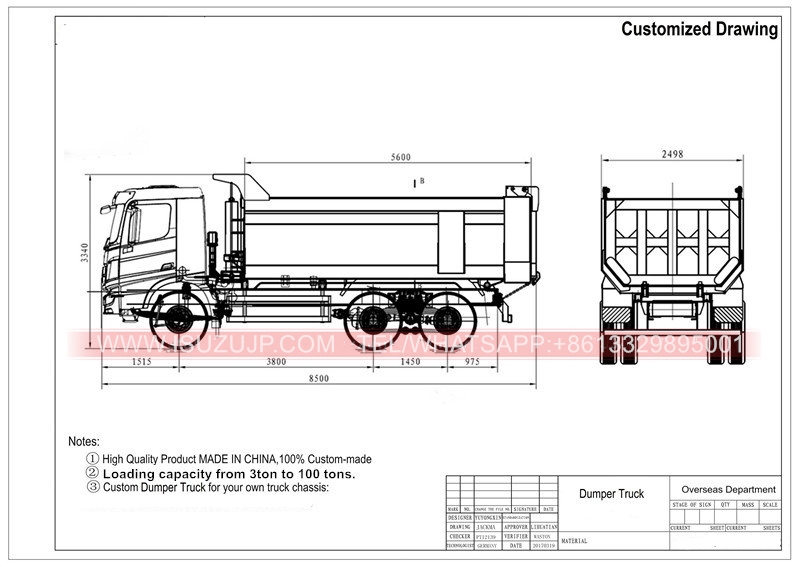

ISUZU Dumper truck Structure:

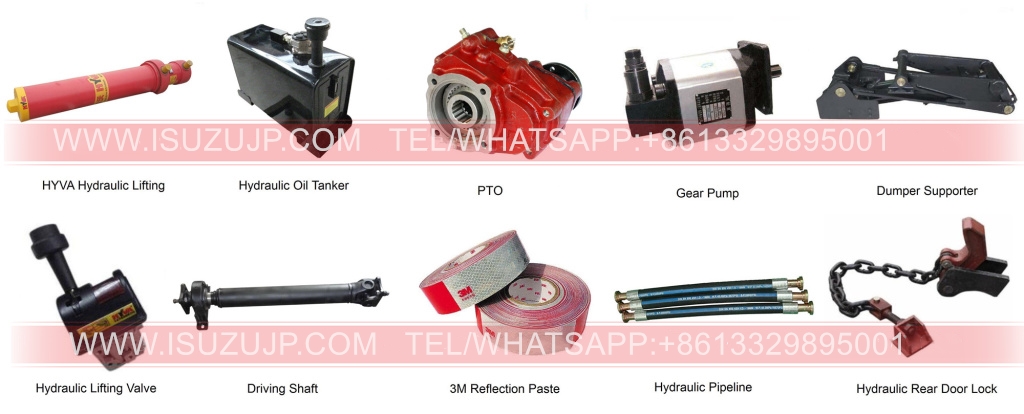

ISUZU tipper truck parts tools and instructions:

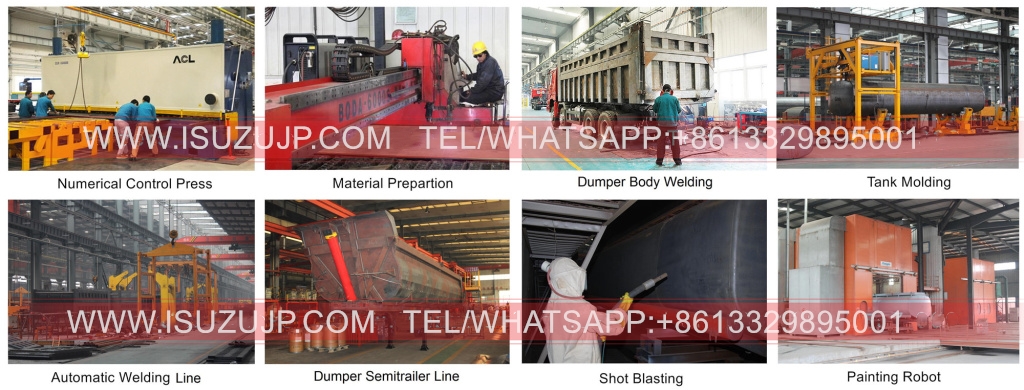

Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection

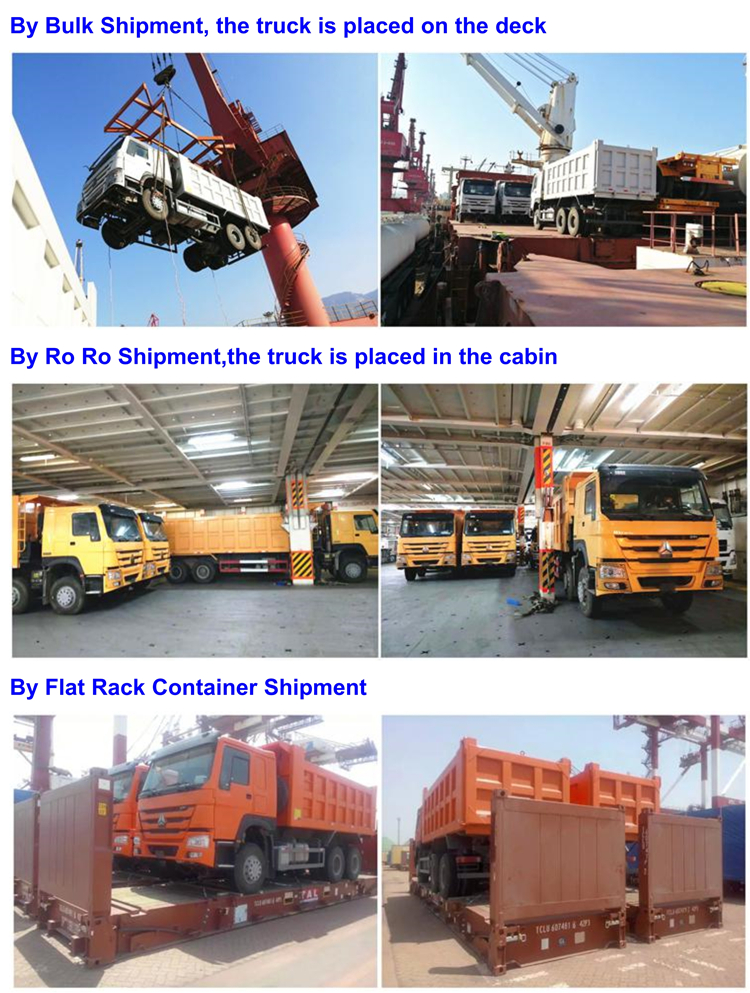

construction sand rock transport truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely

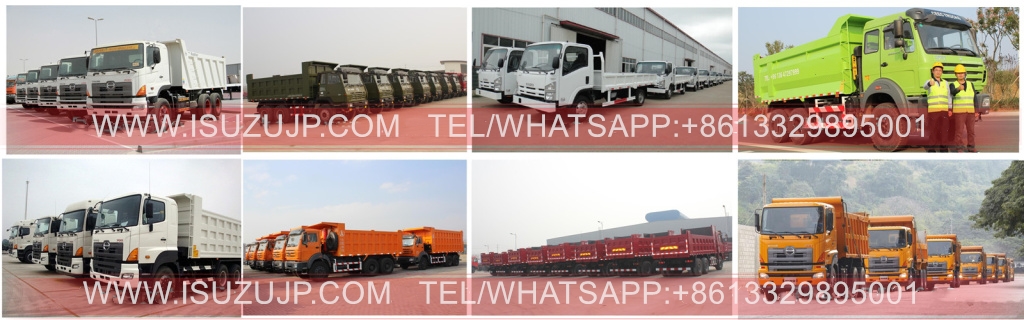

Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
