ISUZU FVZ 5000 gallons bulk milk storage tank truck Application:
- Isuzu stainless steel bulk milk storage tank truck Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
- Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage:
- ISUZU FVZ chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
Main Specification | |
Product Name | ISUZU FVZ 5000 gallons bulk milk storage tank truck for sale |
Driving Type | 6×4, left-hand drive |
Color | Optional |
Weights | |
Payload weight(kg) | 20000 |
Curb weight(kg) | Approx.12500 |
Dimensions | |
Wheelbase(mm) | 4565+1370 |
Overall Dimension(mm) | Approx.10300×2500×3200 |
Engine | |
Engine model | 6UZ1-TCG51(350HP) isuzu engine |
Engine type | 4 stroke water-cooled, Turbocharged inter-cooled |
No. of cylinders | Straight-6 cylinders |
Displacement(L) | 9.839L |
Rated power Rev((Kw) | 257kw |
Emission standard | Euro V |
Drive Line | |
Transmission | FAST.12 forwards,2 reverse gears, manual operation |
Steering | Power steering |
Brake system | air brake |
ABS | have |
Cab | |
Cabin | Isuzu FVZ, with A/C, electric window |
Axle | |
Front axle | 7 tons |
Rear-axle | 13 tons+13tons |
Tire specification | |
Tire specification | 315/80R22.5 or 12R22.5 standard tire,10 tires+1 spare tire |
Specification technology of water tank | |
Tanker capacity | 20000liters |
Tanker material | Stainless steel 304, 4mm |
Manhole | 1 unit DN500mm manhole |
Horse reels | 1. The inner is made of 4mm 304 2B Stainless Steel 2. the middle layer of the tank is made of 80mm thick polyurethane 3. The outer layer of the tank is made of stainless steel. 4.4 compartmentsMedium temperature change ≤1°C during 24 hours. An automatic cleaning system is adopted in the tank, and the cleaning device rotates 360degress to ensure no residual milk. All valves and pipelines are made of stainless steel |
Tank manufacturing standards:
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
- The liner is made of 3mm thick 304 food-grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, and hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rises and fall within 24 hours during the transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is lightweight, and has good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.

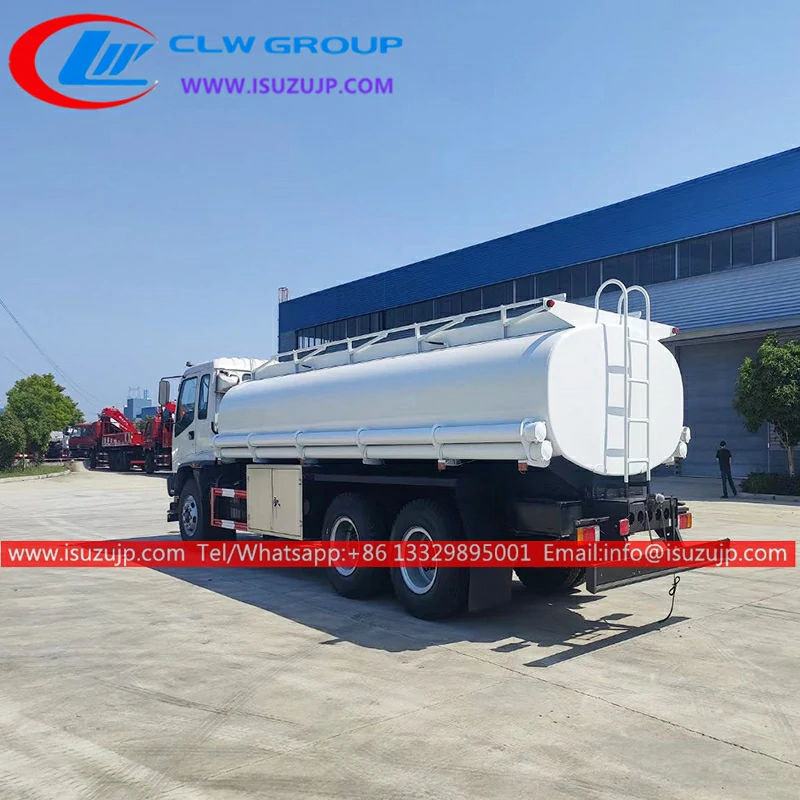

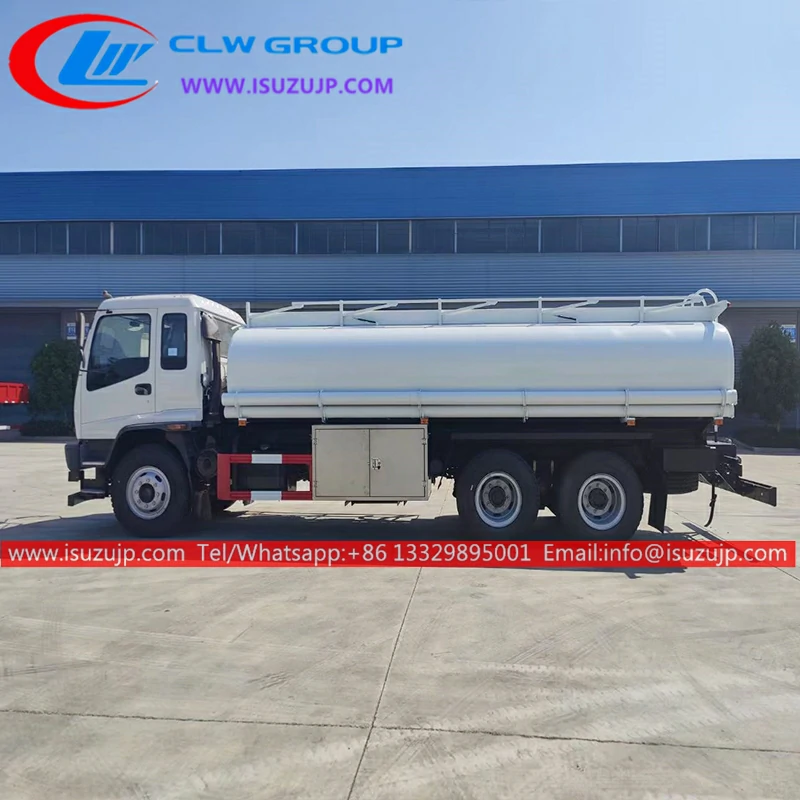

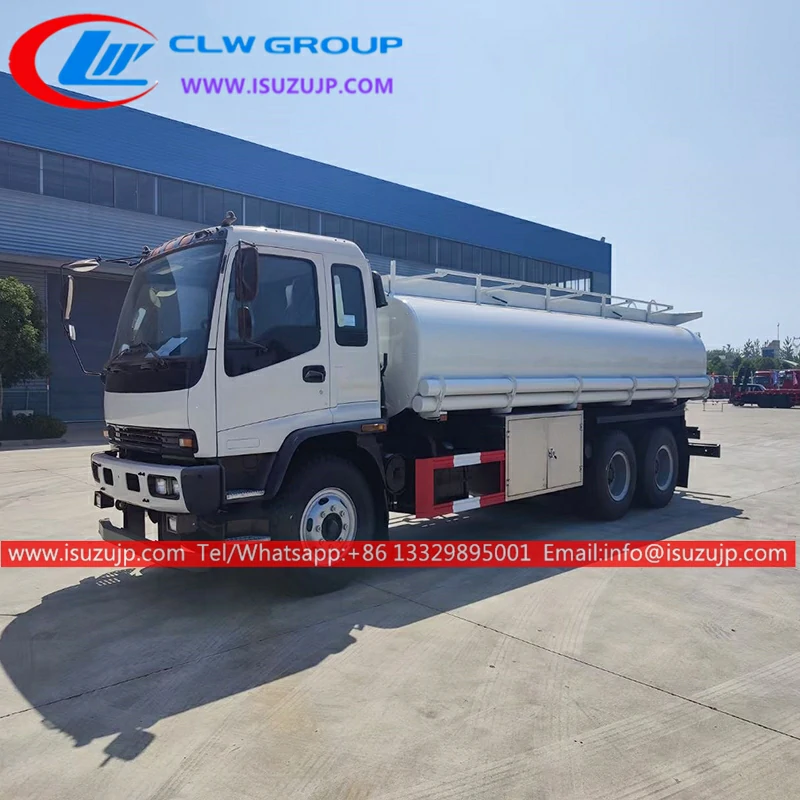

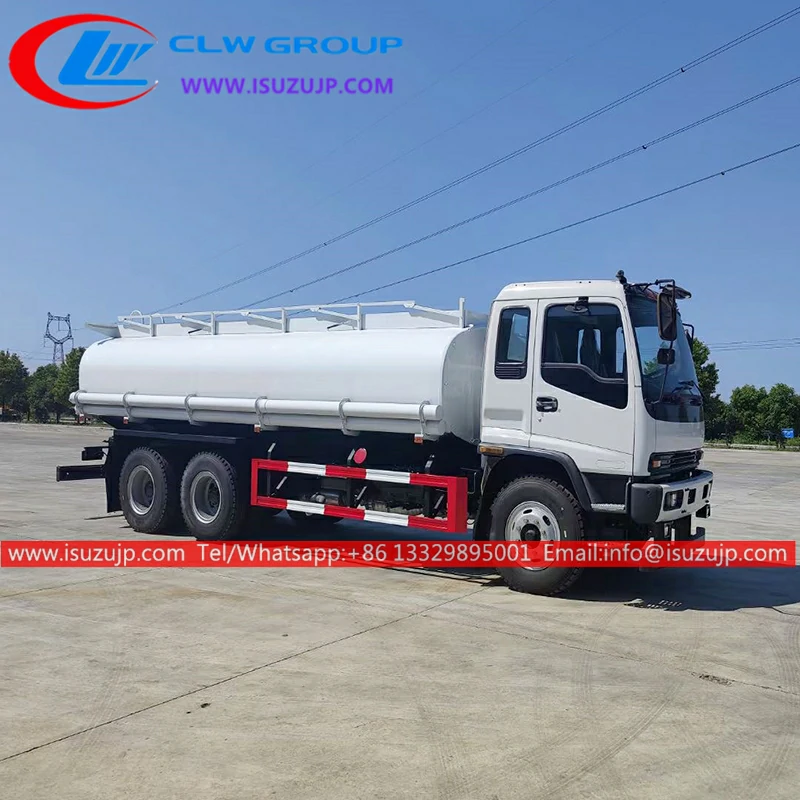

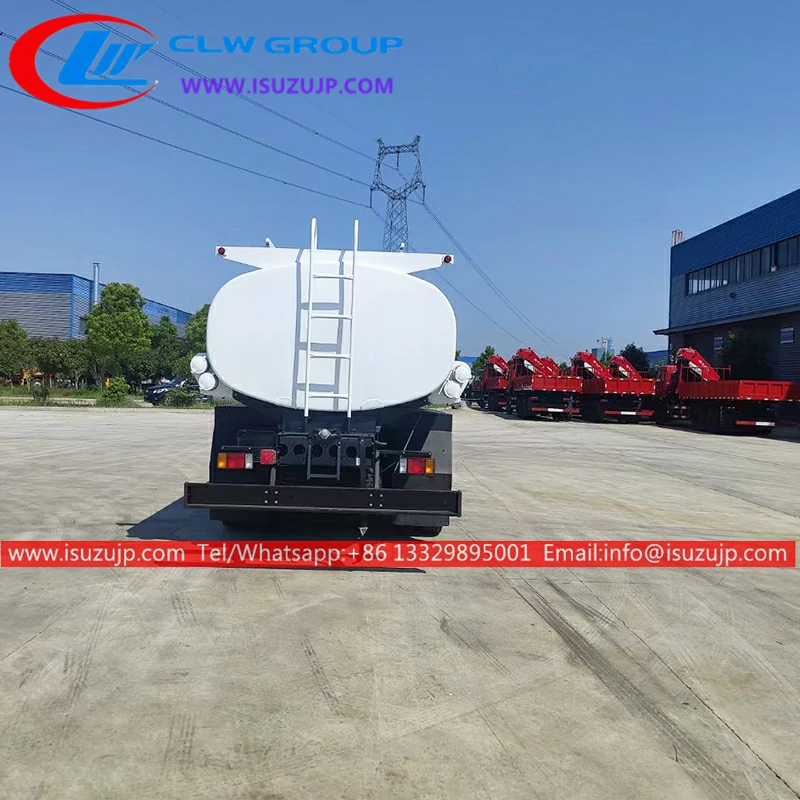

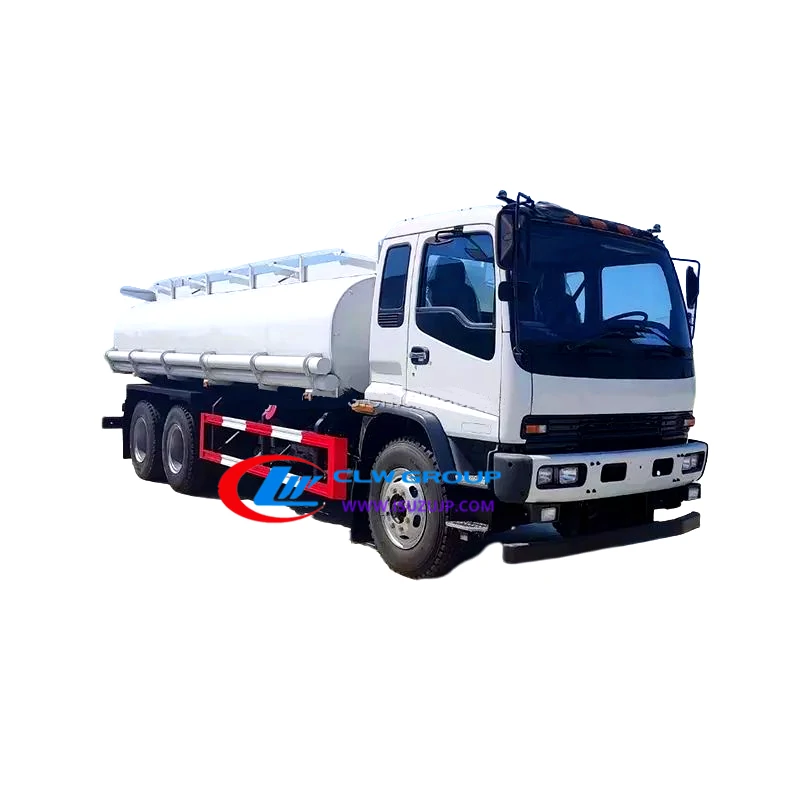

Milk tank truck detailed picture:
Milk transportation truck technical training support:
Tools and instructions:
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Small milk truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Mini milk truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Isuzu milk tank truck shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Milk truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
