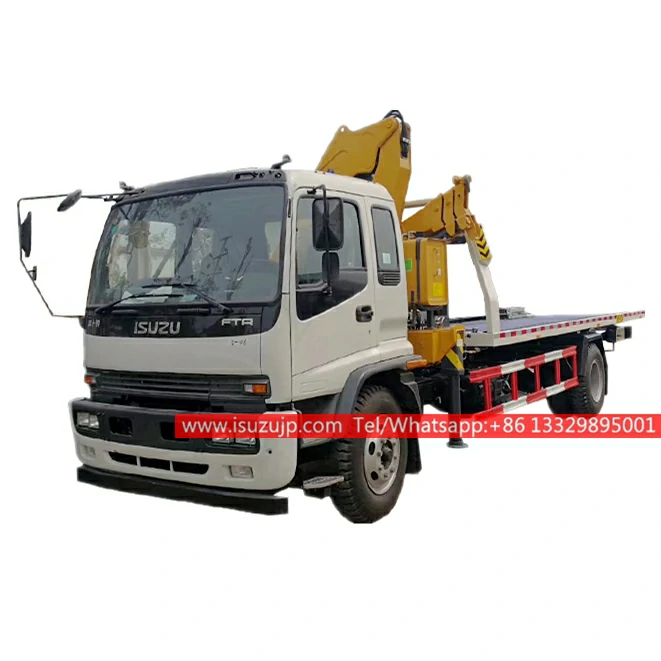

ISUZU FTR 8 ton platform wrecker tow truck crane Description:
- ISUZU wrecker tow truck crane also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or the vehicles that are broken down.
- can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30ton,40ton,50tons.Towing capacity is optional.
Advantage:
- 100% custom-made
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
- Easy operation & Easy maintenance
Specification:
| ISUZU FTR 8 ton platform wrecker tow truck crane | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9300 x 2500 x 3450 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 205Ps (151KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU MLD transmission, 6-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tyre Specification | 8.25-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Dimensions | 7000x2450mm |
| Load Capacity | 8 Tons | |
| Towing Capacity | 10 Tons | |
| Gradient of flat board | 10 degree | |
| Control | Control panel on both side | |
| Wire rope | 21 m | |
| Max towing speed | 40 km/h | |
| Knuckle boom crane | 5Tons knuckle crane truck | |
| Equipment | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire tope, 1 unit of spare tire, 1unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp | |
ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Flat Wrecker truck Structure:

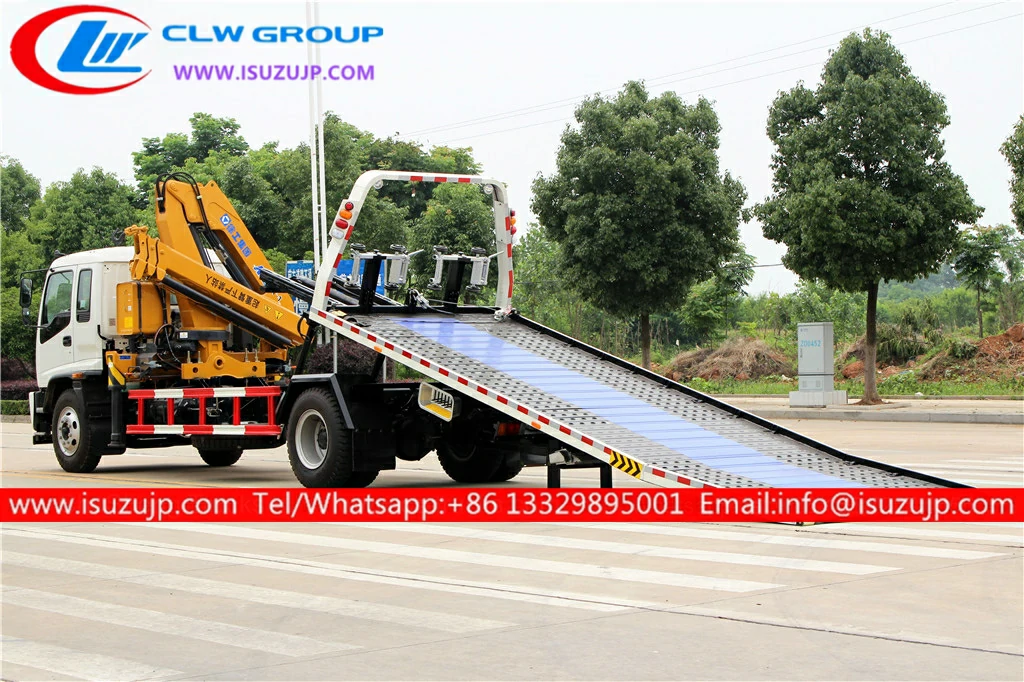

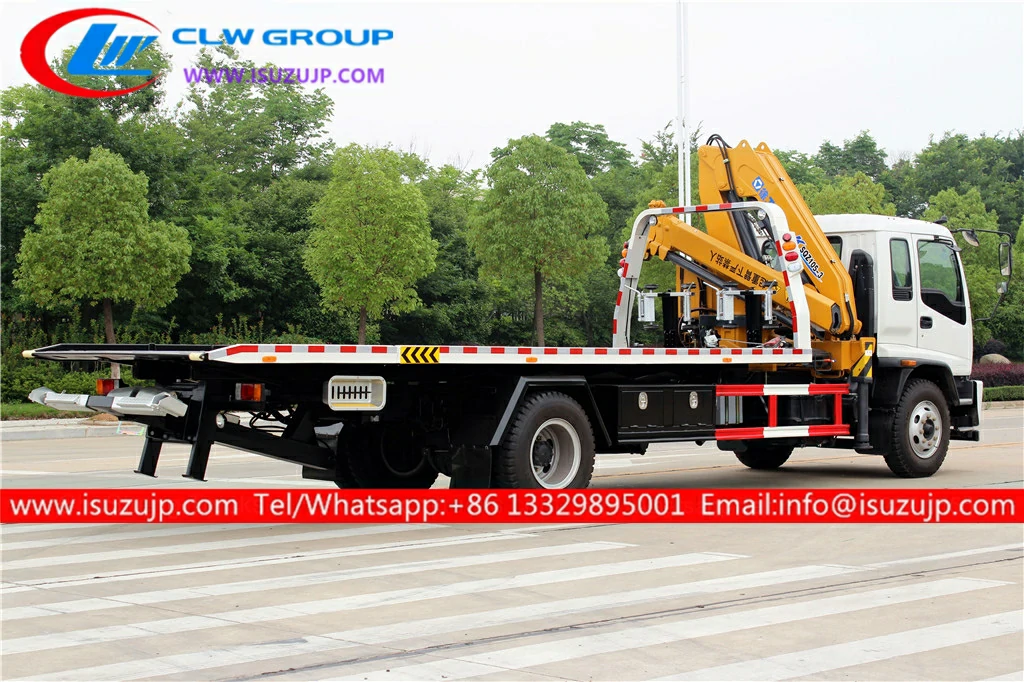

Police rescue truck operations and parts picture:

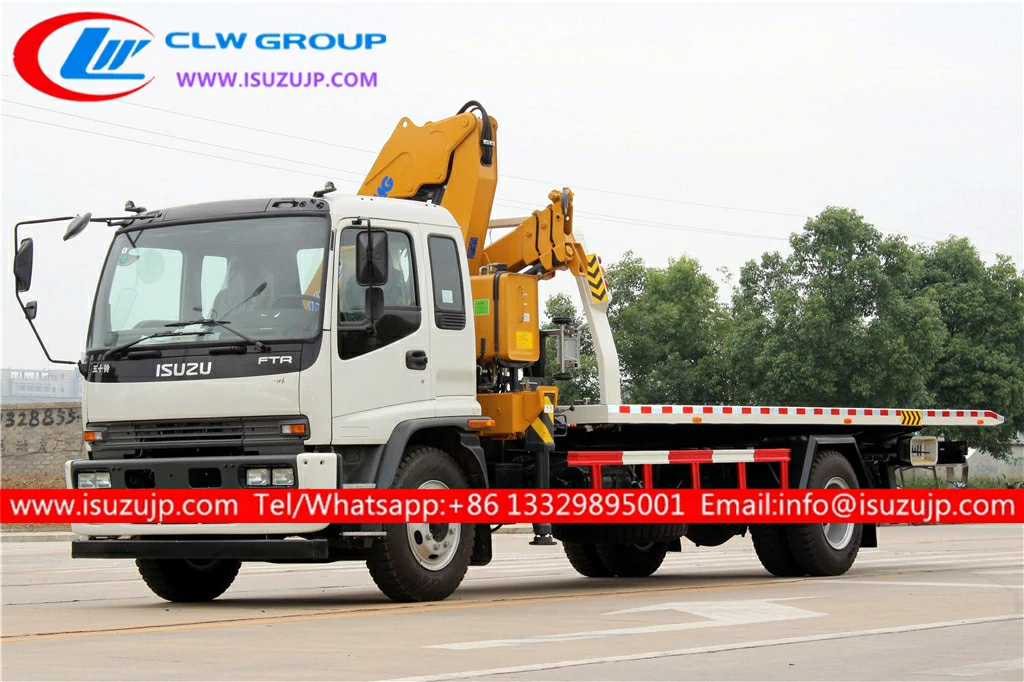

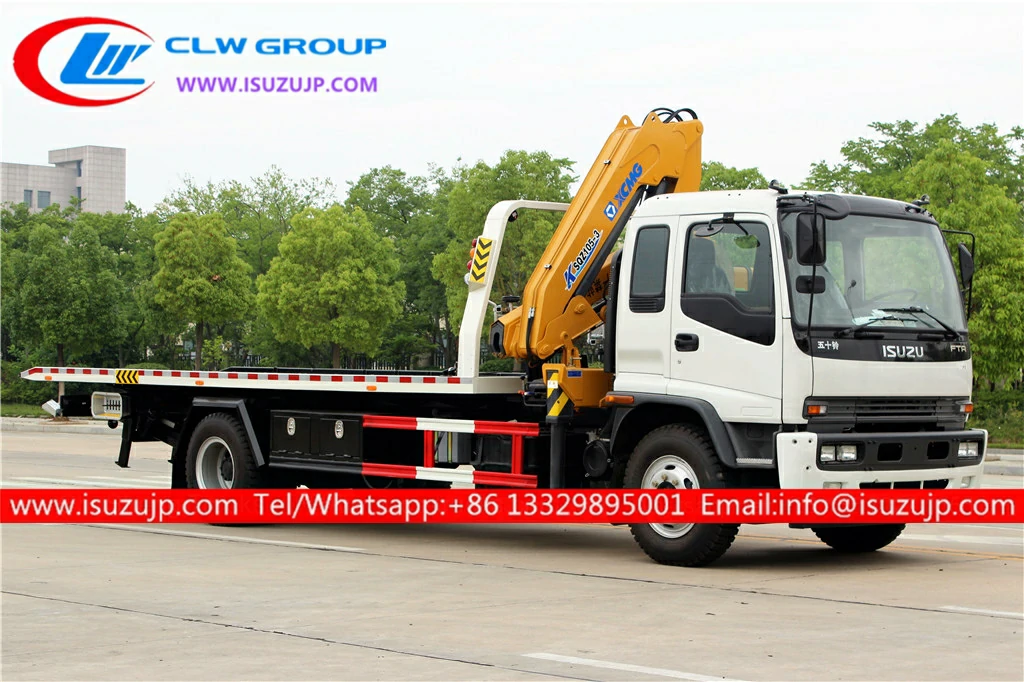

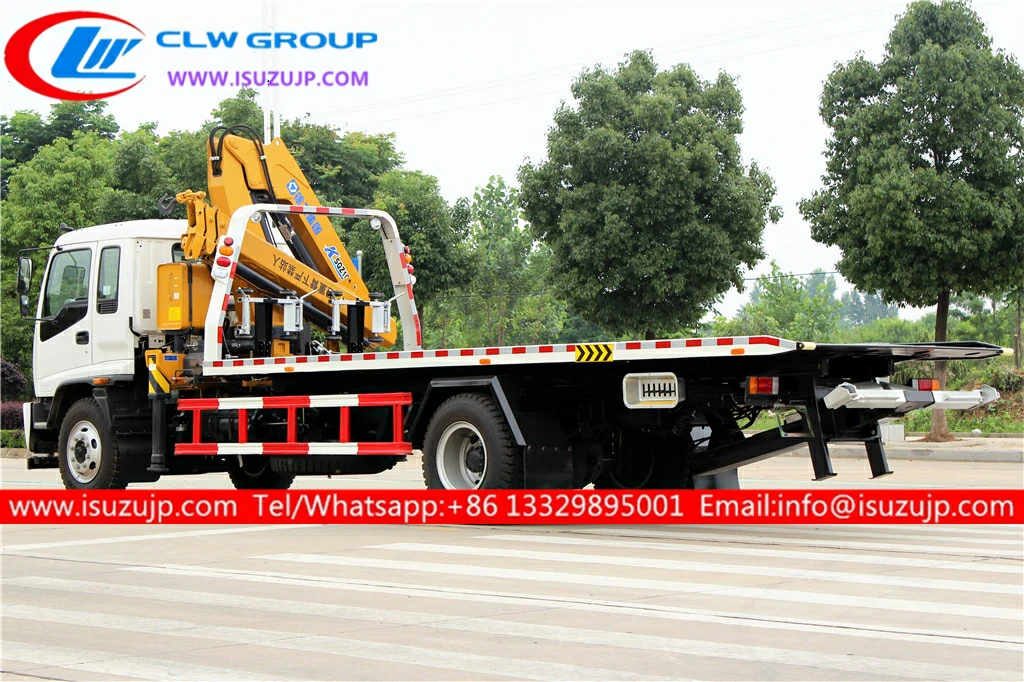

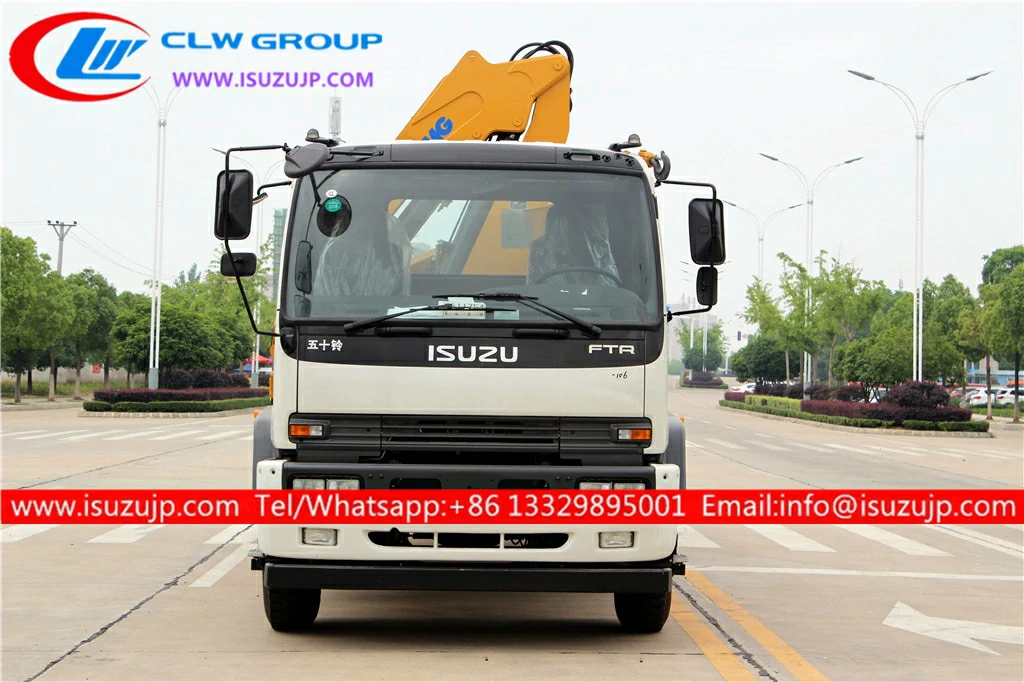

ISUZU recovery wrecker tow truck details：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
