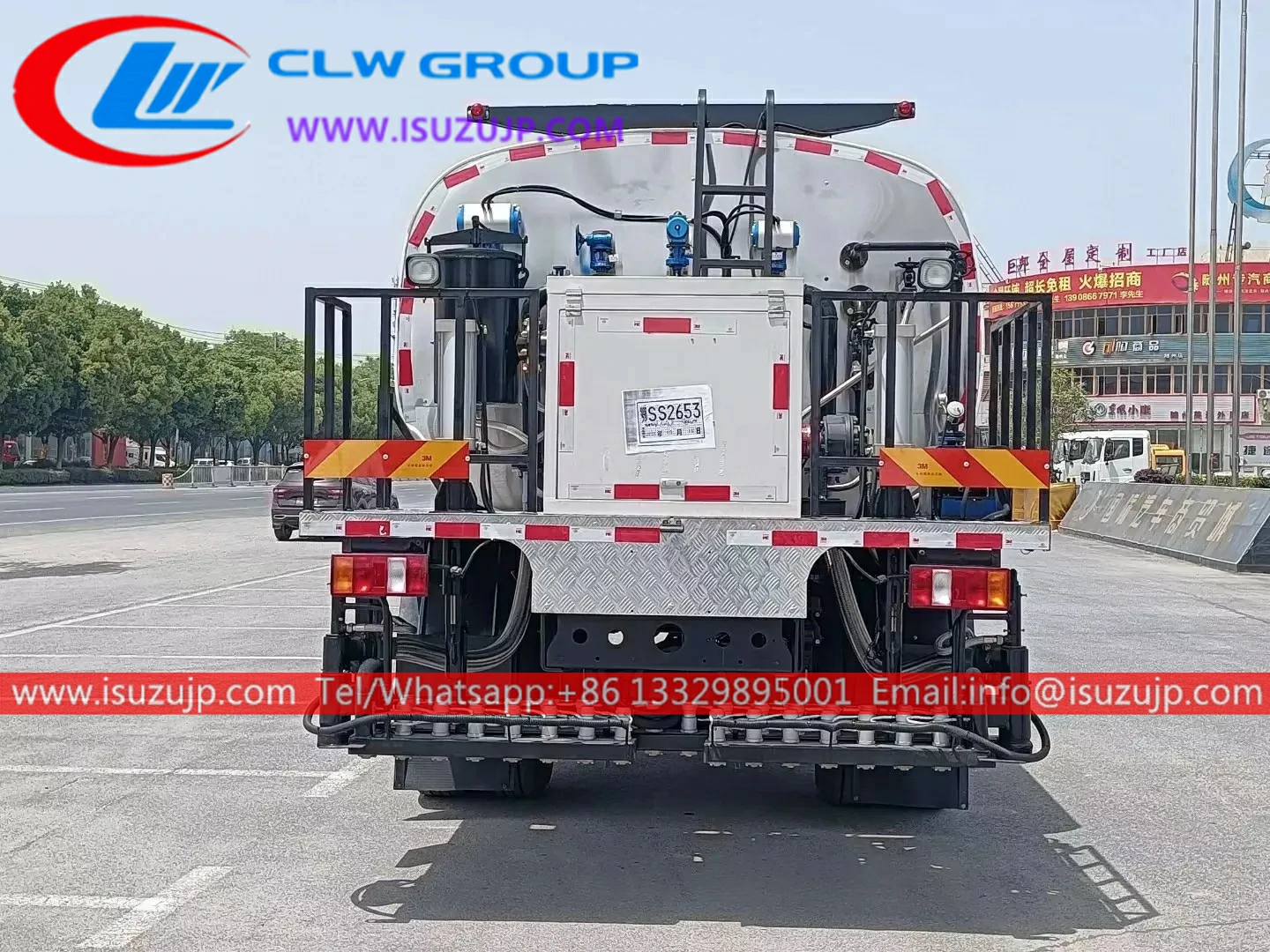

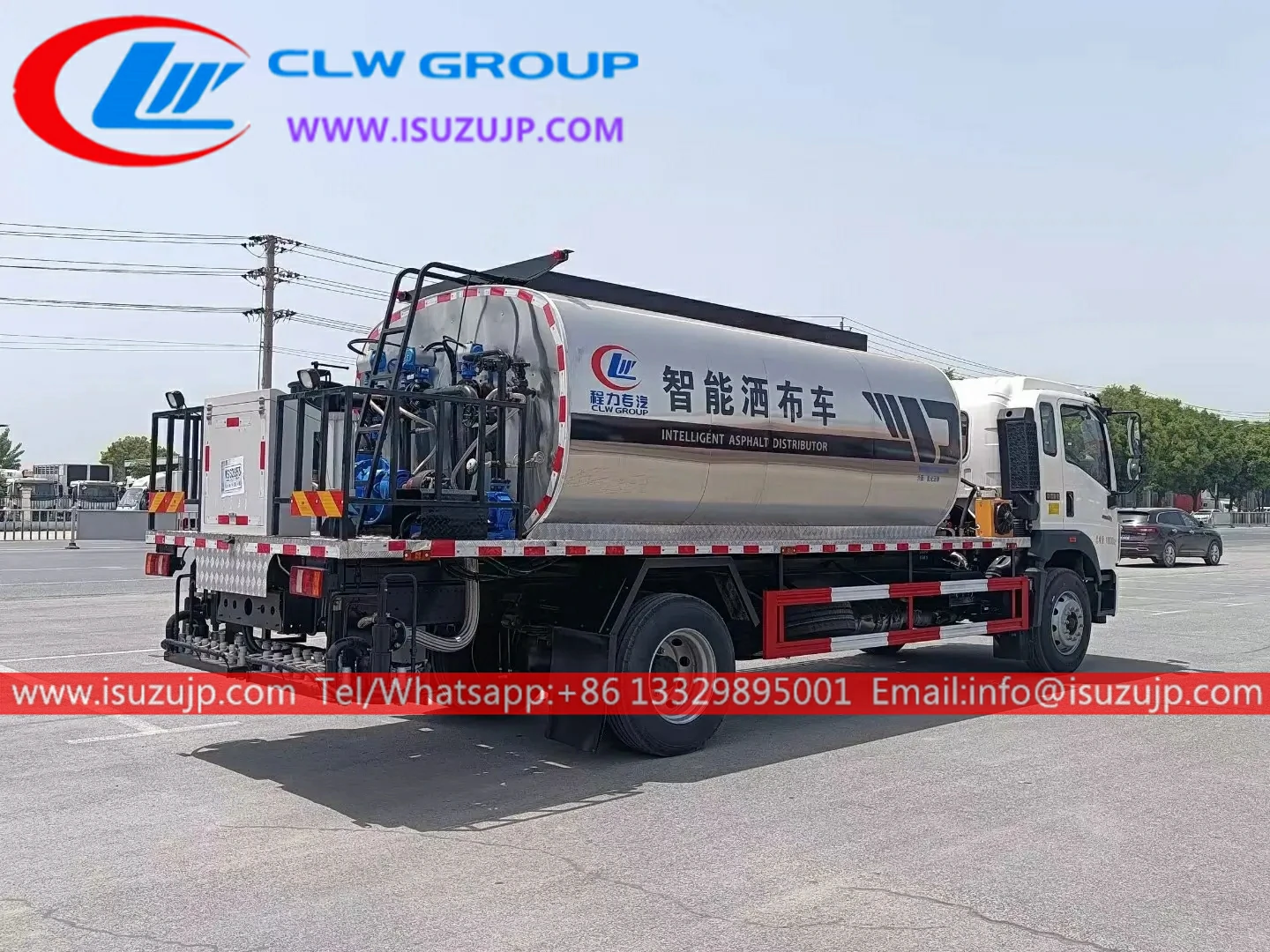

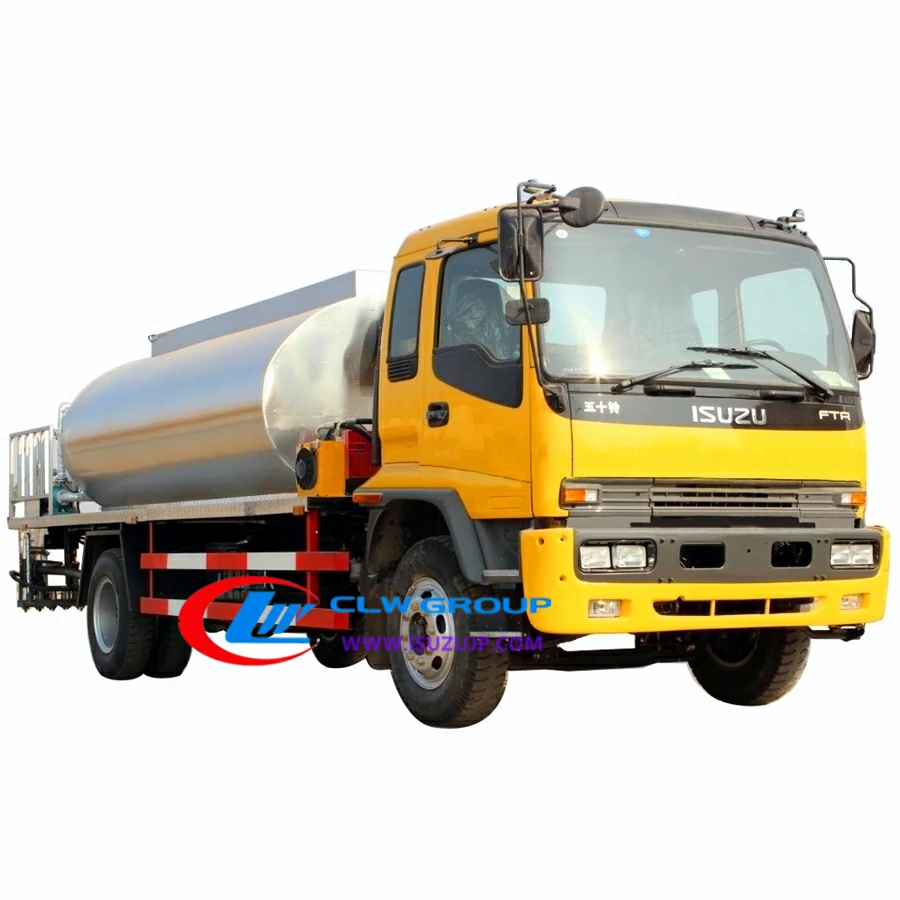

ISUZU FTR 12m3 bitumen distributor truck Description:
- ISUZU Bitumen distributor truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Advantage:
Chassis:
- ISUZU FTR truck chassis, perfect performance
- ISUZU 4HK1 series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
Asphalt distributor System:
- Automatic Bitumen Distributor Truck boasts three layers. It can adjust the spray amount according to its operational speed.
- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- The computer control system adopts a modular design for lower accident rates and maintenance.
- The temperature of asphalt in the tank is kept below or equal to two degrees per hour
- distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Specification:
| ISUZU FTR 12m3 bitumen distributor truck | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9000X2500X3070 mm | |
| GVW / Kerb Weight | 18,000kg / 10,850kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 4HK1 | |
| Power | 190 HP (140 KW)/205HP | |
| Displacement | 5193 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left-hand drive) |
| Transmission | Manual 6-speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 10.00-20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Bitumen Tank Volume | 12,000L |
| Spray Width | 2000-6,000mm | |
| Spray Volume | 0.2-3.0 kg/m2 | |
| Asphalt heating mode | Imported diesel oil burner | |
| Spray media | Asphalt Rubber, hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc. | |
| Spray Precision | ±1.5% | |
| Control | English | |
| Color & Logo | According to wish | |
| All standard accessories: All tools. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | The back alarm and Camera can be equipped. Other body capacities can be chosen. Other materials and plate thicknesses can be chosen. | |

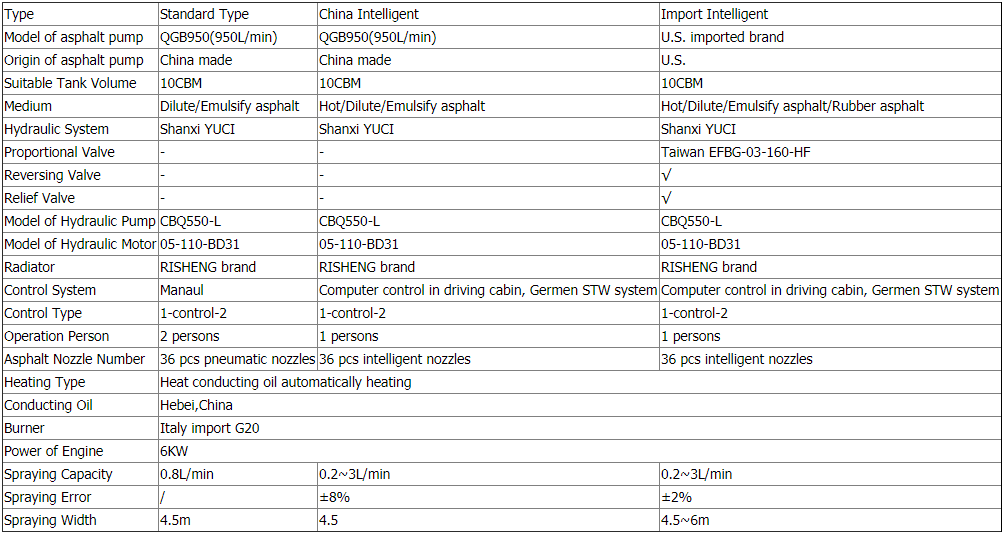

Asphalt distributor truck Working parameter:

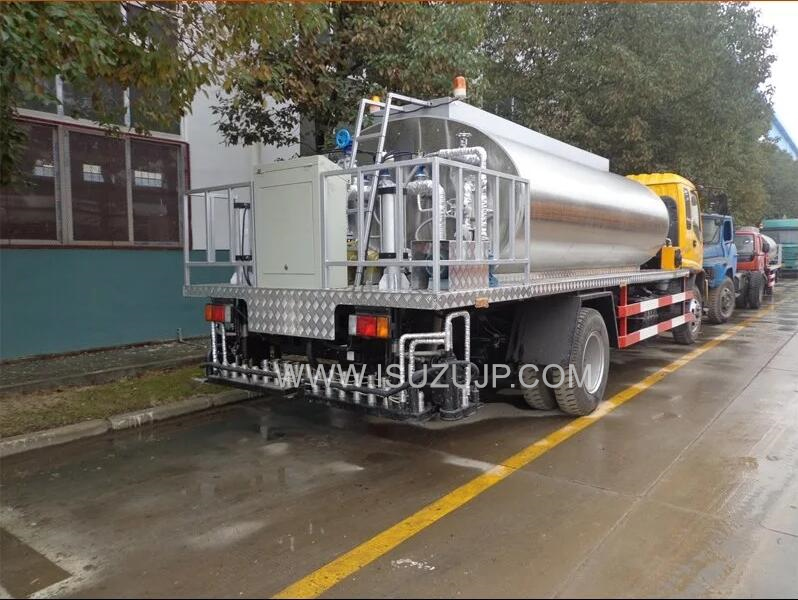

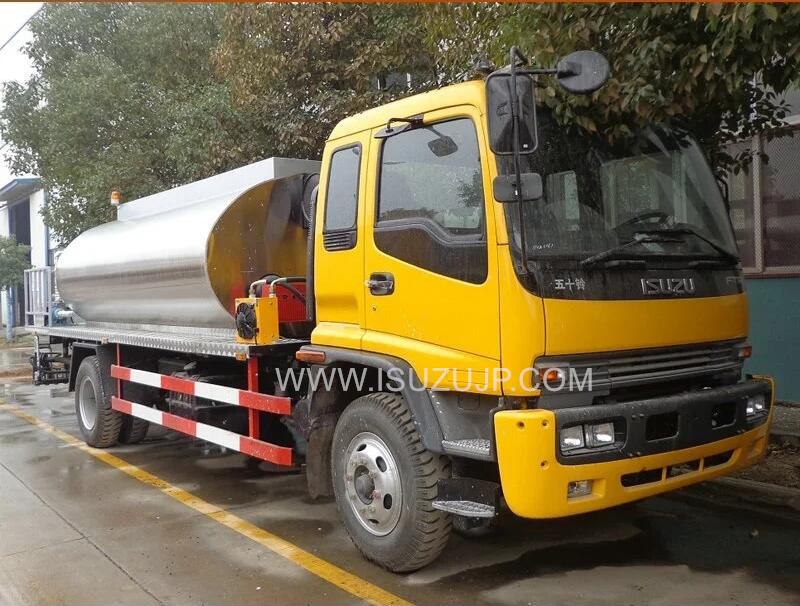

ISUZU Asphalt delivery truck details:

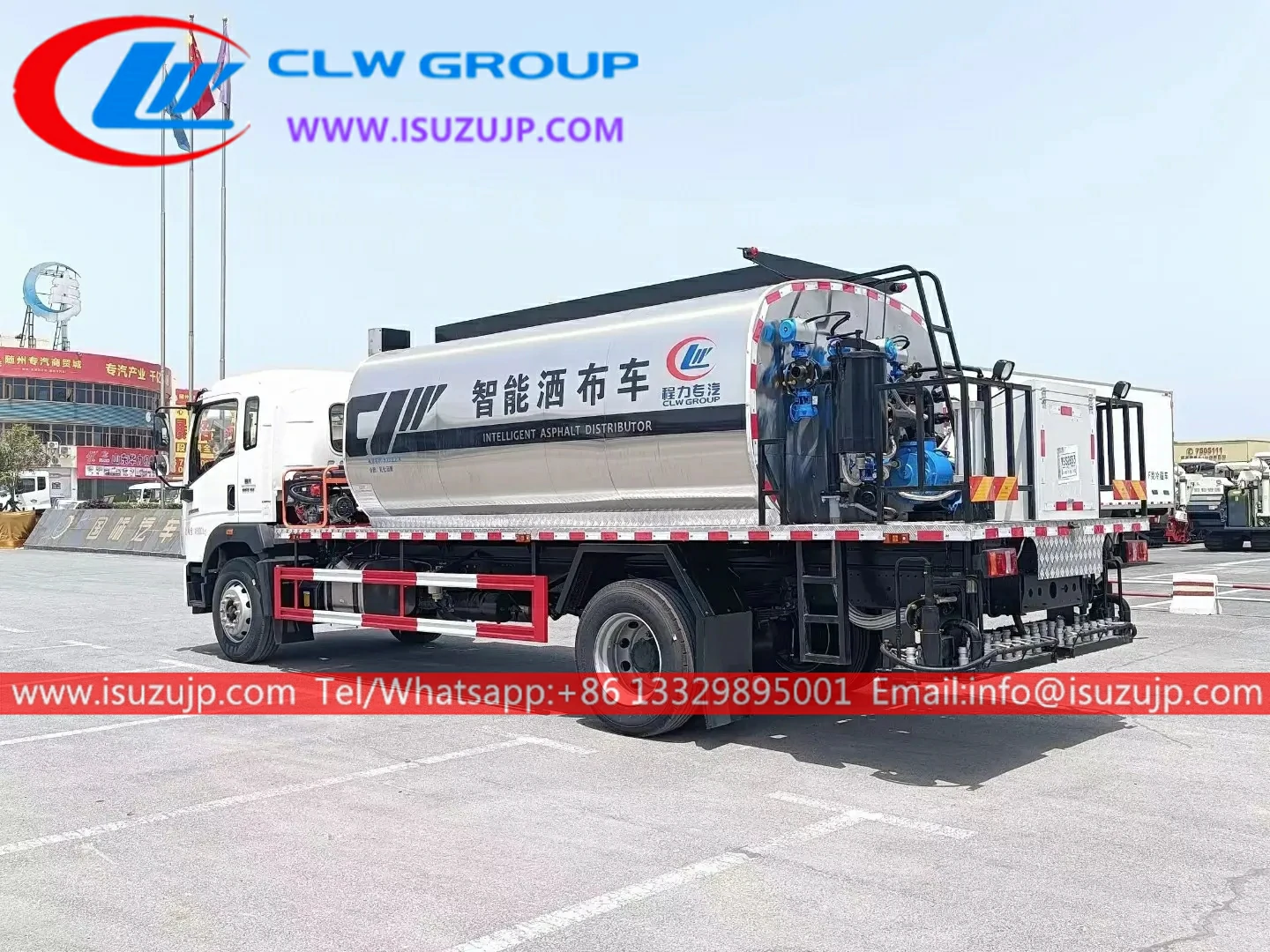

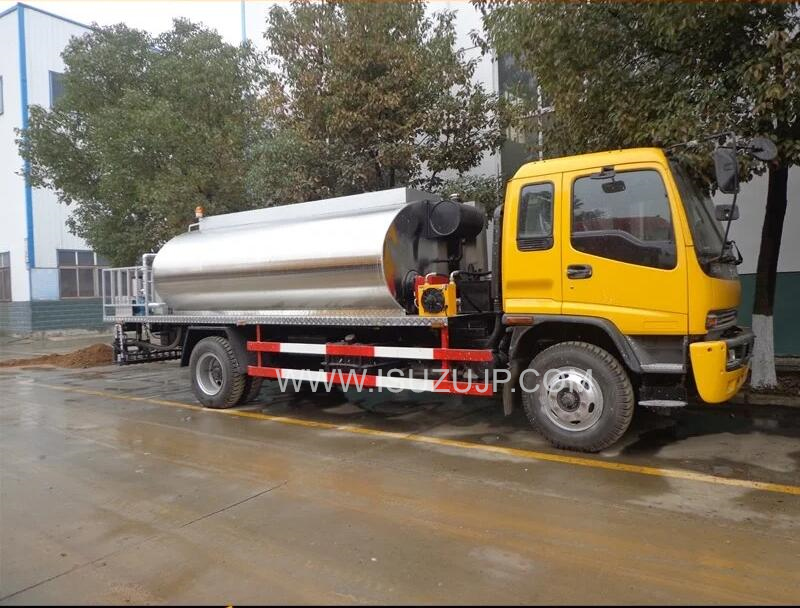

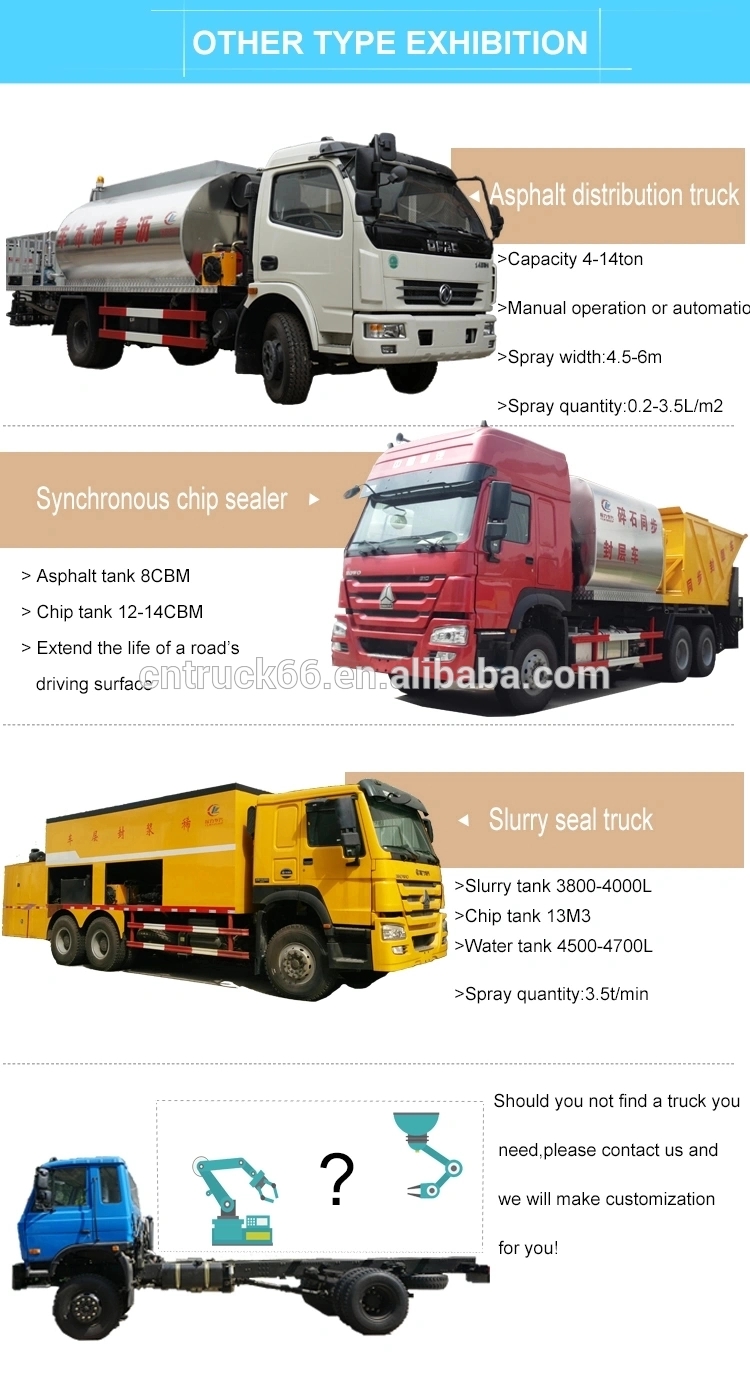

ISUZU Asphalt delivery truck optional style：
Asphalt distributor machine Tools and instructions:
