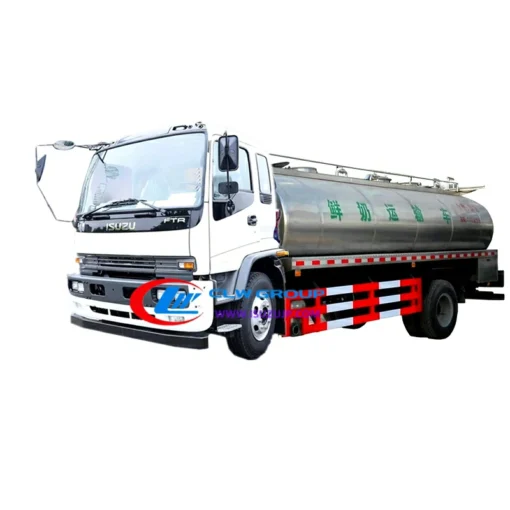

ISUZU FTR 12000liters dairy tanker truck Application:
- Isuzu FTR 12000liters dairy tanker truck Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
- Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage:
- ISUZU FTR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| ISUZU FTR 12000liters dairy tanker truck General Technical Parameters | |||
| Overall Dimension | 7500X2500X3000(mm) | ||
| Gross Vehicle Weight | 15800(Kg) | ||
| Curb Weight | 7980(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | ISUZU FTR | ||
| Drive model | 4*2 | ||
| Cabin | Single, Left-Hand Driving, with air conditional | ||
| Number of Passengers | 2 | ||
| Engine | Model | 4KH1, 4-stroke direct injection, 4-cylinder in-line with water cooling, inter-cooling, with ABS. | |
| Power | 151KW/205HP | ||
| Emission standard | EURO V | ||
| Displacement | 5900(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | MLD 6Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 4500mm | ||
| Front/Rear Axle Loading | 7000/13000(Kg) | ||
| Springs Number | 8/10+8 | ||
| Overhang | 1245/2655(mm) | ||
| Tire | 10.00R20, 6pcs+1spare tire | ||
| Max Driving Speed | 95(km/h) | ||
| Upper structure Specification | ||
| Tank Body | External Dimension | 5700×2000×1400(mm) |
| Internal Dimension | 5500×1800×1200(mm) | |
| Volume | 10CBM | |
| Inside Layer | Stainless steel 304/2B; 4mm | |
| Middle Layer | Polyurethane foam; 80-100mm | |
| Outer Layer | Stainless steel 304; 2mm | |
| Insulation Performance | 24 hours temperature difference is no more than 1ºC. | |
| Other Configuration | 1. Breathing valve, manhole, discharging valve, inside ladder, cooling system, etc. 2. Each part and valve are stainless steel. 3. Each compartment has CIP Device. | |
| Options | Compartment number | |
Tank manufacturing standards:
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
- The liner is made of 3mm thick 304 food-grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance and hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, and the density reaches 32~35 kg/cubic, to ensure that the temperature rises and falls within 24 hours during the transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is lightweight and has good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil, and other media at the same time through sub-bins.

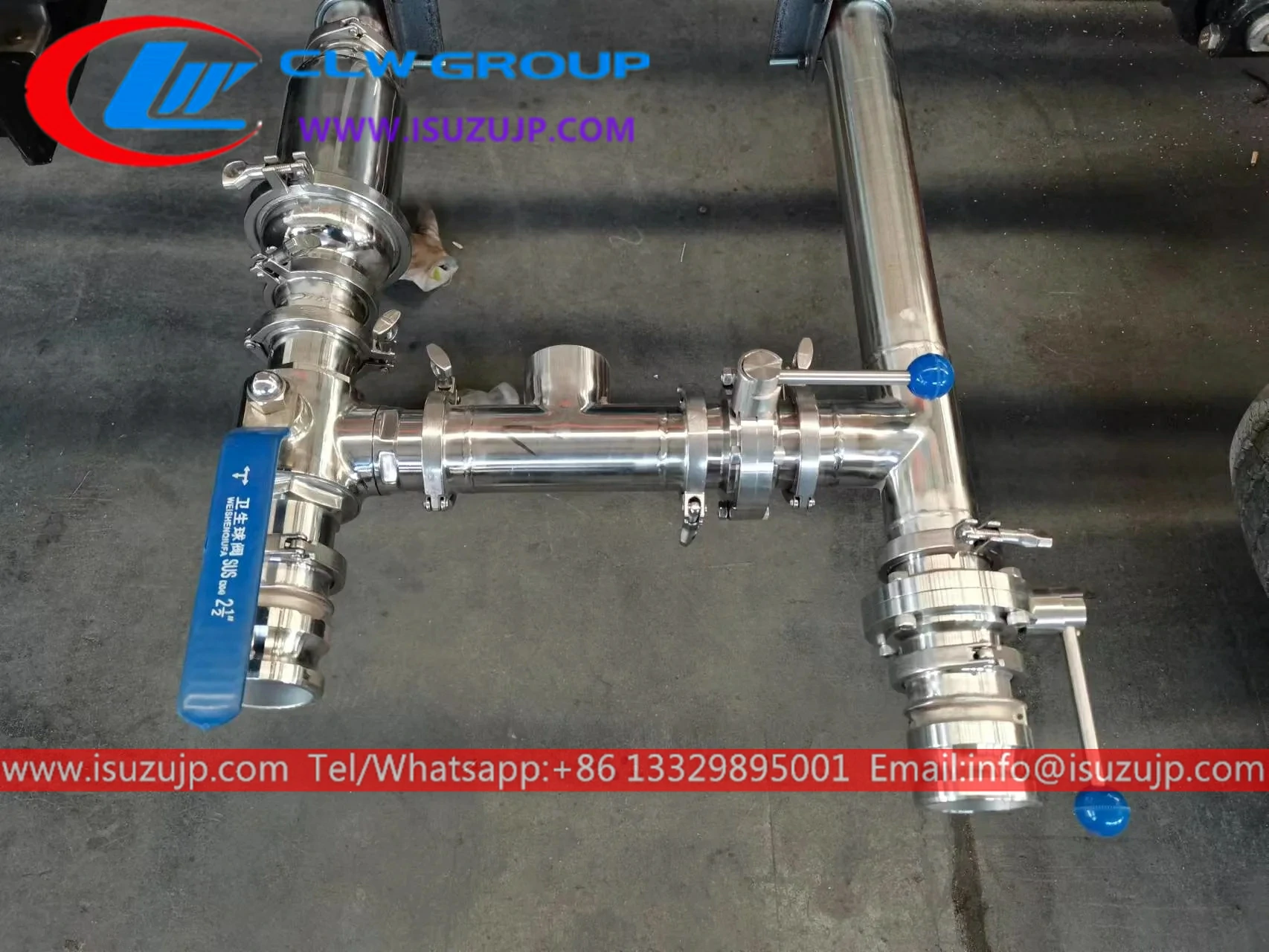

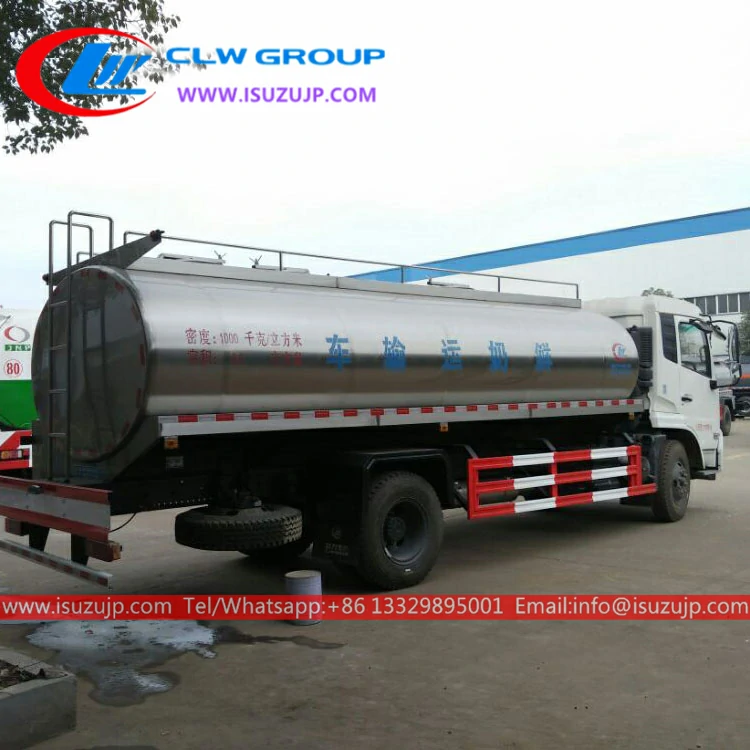

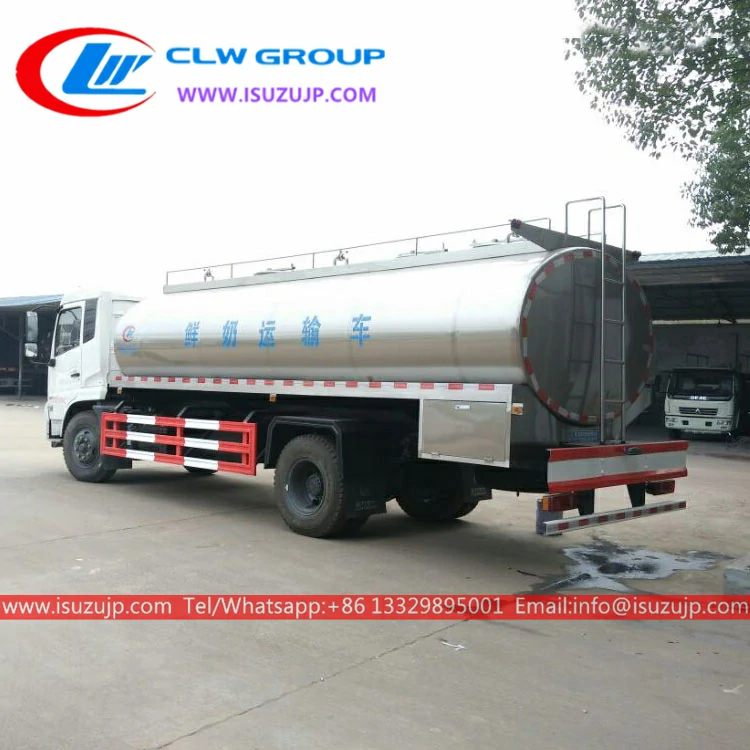

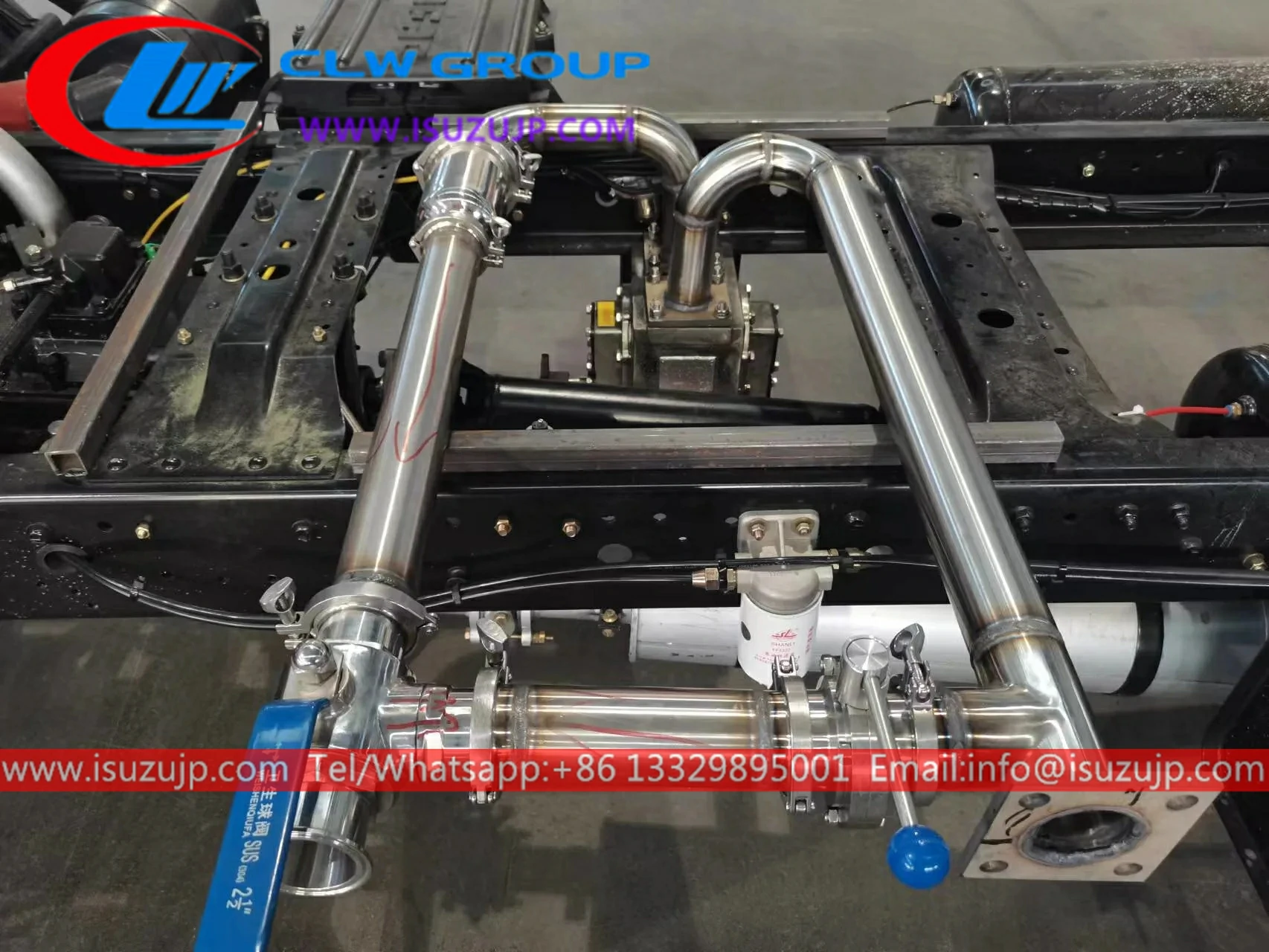

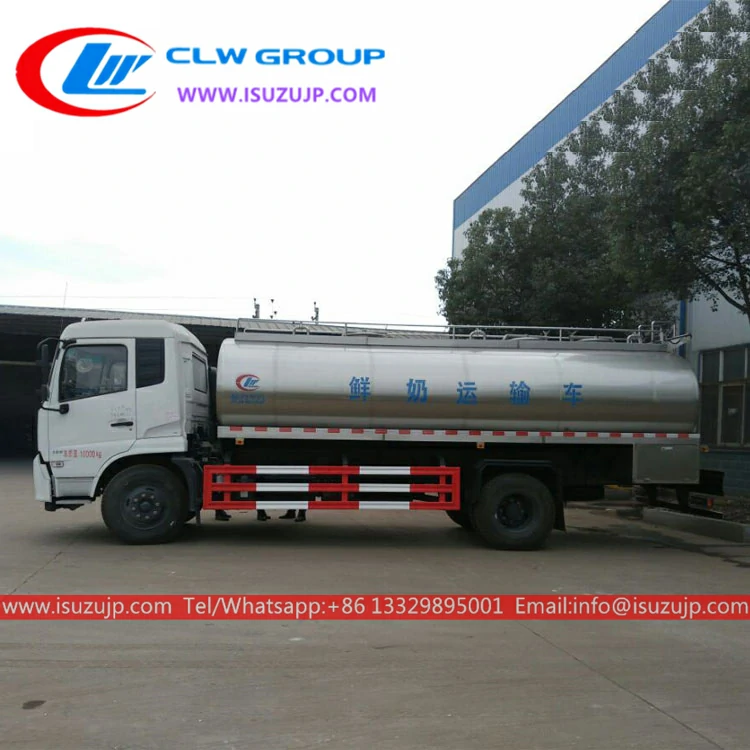

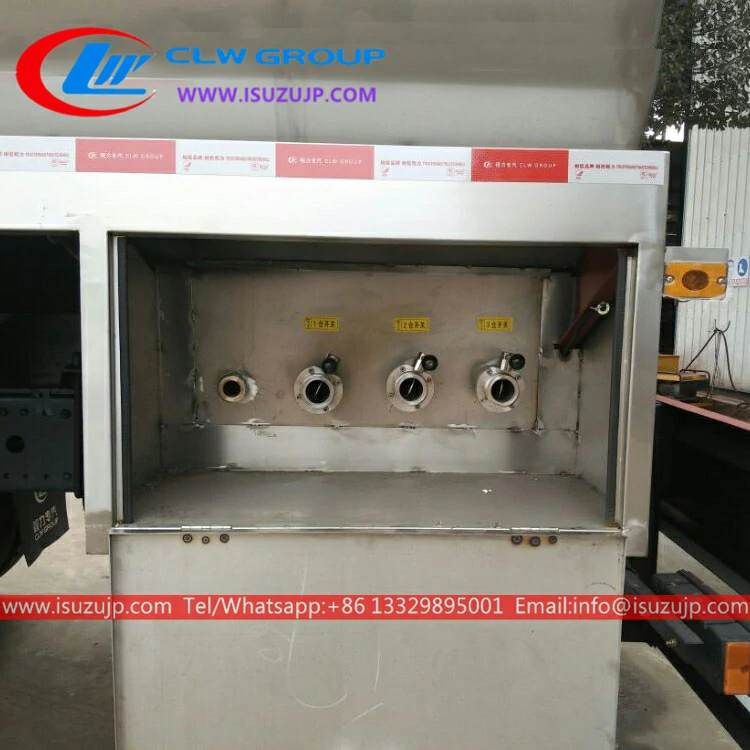

Milk tank truck detailed picture:
Milk transportation truck technical training support:
Truck tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Small milk truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Mini milk truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Isuzu milk tank truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Milk truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
