Introduction:
ISUZU FTR 12000L aviation fuel bowser truck suitable for helicopter kerosene transportation. with high capacity, reasonable structure, excellent and stable performance, easy loading and discharge, convenient operation and high safety enhancement.
Advantage:
- ISUZU FTR chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cublic Meter.
- Easy operation and easy maintenance.
- Euro V ,Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two year warranty, after the warranty period, we only charge the cost price.
Specifications:
ISUZU FTR 12000L aviation fuel bowser truck(3000 gallon) | ||
General | Vehicle Brand | CHENGLI |
Chassis Brand | ISUZU | |
Overall Dimension | 9000X2500X3100 mm | |
GVW / Kerb Weight | 18,000kg / 8,800kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU 4KH1 | |
Power | 205 HP (151 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, (left hand drive) |
Transmission | MLD 6-speed levers with 1 reverse | |
Wheelbase/No. of axle | 4500 mm / 2 | |
Tire Specification | 10.00-20 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Body capacity | 12,000 Litres |
Tanker Material | Aluminum Alloy | |
Pump | Fuel pump equipped for overhead delivery | |
Suction head | Customized for aircraft | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |

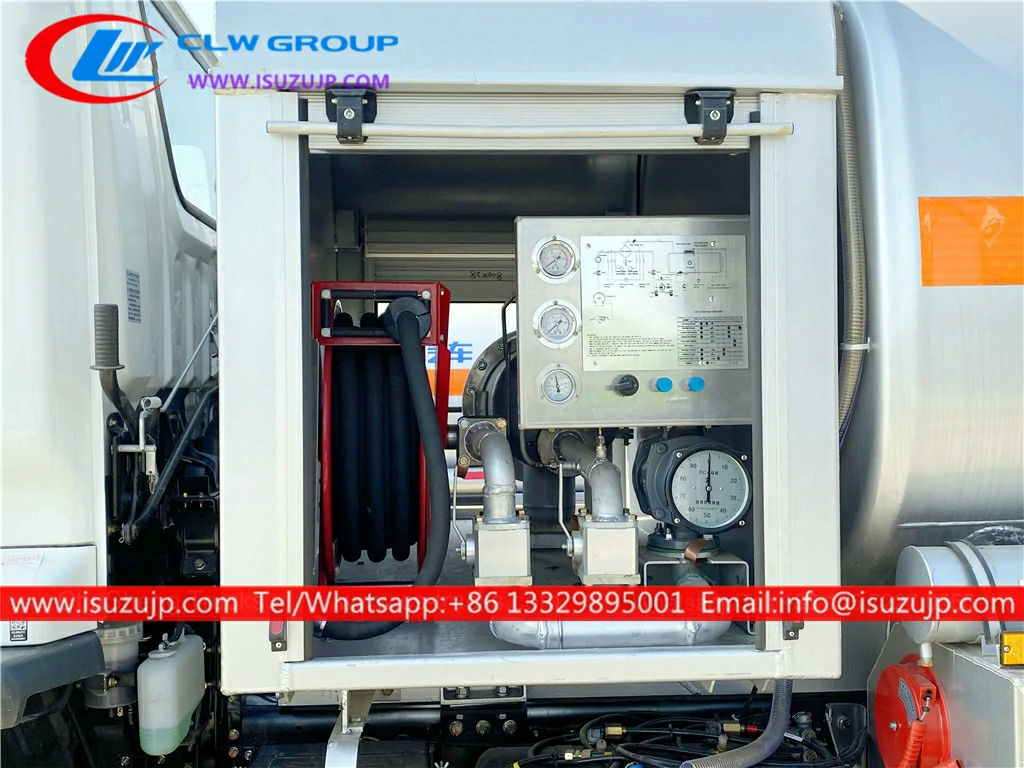

Refueling Machine | Equipped based on customer requirement | |
Control panel | English or Your language | |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers… | ||
Optional | Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). It can be divided into many compartments. Imported American pump as optional. Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc Heat preservation & heating system could be added. Bottom loading system can be equipped. |

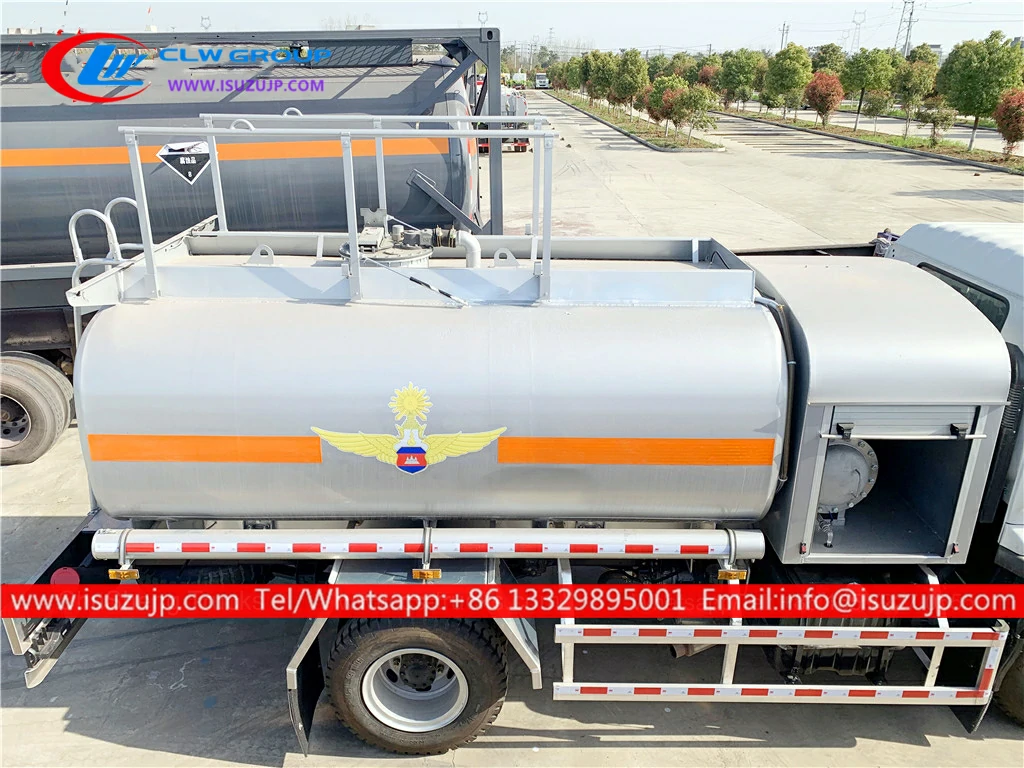

Aircraft Plane Refueler truck structure picture:
technical training support:
Factory Advantage:
Export Document:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Truck Shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Fuel truck Batch delivery case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
