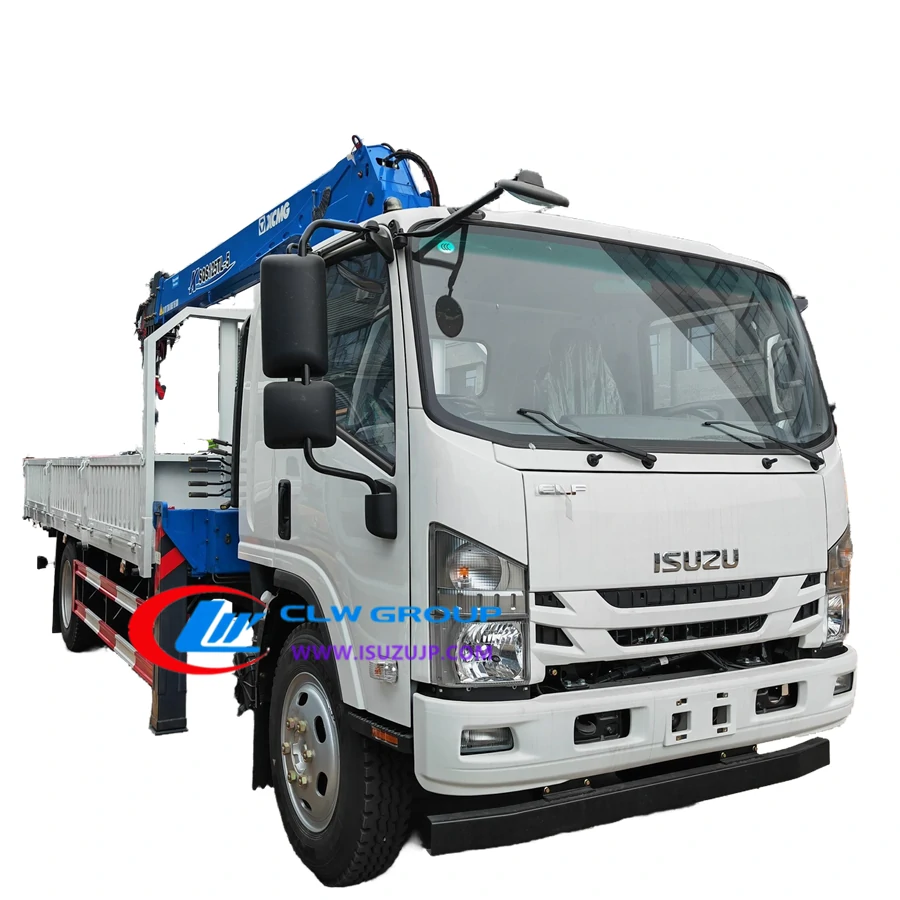

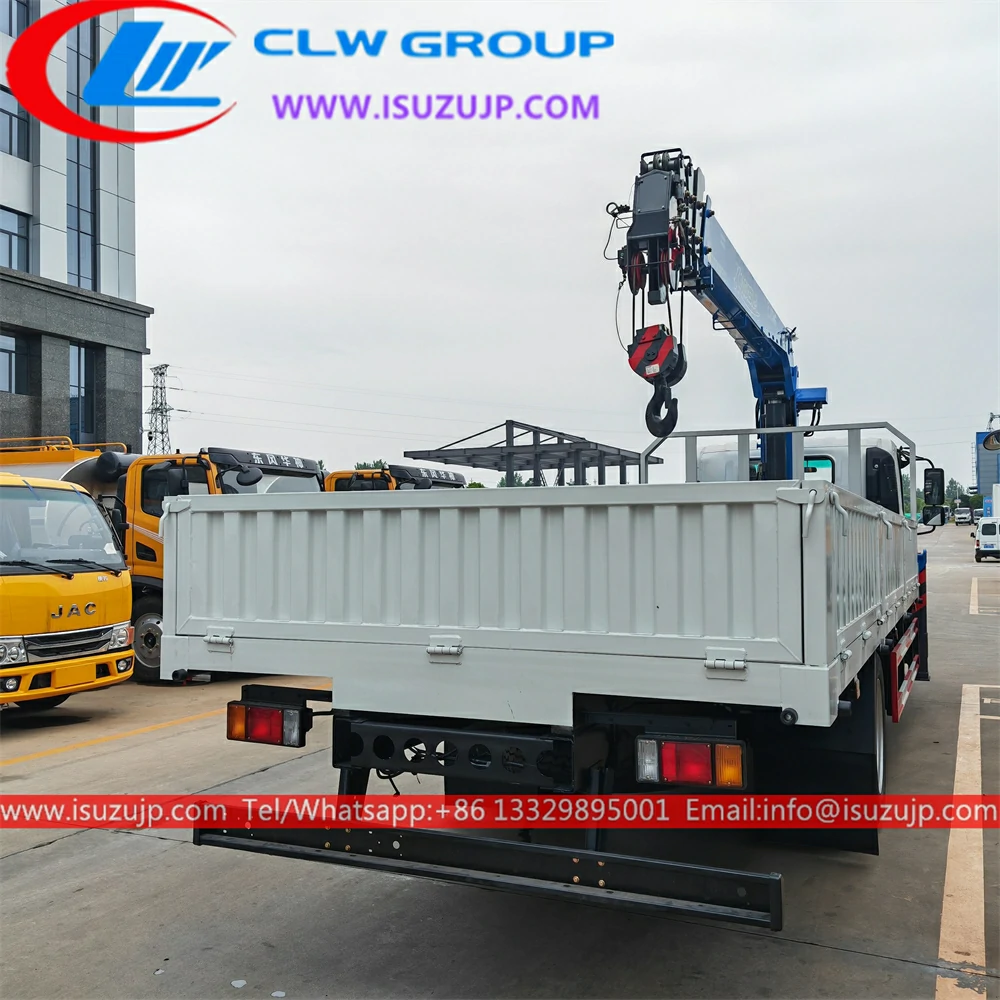

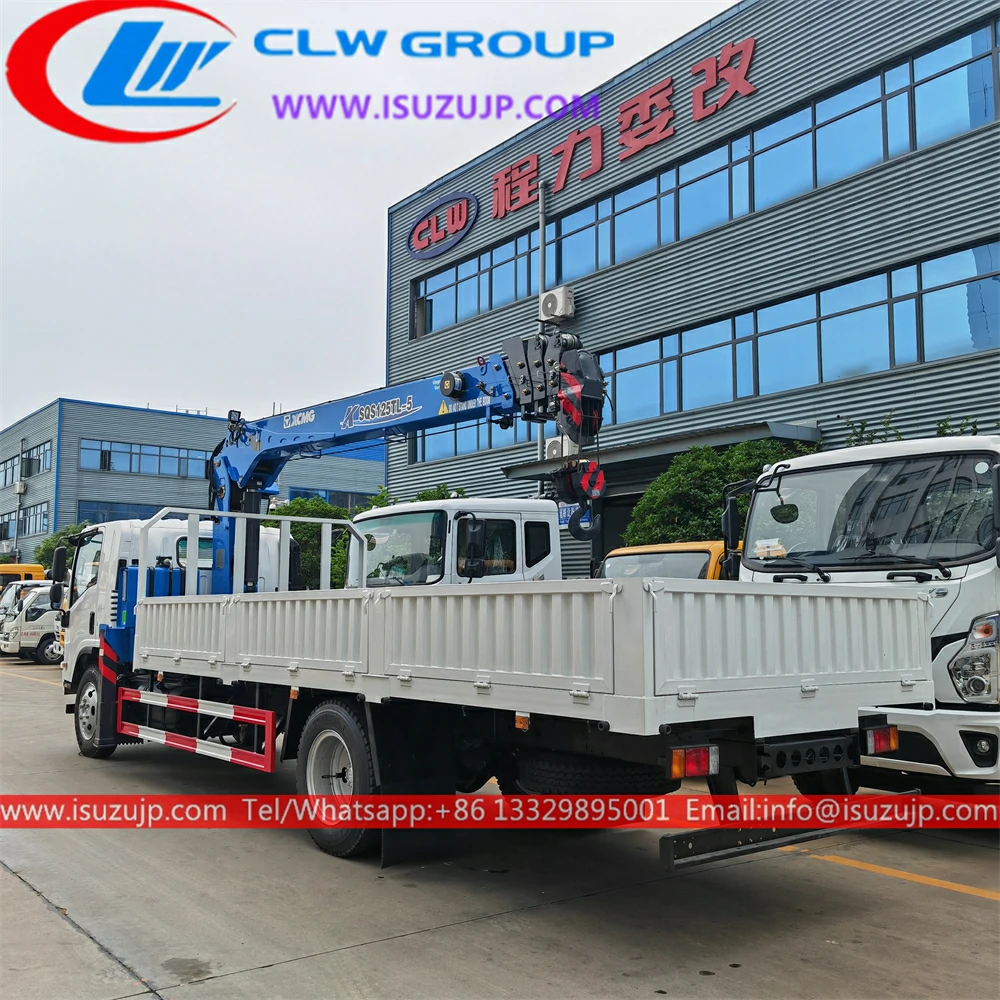

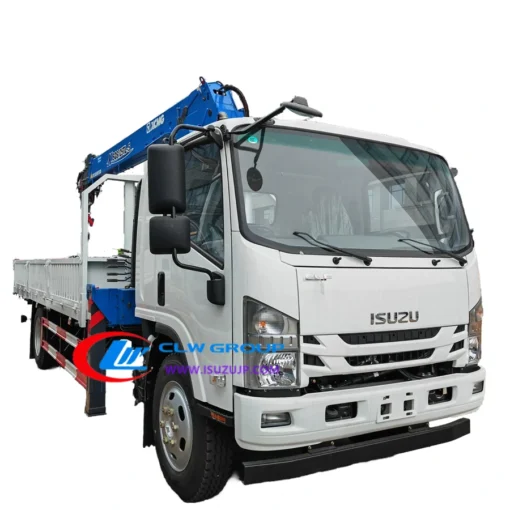

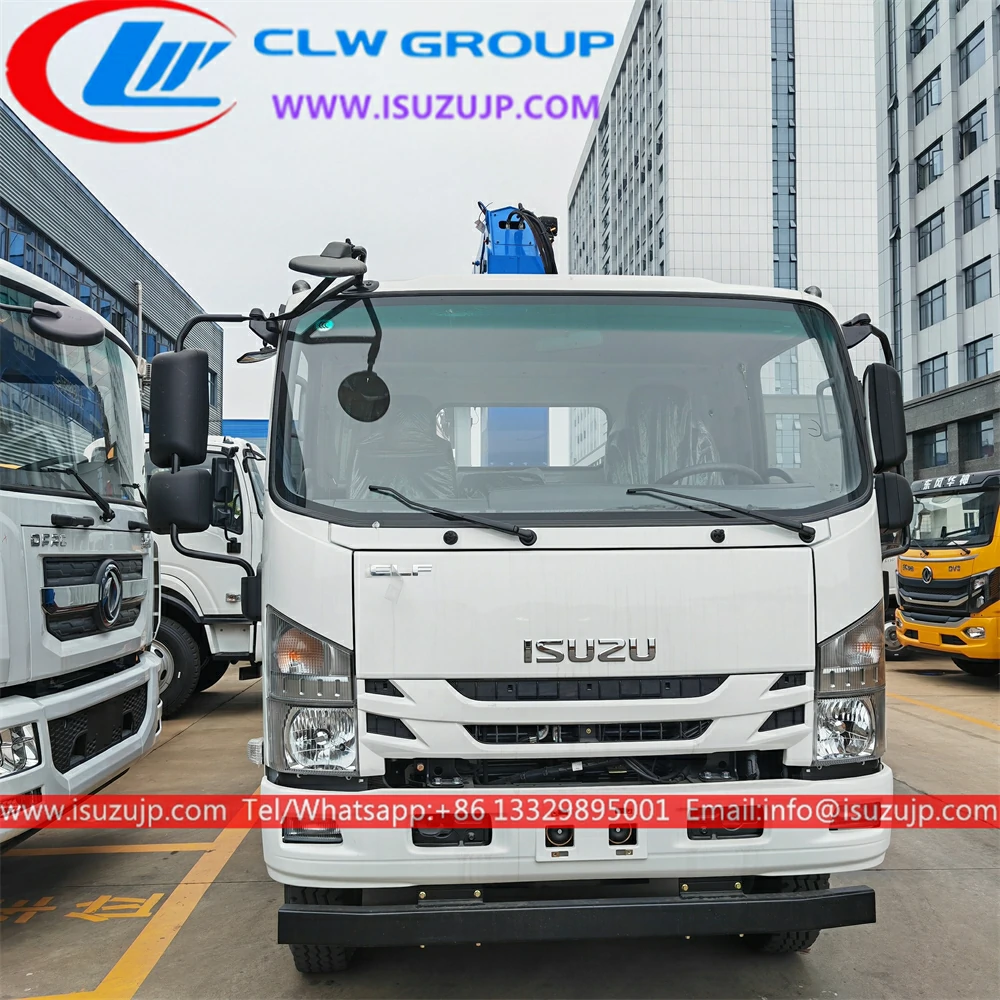

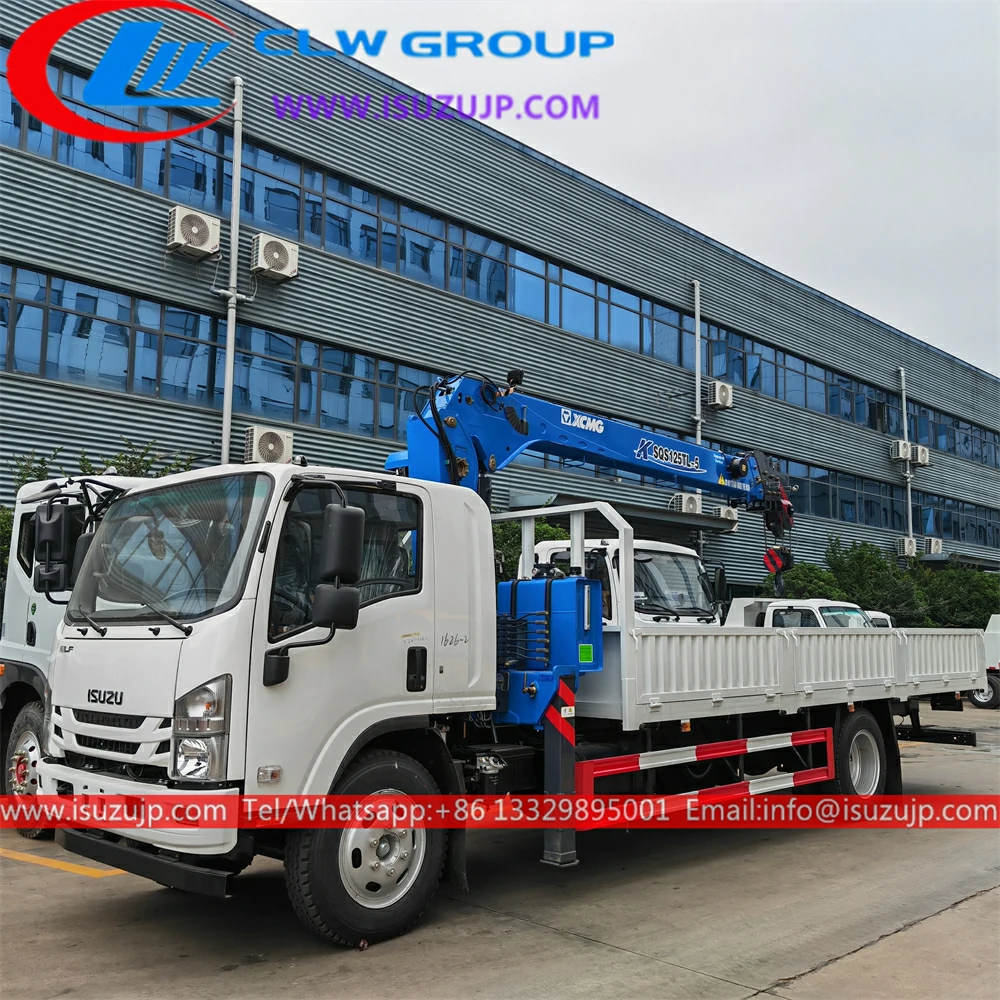

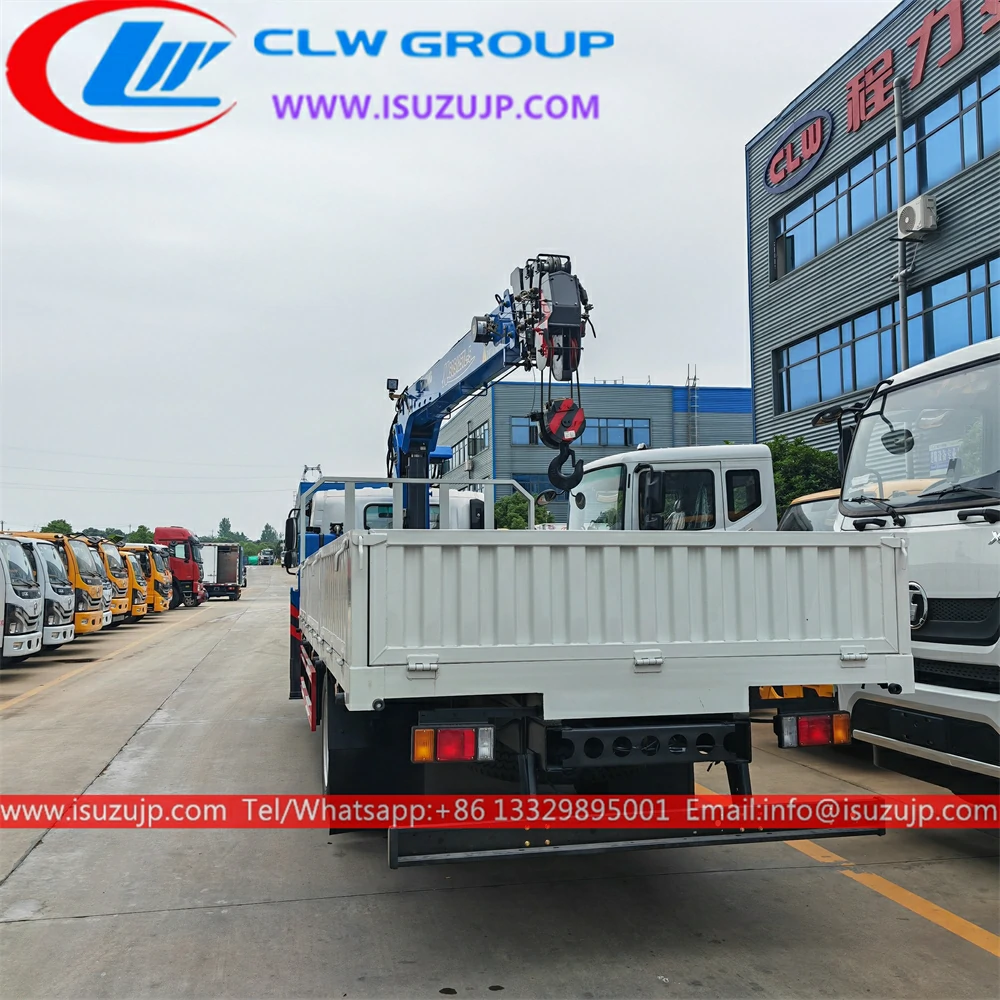

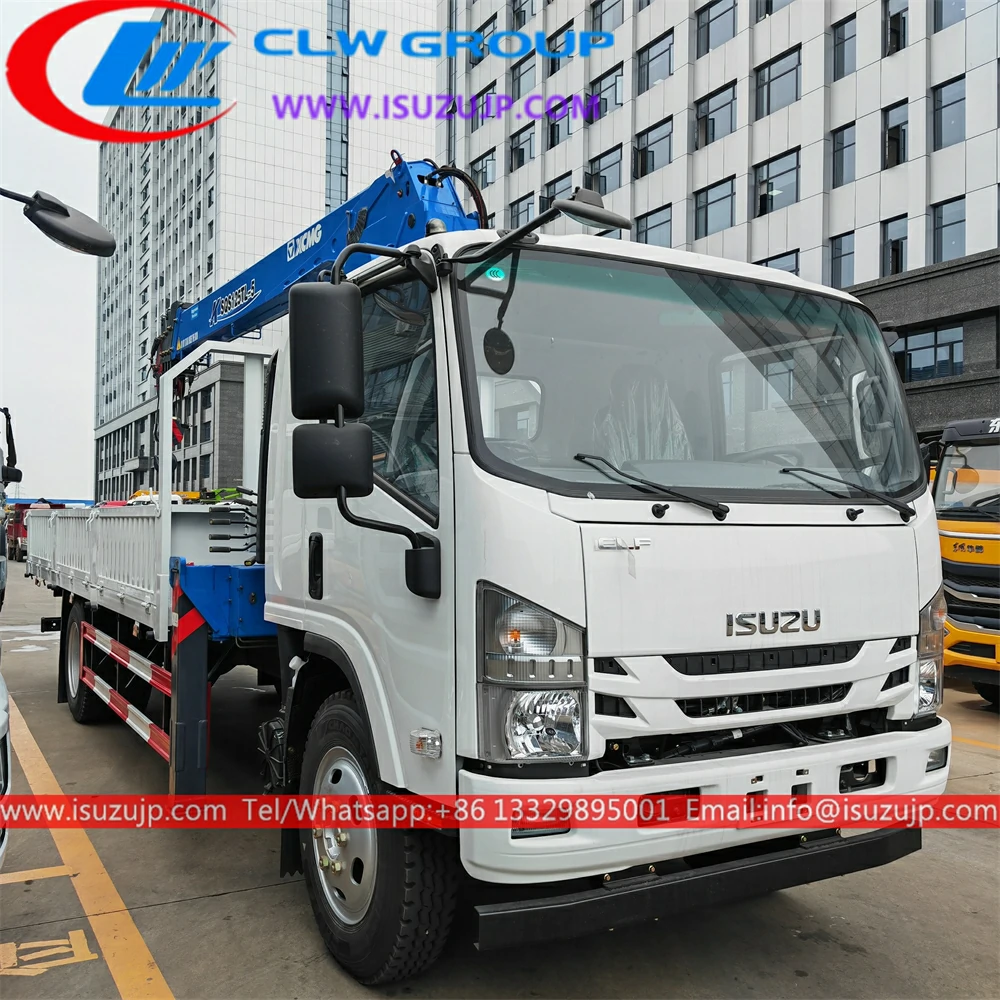

The Isuzu ELF boom truck mounted with an XCMG K-SQS125TL crane is a versatile and efficient vehicle designed for various lifting and high-altitude tasks. The combination of the reliable Isuzu ELF chassis and the powerful XCMG crane makes it ideal for construction, maintenance, and logistics operations.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Isuzu ELF boom truck mouned XCMG K-SQS125TL crane | |
| Truck Manufacturer | CHENGLI | |
| Chassis Specification | ||
| Chassis Brand | ISUZU | |
| Drive type | 4X2 | |
| wheelbase | 5200mm | |
| Fuel type of engine | Diesel | |
| Engine | Brand | ISUZU |
| Maximum horse power | 190hp | |
| Emission standard | 4 5 6 | |
| Gear box | Type | 6speed forward 1 reverse. |
| Tyres | Size | 8.25R20, with one spare tyre |
| Quantity | 12+1,with one sapre tire | |
| Upper body specification | ||
| Crane Brand | XCMG | |
| Max. lifting capacity | 5tons | |
| Max lifting height | 12.5m | |
| Boom sections | 4sections | |
| Type of Crane | Hydraulic Telescopic boom | |
| Rotation angle | 360° all rotation | |
| Cargo box material | Carbon steel | |
| Dimension | 6000*2300*500mm | |
| Side Under Run | Carbon steel | |
| Mud guard / Mud Flap | with Mudguard and rubber mud flap | |
| Spare Wheel Bracket | 1piece | |
| Light | Electrical system in accordance to GB standard, complete with light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. | |
| Painting | 1 Coat of anticorrosive prime, 2 coats of final paint . Colour as request | |
Key Features and Specifications
Isuzu ELF Chassis
- Chassis:
- Model: Isuzu ELF, a light-duty truck known for its durability and reliability.
- Engine: Typically equipped with a diesel engine, offering a balance of power and fuel efficiency.
- Transmission: Manual or automatic transmission options, depending on the specific model.
- Dimensions:
- Length: Varies based on the configuration but generally compact for urban maneuverability.
- Width: Designed to navigate narrow streets and tight spaces.
- Height: Low enough to pass under most urban infrastructure but high enough to support crane operations.
XCMG K-SQS125TL Crane
- Crane Type:
- Model: XCMG K-SQS125TL, a telescopic boom crane known for its robust performance and reliability.
- Type: Telescopic boom, which allows for precise extension and retraction for various lifting heights and radii.
- Specifications:
- Maximum Lifting Capacity: Typically around 12.5 tons, depending on the specific configuration and boom extension.
- Maximum Lifting Height: Up to approximately 18-20 meters, depending on the number of telescopic sections.
- Boom Sections: Multiple telescoping sections that provide flexibility in reach and lifting capacity.
- Hydraulic System:
- Operation: Advanced hydraulic system for smooth and controlled operation of the boom.
- Controls: Dual control stations, one on the ground and one in the operator’s cabin, for versatile and safe operation.
- Safety Features:
- Outriggers: Extendable outriggers for stability during lifting operations.
- Load Sensors: Sensors to prevent overloading and ensure safe operation.
- Emergency Stop: Emergency stop buttons at control stations for immediate cessation of operations in case of an emergency.
Applications
- Construction:
- Lifting and placing construction materials at various heights.
- Installing structural components in buildings and bridges.
- Maintenance:
- Repair and maintenance of high-rise buildings, streetlights, and signage.
- Tree trimming and vegetation management.
- Logistics:
- Loading and unloading heavy equipment and materials.
- Transporting large items to and from elevated locations.
Advantages
- Versatility: Capable of performing a wide range of tasks, making it suitable for various industries.
- Mobility: Mounted on a truck chassis, allowing for easy transportation to different job sites.
- Efficiency: Combines the reliable performance of the Isuzu ELF chassis with the powerful lifting capabilities of the XCMG crane.
- Safety: Equipped with multiple safety features to protect operators and ensure stable and secure operations.
Summary
The Isuzu ELF boom truck mounted with an XCMG K-SQS125TL crane is a powerful and flexible solution for tasks requiring lifting and high-altitude access. Its combination of advanced hydraulic systems, robust design, and comprehensive safety features make it an ideal choice for construction, maintenance, and logistics applications. If you need more detailed specifications or additional information, feel free to ask!
