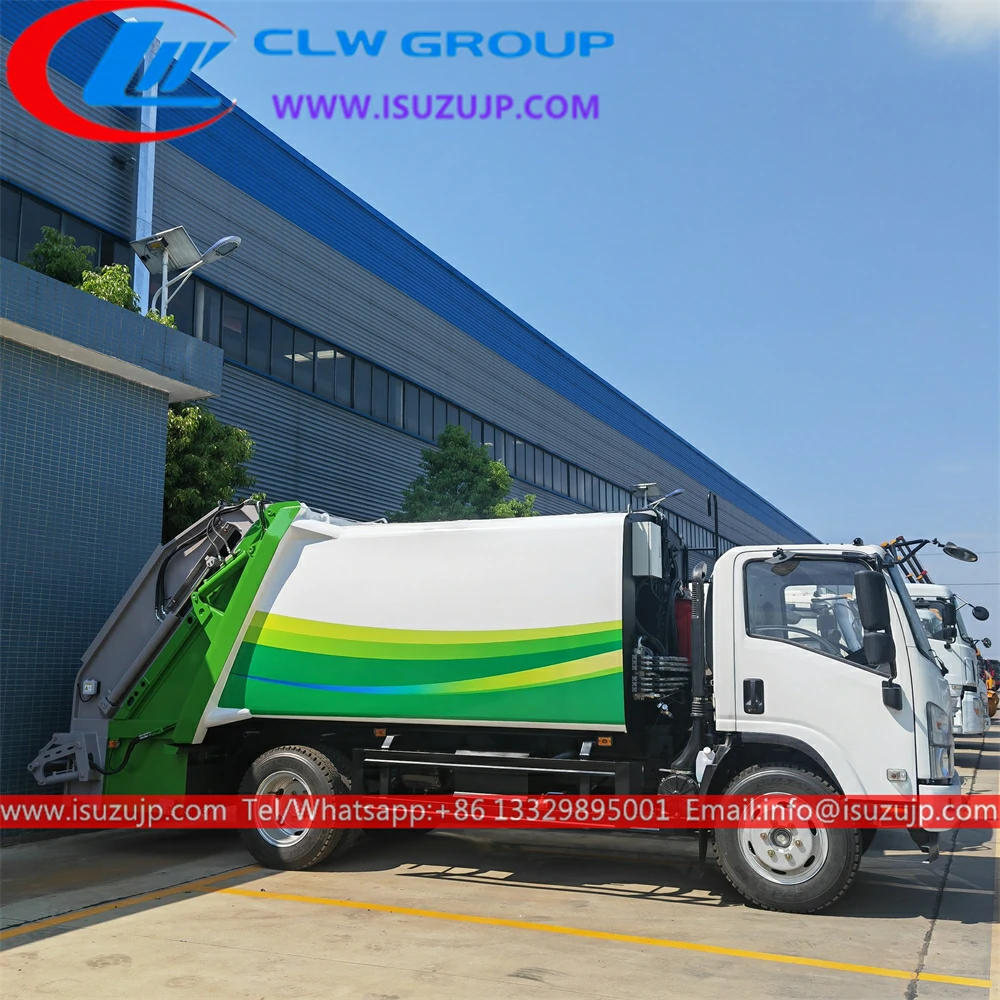

The Isuzu 8 cubic meter (cbm) rubbish compactor truck is designed for efficient waste collection and compaction in urban and suburban environments. This truck combines the reliable Isuzu chassis with a high-capacity compactor body, offering durability, reliability, and efficiency for waste management operations.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | ISUZU ELF 8 CU.M Refuse Garbage Compactor Truck | |
| Truck Manufacturer | CEHNGLI GROUP | |
| Overall dimensions (L×W×H) | About 7500*2300*2800mm | |
| Chassis Specification | ||
| Cabin | ISUZU ELF,with A/C | |
| Drive type | 4×2 | |
| wheelbase | 3815 | |
| Fuel type of engine | Diesel | |
| Engine | Model | 4KH1-TCG61 |
| Maximum horse power | 190HP | |
| Number of cylinders | 4 | |
| Emission standard | Euro 4 5 6 | |
| Gear box | Type | Manual,6 forward & 1 rear |
| Tyres | Size | 8.25R20 |
| Quantity | 6+1 spare tire | |
| Upper body specification | ||
| Waste Tank | Capacity | 8 M3 / 8,000Liters /8 CBM /8 CU.M |
| Tank Material | 5mm Q235 Carbon steel | |
| Function | 1.Can choose 240L(single bin, double bins)and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device. | |
| 2.With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button. | ||
| 3.Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 4.Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 5.Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.CAN electric automatic control. | ||
Key Features and Specifications
Isuzu Chassis
- Chassis:
- Model: Typically built on the Isuzu NPR or NQR chassis, known for its durability and robustness.
- Engine: Equipped with a diesel engine, such as the Isuzu 4HK1-TC, known for its fuel efficiency and reliability.
- Transmission: Available in both manual and automatic transmission options to suit various operational needs.
- Drive Configuration: Usually a 4×2 configuration, suitable for urban and suburban routes.
- Dimensions:
- Length: Compact design to navigate through narrow streets and urban areas.
- Width: Standard width to ensure maneuverability and maximize payload capacity.
- Height: Designed to balance ground clearance and overall height for optimal performance.
Refuse Compactor Body
- Capacity:
- Volume: 8 cubic meters, providing ample capacity for waste collection before needing to offload.
- Compaction Ratio: Typically around 3:1 to 6:1, reducing the volume of waste and increasing the efficiency of each trip.
- Construction:
- Material: High-strength steel construction for durability and resistance to wear and tear.
- Hydraulic System: Advanced hydraulic system for efficient compaction and ejection of waste.
- Loading Mechanism:
- Rear Loader: Equipped with a rear-loading mechanism for easy and efficient waste collection.
- Hopper: Large hopper at the rear to accommodate various types of waste containers.
- Operation:
- Control System: User-friendly controls located in the cabin and at the rear of the truck.
- Automation: Options for semi-automated or fully automated loading and compaction processes.
- Safety Features: Includes safety interlocks, warning alarms, and emergency stop buttons to ensure safe operation.
- Additional Features:
- Leachate Tank: To collect any liquid waste that may seep out during the compaction process.
- Cover: Hydraulic or manual covers to prevent spillage and control odors.
Applications
- Municipal Waste Collection:
- Regular residential and commercial waste collection routes.
- Suitable for urban and suburban waste management.
- Industrial Waste Management:
- Collection and compaction of industrial waste.
- Can handle a variety of waste types, including bulky items.
- Recycling Operations:
- Collection of recyclable materials with optional sorting compartments.
Advantages
- High Capacity: 8 cbm capacity allows for substantial waste collection before needing to offload, improving efficiency.
- Durability: Built on the reliable Isuzu chassis and constructed with high-strength materials for long-lasting performance.
- Efficiency: Advanced compaction system reduces the volume of waste, maximizing the use of space and reducing the number of trips required.
- Safety: Equipped with multiple safety features to protect operators and the public during waste collection operations.
Summary
The Isuzu 8cbm rubbish compactor truck is a powerful and efficient solution for waste management. Its combination of a reliable chassis, high-capacity compactor body, and advanced features makes it ideal for municipal and industrial waste collection operations. If you need more detailed specifications or additional information, feel free to ask!
