Introduction：
ISUZU ELF 6000liters aircraft refueling trucks suitable for helicopter kerosene transportation. with high capacity, reasonable structure, excellent and stable performance, easy loading and discharge, convenient operation and high safety enhancement.
Advantage：
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cublic Meter.
- Easy operation and easy maintenance.
- Euro V ,Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two year warranty, after the warranty period, we only charge the cost price.
Specifications:
| ISUZU ELF 6000liters aircraft refueling trucks | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7300X2300X2800 mm | |
| GVW / Kerb Weight | 13,800 kg / 4,870 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1- TC51 | |
| Power | 190HP (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 6,000 Litres (1,500 gallons) |
| Tank Material | Aluminium | |
| Liquid to be loaded | Helicopter Kerosene for helicopter | |
| Tank Top | 1. Top Euro-standard Explosion Proof Manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. | |
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |
| Pump | Aluminium Fuel pump | |
| Filters | 5 sets filters | |
| Sampler | 1 set | |
| Hose Reel | 1.5″ * 20 meters hose reel with gravity refueling nozzle | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | Tank material could be stainless steel, aluminum (aluminum tanker)…… Imported American mechnical pump Blackmer USA electrical pump Fillrite…. | |

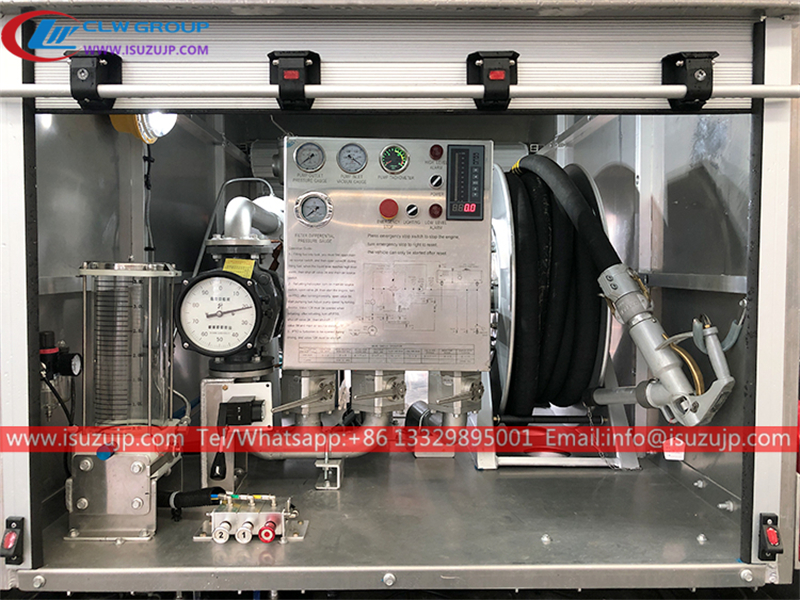

Helicopter refueling truck structure picture：
technical training support：
Factory Advantage：
Export Document：
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Truck Shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Fuel truck Batch delivery case：
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
