ISUZU ELF 6 ton flatbed tow truck Description:
- ISUZU flatbed tow truck also called tow wrecker truck, Flatbed recovery vehicle, Wrecker towing trucks used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road.
- It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
Advantage:
- 100% custom-made
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
- Easy operation & Easy maintenance
Specification:
| Manufacturer | CHENGLI COMPANY | ||
| Product Name | ISUZU ELF 6 ton flatbed tow truck | ||
| Vehicle Brand Series | ISUZU | ||
| Vehicle Model | CLW5460GSST5 | ||
| Production Time | 25 days | ||
| Chassis parameters | Overall dimensions | mm | 7500*2300*2350 |
| Gross weight | kg | 13,800 | |
| Kerb weight | 4,500 | ||
| Wheelbase | mm | 4,175 | |
| Driving type | 4*2 | ||
| Chassis model | ISUZU ELF middle-duty | ||
| Tire size | 825R16 | ||
| Number of Tires | 6+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 4HK1-TC50 | |
| Type of fuel | Diesel | ||
| Power | 190HP | ||
| Max speed | Km/h | 110 | |
| Emission standard | EURO 5,6 | ||
| Wrecker performance | Flatbed size | 5400*2300mm | |
| Flatbed payload capacity | 6,000 kg | ||
| Crane | Optional | ||
| Under-lift | 5,000kg Towing capacity | ||
| Max extended with 1.7 m | |||
| Winch no | 1 no | ||
| Winch capacity | 5,000 kg | ||
| Winch cable | 25 m length | ||
| Washing tank | YES | ||
| Operation | Hydraulic control | ||
| Control Panel kit | Control lever kit on both side | ||
| Auxiliary rescue equipment | Factoty | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, 2 pcs Auxiliary wheels, Rear tail lights LED, both sides electronic lights, Hand washing water tank, 4 pcs bundling belt, Fork seat, Drag mechanism and so on. | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Wireless remote control 2, Aluminum alloy body 3, Italy imported multi-way valve 4, Optional different flatbed size. | ||
ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Flat Wrecker truck Structure:

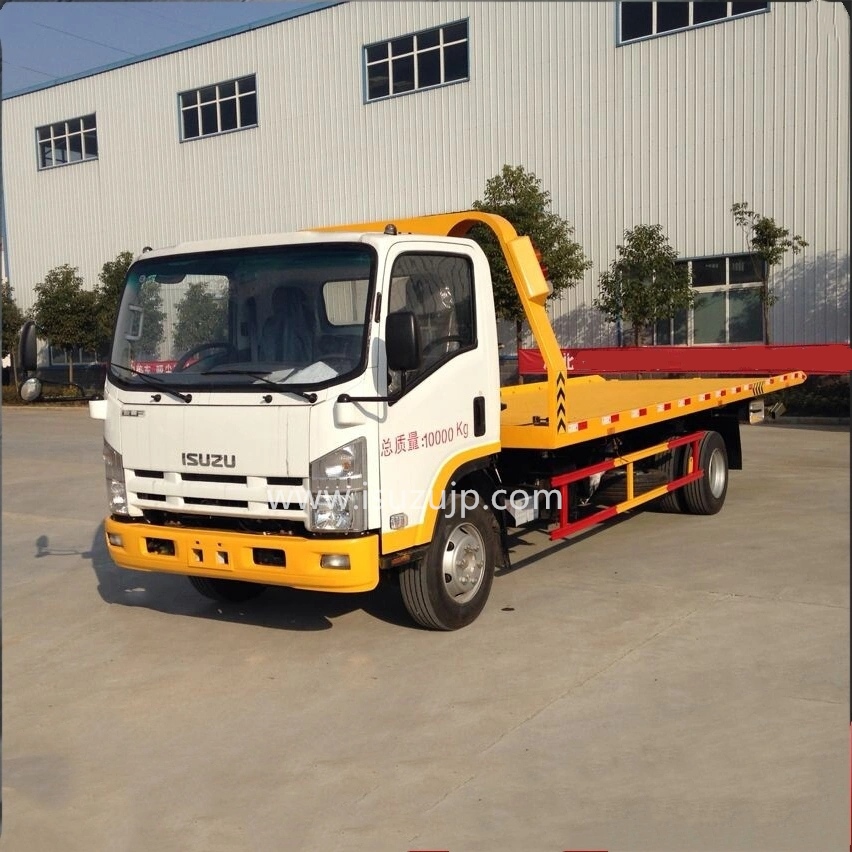

Police rescue truck operations and parts picture:

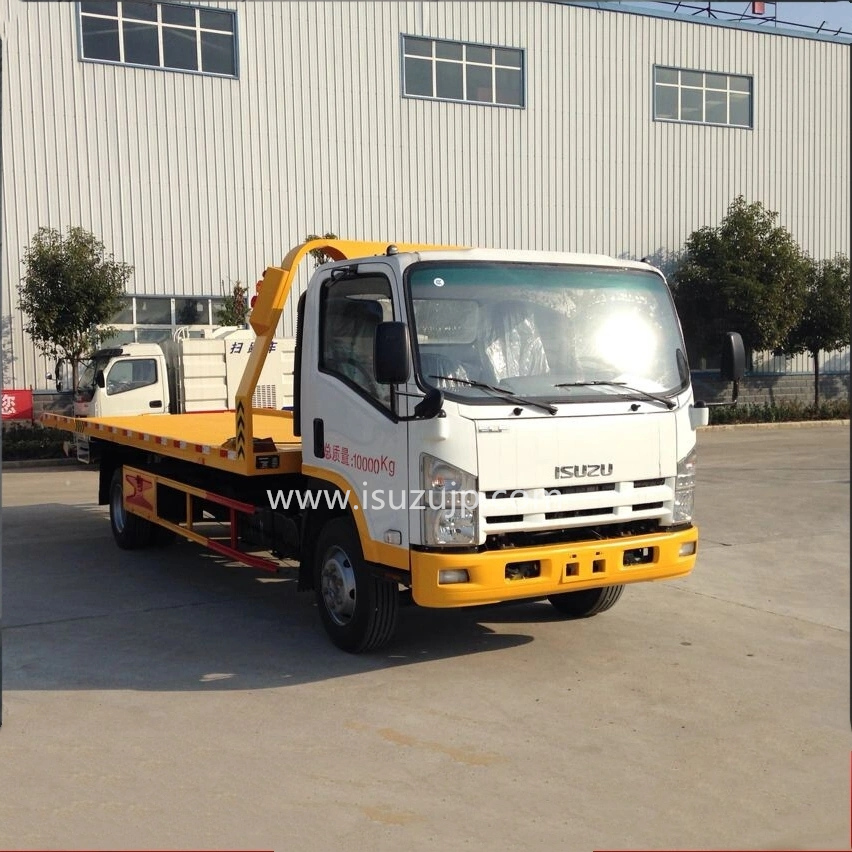

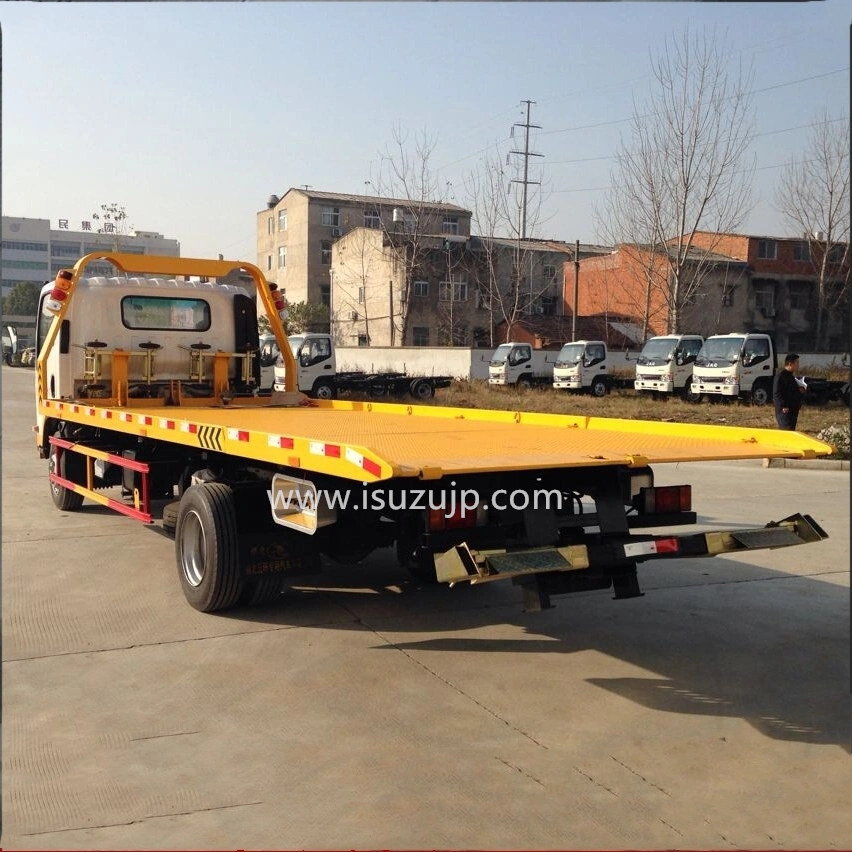

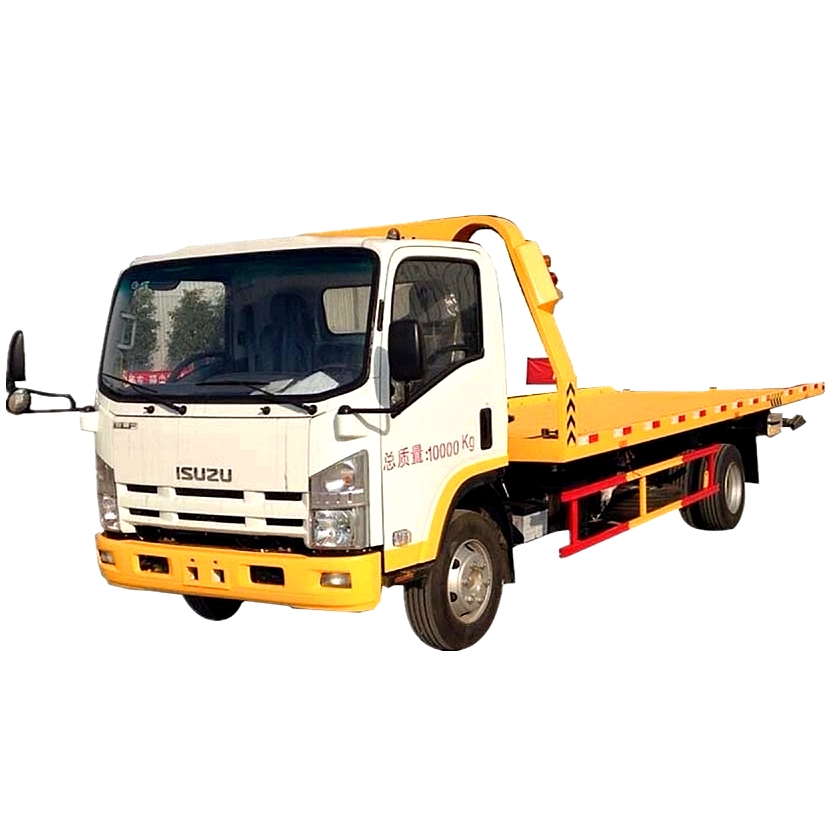

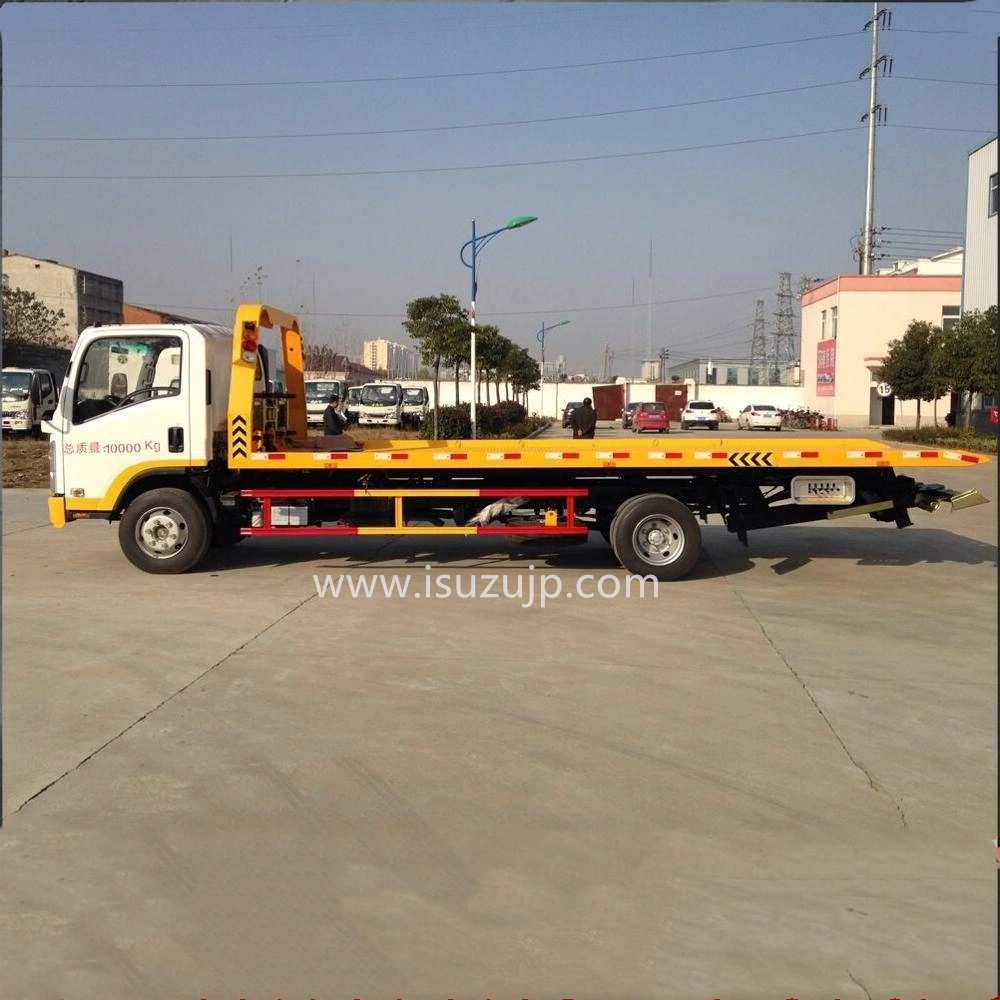

ISUZU recovery wrecker tow truck details：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
