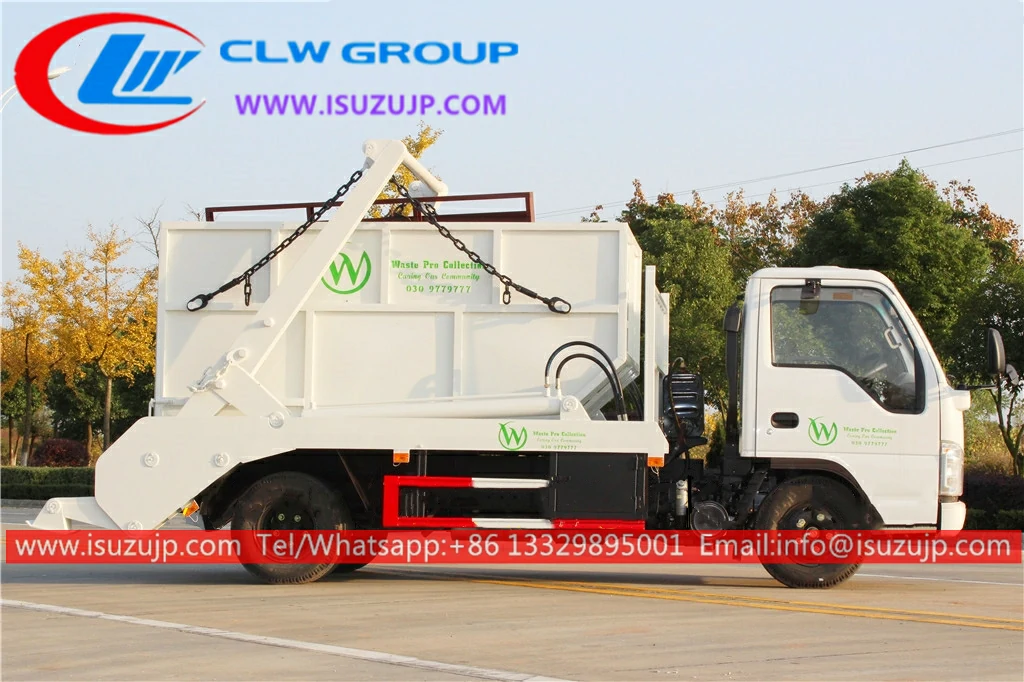

ISUZU ELF 4cbm mini skip loader truck Description:
- Isuzu skip loader truck is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage:
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A, more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid to re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo bodies, to recycle transport, improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.
Specification:
| ISUZU ELF 4cbm mini skip loader truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000x2000x2900 mm | |
| GVW / Kerb Weight | 7,300kg / 3,850kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2777 ml | |
| Emission Standard | Euro IV or V | |
| Chassis | Drive Type | 4X2, (left-hand drive) |
| Transmission | ISUZU MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 4 cbm |
| Lifting device | Two swing arm lifting system | |
| Rear legs | Two hydraulic rear legs for support | |
| Lifting cycle time | 20~25 s | |
| Match model | One truck match with several containers | |
| Control system | Electrically Hydraulic control Manual hydraulic control | |
| Control panel | English or Your language | |
| All standard accessories: Basic tool kit, English manual | ||
| Optional | Container material could be stainless steel. A sealed cover for the container. A truck with several containers. | |
structure diagram:
Skip loader Operation status:
skip lorries Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
