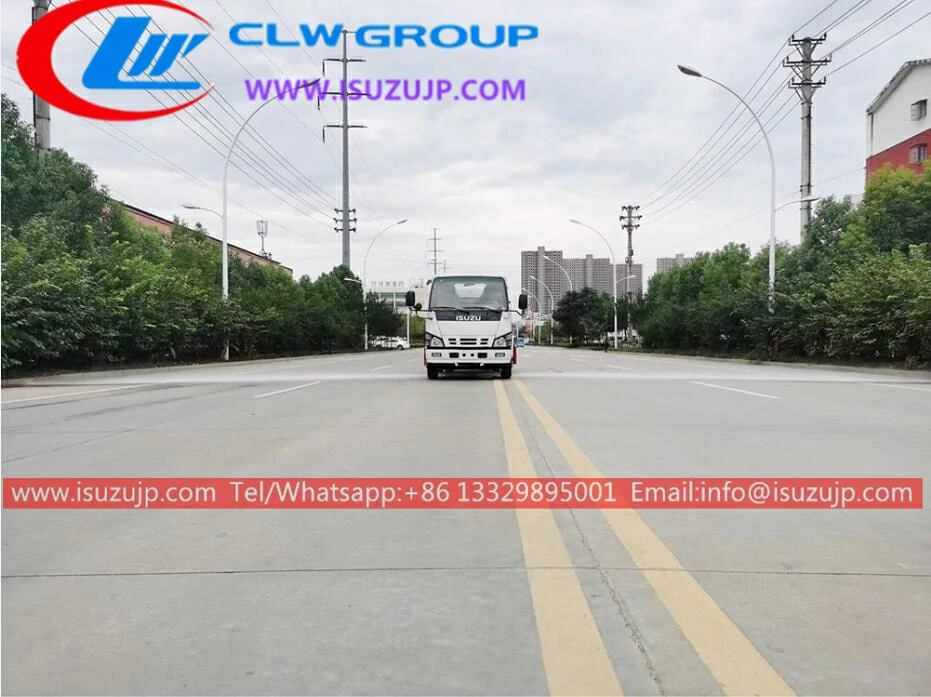

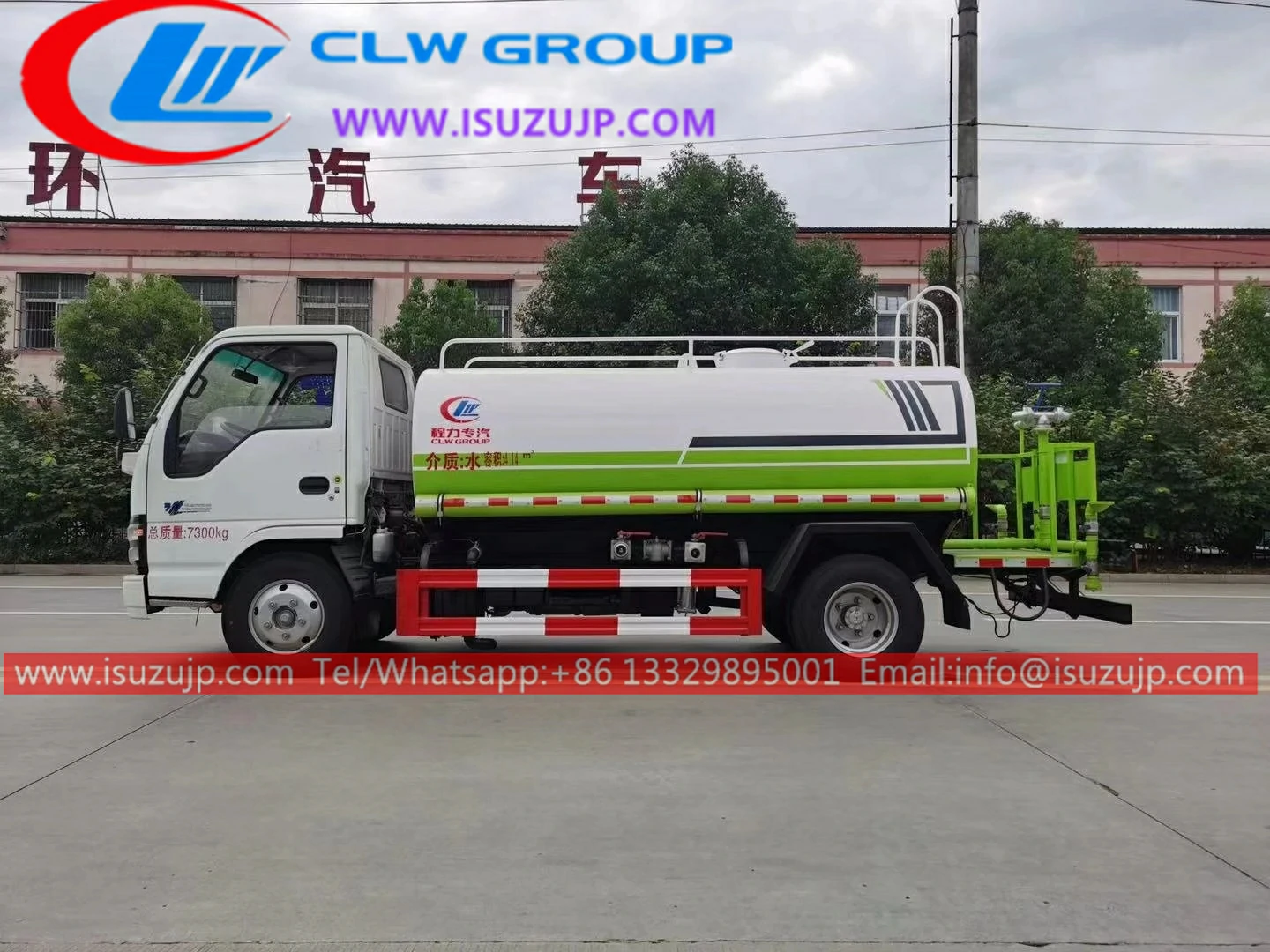

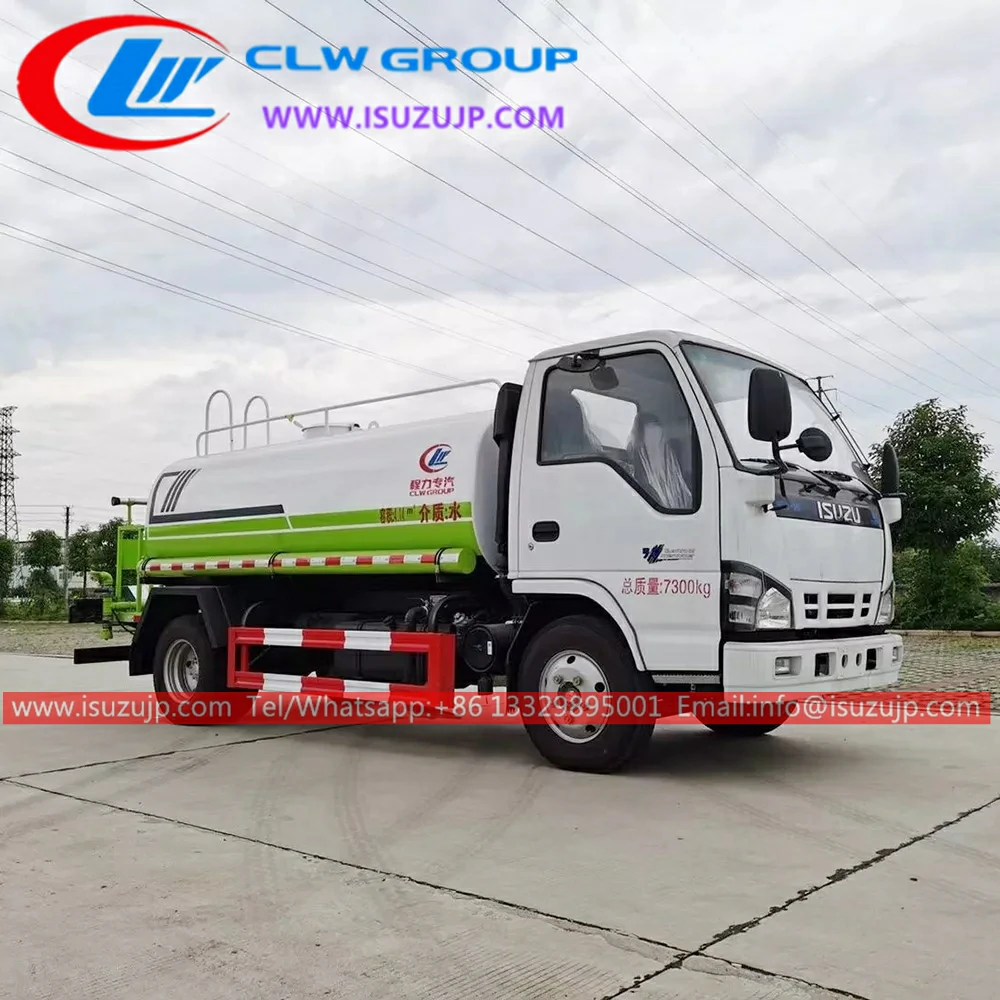

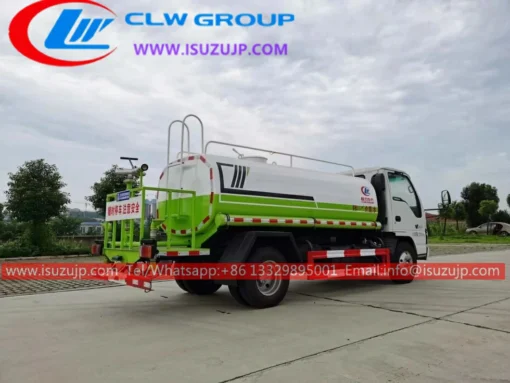

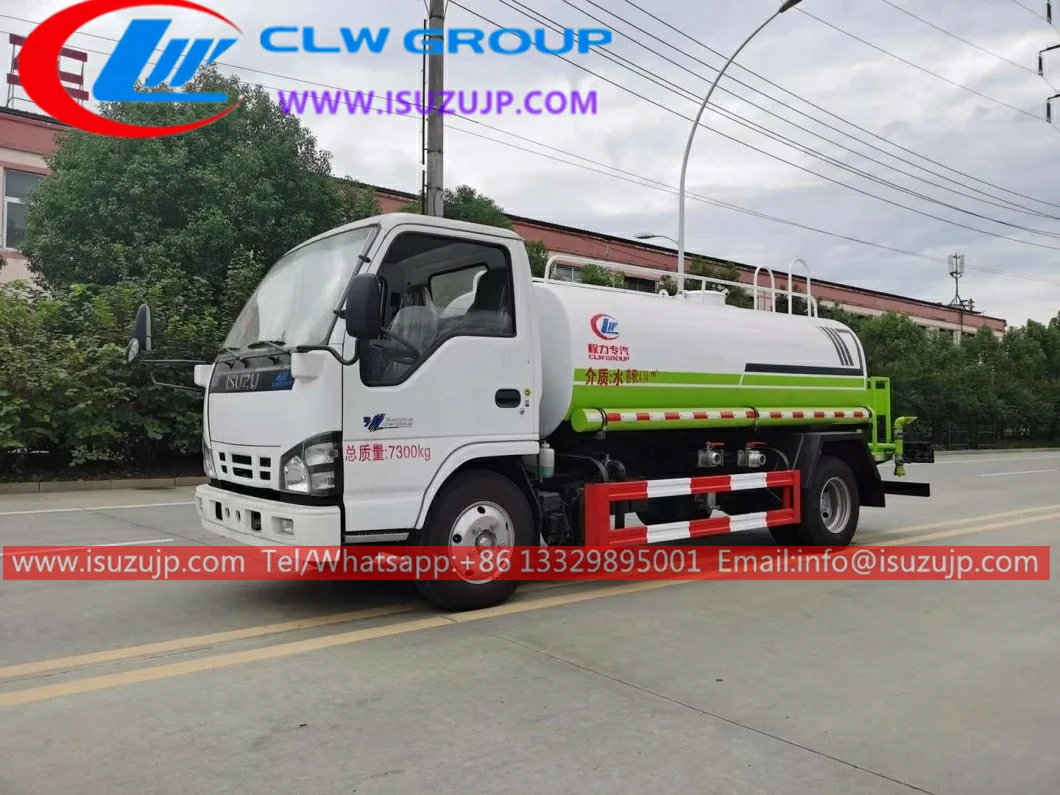

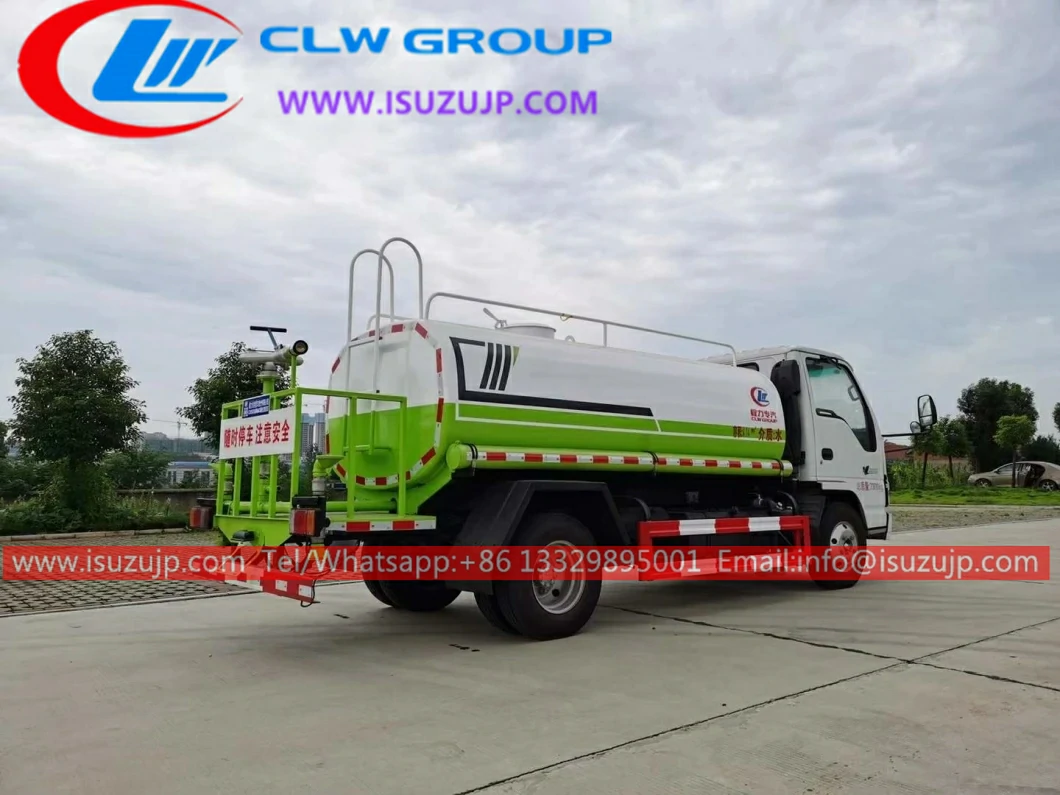

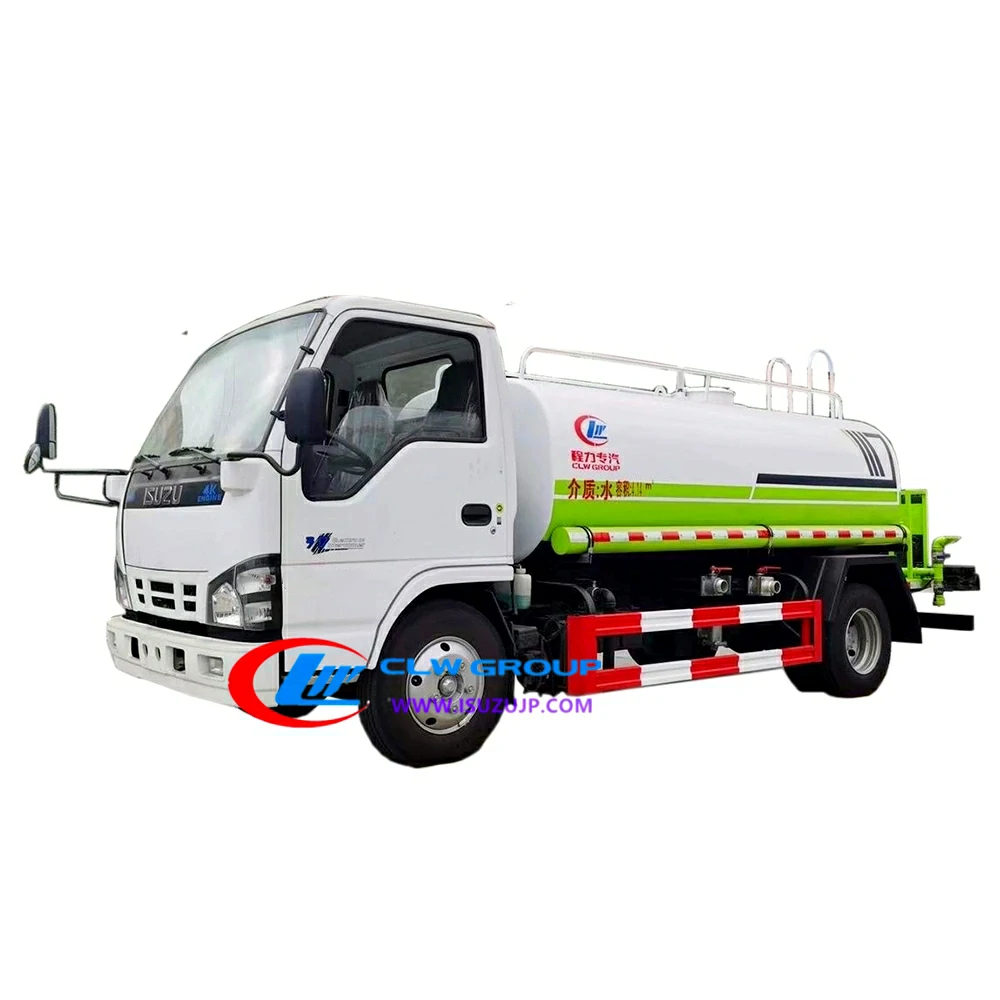

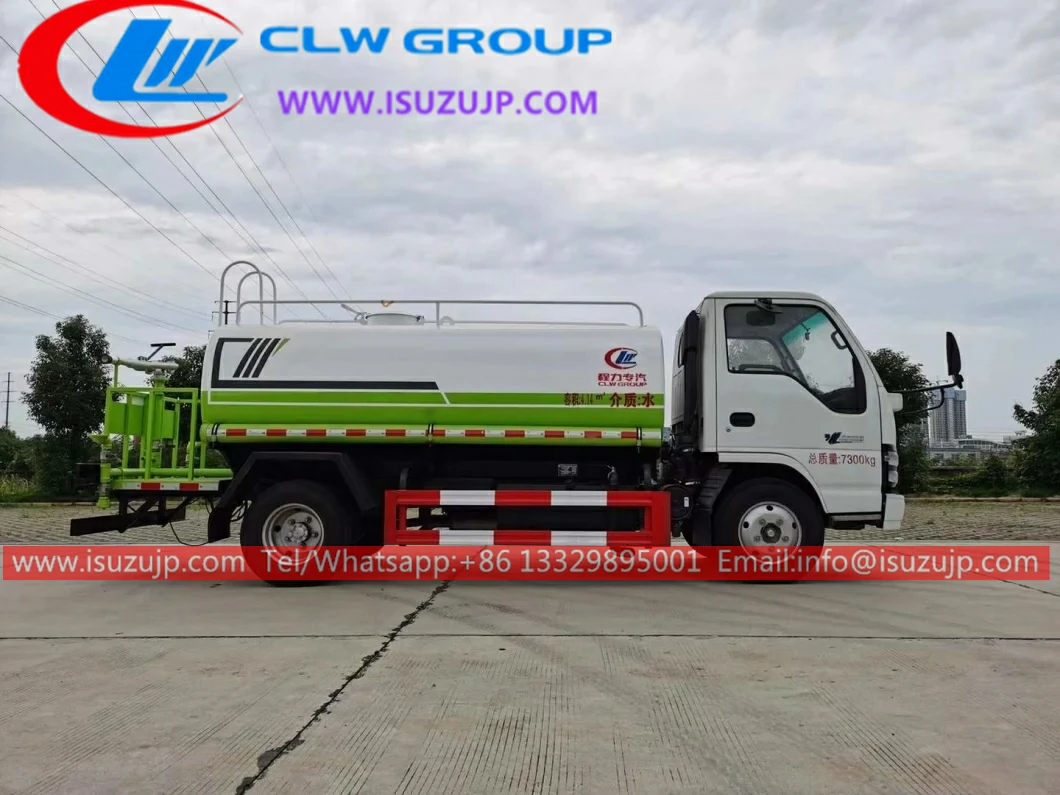

ISUZU 600P 6tons delivery water tanker Application:
- Isuzu delivery water tanker (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agricultural water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called water sprinklers, or water spray trucks.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in agriculture pest control fields.
Advantage:
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
Complete Vehicle Parameter | |
Vehicle | ISUZU 600P 6tons delivery water tanker |
Overall dimensions (mm) | 6200x 2300 x 2600 |
Water tank volume (L) | 6000 |
Gross Vehicle Weight (kg) | Appro × 9000 |
Net weight (kg) | Appro × 3570 |
Loading (kg) | Appro × 6000 |
Wheel base (mm) | 3360 |
Max speed (Km/h) | 90 |
ISUZU Truck Chassis Parameter | |
Cabin | Single row cabin, power steering, air conditioner, 2 passengers, left-hand drive. |
Drive form | 4×2 |
Engine | Brand: ISUZU Model: 4KH1CN5HS Engine power: 130hp Fuel type: diesel. Displacement : 2999ml Emission standard: Euro V |
Transmission | 5 forward,1 reverse, manual operated |
Tire model | 7.00R16 |
No.of tires | 6+1pcs |
Water Tanker Body Parameter | |
Standard configuration | 1) Carbon steel material water tank, thickness 5mm. 2) With a water pump. 3) With a rear working platform. 4) With a suction pipe. 5) With fire connector. 6) With gravity valve. |
Special performance | 1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, and spraying water. 4) Water column can be adjusted to mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. 7) Vertical suction 6-8 m. 8) Drainage time <5min, flow rate 90m3/h. |
Applicable scope | 1. for a variety of road cleaning 2. City green sanitation 3. Trees, green belt, and lawn watering 4. High altitude building rinse |
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |

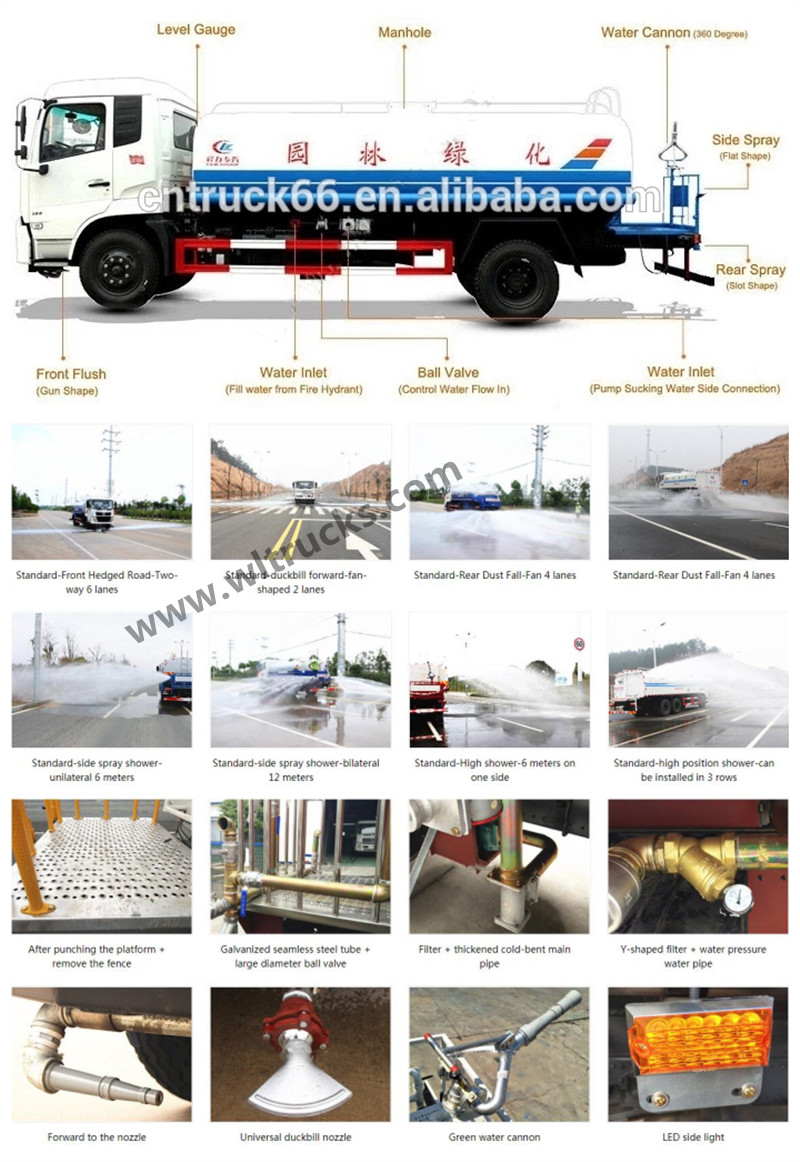

Isuzu water tanker truck structure picture:

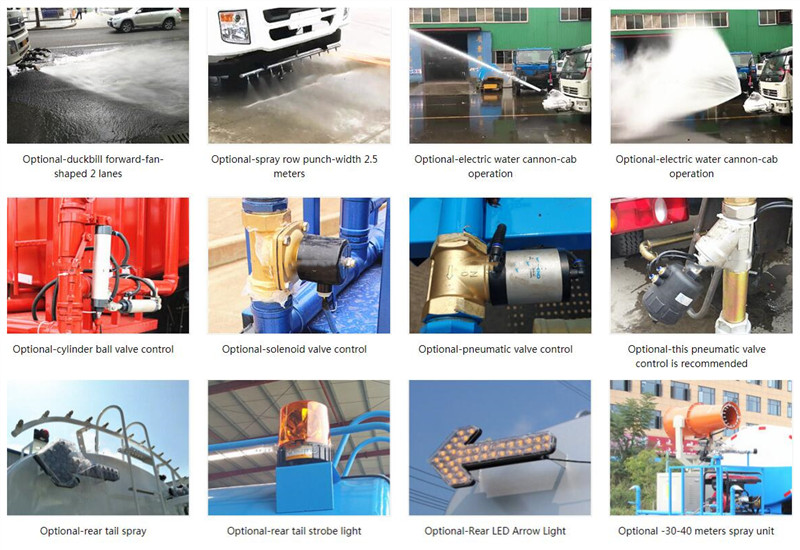

water tank truck Optional configuration:
Water bowser technical training support:

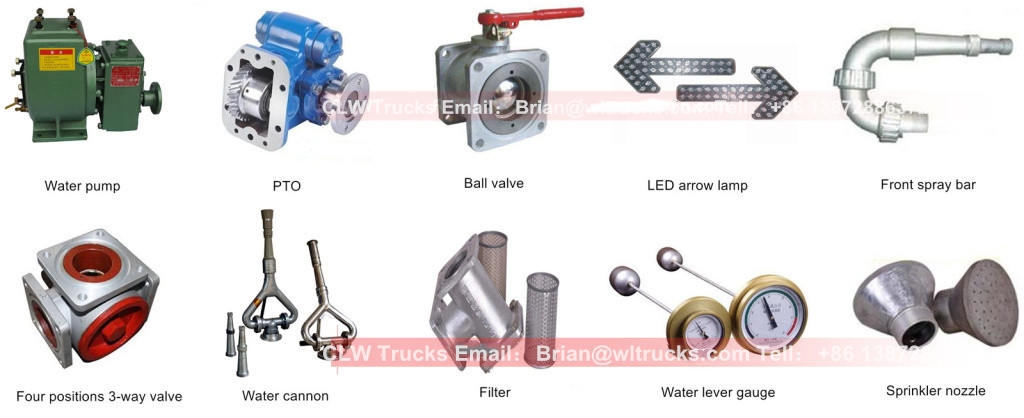

Truck parts:
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
truck shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
