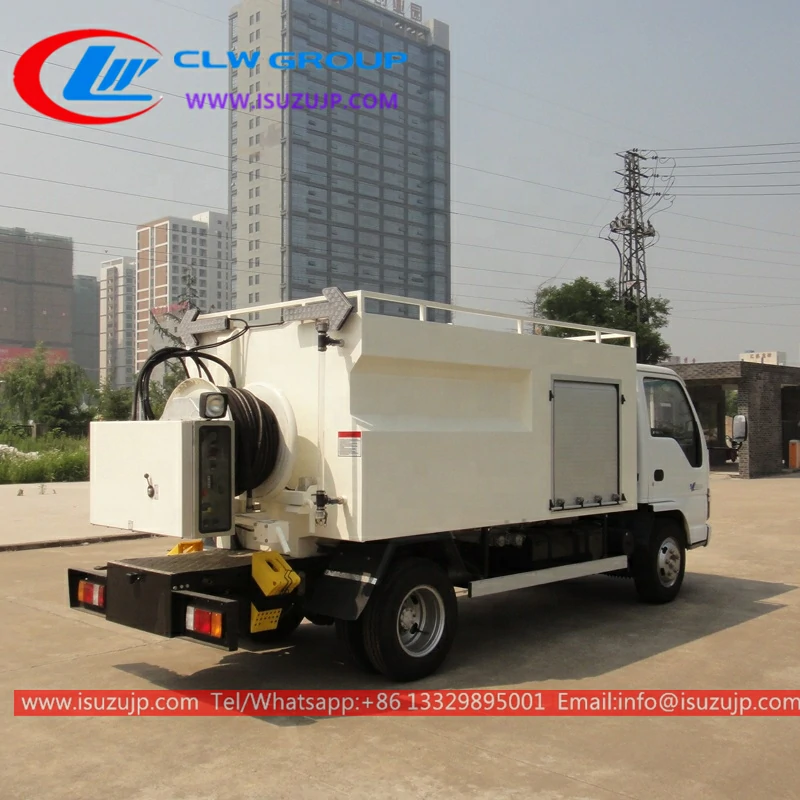

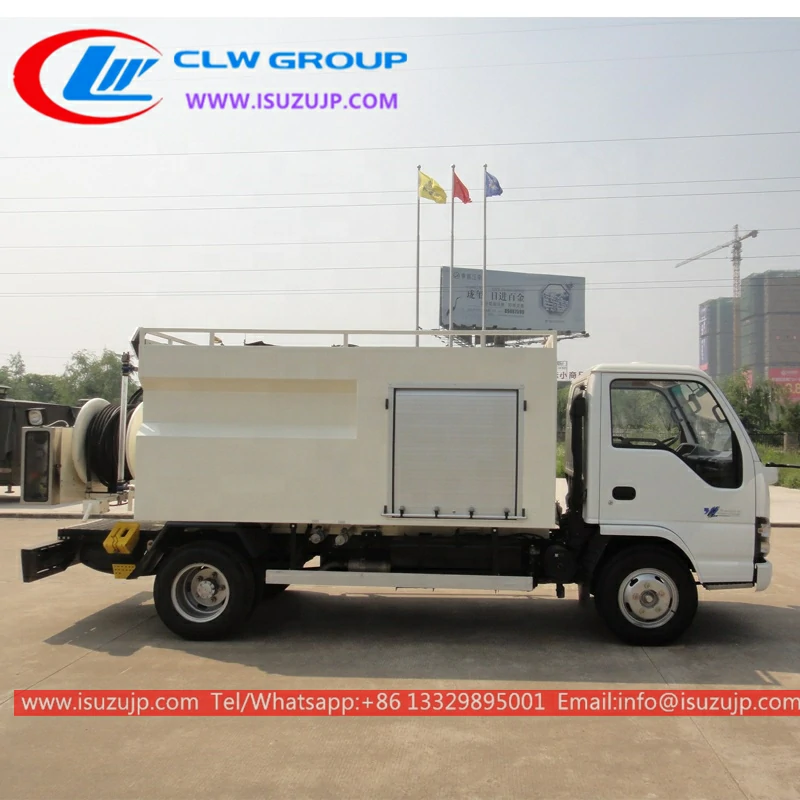

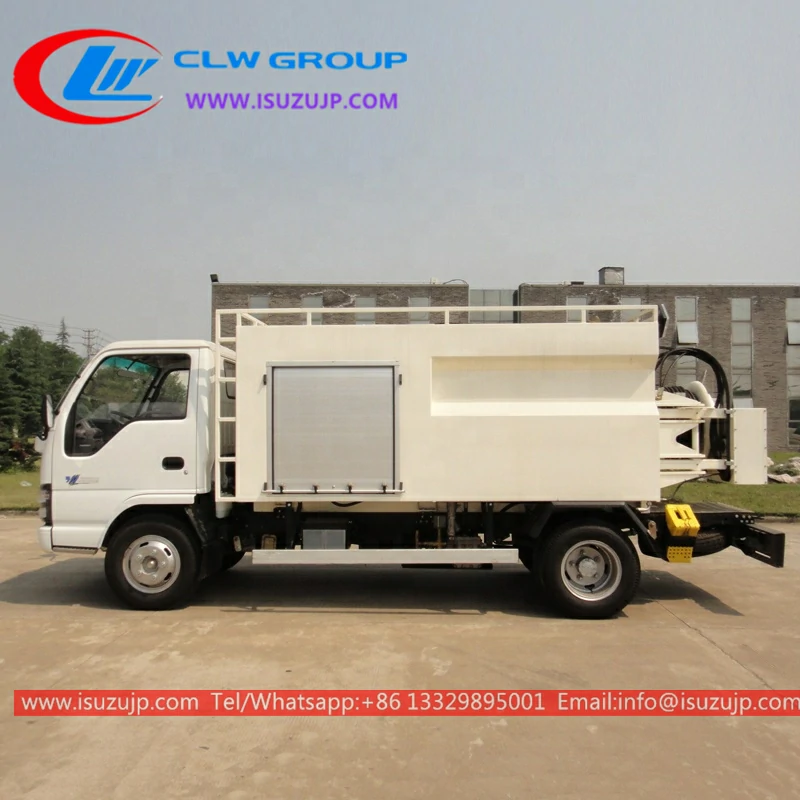

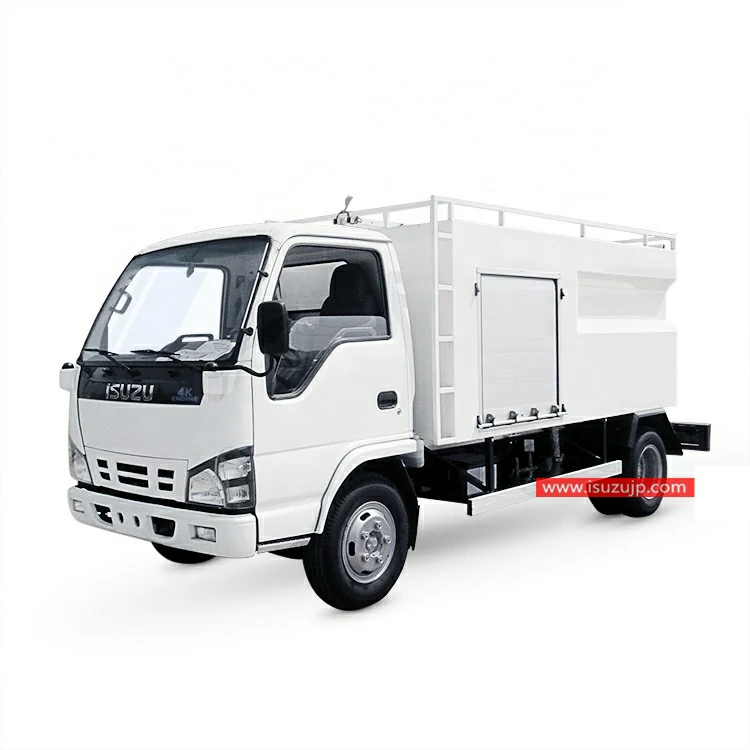

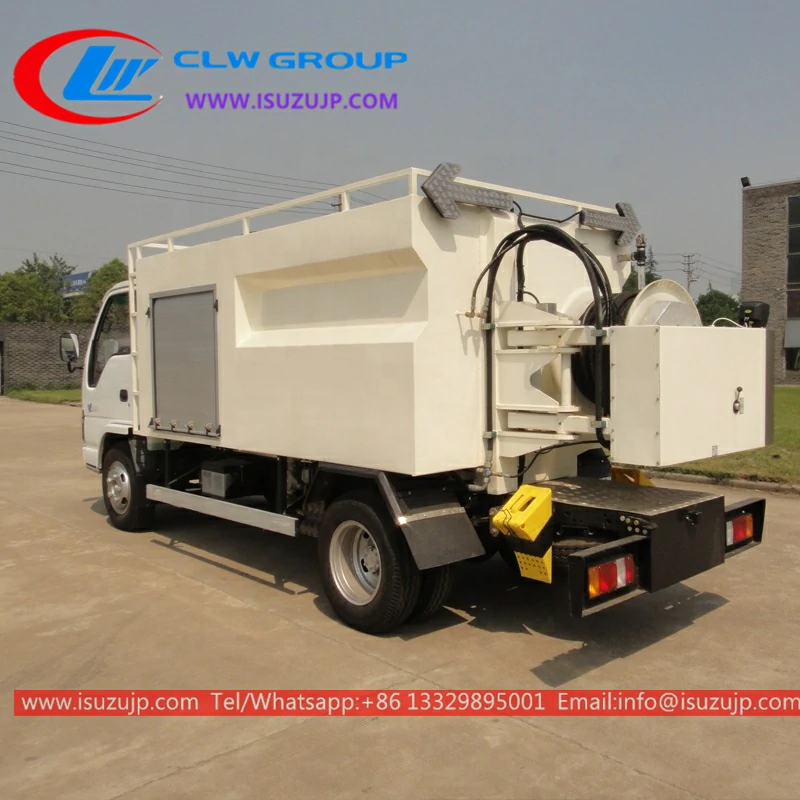

ISUZU 6000liters sewer drain cleaning van Description:
- ISUZU sewer drain cleaning van also called drain cleaning truck, high-pressure jetter, high pressure jetting truck, sewer flushing truck, water jetting vehicle, sewer cleaning truck, high-pressure water truck, water jet truck
- jet water truck is ideal for removing stones, bottles, cans, grease, sludge, debris from sanitary sewer and storm drain lines by the flushing action of high-pressure water.
- ISUZU sewer flushing truck carries a high-pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move forward by jetting high-pressure water.
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU 600P chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out

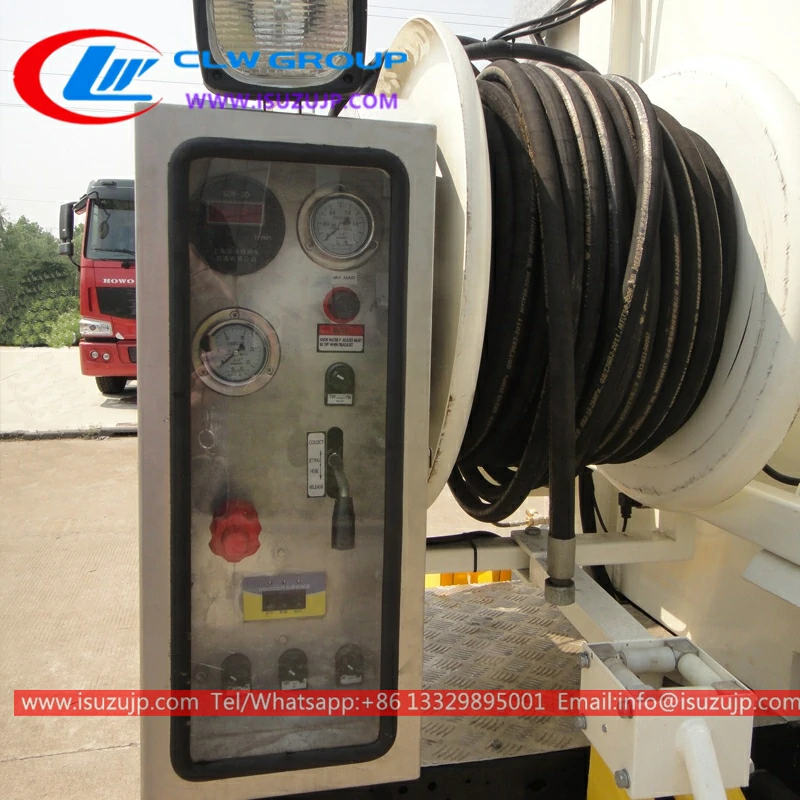

- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification:
| ISUZU 6000liters sewer drain cleaning van for sale | |||||||||
| Outline size(L×W×H) (mm) | 7200X2300X2600 | tank size(L×W×H)(mm)： | 3000x2000x1000 | ||||||
| Rated load (kg) | / | Empty mass(Kg)： | 4400 | ||||||
| Total weight(kg) | 8800 | Emission standard | Euro 5 | ||||||
| Engine Information | |||||||||
| Model | 4KH1-TCG40 | Type | Diesel engine | ||||||
| Power/displacement(KW/ML) | 120HP/2999ML | Manufacture | ISUZU | ||||||
| Chassis Information | |||||||||
| Wheelbase(mm)： | 3815 | Axle load(kg) F/R | 2580/4720 | ||||||
| Tire | 7.00R16 | Max speed (km/h)： | 95 | ||||||
| Front overhang(mm) | 1015 | Rear overhang(mm) | 1715 | ||||||
| Front track(mm) | 1504 | Rear track(mm) | 1425 | ||||||
| Approach angel(°) | 24 | Departure angle(°) | 25 | ||||||
| Steering | Power steering | Brake | Air brake | ||||||
| Cabin | Straight head 1 rows 2 doors , allowable 2-3 persons | ||||||||
| Special function | |||||||||
| Tank capacity | 6000L | Tank Material | Q235A Carbon steel | ||||||
| Configuration : | 5mm tank thickness, with German, imported PINFL high-pressure pump, pressure 16-20mpa, flow: 170L/min, hose length: 60m, hose diameter: 19mm. Equipped with 60 meters automatic returnable coil, full power sandwich extractor and a set of 10 high-pressure nozzles. | ||||||||
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | The thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standards | Sight liquid window, hydraulic gauge, 8-meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||

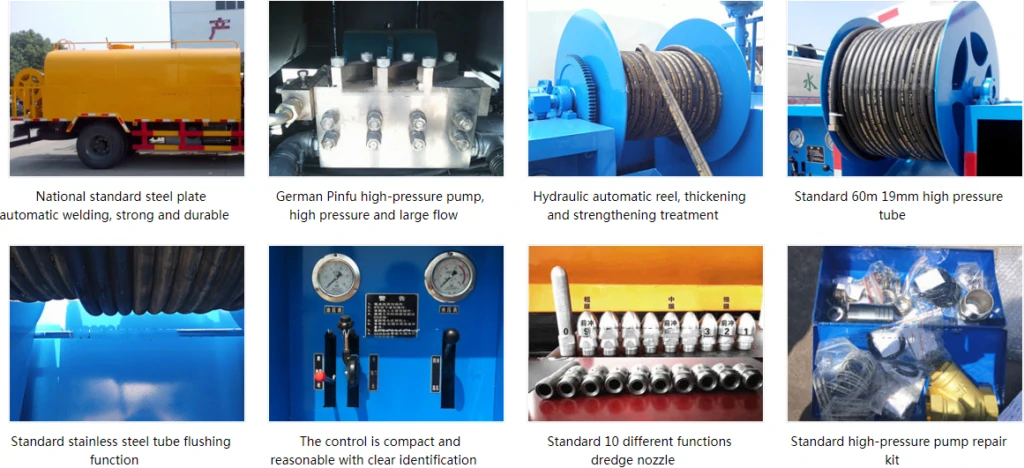

New craft:

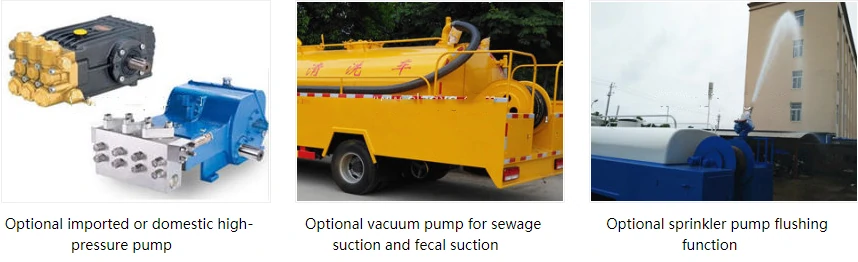

Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
