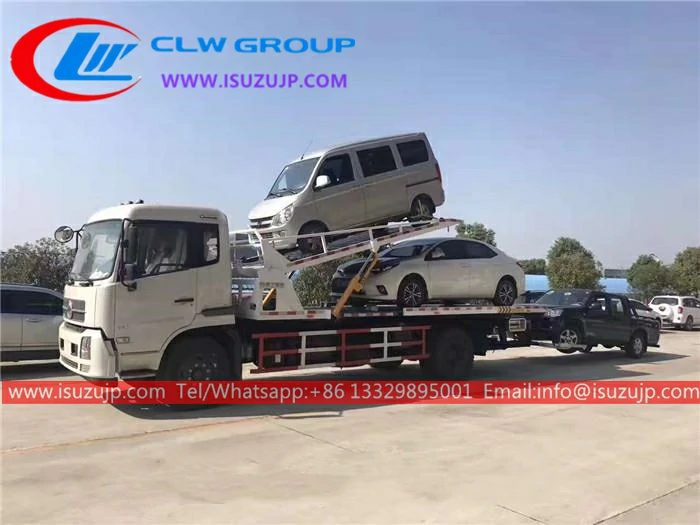

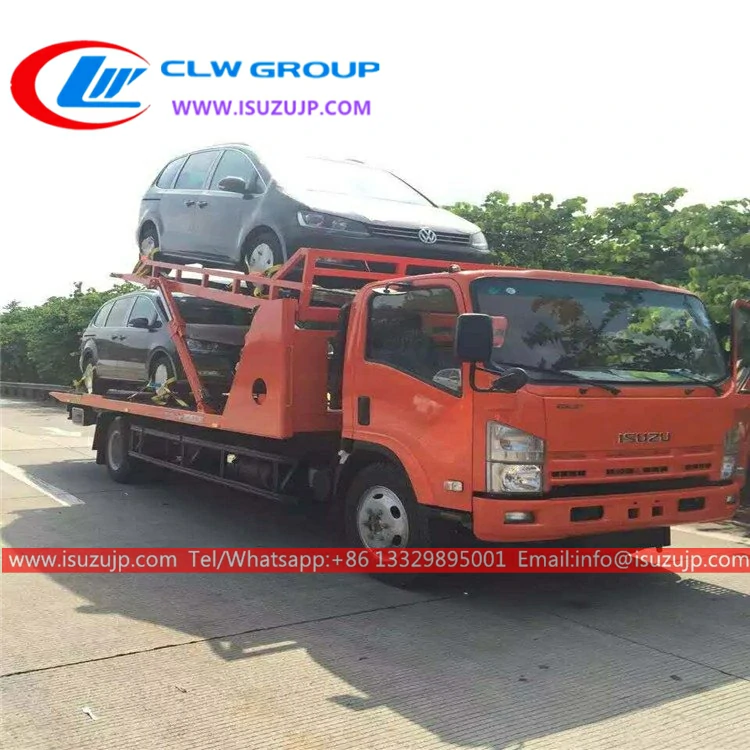

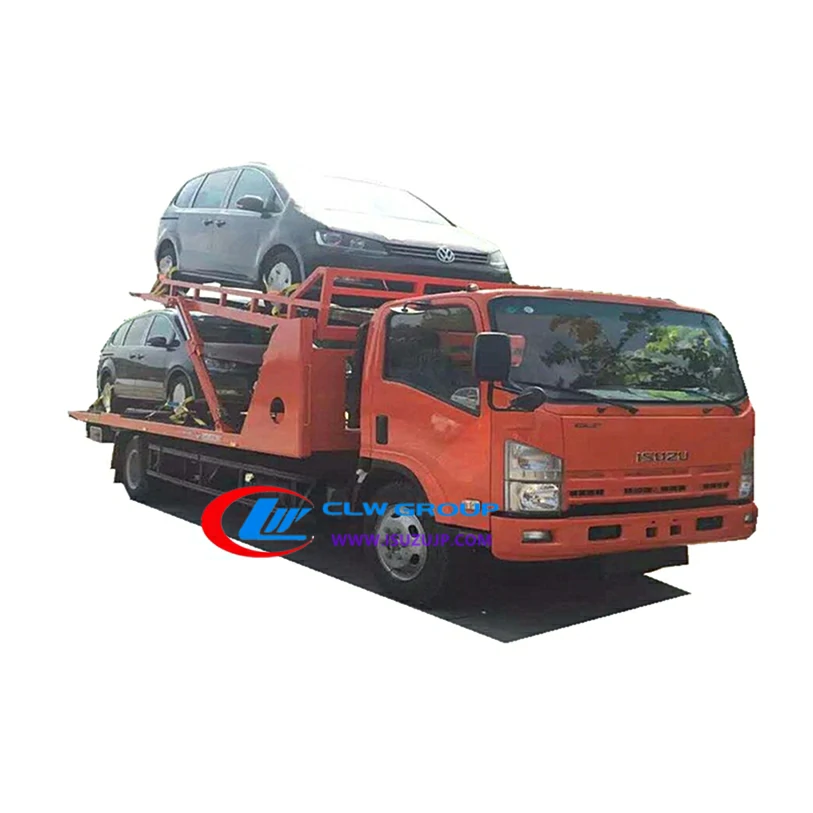

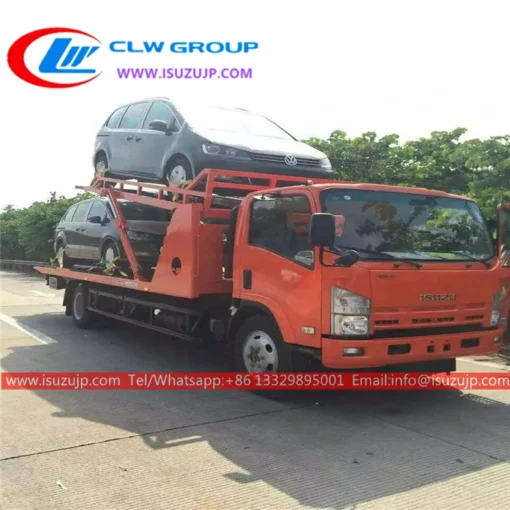

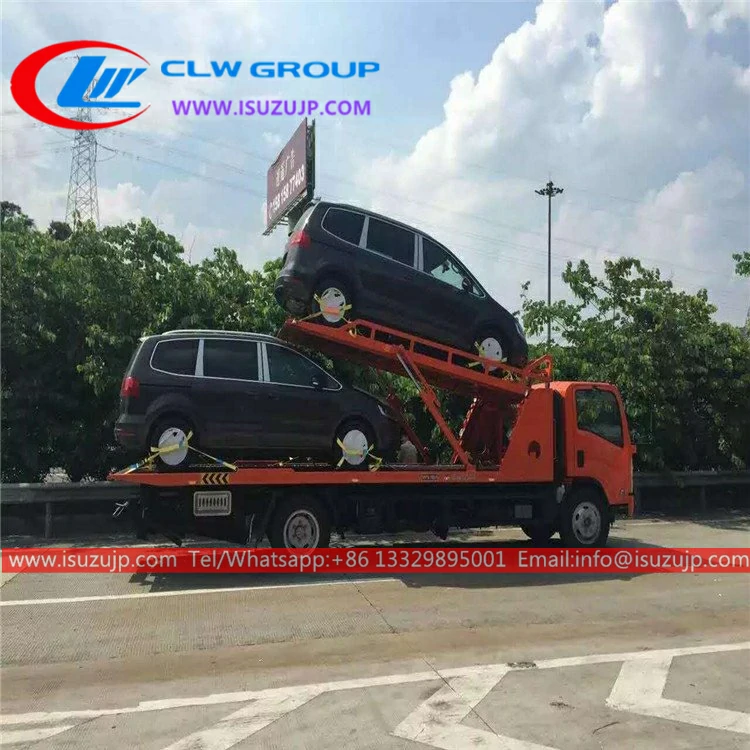

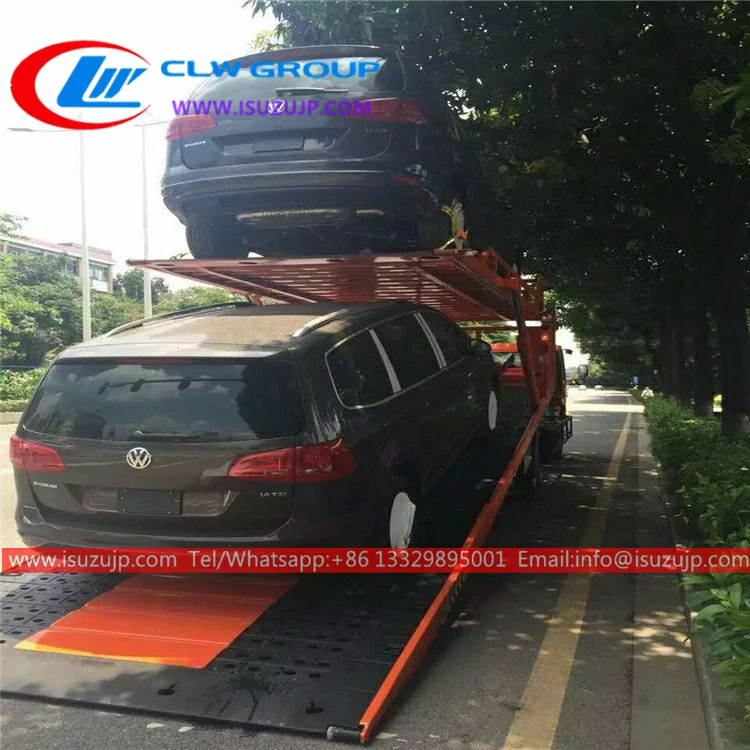

ISUZU 6 tons one towing three wrecker truck Description:
- ISUZU one towing three wrecker truck also called tow wrecker truck, Flatbed recovery vehicle, Wrecker towing trucks used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road.
- It is suitable for medium and small-sized cargo, cars, and other special vehicles, which are allowed within the technical parameters of this kind.
Advantage:
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification:
| Complete Vehicle Parameter | |
| Vehicle | ISUZU 6 tons one towing three wrecker truck |
| Overall dimensions (mm) | 9600×2550×2800 |
| Top platform size (mm) | 4600×2200 |
| Bottom platform size (mm) | 7200×2400 |
| Gross Vehicle Weight (kg) | Appro × 12800 |
| Net weight (kg) | Appro × 7500 |
| Flatbed towing weight (kg) | Top platform 3tons Bottom platform 6tons |
| Rear Boom towing weight (kg) | Appro × 5000 |
| Wheel base (mm) | 5200 |
| Max speed (Km/h) | 99 |
| Standard configuration | – 6 tons hydraulic winch 1 set – Auxiliary wheel 2pcs – Rear towing boom assembly 1 set（5tons） – Steel wire rope 25m – Bundle belt 4pcs – Rear tail lights LED,both sides electronic lights. – Tool box |
| Special performance | 1. Towing three vehicle. 2. Hydraulic operation lever control flatbed and carriage arm. 3. Winch speed : 8m/min. 4. Flatbed minimum tilt angle: 8° |
| Chassis Parameter | |
| Cabin | Row and a half cab , power steering, air conditioner, 2-3 passengers,left hand drive. |
| Traction system | 4×2 |
| Engine | Brand: ISUZU Model: 4HK1-TC51, 190hp Fuel type: diesel Displacement: 5199ml Emission standard : Euro V |
| Transmission | MLD 6 forward,1 reverse, manual operated |
| Tire model | 235/75R17.5 （Optional 825R20 tire add $597） |
| No.of tires | 6pcs, and a spare tire |
| Note | Cruise control is standard for Euro 6, and Euro 5 does not have cruise control |
ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.

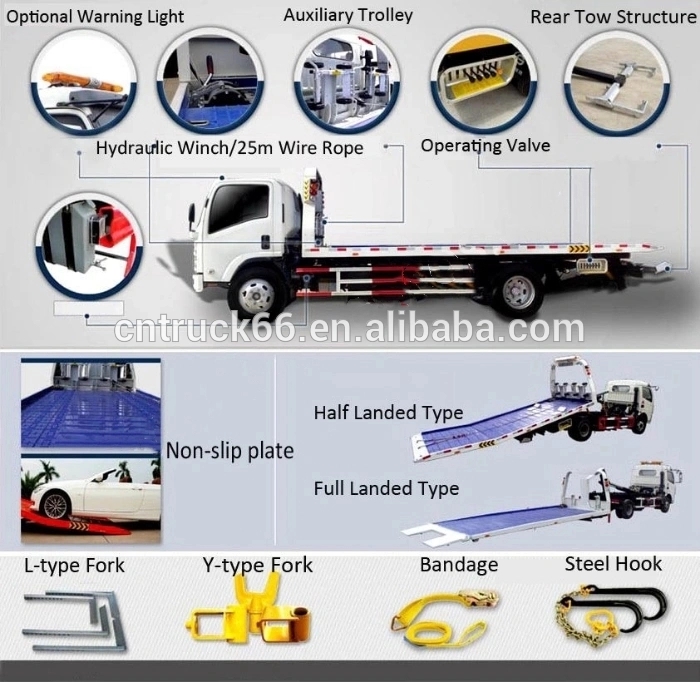

Flat Wrecker truck Structure:

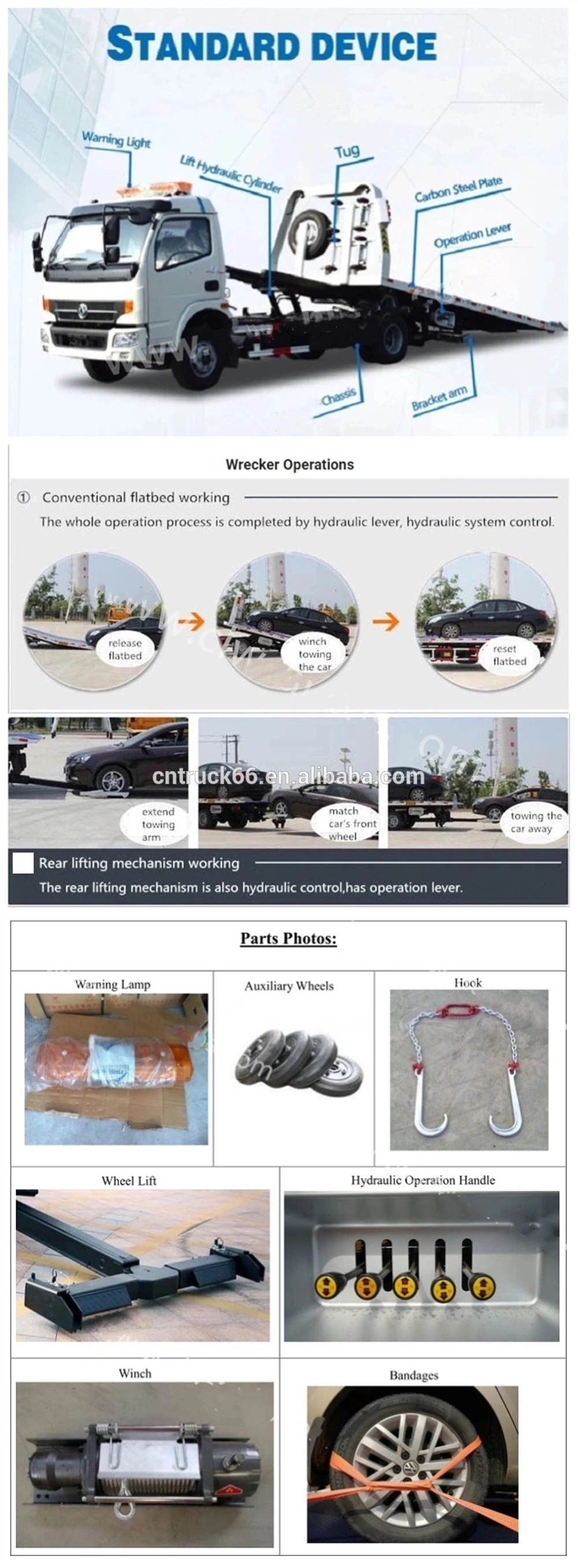

Police rescue truck operations and parts picture:

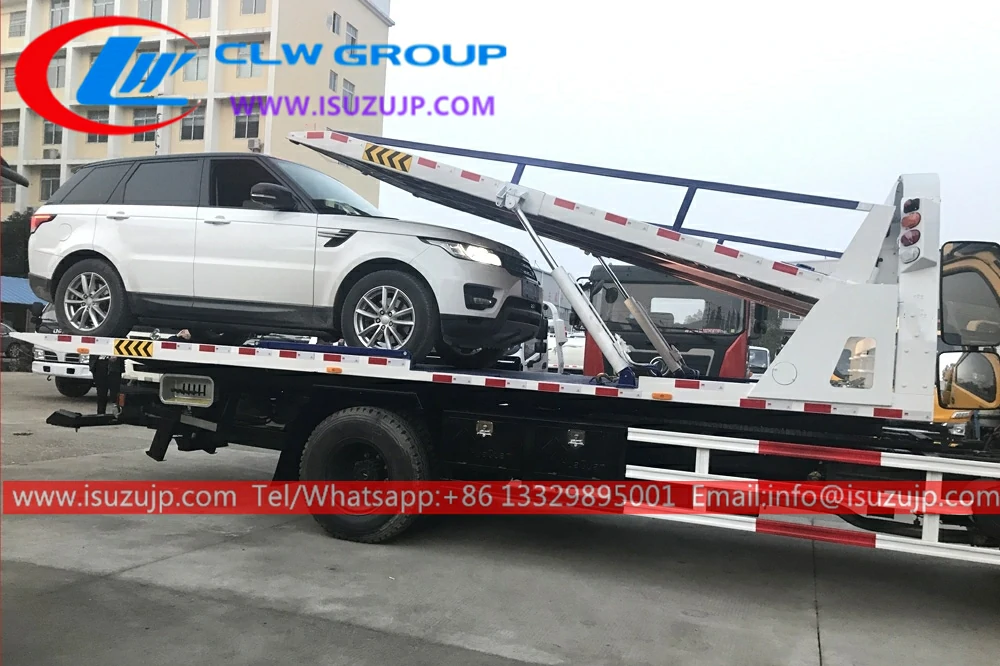

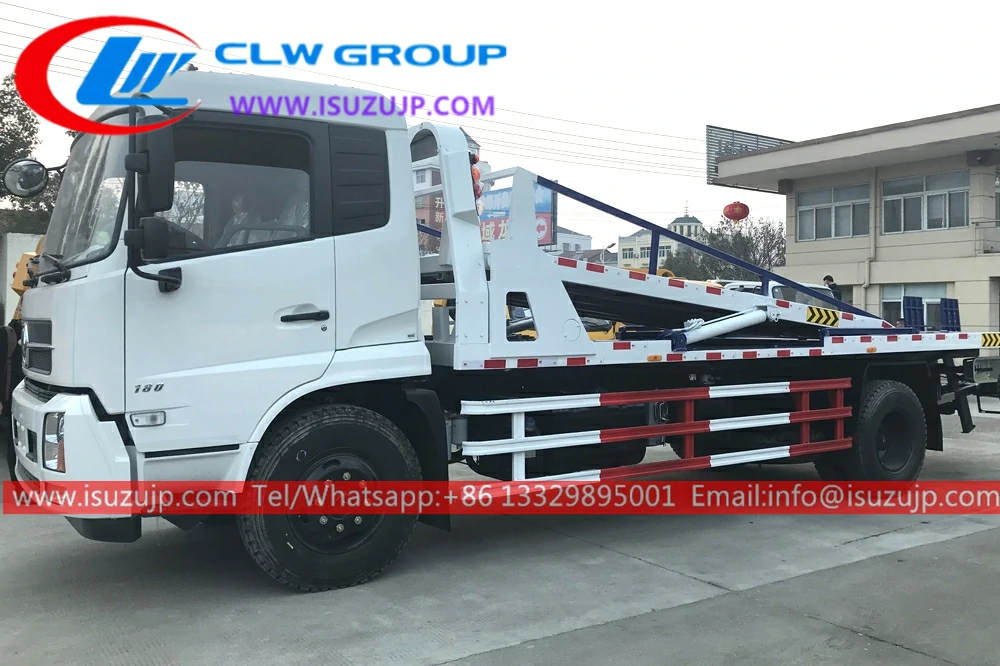

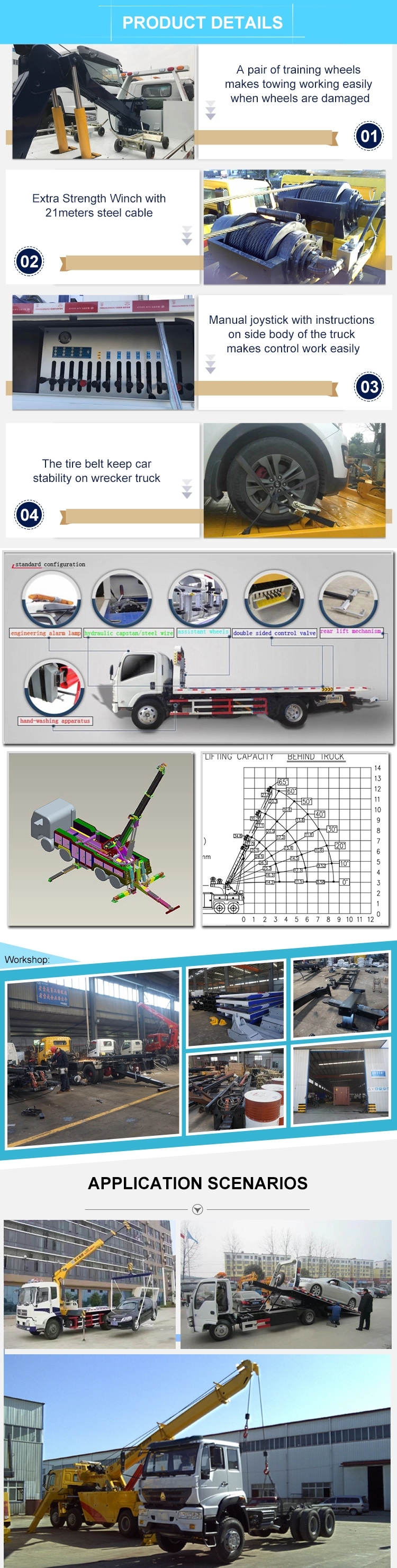

ISUZU recovery wrecker tow truck details：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
