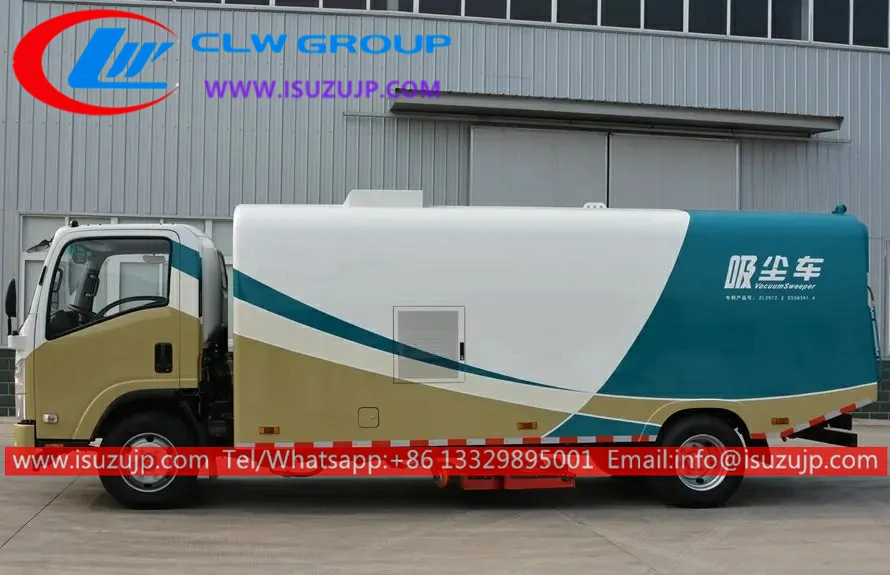

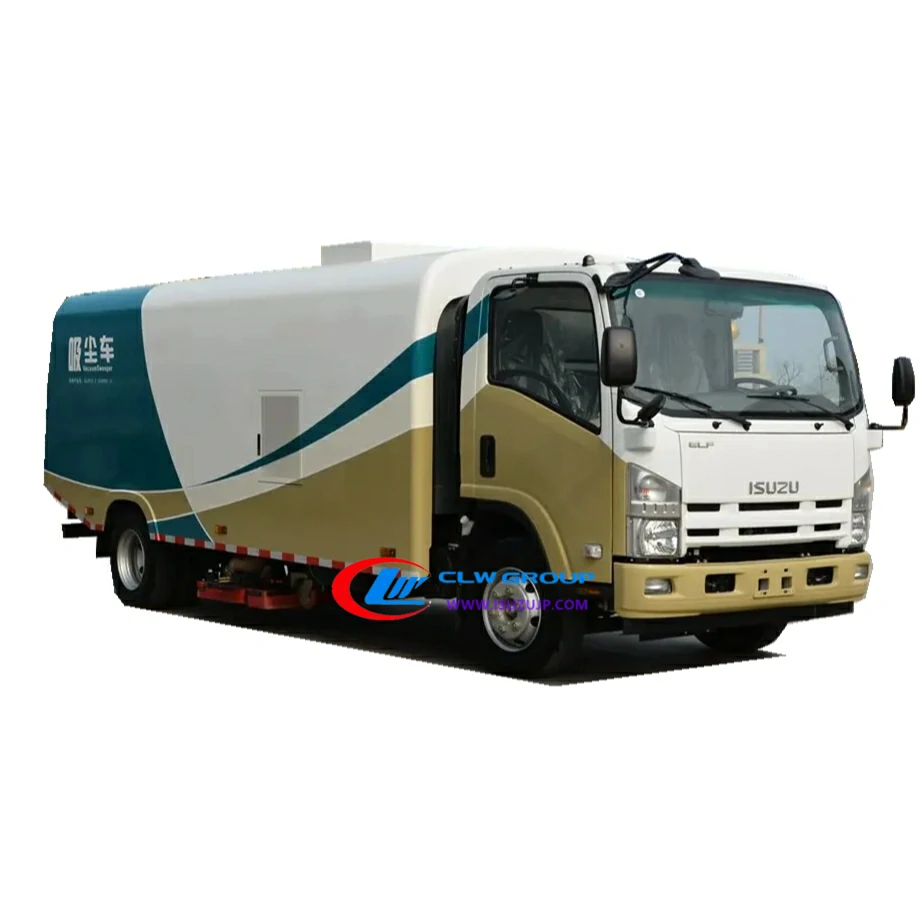

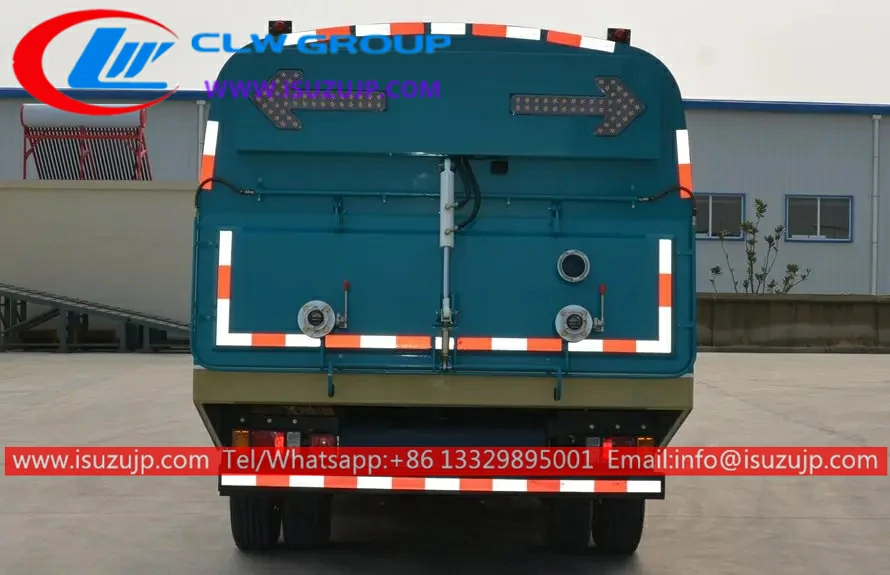

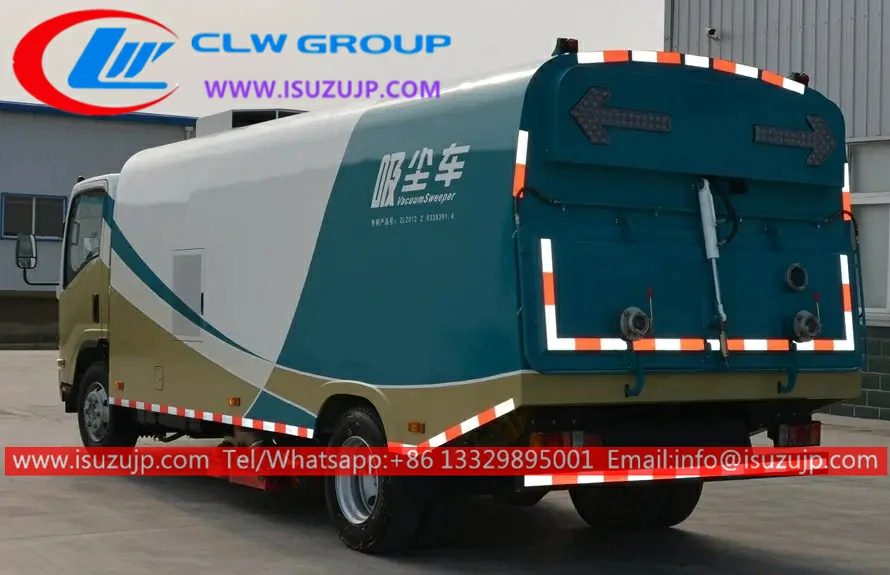

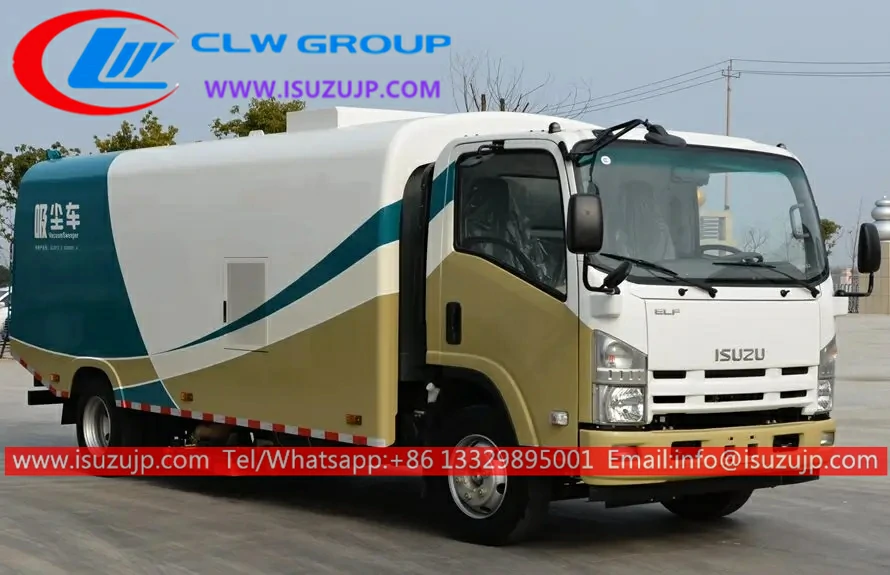

ISUZU 5cbm vacuum cleaner vehicle Description:
- ISUZU vacuum cleaner vehicle also called dust suction vehicle is a new type of road cleaning sanitation vehicle that adopts a dust removal filter system.
- It has changed the traditional way of sweeping with the disc brush and rolling brush of the road sweeper, and all uses the working principle of negative pressure and direct suction to complete the work, through the vehicle’s dust filter system and automatic pulse vibration dust removal system.
- It is suitable for industrial and mining enterprises with high dust, high concentration and high density that are prone to dust pollution: such as mixing plants, cement plants, thermal power plants, stone powder plants, and quarrying processing plants;
- Rapid dust-free cleaning and cleaning of urban elevated, express roads and bridges and tunnels;
- Cleaning and cleaning of urban arterial roads, high-grade highways and expressways.
Advantage:
- ISUZU 4K-ENGINE 600P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported a high-pressure pump, a super powerful, efficient pump in and out Strong, durable, and perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU 5cbm vacuum cleaner vehicle | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000X2300X2800 mm | |
| GVW / Kerb Weight | 9,800kg / 5,400kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 4 cbm dust tank & 1 cbm water tank |
| Tanker material | Stainless steel | |
| Sweeping capacity | 42,000 cbm/h | |
| Sweeping speed | 3-15 km/h | |
| Max. cleaning width | 2800 mm | |
| Suction Plate | Middle of the truck | |
| Auxiliary engine | ISUZU engine, 77HP (57kw), super powerful JMC engine, 77HP (57kw), super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual… | ||

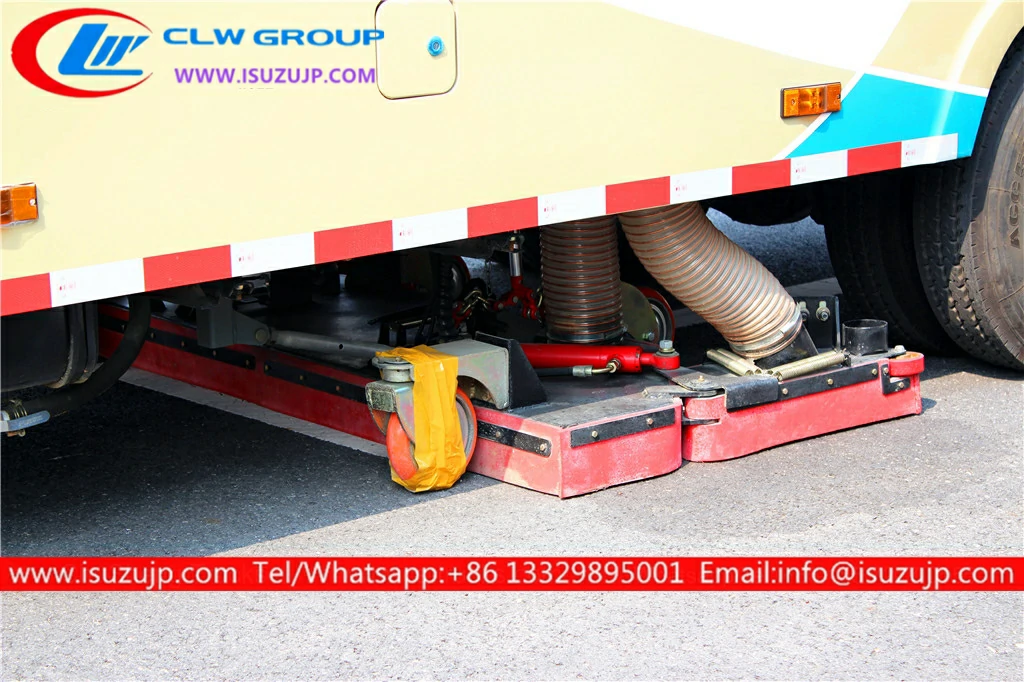

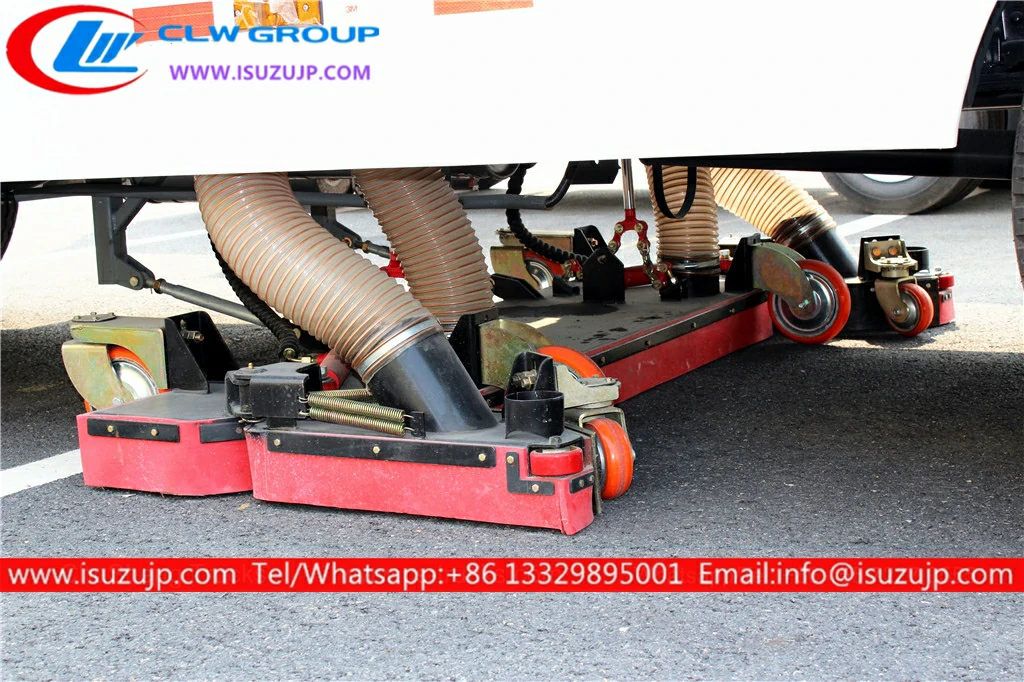

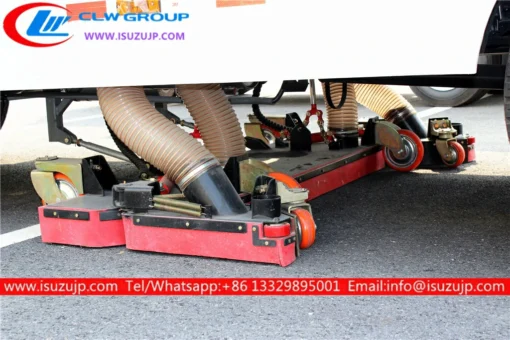

| other | The volume of the trash bin is 6m³, the water-proof material filter cartridge is installed inside, and the garbage is sorted and stored, which can effectively handle the leaves, stones, and dust. The body adopts dumping and unloading. The width of the main suction cup reaches 1900mm, the width of the left and right auxiliary suction cups is 600mm, and the maximum working width is 2.5m. The 4 height-adjustable nozzle wheels can easily adjust and ensure a reasonable gap between the suction cup and the road surface, so as to achieve a better dust collection effect and a higher dust collection efficiency. Automatic pulse cleaning function, the auxiliary machine is equipped with an air pump and a volume air tank. When the air pressure is reached, the pulse blowback device is turned on to blowback and vibrate the filter cylinder in the box, So that the filter cylinder is not easy to be blocked during work, and the suction is effectively improved, So as to achieve a better cleaning effect, computer PLC control, adjustable pulse interval time. | |
