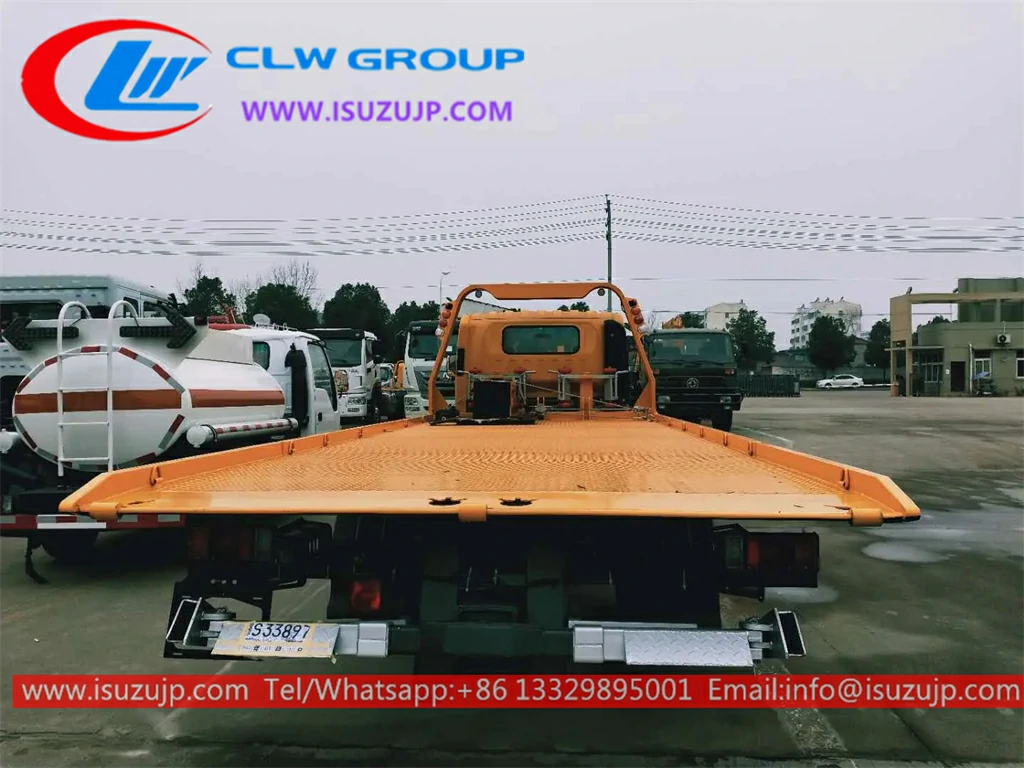

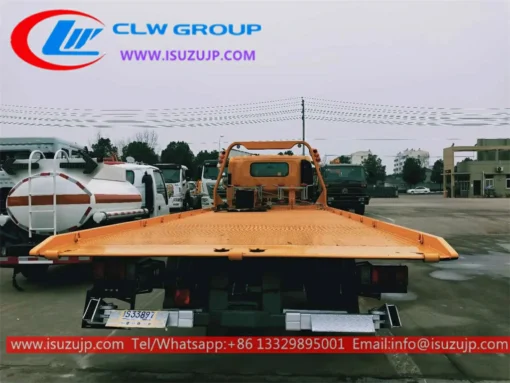

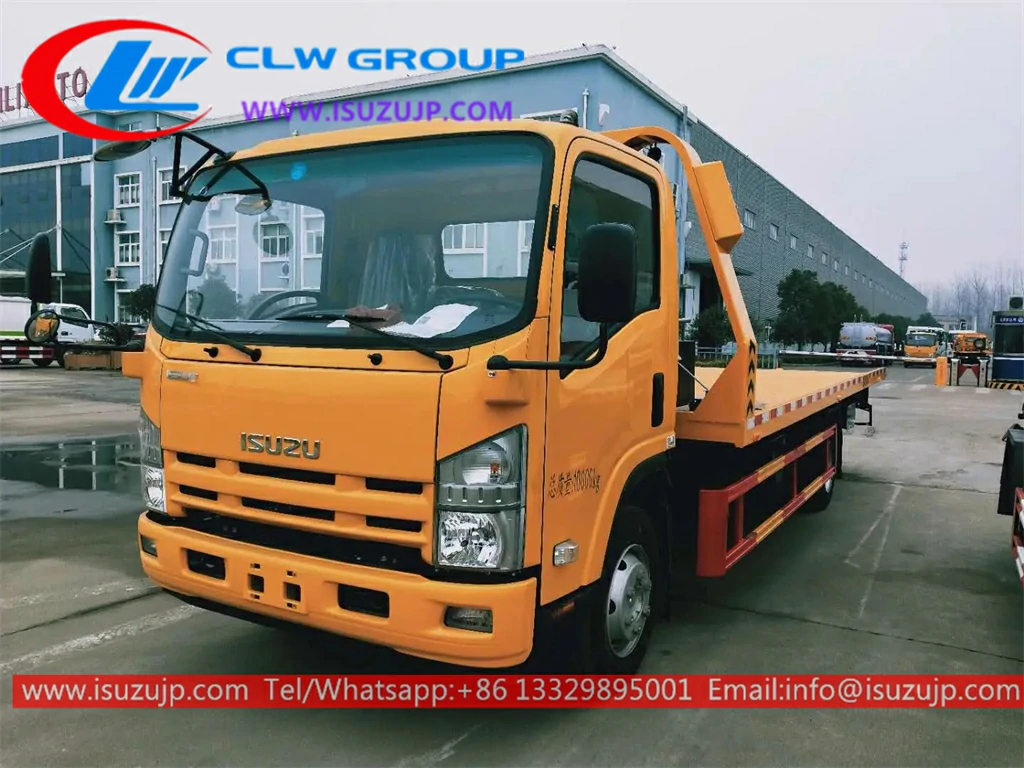

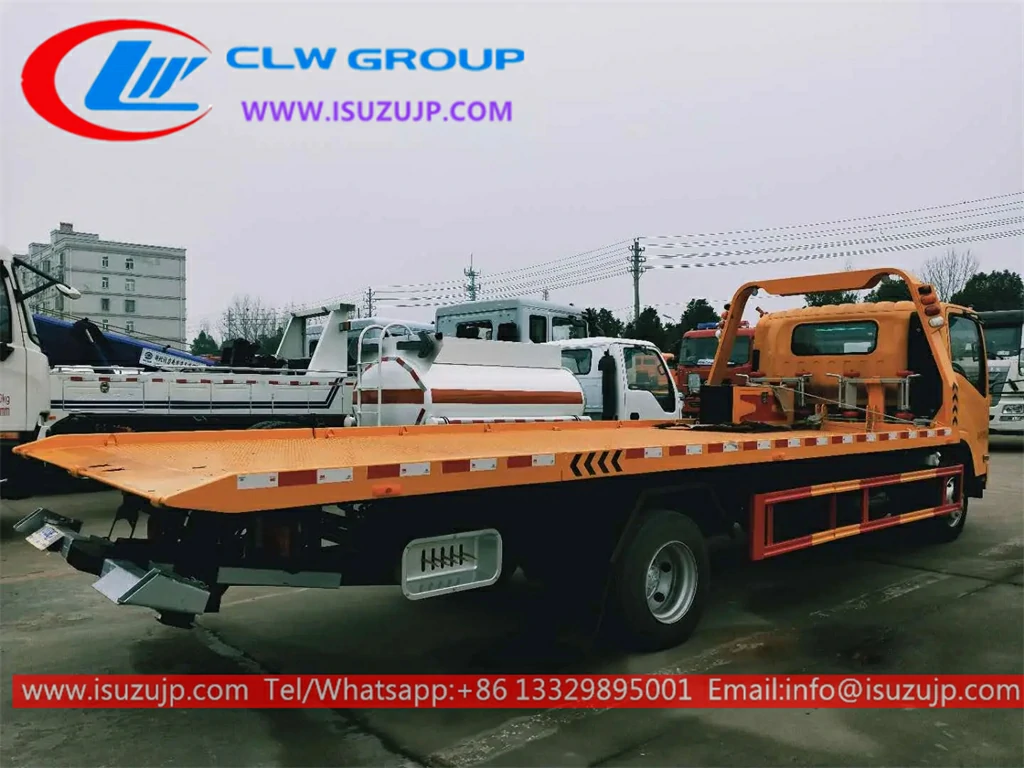

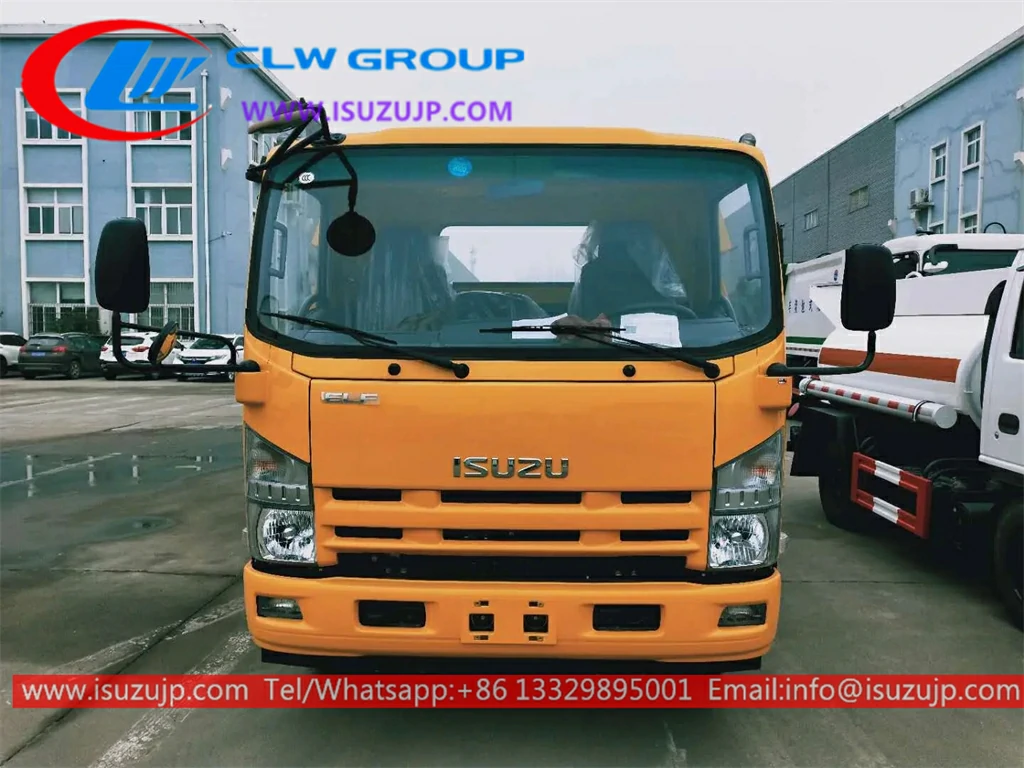

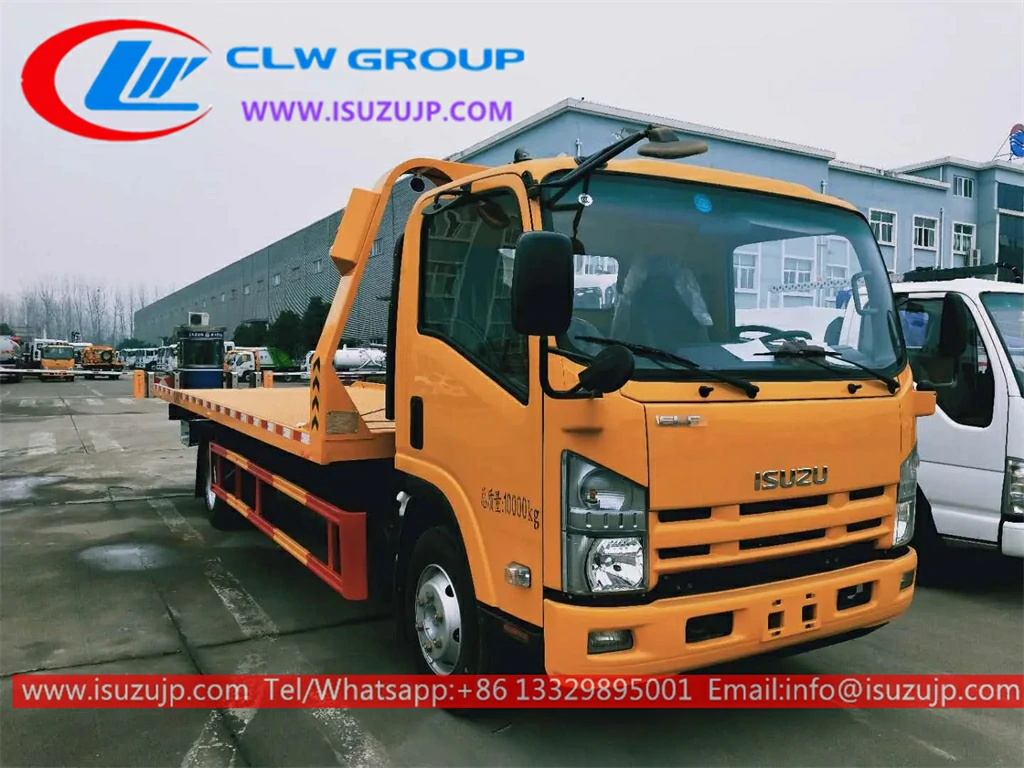

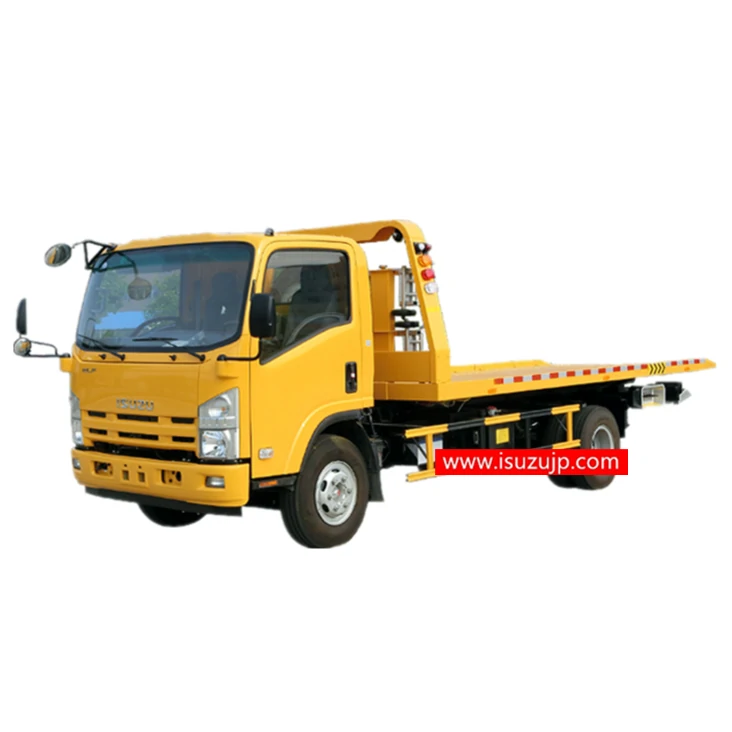

ISUZU 5 ton road wrecker truck

ISUZU 5t flatbed wrecker tow truck, Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 190 HP diesel engine, long platform with hydraulic cylinder working.

Product Origin: China ChengLi Truck Size:8485x2420x2600 mm
Shipping Port: China Main Port
Lead Time:20 Days
Payment: T/T
Delivery Time : Based on the mode of shipping chosen

Send Inquiry

Category: ISUZU wrecker tow truck Tag: 5 ton road wrecker tow truck

Description
ISUZU 5 ton road wrecker truck video

ISUZU 5 ton road wrecker truck Description:

ISUZU road wrecker truck also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
is used to transport motor vehicles or the vehicles that are broken down.
can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30ton,40ton,50tons.Towing capacity is optional.

Advantage:

100% custom-made
15 years spare parts & Technical support
ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
3 Ton to 50 Tons available
Short delivery time 7~30 days
Telescopic boom crane or Knuckle boom crane can be optional.
Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
Easy operation & Easy maintenance

Specification:

ISUZU 5 ton road wrecker truck
General	Vehicle Brand	CHENGLI
	Chassis Brand	ISUZU
	Overall Dimension	8485 x 2420 x 2500 mm
	GVW / Kerb Weight	10,000 kg / 5,675kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Air conditioner equipped
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4HK1-TCG40
	Power	190 HP (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	6 forward gears and 1 revers
	Wheelbase/No. of axle	4475 mm / 3
	Tyre Specification	235/75R17.5-14PR, 825R20-14PR
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Towing Type	Slide bed with wheel – lift
	Flatbed Payload	5 tons
	Towing Capacity	3.6 tons
	Hydraulic Winch	One 40KN hydraulic winch with 25m galvanised wire rope connect one hook
	All other standard accessories: 3 working lights, one tool box and hand washing tank, one set L-type tires holder,6pcs bundling belt and one LED alarm light etc.
Optional	Crane could be installed on flatbed wrecker.

ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:

Loading surface of the platform is formed by stamping die once.
Endurance is strong and the shape is not deformed.
Plate surface is smoother, the structure is more professional and the strength is higher.
Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
