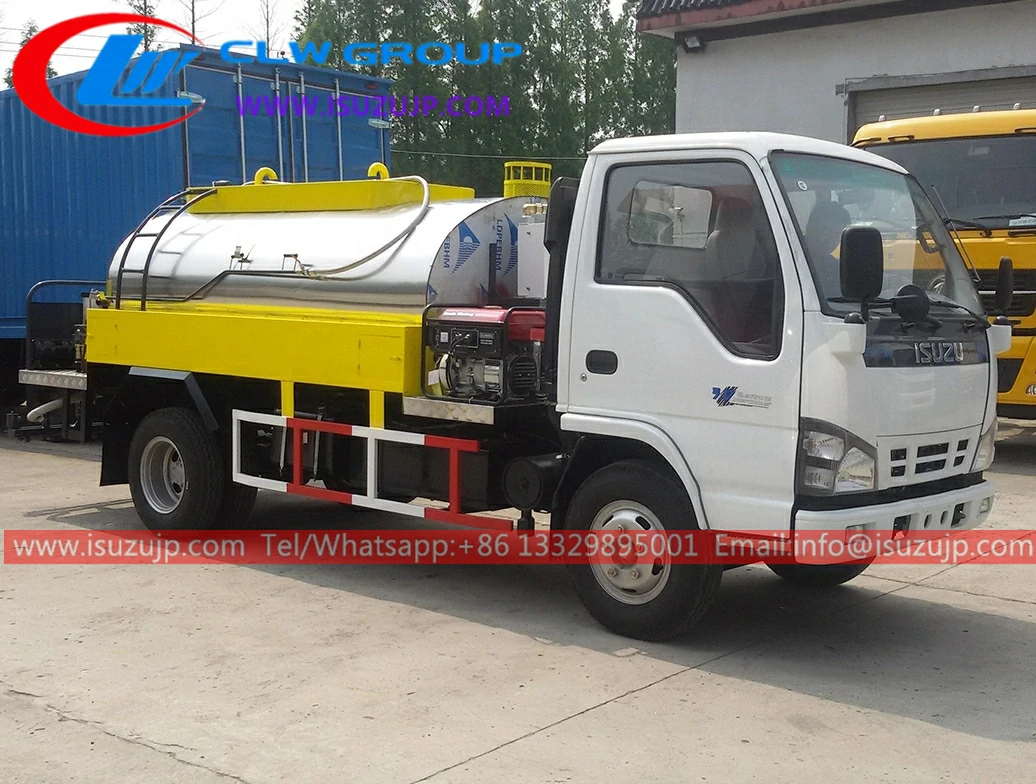

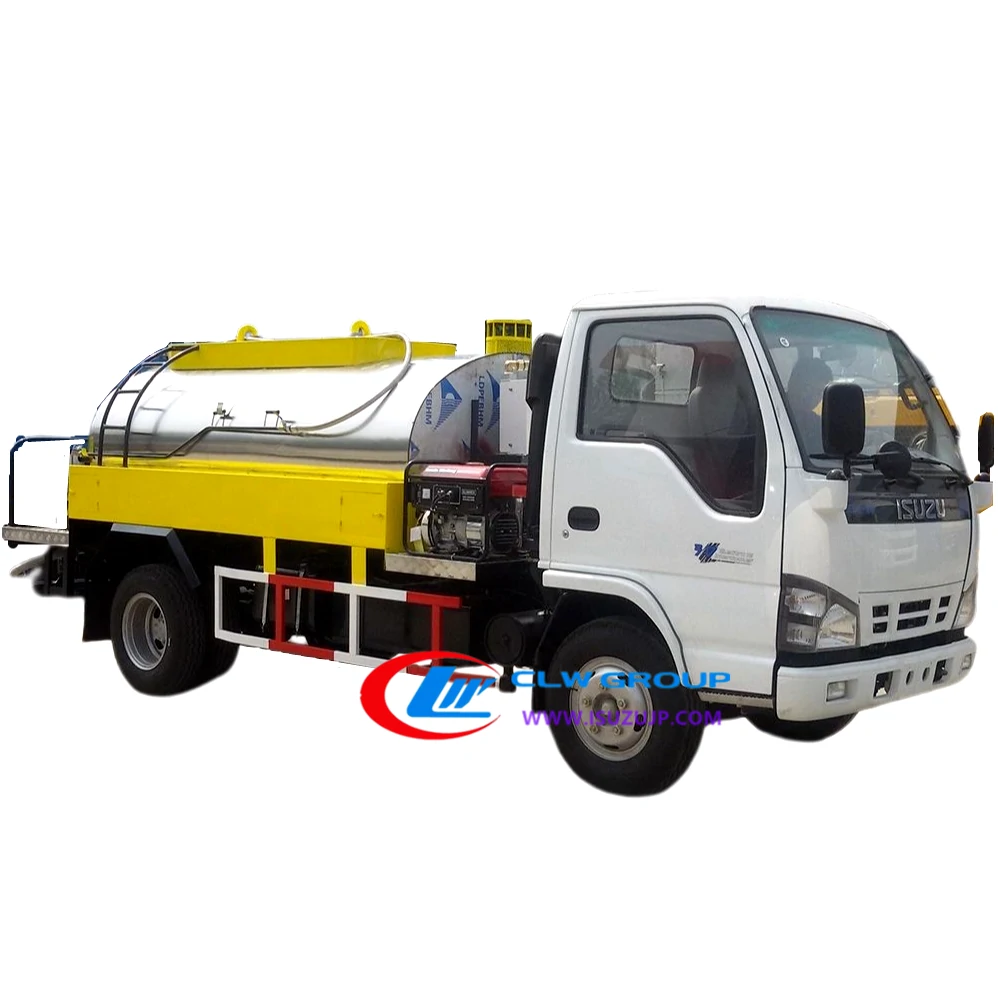

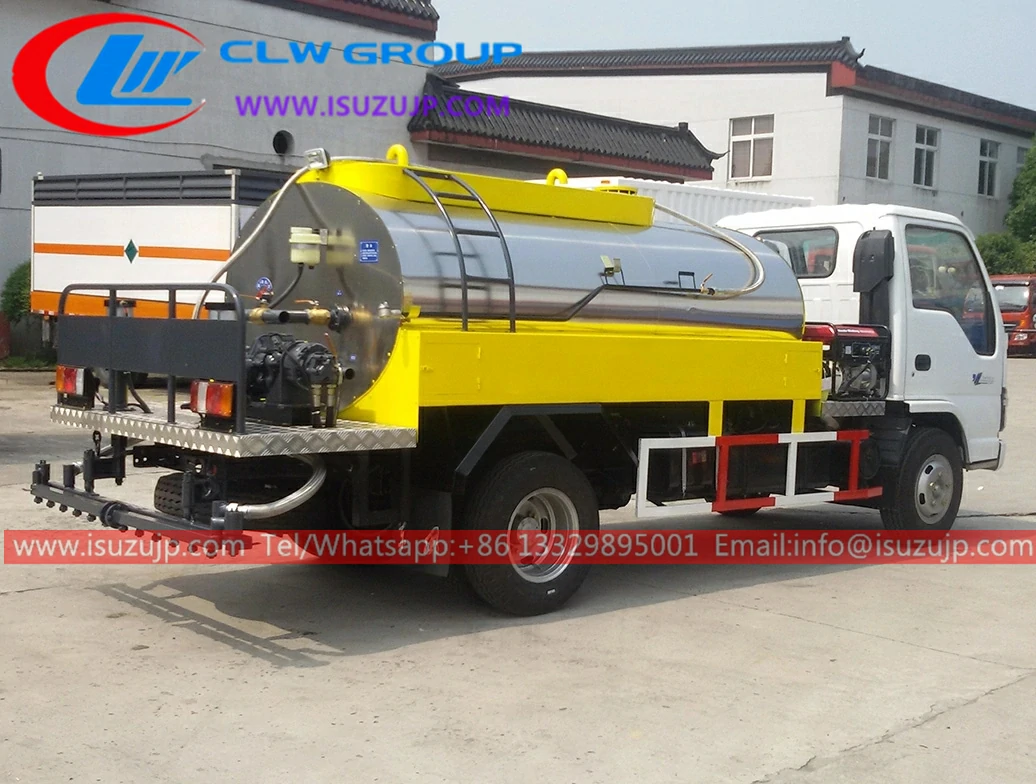

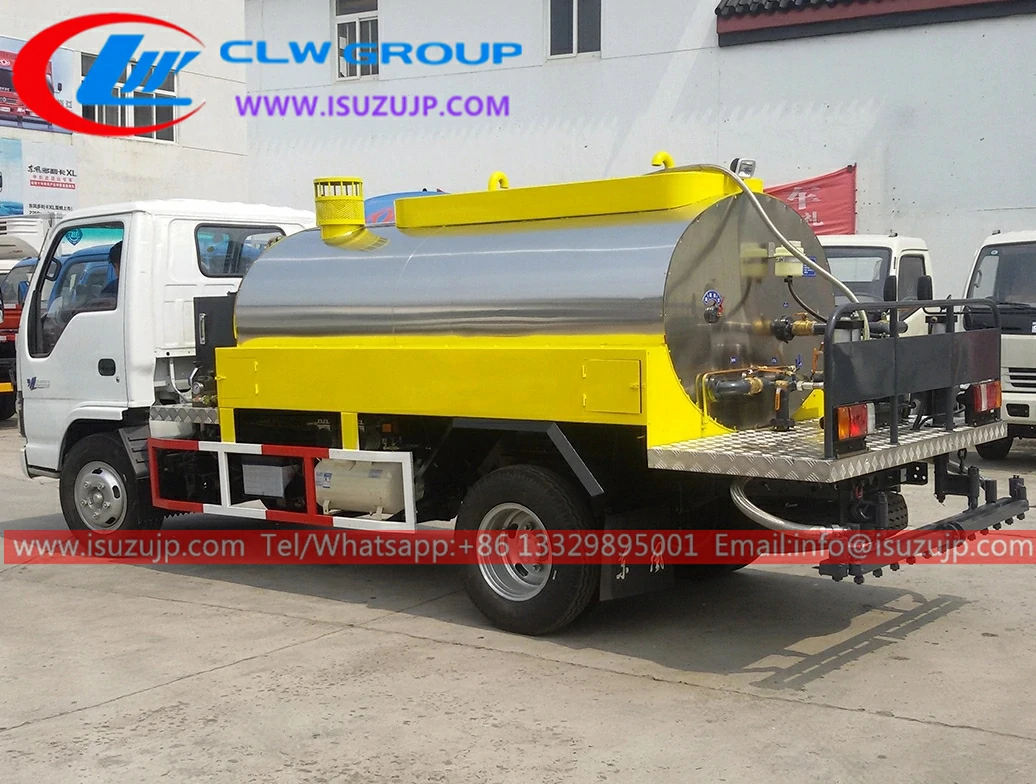

ISUZU 3000liters asphalt spreader truck Description:
- ISUZU 3000liters asphalt spreader truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Advantage:
Chassis:
- ISUZU NKR truck chassis, perfect performance
- ISUZU 4HK1 series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
Asphalt distributor System:
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.

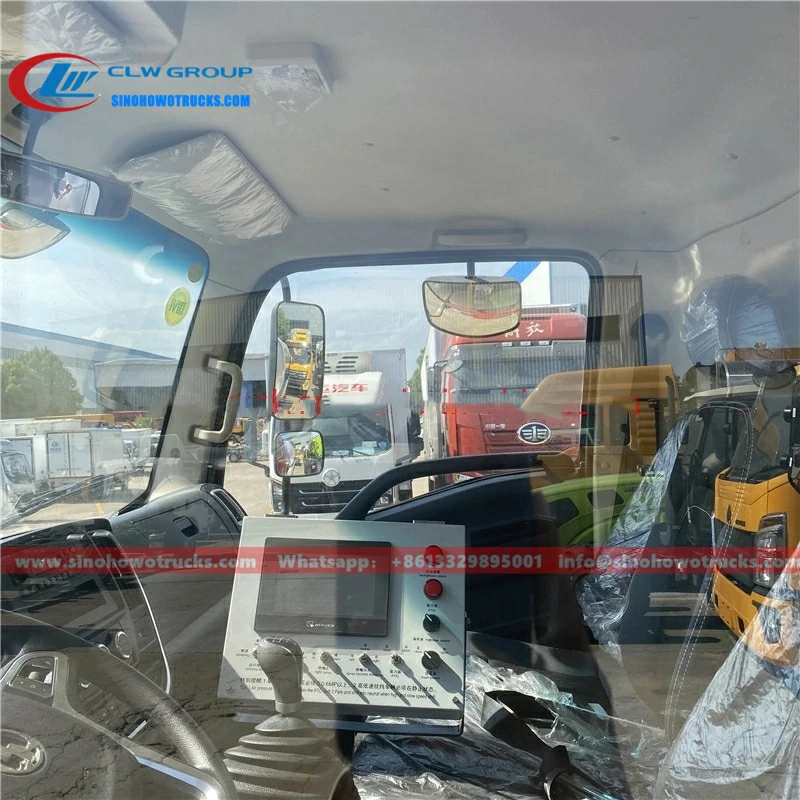

- The whole asphalt spraying process can be finished in the cab.

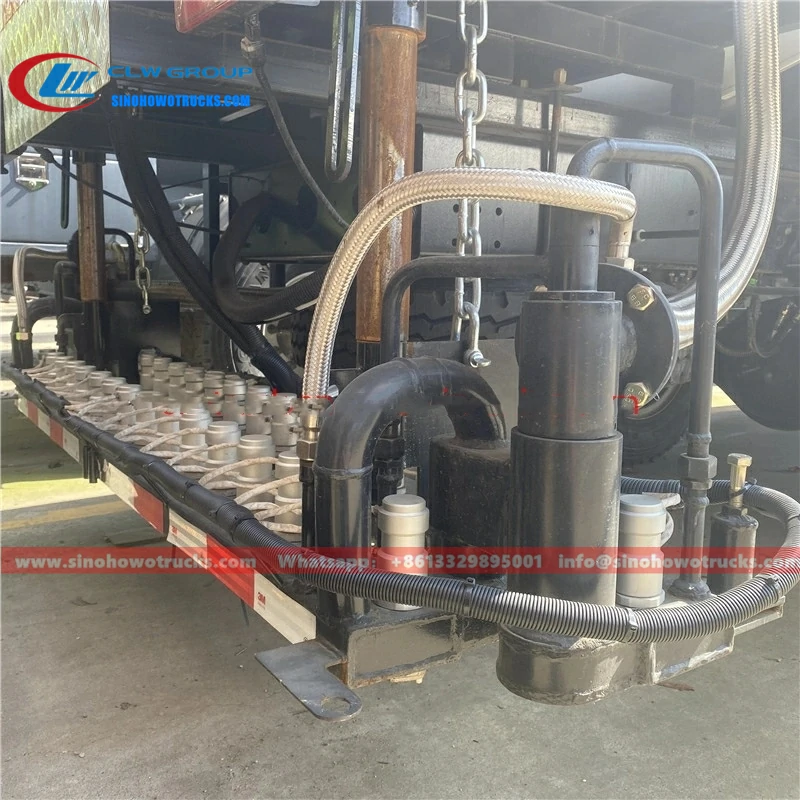

- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- The computer control system adopts a modular design for lower accident rates and maintenance.
- The temperature of asphalt in the tank is kept below or equal to two degrees per hour
- distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Specification:
| ISUZU 3000liters asphalt spreader truck for sale Philippines | ||||||
| Overall Dimension(LxWxH) | 6500×2100×2800 mm | Driving type | 4*2 , Left Hand Drive | |||
| Chassis Parameters | ||||||
| Chassis model | ISUZU | Wheelbase | 3360 mm | |||
| Cab | 100P cabin, single row, with A/C | |||||
| Engine | Model | ISUZU 4JB1CN | ||||
| Rated power | 98hp | |||||
| Emission | Euro IV/V | |||||
| Fuel Type | Diesel | |||||
| Tire | Size | 7.00R16 | ||||
| Number | 6+1(with one spare tire) | |||||
| Transmission | MSB, 5-Forwards & 1-Reverse, Manual | |||||
| Fuel tank | 120L | Brake | Oil barke or Air Brake | |||
| Front axle | 2.5Tons | Rear Axle | 4.8Tons | |||
| Tank Parameters | ||||||
| Asphalt Tank Capacity | 3m3 / 3000L | Asphalt Spraying Width | 4500mm | |||
| Asphalt Spraying Rate | 0.2-2.5L/m2 | Spraying error | ±2% | |||
| Hydraulic Pump | CBQ540-L | Heat-transfer Oil Pump | RY25-25-160 | |||
| Hydraulic Motor of Asphalt pump | TILORMS Brand, 05-90-BD31 | Burner | Italian RIELLO G10,(100×10³kcal/h) | |||
| Generator | 24V Converter | Nozzles No. | 29 | |||
| Asphalt Pump | SHANGGUI PUMPS, QGB270 | PLC Control System | SIEMENS Brand | |||
Asphalt distributor truck Working parameter:
ISUZU Asphalt delivery truck details:
ISUZU Asphalt delivery truck optional style：
Asphalt distributor machine Tools and instructions:
