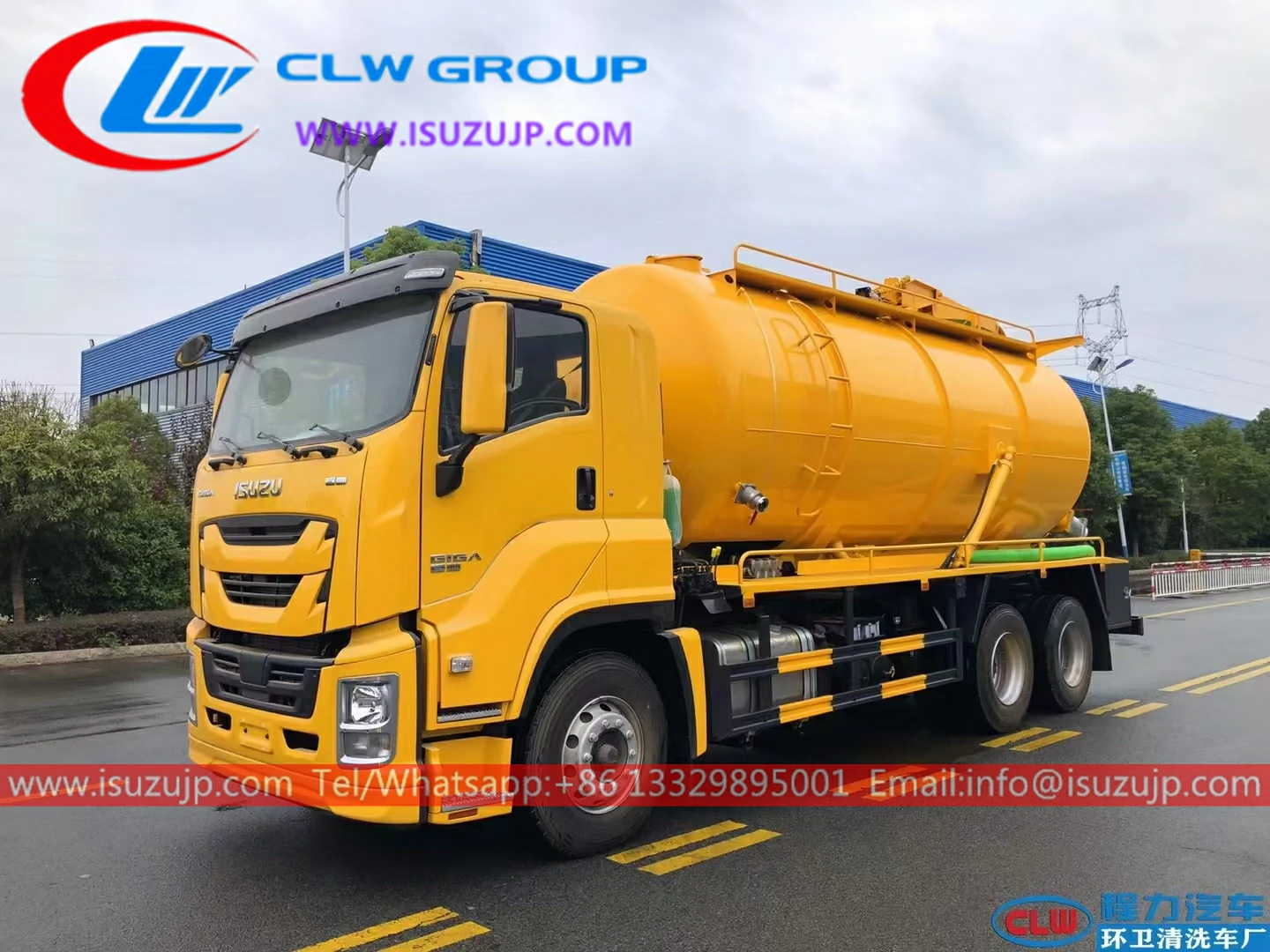

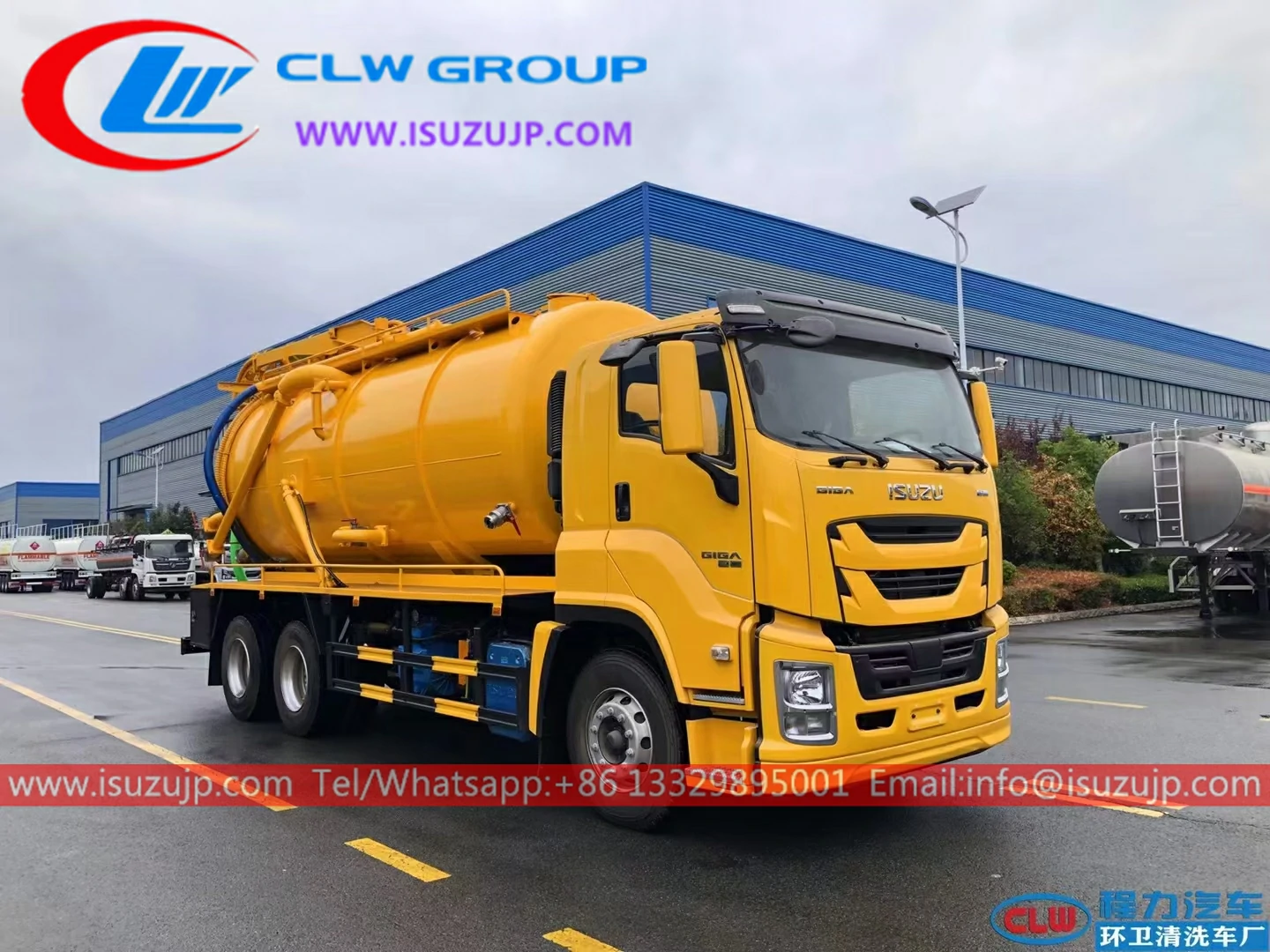

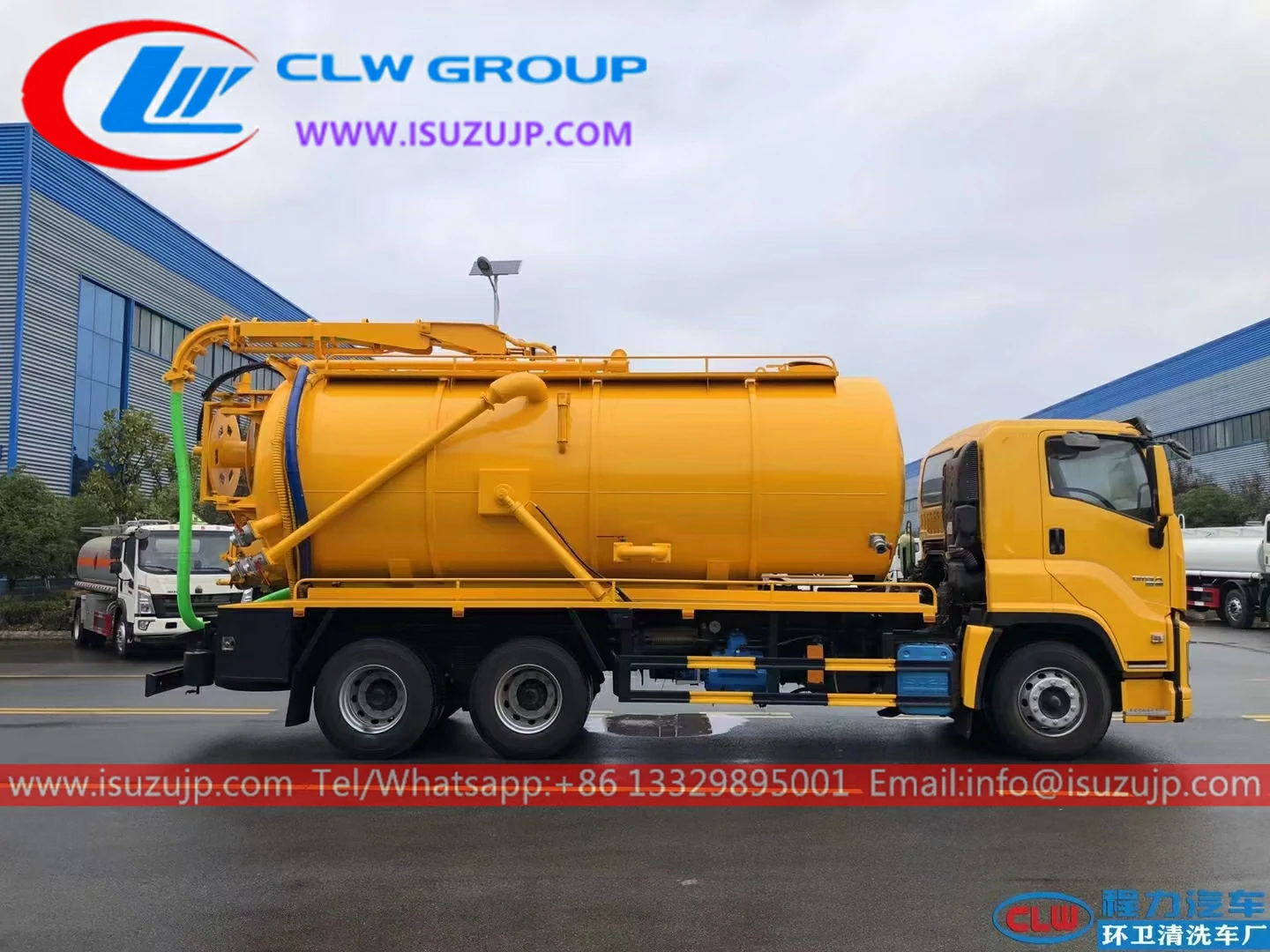

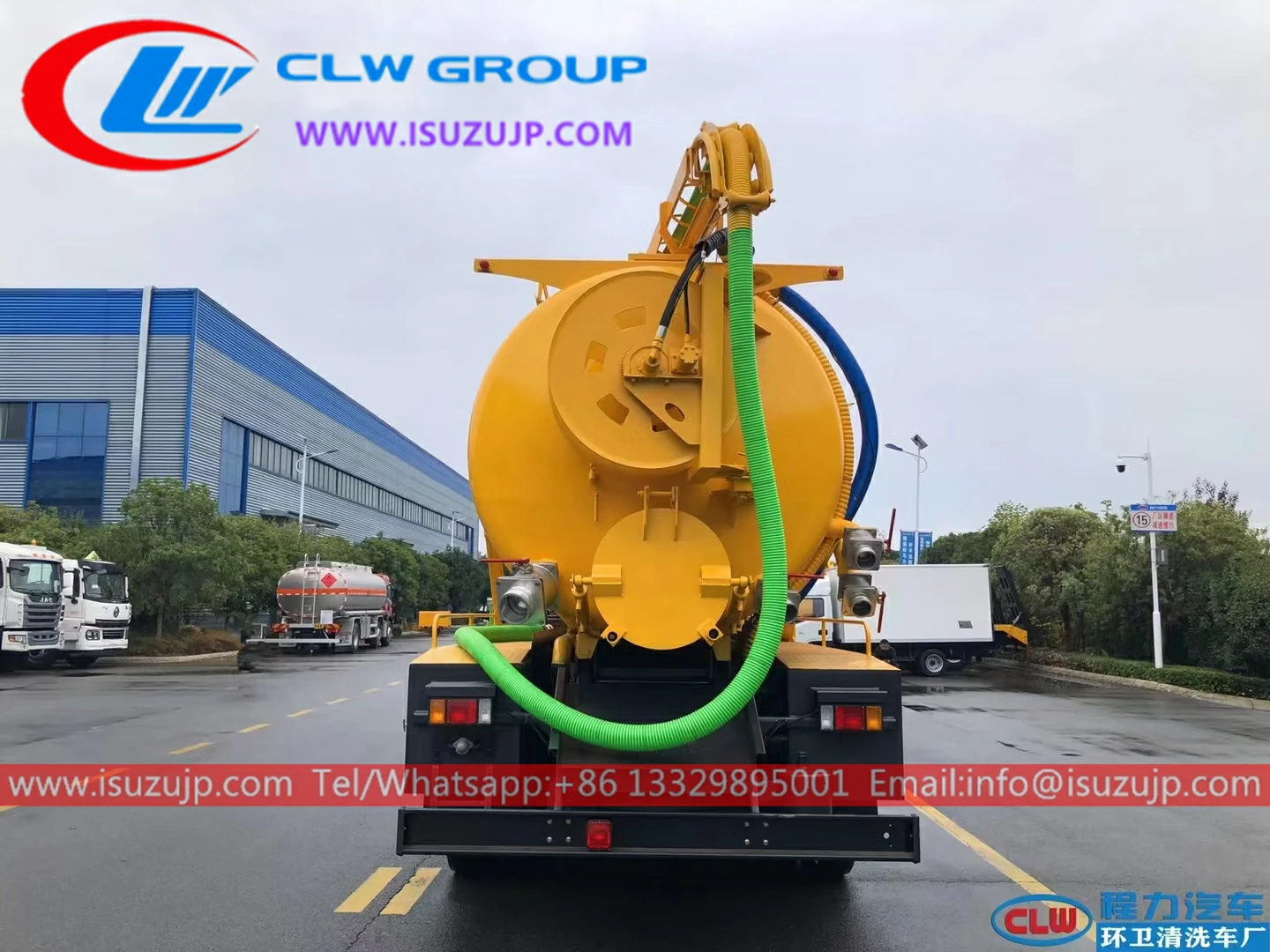

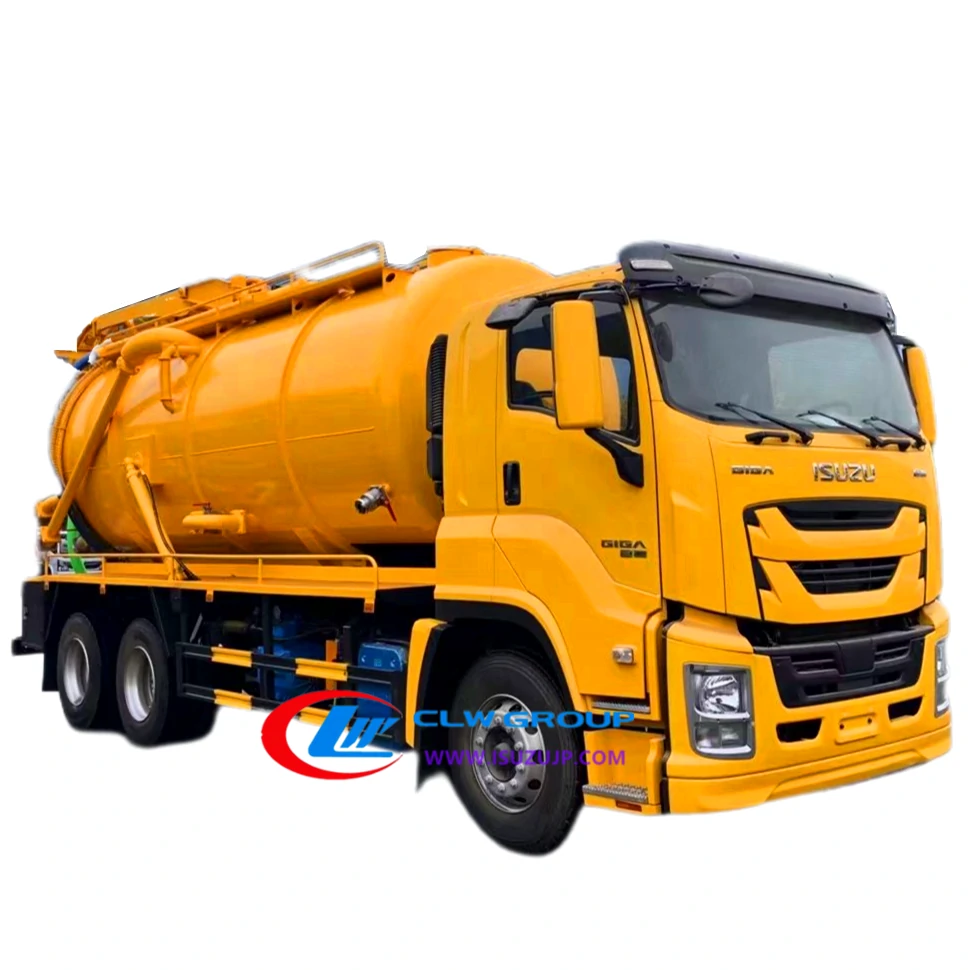

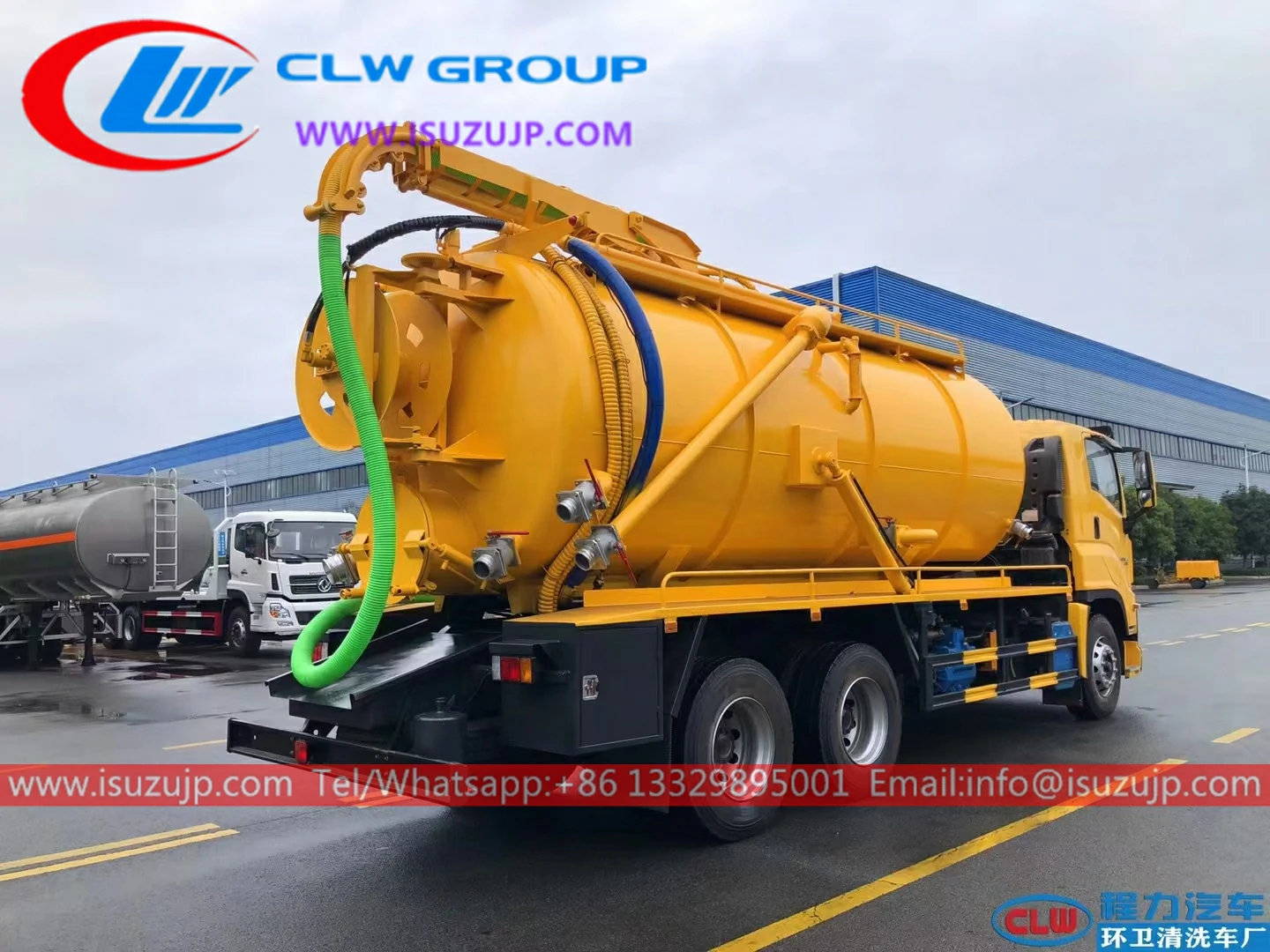

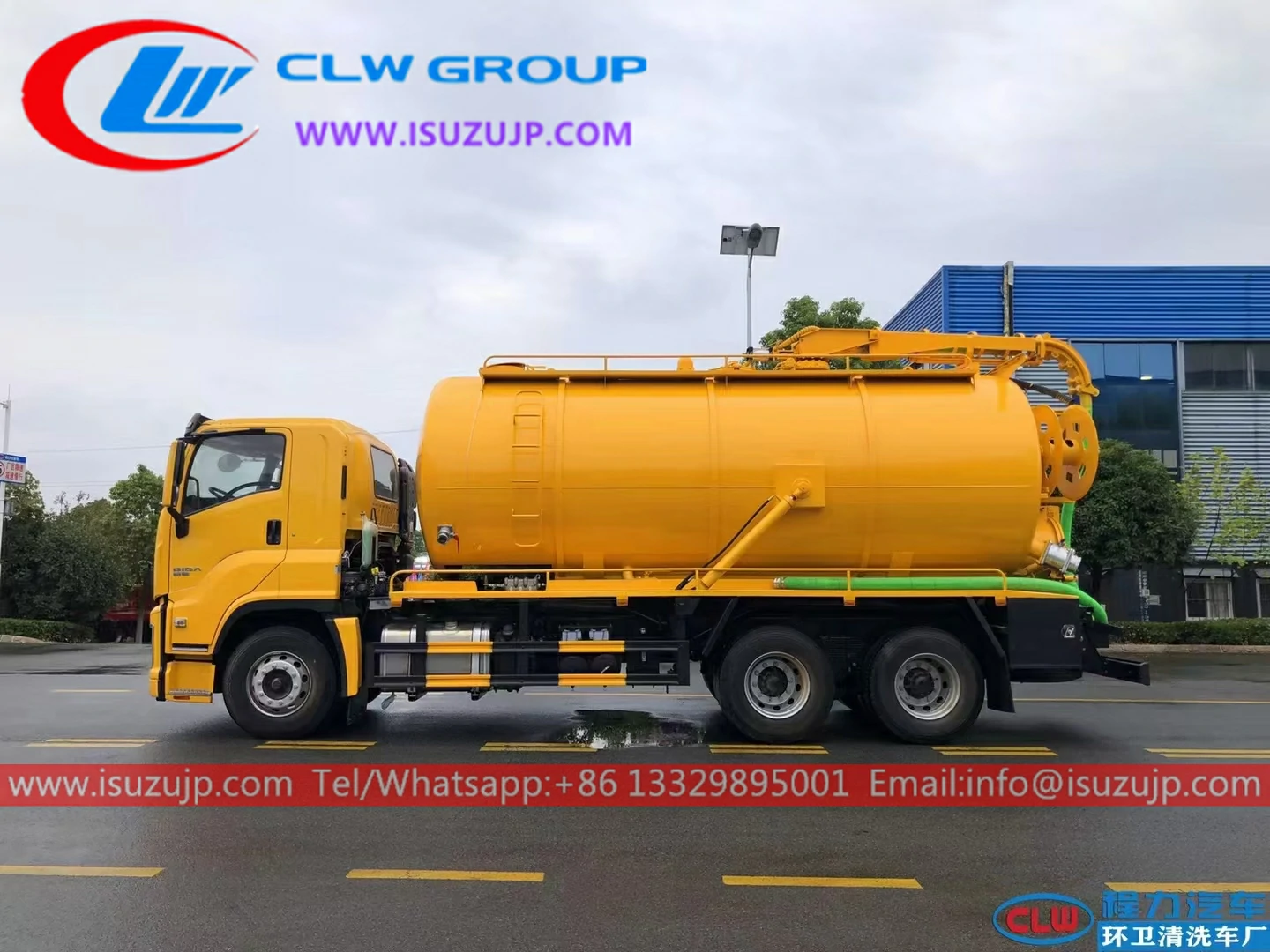

Isuzu 20000liters jet vac tanker Description:
- ISUZU 20000liters jet vac tanker also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- The fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipelines under high pressure, and clear sewer drain lines by means of powerful vacuum suction to suck all water plus mud from the sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carries a high-pressure pump, a water tank, high-pressure hoses, and nozzles; also a vacuum, vacuum tanker, and suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6×4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification:
| Shape | Cylindrical-shaped tank with external reinforcement rings. |
| Material | Mild steel. |
| Capacity. | 15,000Lilters sludge tank. 5,000Liters water tank. |
| Shell thickness | 6mm. |
| Dish end thickness | 6mm. |
| Working pressure | -0.9bar pressure. |
| Tank inner filter | Separate the sucked wastewater and solid, which protects key parts like the pump, valve, and hose. |
| Tipping cylinder | Italy PENTA brand front tipping and single-acting cylinder. Front tank bottom mounted with safety support for protection |
| Liquid level indicator | Mounted at the rear of the tank. |
| Overpressure safety | The overpressure relief valve on the tank top. |
| The full-opening rear lid | Hydraulically opening and locking |
| Outlet Valve | One 150mm ball valve, manual operation. |
| Anti over-flow | SS float ball prevents overfilling of the sludge tank. When the tank’s full, the ultrasonic level indicator is activated and the vacuum pumpis closed automatically, allowing no need to shut down from the Cab. |
| Reverse discharge | The pressure switch system changes positive pressure to negative, which allows the tank inside wastewater to be reversed and discharged via a suction boom. This improves working efficiency. |
Vacuum Unit
| Vacuum pump | The liquid ring vacuum pump is driven from the PTO on the gearbox, and provides high airflows along with high vacuum levelsfor removing materials above or below liquid surfaces. Engaged and disengaged from the driver’s cab. |
| Brand | Isuzu 20000liters jet vac tanker for sale Philippines |
| Max vacuum level | -0.92Bar |
| Air flow rate | 2800m3/h. |
| Power requirement | 90kW. |
| Rotate speed | Max 800r/min. |
| Pump cooling | Cooling Water tank in mild steel 1,500L mounted behind cab |
| Pump protection | 1)stainless steel ball valve in the tanker;2)filter;3)auto vacuum check valve. |
| Telescopic suction boom | Stainless steel material. 270°horizontal rotation and 1350mm extension, 6m working radius. Vertical lift up to 6m from the ground |
Working parameter:
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | A power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High-pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High-pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor-saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, a front tank of sub-bin | The thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic twist | ||
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
