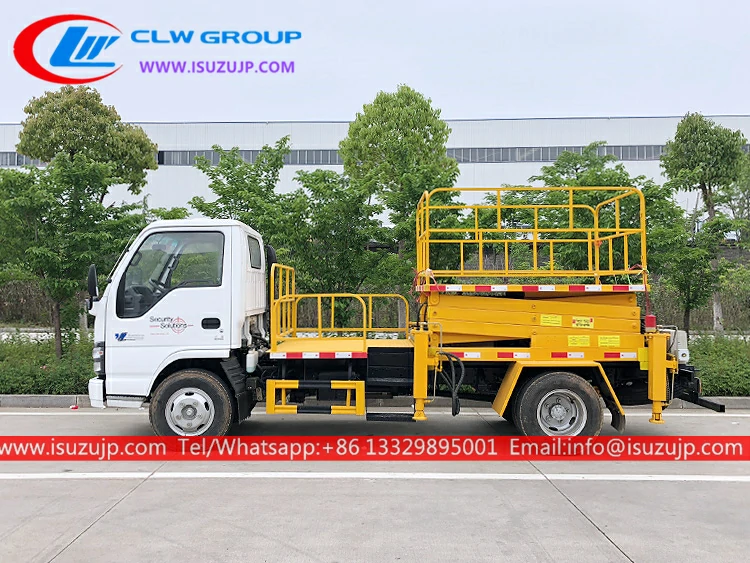

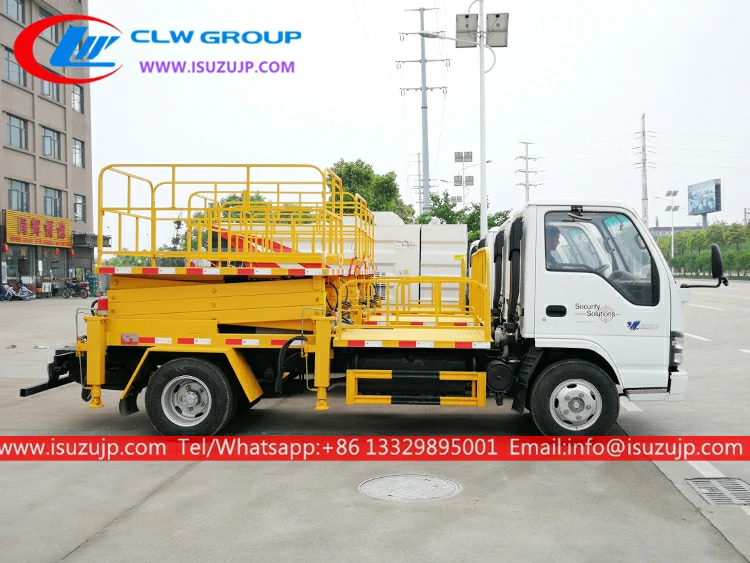

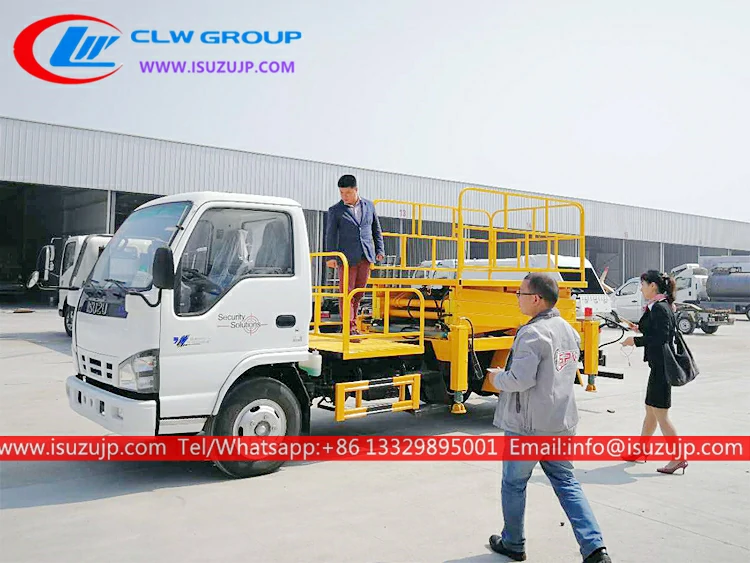

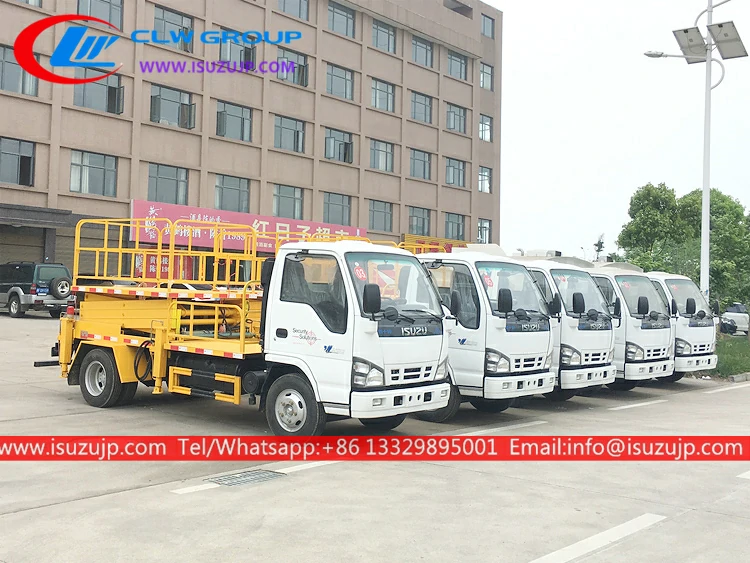

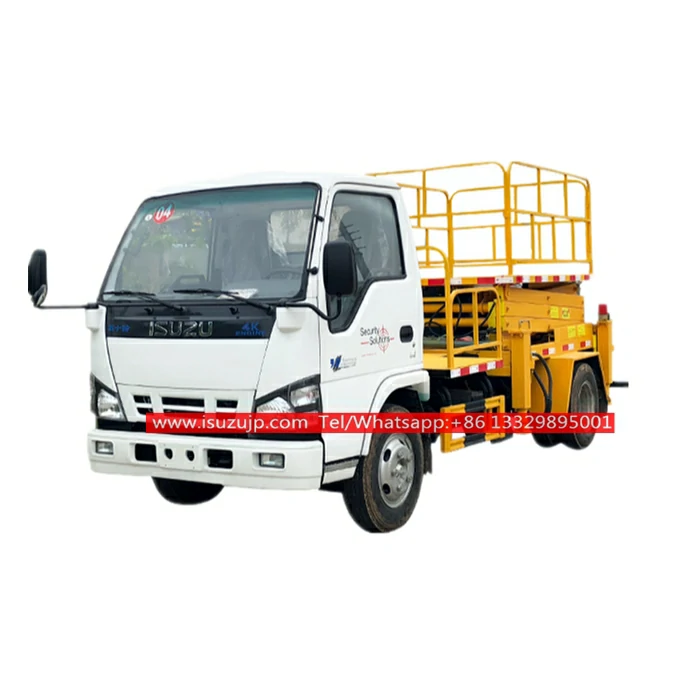

ISUZU 12m scissor lift platform truck Description:
- Isuzu scissor lift platform truck also called scissor aerial platform truck, working platform vehicle,is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works. available of 8m-12m.
Advantage:
- 100% custom-made
- 8m 10m 12m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
Specification:
ISUZU 12m scissor lift platform truck for sale | ||
General | Vehicle Brand | CHENGLI |
Chassis Brand | ISUZU | |
Overall Dimension | 5990 x 1880 x 2240 mm | |
GVW / Kerb Weight | 6,800 kg / 3,990 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | With air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine, 4KH1-TCG40 | |
Power | 120HP (88KW) | |
Displacement | 2999 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left-hand drive |
Transmission | ISUZU MSB transmission, 5-forward gears & 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 7.00-16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Cage Rated Capacity | 500 kg |
Working Height | 5.5 m | |
Control | Controlled by batteries | |
Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand-operated emergency hydraulic pump | |
Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground Working height is 8m-12m, with a hydraulic lifting platform with two hydraulic legs, the hanging blue rated load is less than or equal to 500KG, working pressure 14MPA, platform size: 1700*970*790, with cylinder locking function. 8 meters, 10 meters lifting platform car special performance: equipment structure is simple, sturdy and durable, easy to operate and reliable. The unique hydraulic control system design makes the staff work more smoothly, and can safely send the staff to the 8m, 10m high-altitude operation for maintenance, installation, cleaning, photography, shipbuilding, chemical, electric power, pruning, replacement of street lamps. And other engineering repairs. | |
Optional | Insulated cage; Wireless remote control system |
Scissor lift truck Working parameter:
Working height | Maximum working height: 8m 10m 12m | |||
Outrigger form | Outrigger type | H-shaped outrigger | ||
Outrigger span | Vertical (mm): 2710; horizontal (mm): 1720 | |||
Working platform | Rated load | ≤500Kg | ||
size | Length X width X height (mm): 1585/1805x955x1100 | |||
Safety belt | A pair | |||
Hydraulic system | Gear pump displacement | 25ml/r | Cylinder | With cylinder lock function |
Working pressure | 14MPa | Hydraulic valve | Manual | |
car | Built-in chassis | |||
Hand washing water tank | 20L | |||
Operation form | Outrigger | Each leg can be controlled independently | ||
Interlocking | Have |
Manlift boom truck New craft:

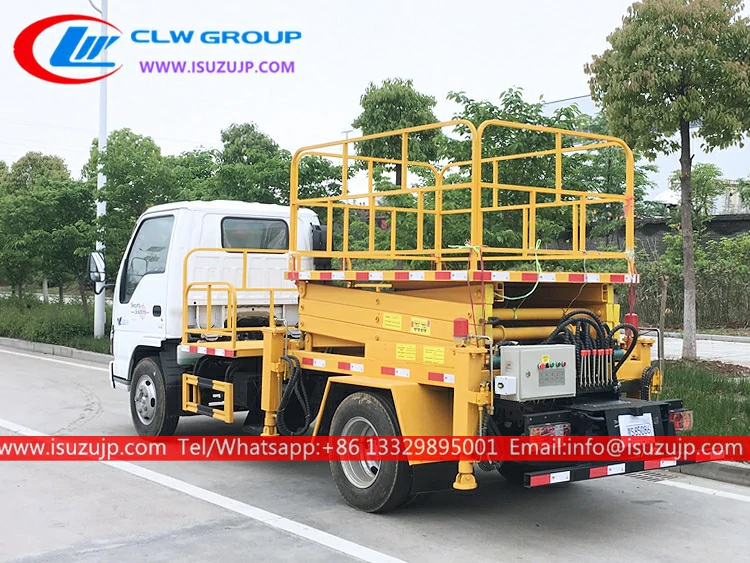

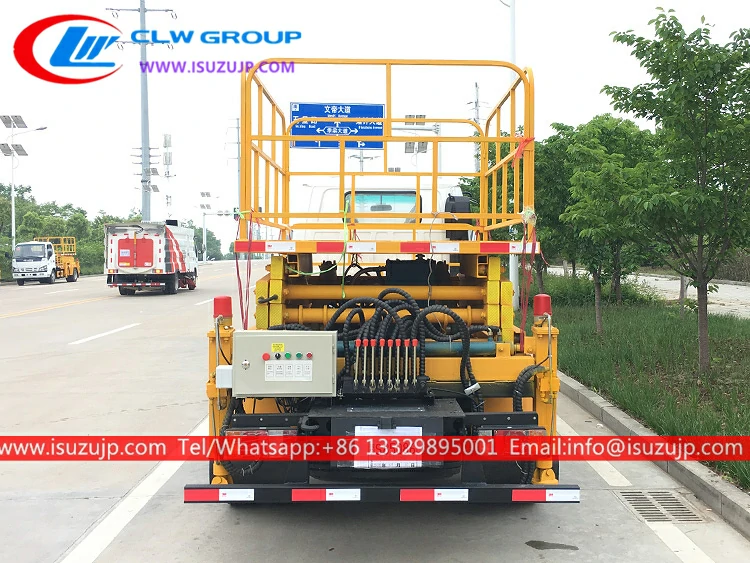

Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features:
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
