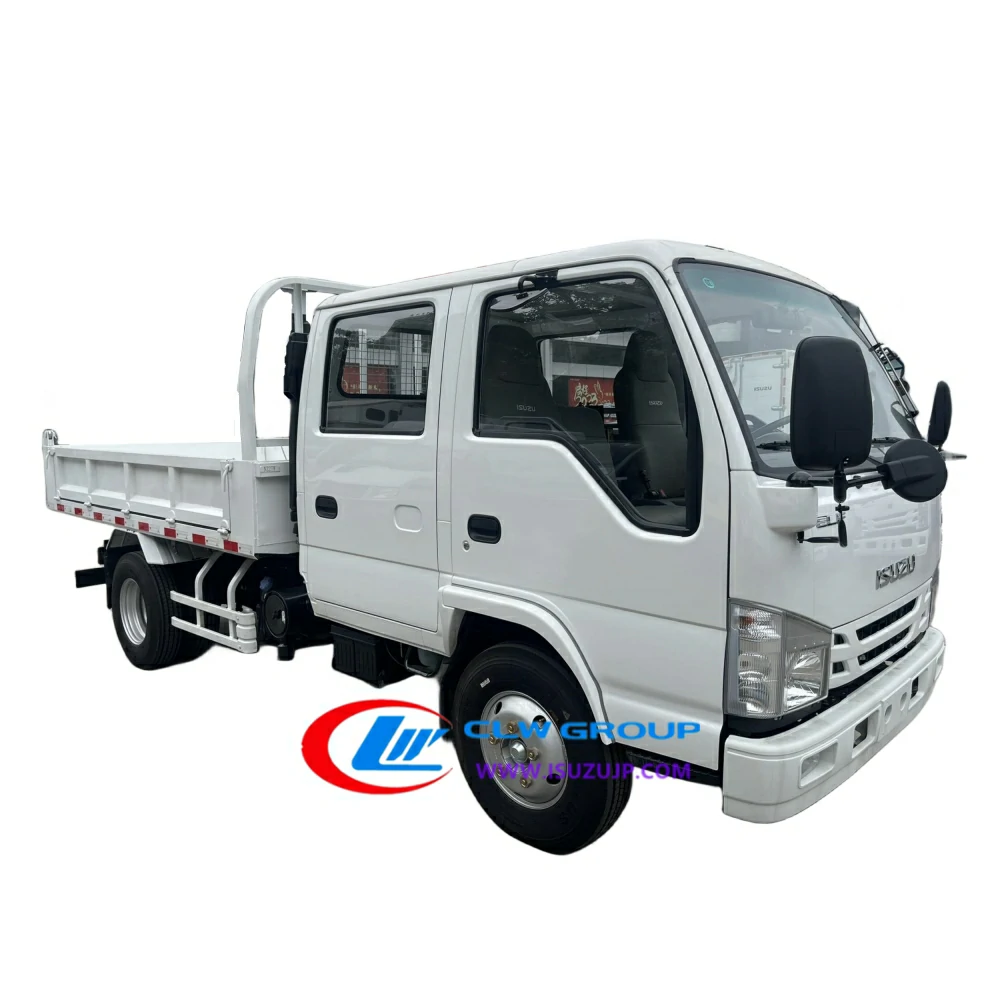

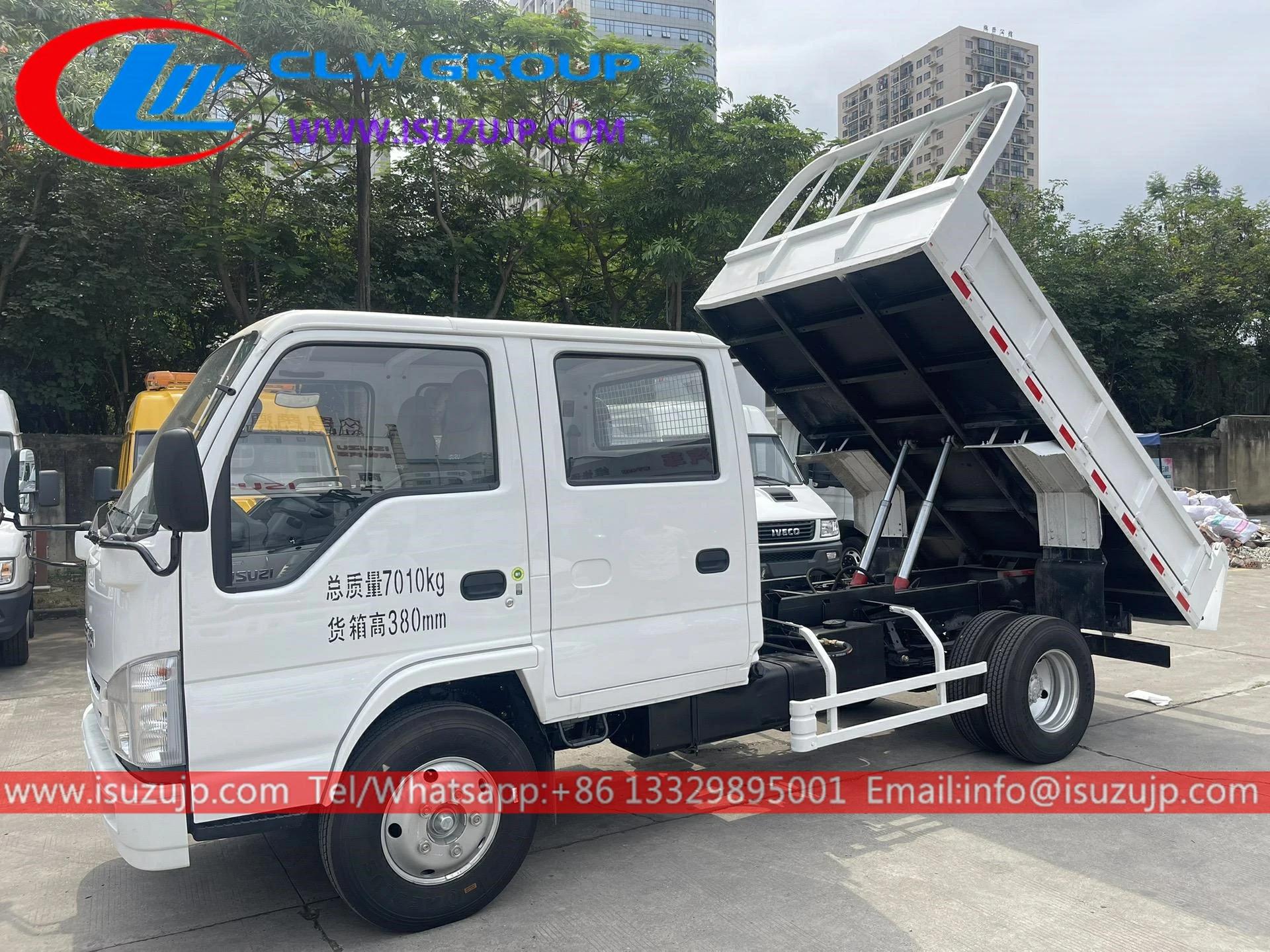

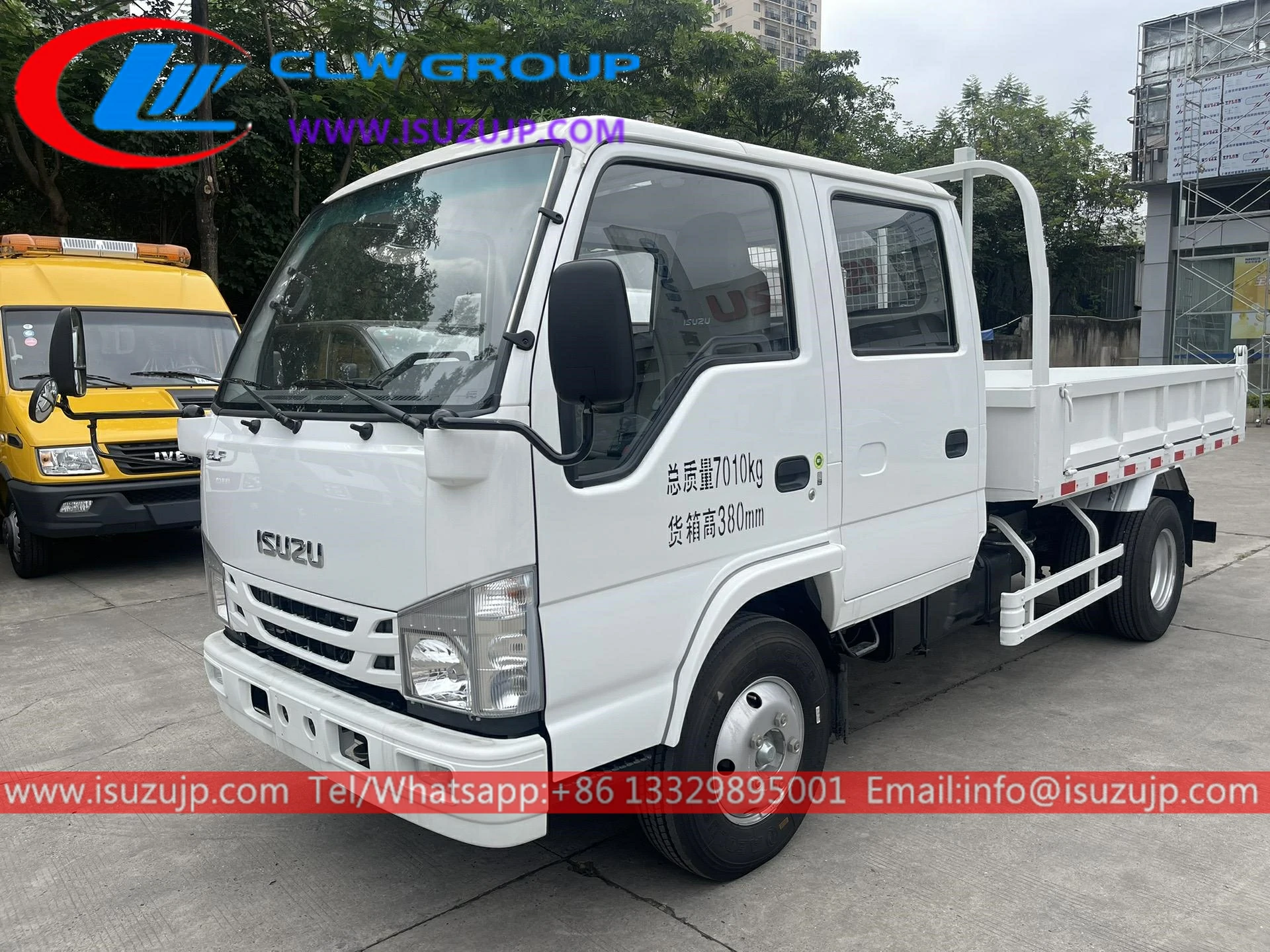

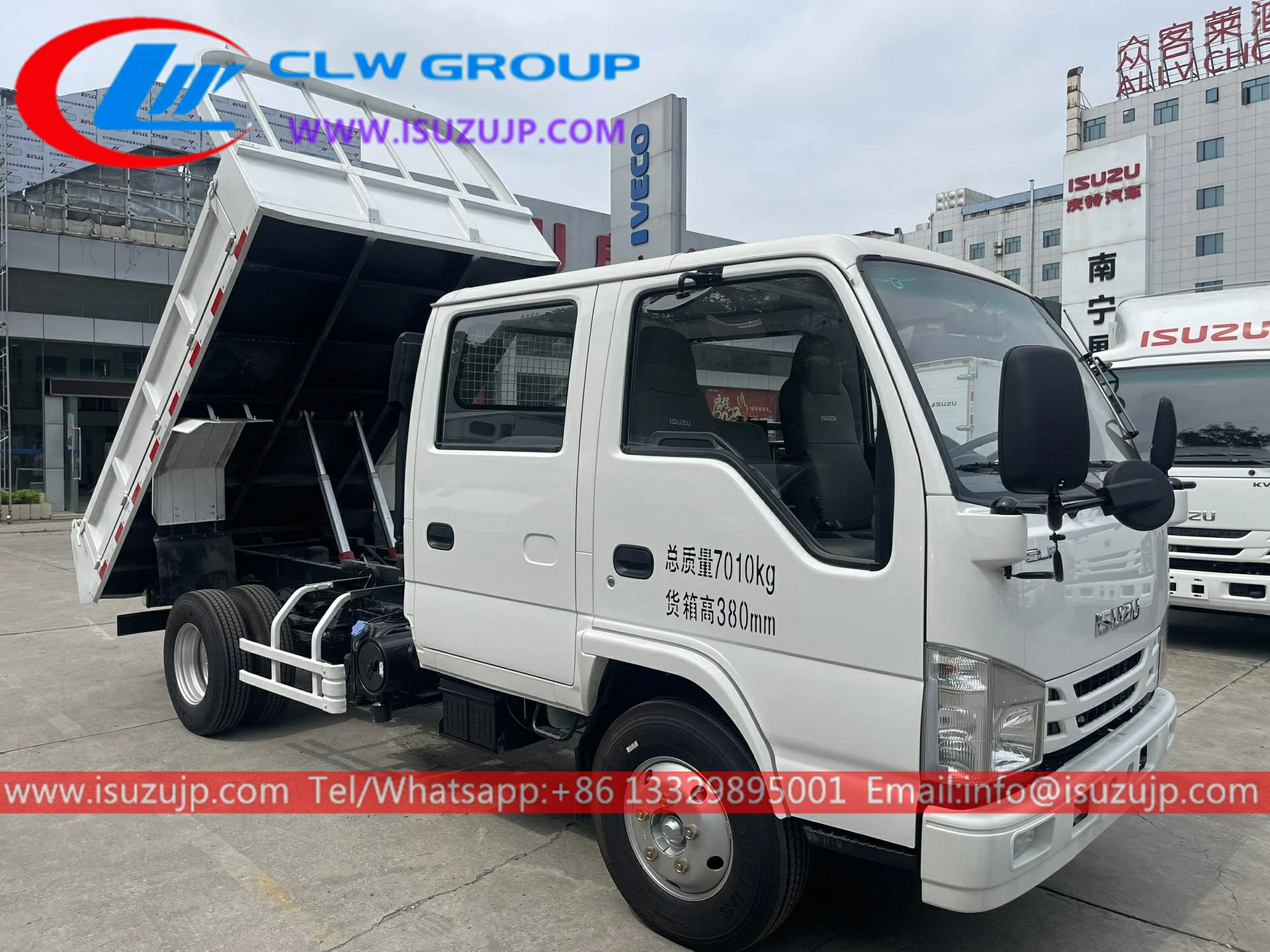

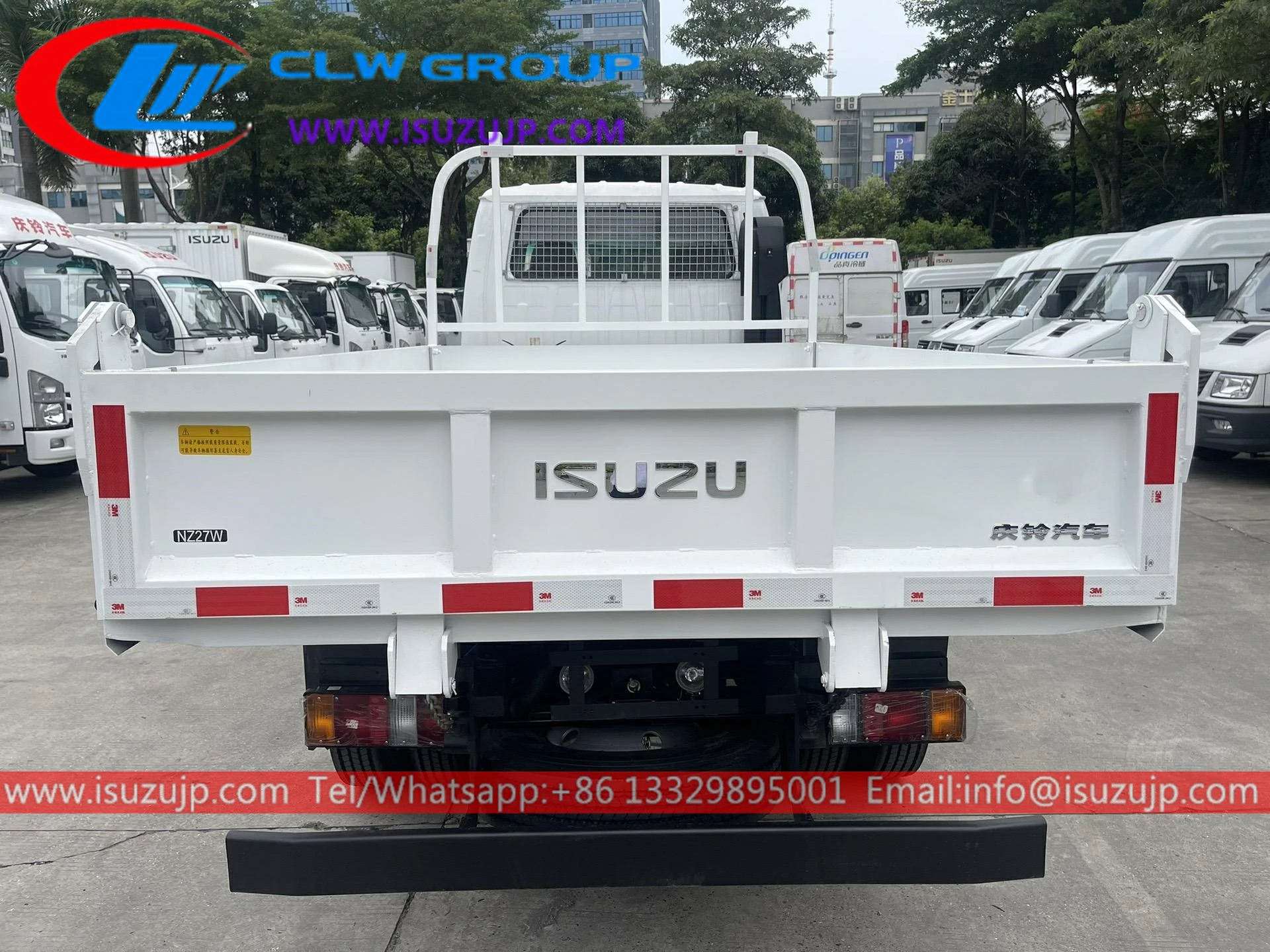

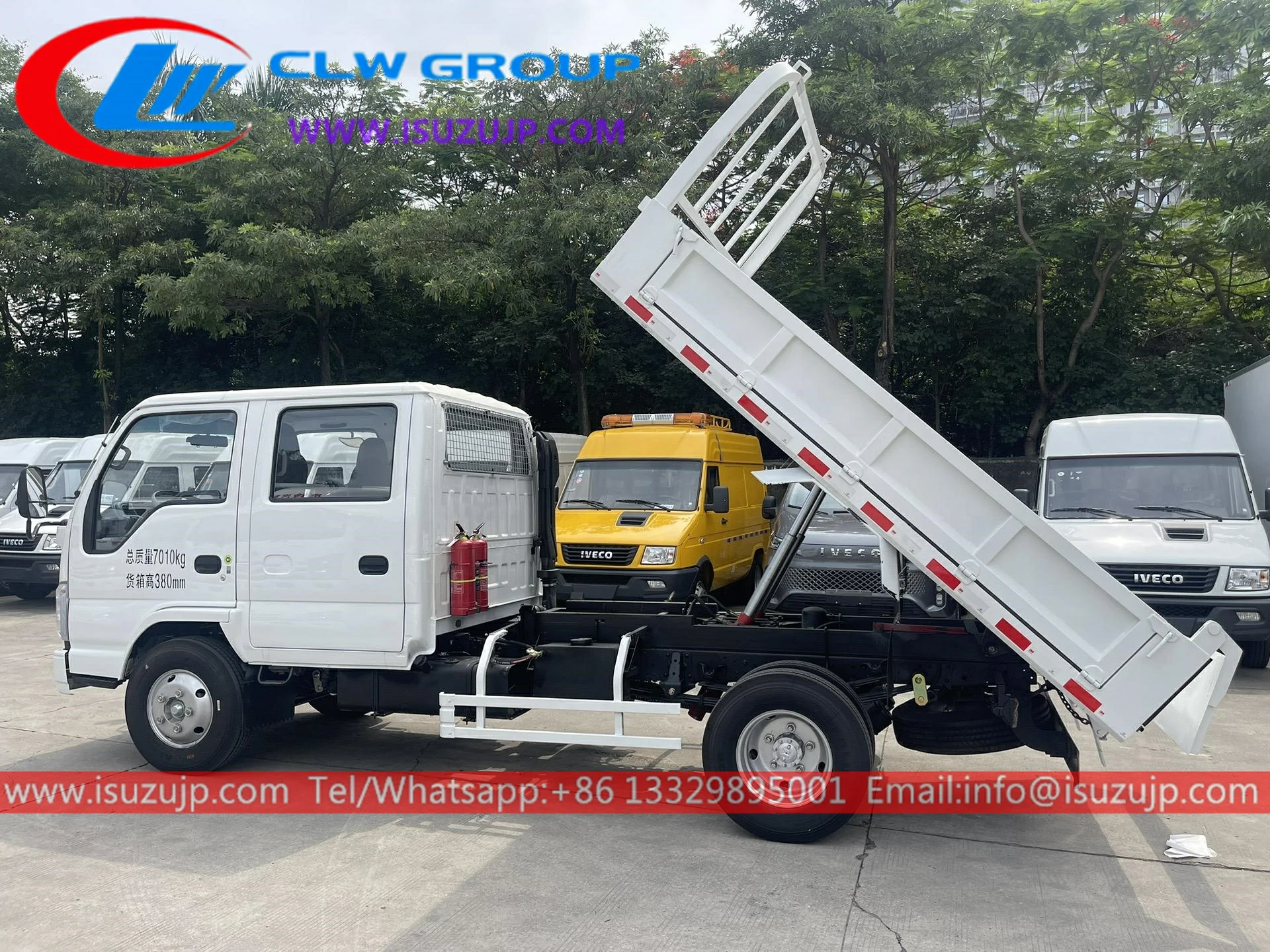

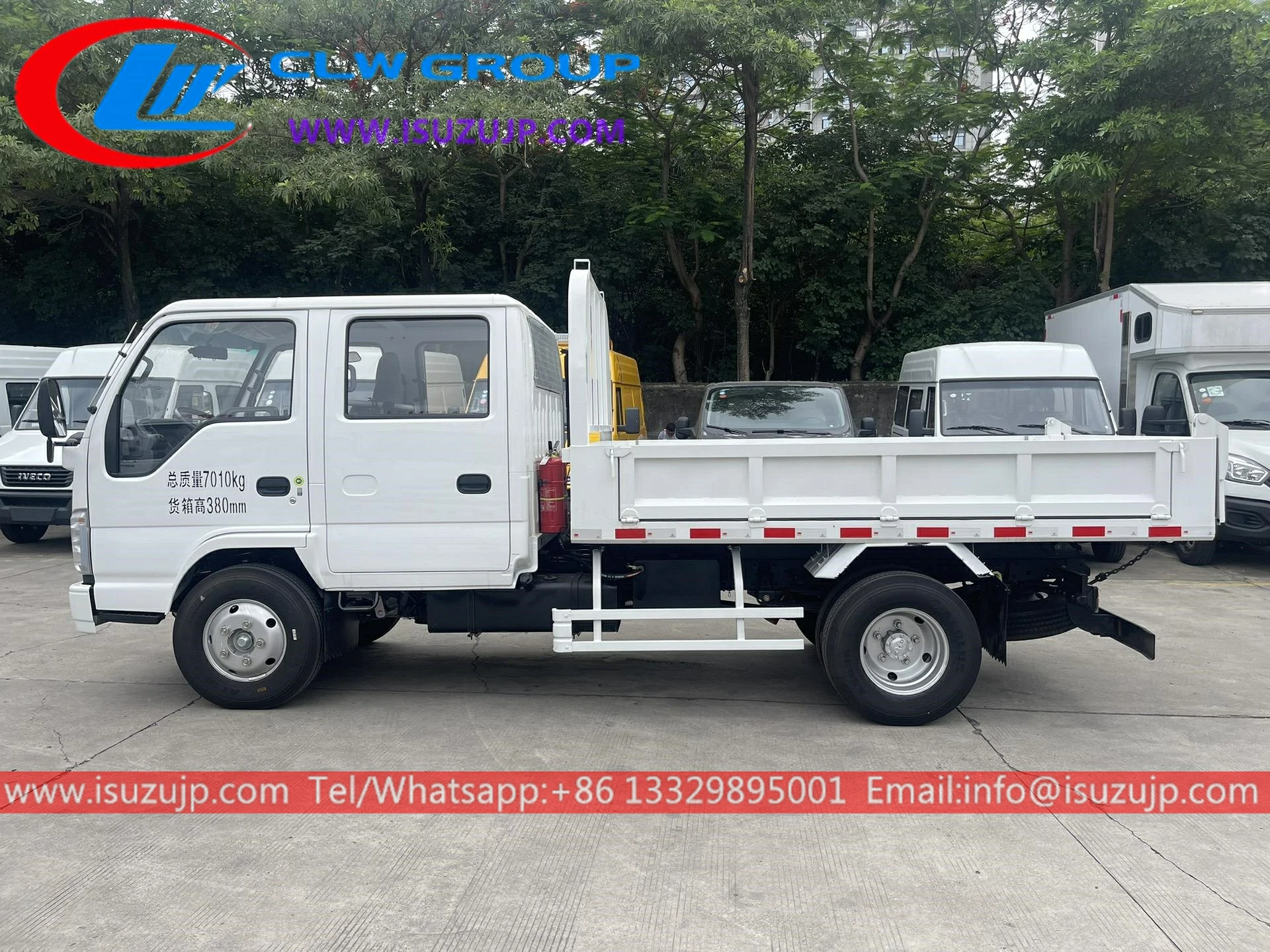

Isuzu 100P double cabin small mining dump truck Description:
- Isuzu 100P double cabin small mining dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage:
- ISUZU NHR 100P light chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Payloading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
| Isuzu 100P double cabin small dump truck Vehicle Description | |
| Overall Dimension: mm (LxWxH). | 5900x2100x2300 |
| GVW | 7,300 (kg) |
| Curb weight (kg). | 2,900 (kg) |
| Rated Loading | 3000 (kg) |
| Front axle | 2,500 (kg) |
| Rear-axle | 4,500 (kg) |
| Dumper body description | |
| Dimension mm (LxWxH) | 11ft, 3200*1900*400(mm) |
| Material | Carbon steel |
| Thickness | Side 3mm, Bottom 4mm |
| Tipping system | System of middle tipping |
| Chassis Description | ||
| Chassis brand | ISUZU | |
| Condition of the chassis | All brand new | |
| Cab | ELF double cabin | |
| Air conditioning | standard seats | |
| Type of driving | Left hand driving, 4×2-6×6 | |
| Tire | 7.00R16 tyre, 6+1(pcs) | |
| Engine | Brand | ISUZU – 4JB1CN |
| Standard for emission | Euro IV | |
| Displacement | 3L | |
| Horse power | 98hp / 72kW @ 3400rpm | |
| Number of cylinders | 4 | |
| Maximum torque | 220 N.m @ 1700rpm | |
| Gear box | Brand | ISUZU – MSB |
| There are many gears | 5 Forwards gear & 1 reverse gear | |
| With PTO | ||
| Frame | Thickness: 172mm *65mm * single-layer 4mm | |
| Fuel tanker | 100L |
ISUZU Dumper Truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
