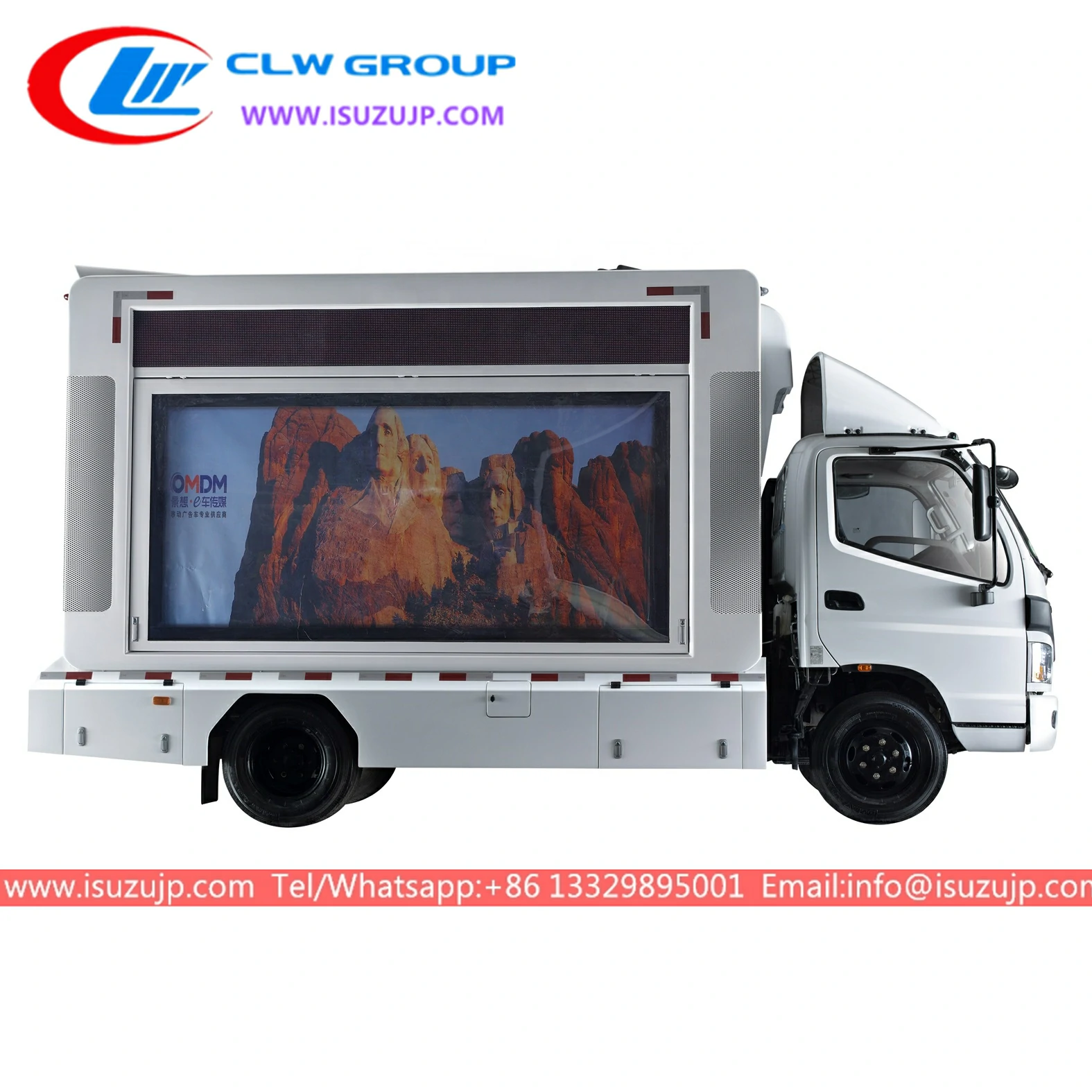

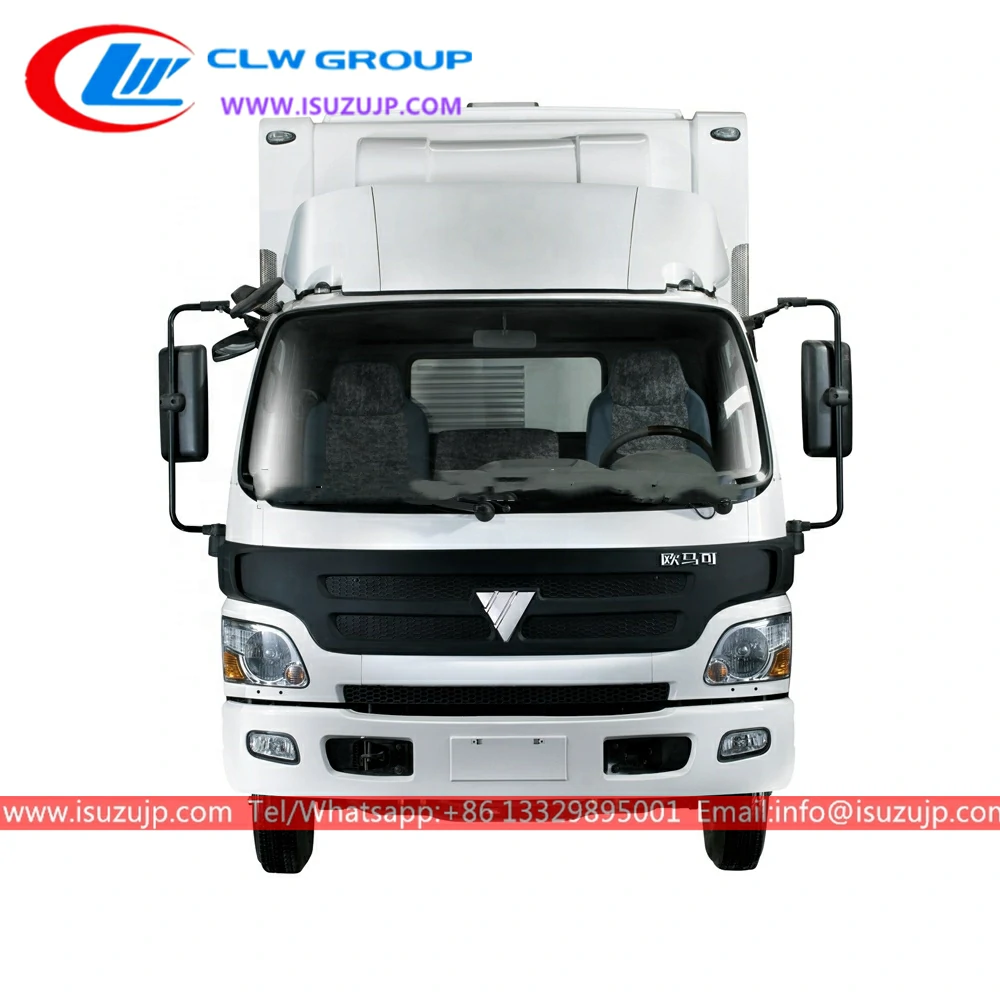

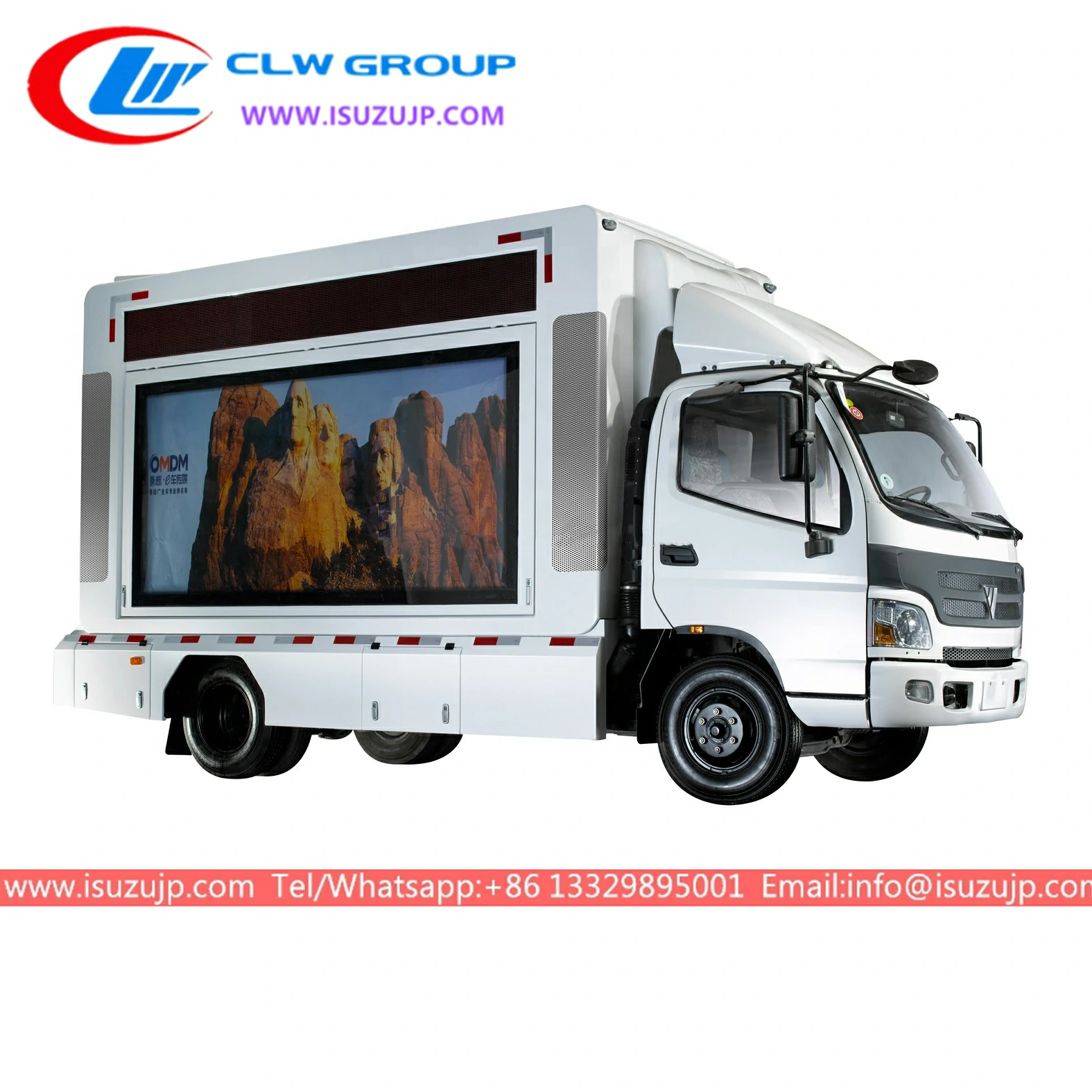

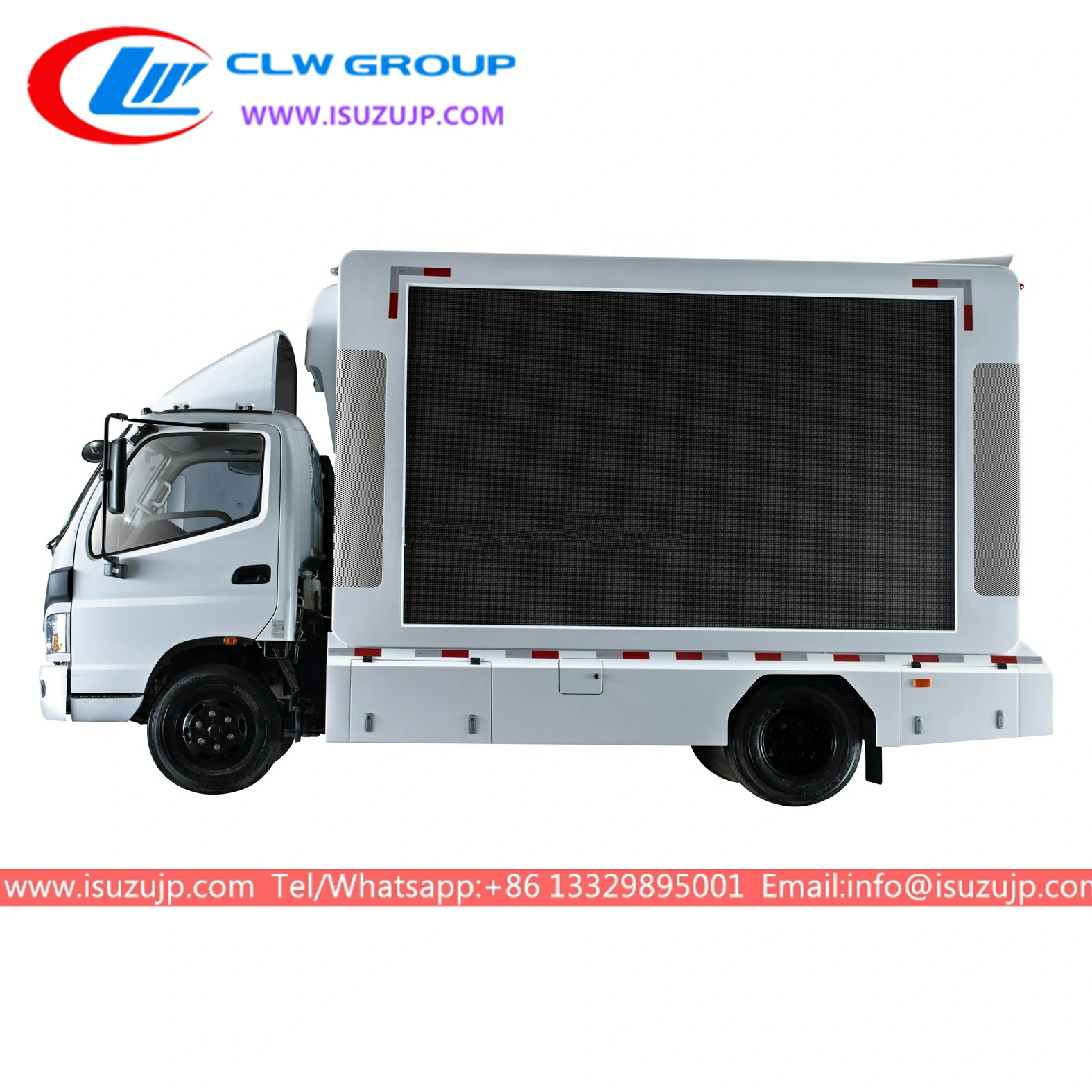

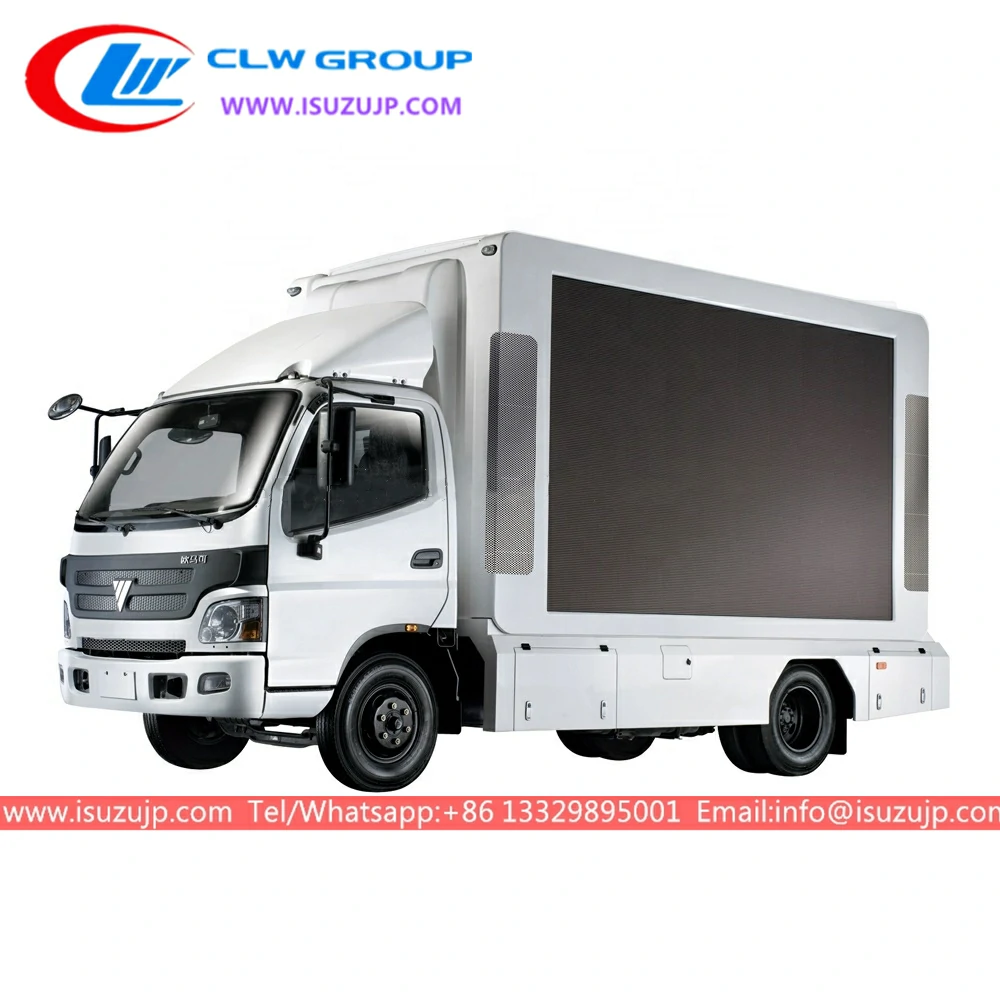

Foton Aumark full color screen led display box truck Description:
- ISUZU full color screen led display box truck also called mobile screen truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage:
Chassis：
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- Massive, durable, perfect performance
- Prolonged service life
Bodywork：
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement.
Brightness can be adjusted automatically according to different surroundings - Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System,

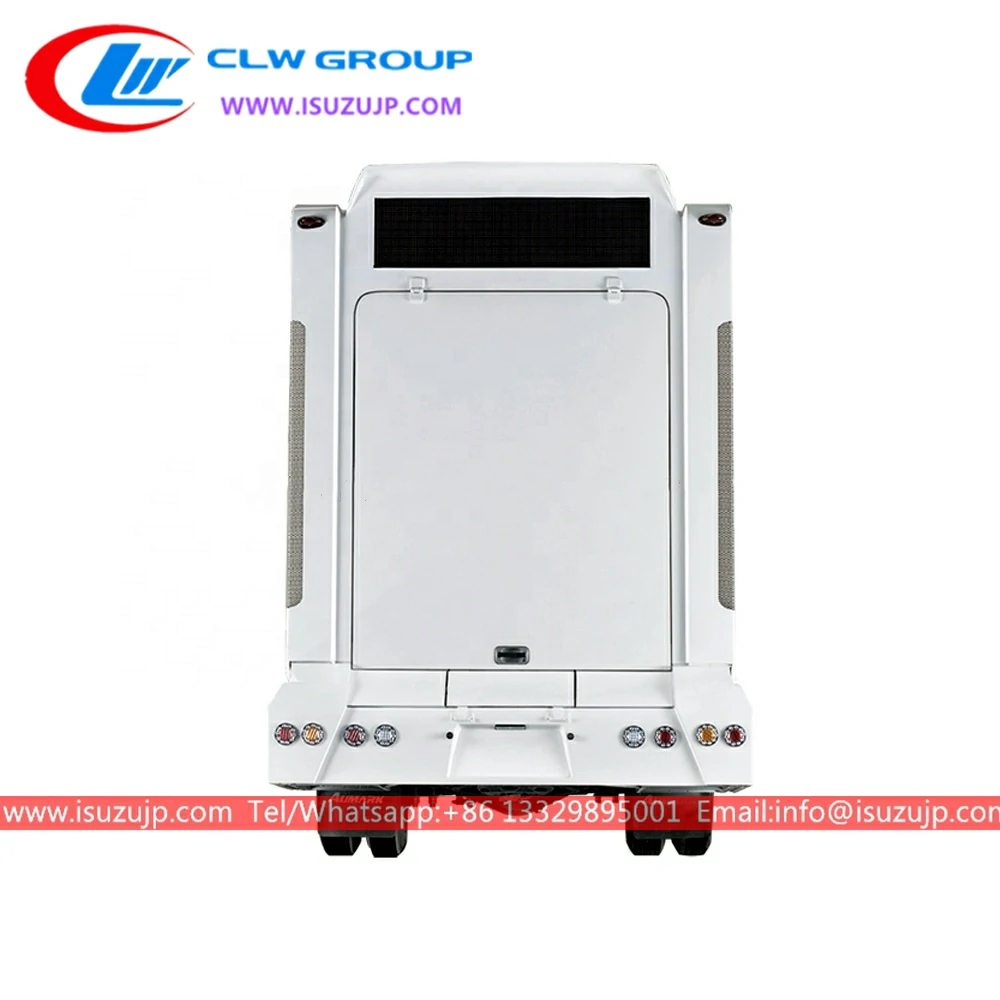

High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect. - Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically control open& close. High level of illumination,
waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain. - DIP LED encapsulation confirms the high brightness even under strong sunlight.
Specification:
NAME | Foton Aumark full color screen led display truck | ||
Chassis | |||
Brand | CLW | External Dimension | 5900mm(L)×2200mm(W)×3320mm(H) |
Power | Cummins | Total Weight | 4490KG |
Seat | Single row 3seats | Curb Weight | 4300KG |
LED SCREEN | |||
Screen size | 3520mm(W) x 1920mm(H) | Dot Pitch | 6 mm and others |
Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
Max Power Consumption | 800w/㎡ | Lifespan | 100,000hours |
Average Power Consumption | 400w/㎡ | ||
Silent Generator Group | |||
Brand | Ouma | Power | 12KW |
Demention | 1350mm x 800mm x 688mm | ||
Number of cylinders | Water-cooled inline 4-cylinder | ||
Power parameter | |||
Power System | 220V,25AH | Input Voltage | 220V |
Average power consumption | 0.5kwh/㎡ | Output Voltage | 220V |
Multimedia Control System | |||
Monitor | Support 8-way signal input | ||
Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
Sound | 120W | Speak | 200W |
Optional configuration | LED Screen&expansion tank&Voltage& other mechanical transmission is optional | ||

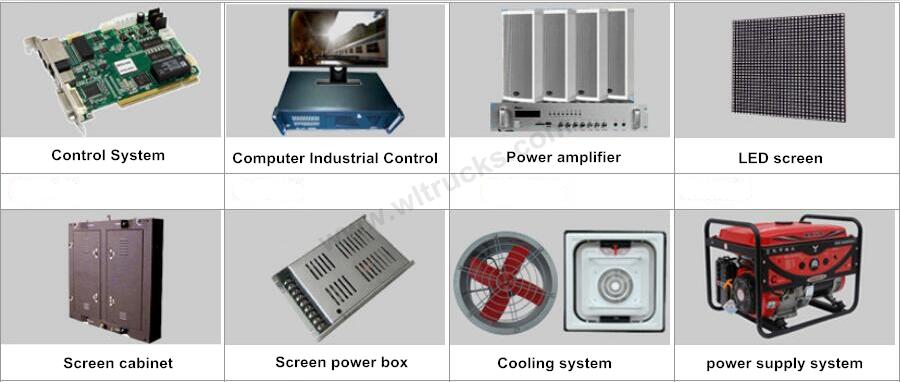

ISUZU led display vehicle accessories display:

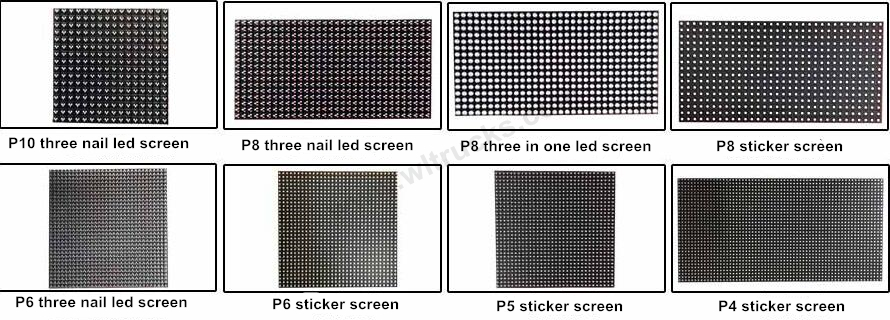

Outdoor LED truck HD color display:
Led car Body box configuration:
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: | Optional aluminum pattern plate or FRP | |
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: | Power exhaust fan exhaust skylight | |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: | Wanda waterproof column | |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: | Shenzhen Meiyadi P5 screen | |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: | High temperature brand power box | |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: | Bold copper wire | |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : | Optional hydraulic lifting or electronically controlled lifting | |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: | Optional wooden floor or aluminum pattern board | |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: | Optional industrial control computer or video player | |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: | Optional fixed suspension cab operation | |
Optional parameter of LED screen(according to box dimension)：
Wheelbase(mm) | Screen size |
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
advertisement publicity vehicle Field of use:

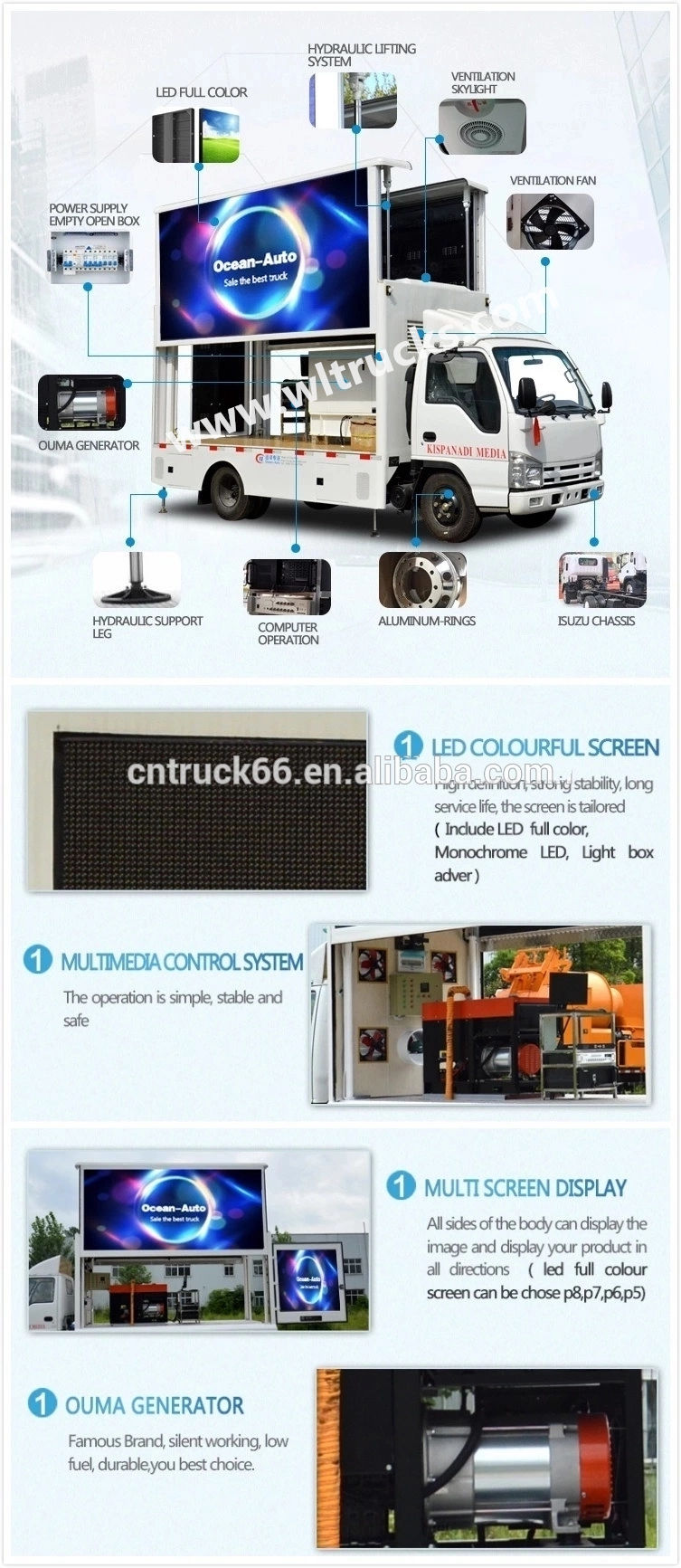

Composition structure:
Led billboard truck detailed picture:
Led screen vehicle Optional Type:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
