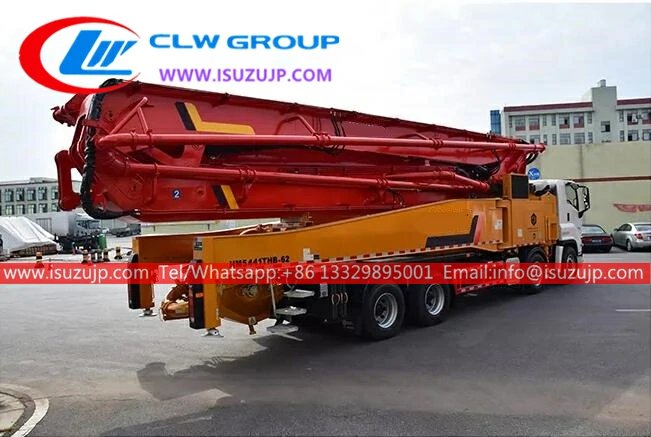

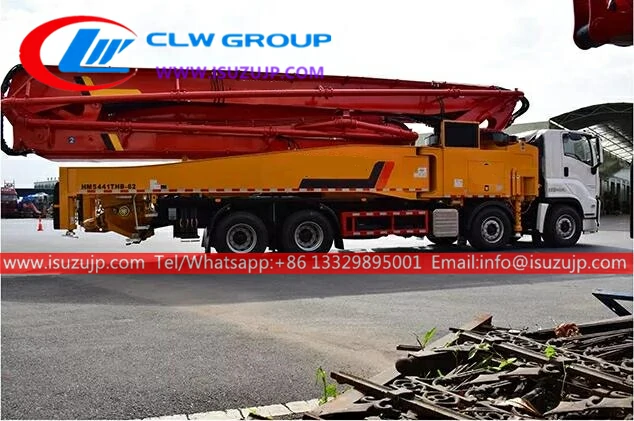

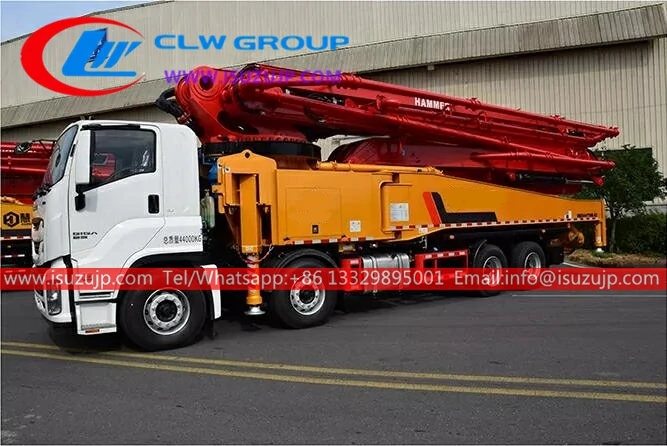

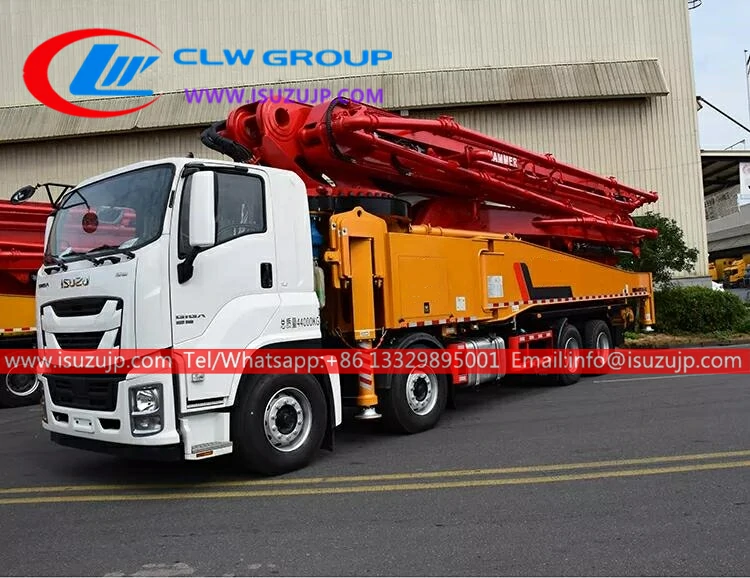

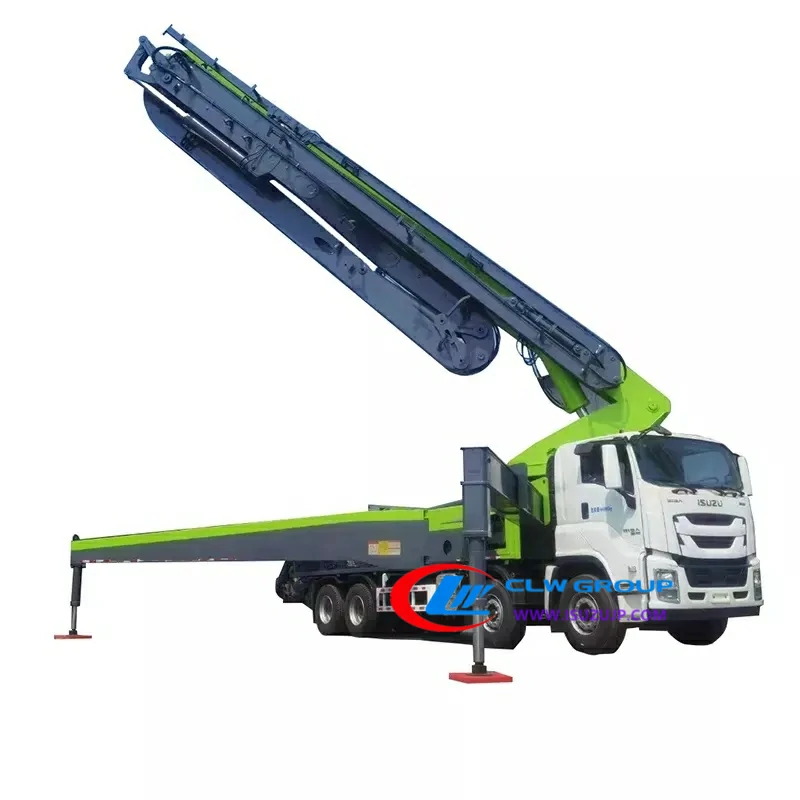

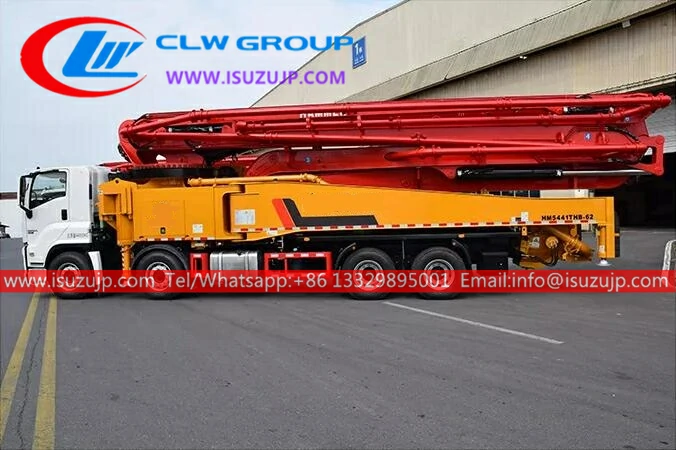

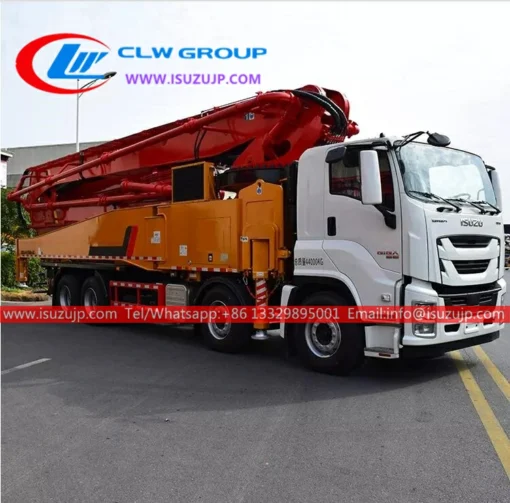

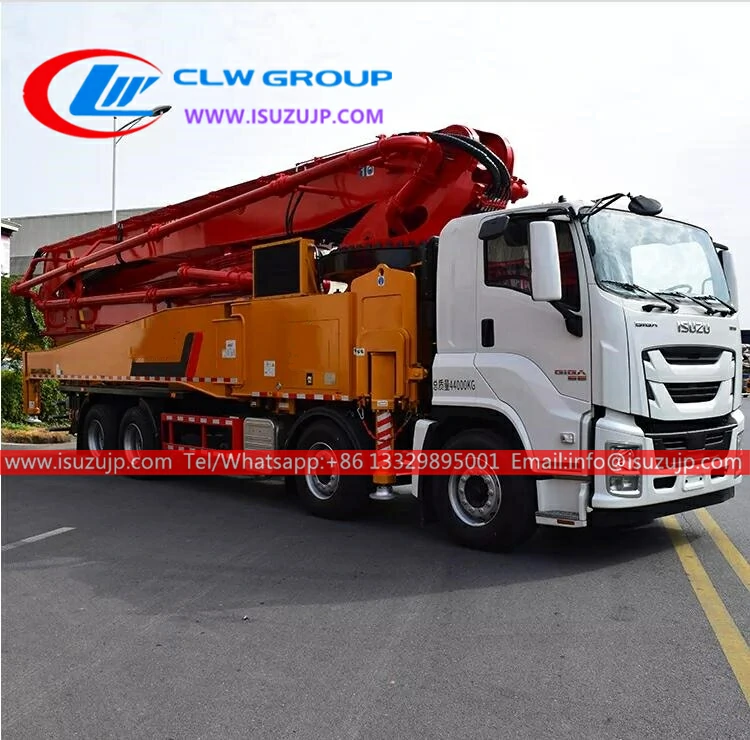

8×4 Isuzu GIGA 62meters concrete pump truck Description:
ISUZU GIGA 62meters concrete pump truck also called cement pump truck, cement pumper, concrete pumper, concrete boom pump,pumpcrete truck,truck mounted concrete pump,concrete boom truck,boom pump truck,automatic loading pump truck is used to complete the transportation and fabric operation of the on -site concrete.
Advantage:
- 8×4 ISUZU GIGA heavy-duty chassis, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the chassis with pressure protection devices. The Water inlet connector fits both normal water pipes and fire fittings.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification:
8×4 Isuzu GIGA 62meters concrete pump truck for sale
Unit | 37m | 44 m | 47 m | 52m | 58m | ||
Total vehicle parameter | Length | m | 9.8 | 10.9 | 11.8 | 12.8 | 13.8 |
Width | m | 2.5 | 2500 | 2.55 | 2.5 | 2.55 | |
Height | m | 3.53 | 3.8 | 3.9 | 4 | 4 | |
Total weight | T | twenty three | 31 | 34 | 38 | 44 | |
Boom leg parameter | Vertical height | m | 36.5 | 43.1 | 46.5 | 51.1 | 57.2 |
Horizontal length | m | 30.9 | 36.3 | 39.6 | 44.1 | 52 | |
Vertical depth | m | 25.1 | 29.8 | 32.1 | 35.1 | 41 | |
Width of the forth leg | m | 7.2 | 7.9 | 8.2 | 10.1 | 10.6 | |
Width of the back leg | m | 7.3 | 8 | 8.6 | 10.6 | 12.8 | |
Mixing system (optional) | Concrete mixer | — | JS750 | — | |||
Mixer capacity | m3/h | 35 | — | ||||
Pumping system parameter | Output in theory（L/H） | m3/h | 120/80 | 140/100 | 140/100 | 160/110 | 180/120 |
Theoretical pumping pressure（L/H） | Mpa | 8/14 | 7.8/11 | ||||
conveying cylinder | mm | 230×1650 | 260×1650 | 260×1900 | 260×2100 | ||
System Oil pressure | Mpa | 32 | |||||
Oil tank volume | L | 650 | 750 | ||||
Electric control system | — | NUMBER | |||||
Main hydraulic oil pump | — | Push/Rexroth | |||||
Balance valve | — | Rexroth/HBS | |||||
Gear pump | — | Parker | |||||
Chassis Parameter | Chassis model | — | Dongfeng/Shacman/Sinotruck/ISUZU | ||||
Engine Power | HP | 270 | 300 | 350 | 420 | 460 | |
Wheel base | mm | 4700 | 4500+1300 | 4750+1350 | 1950+4500+1400 | ||
Cement mixer truck Structure:
ISUZU self loading Mixer truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
