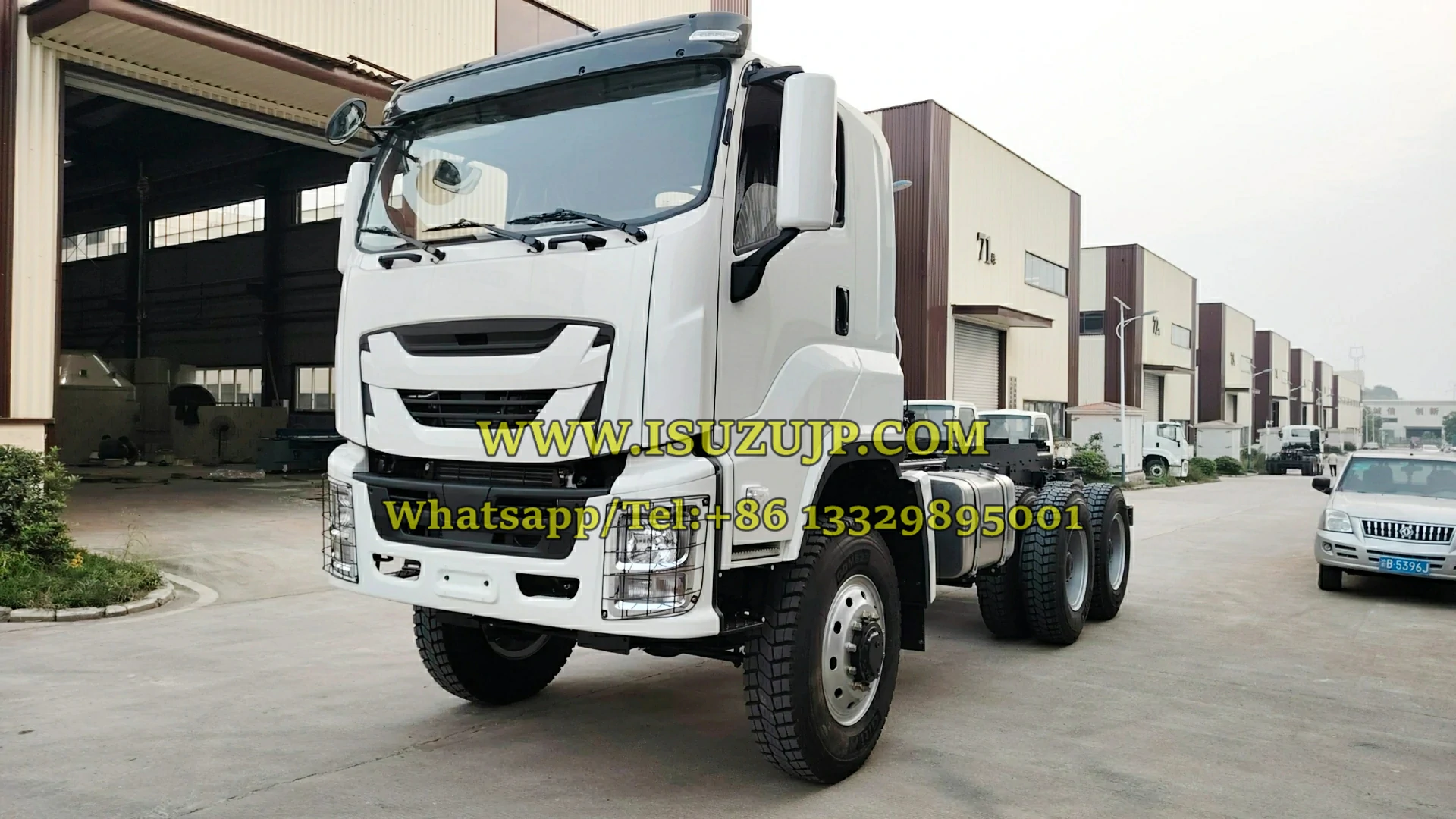

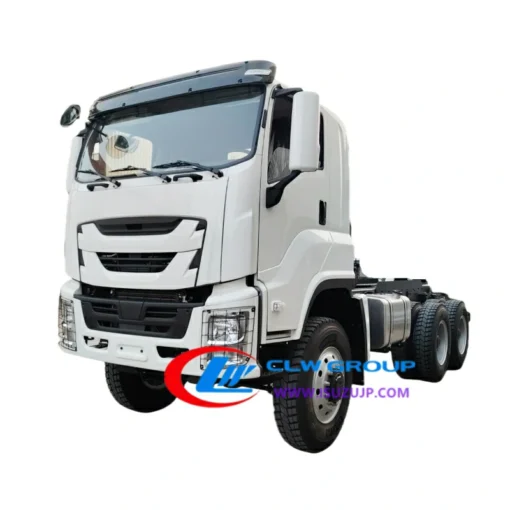

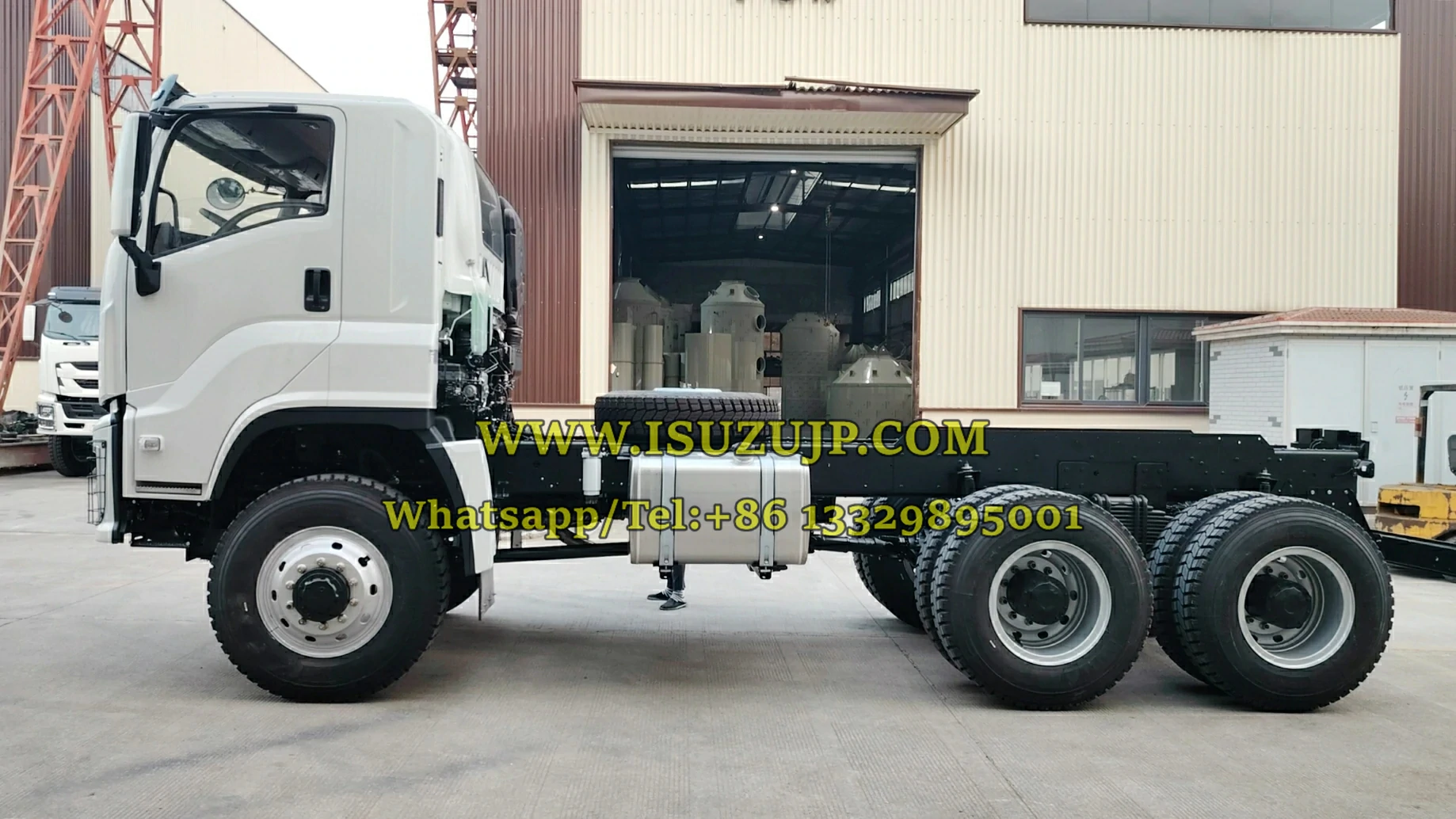

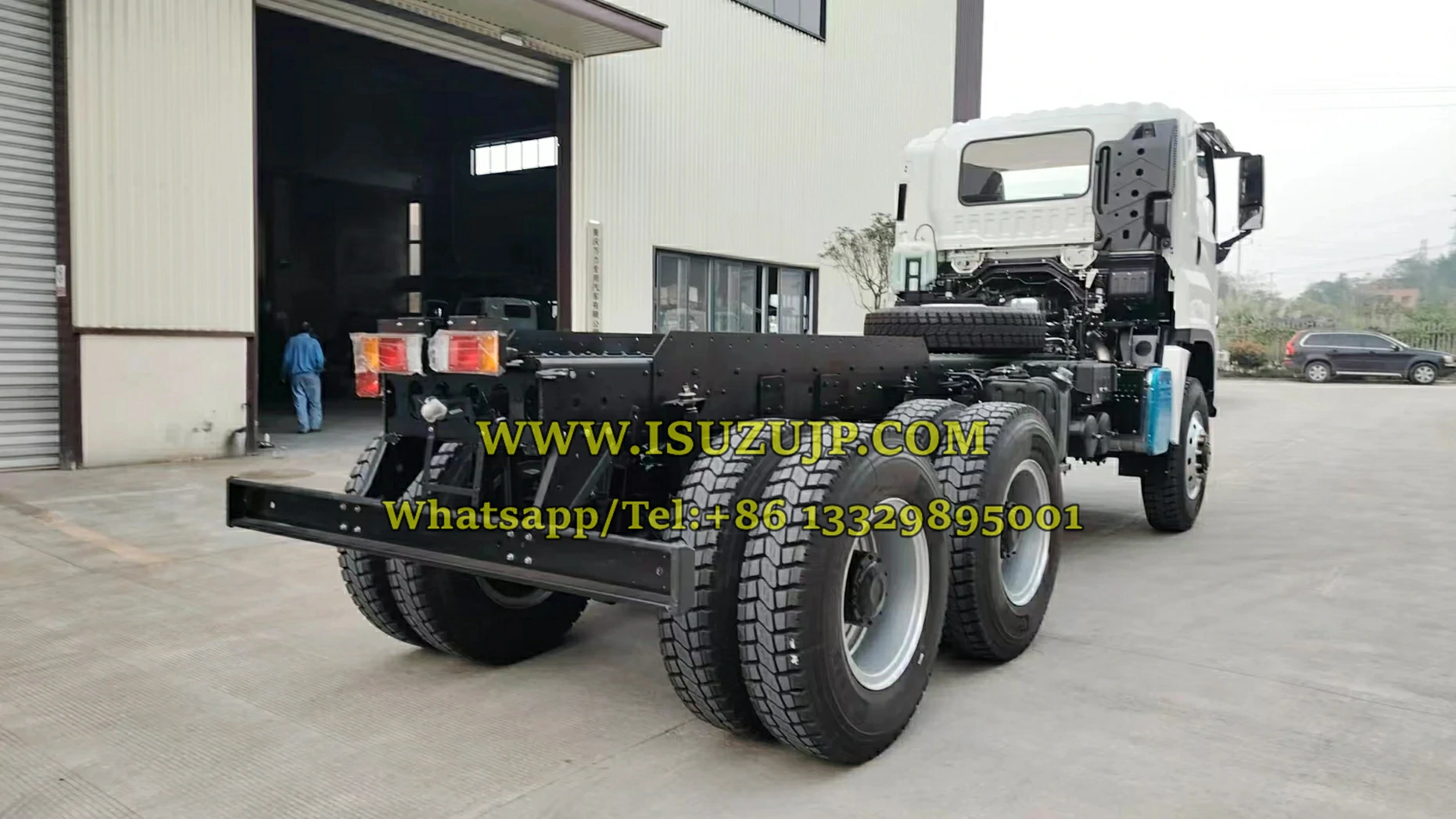

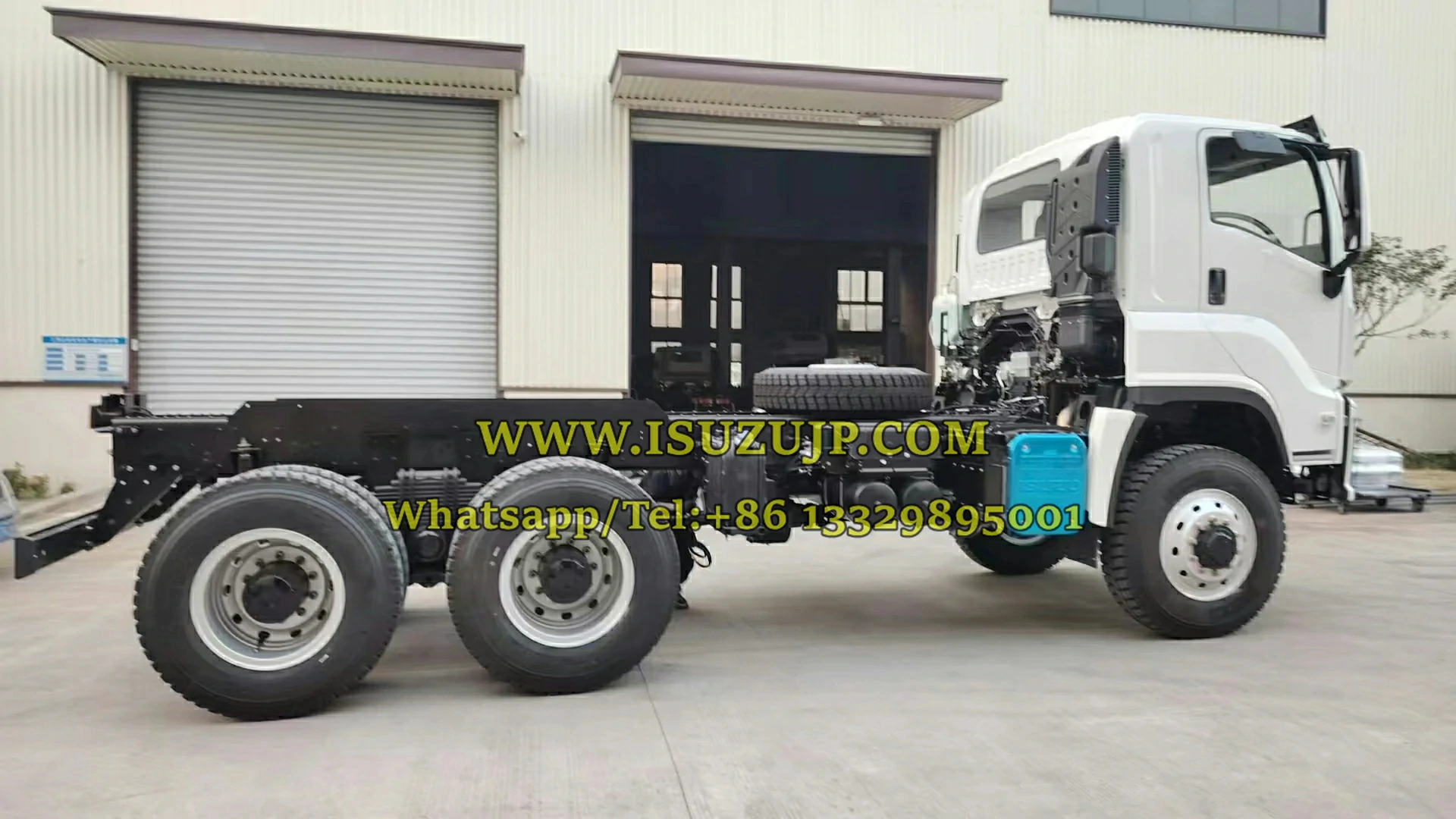

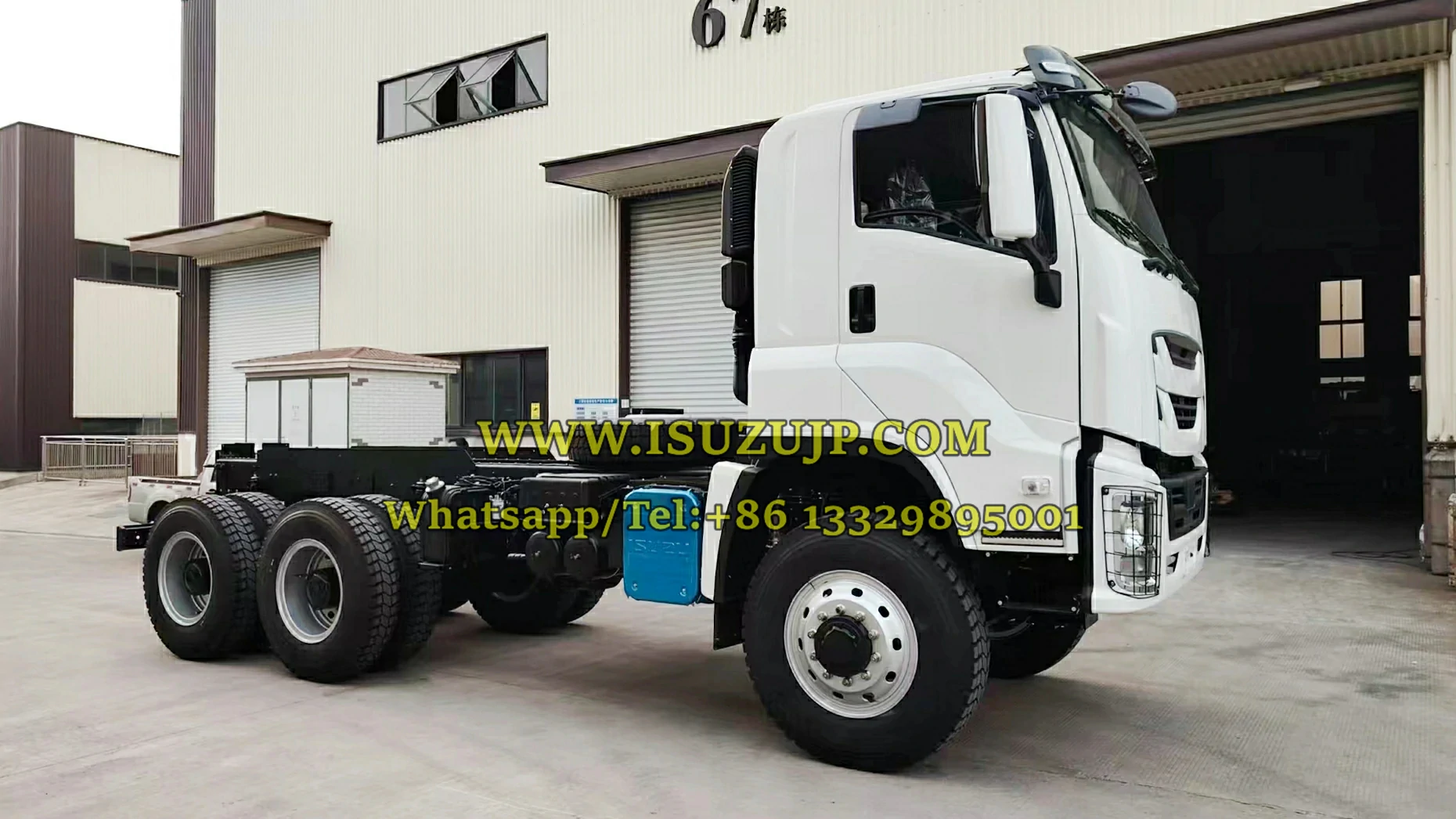

6×6 ISUZU GIGA 25tons truck chassis

6×6 ISUZU GIGA 25tons truck chassis Description:

6×6 ISUZU GIGA 25tons truck chassis has a simple design, is lightweight, and fuel-efficient as quality. The streamlined shape of the front of the cabin effectively reduces the wind resistance and reduces fuel consumption. This VC61 truck chassis uses a 6HK1 engine model with a maximum of 300 horsepower. 6×4 drive type and 12 wheels. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue in driving.

Advantage:

• 100% custom-made
• 6×6 ISUZU GIGA truck chassis, perfect performance
• ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
• Noise reduction van body.
• Massive, durable, long service life.
• 18Tons available
• Short delivery time 7~30 days
• Easy operation and easy maintenance
• 15 years of spare parts and technical support
• The new FTR model is based on Isuzu’s original world-leading quality 6HK1-TCG60 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
• The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.

Specification:

6×6 ISUZU GIGA 25tons truck chassis General information		FCA	USD 75,900/Unit	USD74,505/Unit	USD77,167/Unit
		Wheelbase(mm)	4800+1370	4600+1370	4800+1370
		Drive Type	6×6	6X6	6×6
		GVW (kg)	35000	35000	35000
		Curb Weight (kg)	9,360	9,360	9360
		Cabin	single	single	single
		Driver and Passenger	2	2	2
Engine		Model	6WG1-TCG61	6WG1-TCG60	6WG1-TCG62
		Type	6 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.
		Emission Standard	can work on Euro3 & Euro4
		Displacement (L)	15.681L	15.681L	15.681L
		Rated Power (kw/rpm)	338kW/1500rpm	309kW/ 1400rpm	382kW
		Max. Torque (N.m/rpm)	2250N.m	2250N.m	2250N.m
Transmission		Model	ZF 16S	ZF 16S	ZF 16S
			16 Forward + 2 Reverse	16 Forward + 2 Reverse	16 Forward + 2 Reverse
Fuel tank		Capacity	600L	600L	600L
		Material	aluminium alloy	aluminium alloy	aluminium alloy
Brake System		Service brake	front and rear drum brake	front and rear drum brake	front and rear drum brake
		Brake(Air/Oil)	Air brake	Air brake	Air brake
		Parking brake	Air cut brake valve	Air cut brake valve	Air cut brake valve
Max. Speed (km/h)			85	85	85
standard Configuration		Tires	385/65R22.5 20PR/315/80R22.5 18PR, 385/65R22.5 20PR/315/80R22.5 20PR	385/65R22.5 20PR/315/80R22.5 18PR, 385/65R22.5 20PR/315/80R22.5 20PR	385/65R22.5 20PR/315/80R22.5 18PR, 385/65R22.5 20PR/315/80R22.5 20PR
		Power steering
		Radio
		Dashcam
		A/C
		Tilted cabin
		Exhuast brake
		Electric window
		Central lock
		Deflector
Dimensions		Length OAL  (mm)	9440	9440	9590
		Width  OW (mm)	2540	2540	2540
		Height OH (mm)	3010	3010	3010
		Front Tread AW (mm)	2140	2140	2140
		Rear Tread CW  (mm)	1855/1855	1855/1855	1855/1855
1. ● means standard configuration.         means option configurtaion 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request.

ISUZU TRUCK CHASSIS Advantage:

Factory Advantage:

• 19 years of design and export experience.
• 100% customized trucks.
• Quick delivery guarantee.

Documents:

• Serving more than 80 countries and regions.
• Professional guidance on import documents.
• CO, FORM E, FORM P, pre-implantation inspection

Freight truck shipping：

1. Maximize save your sea freight.
2. Professional guidance on your importing documents.
3. Safe, fast and timely
