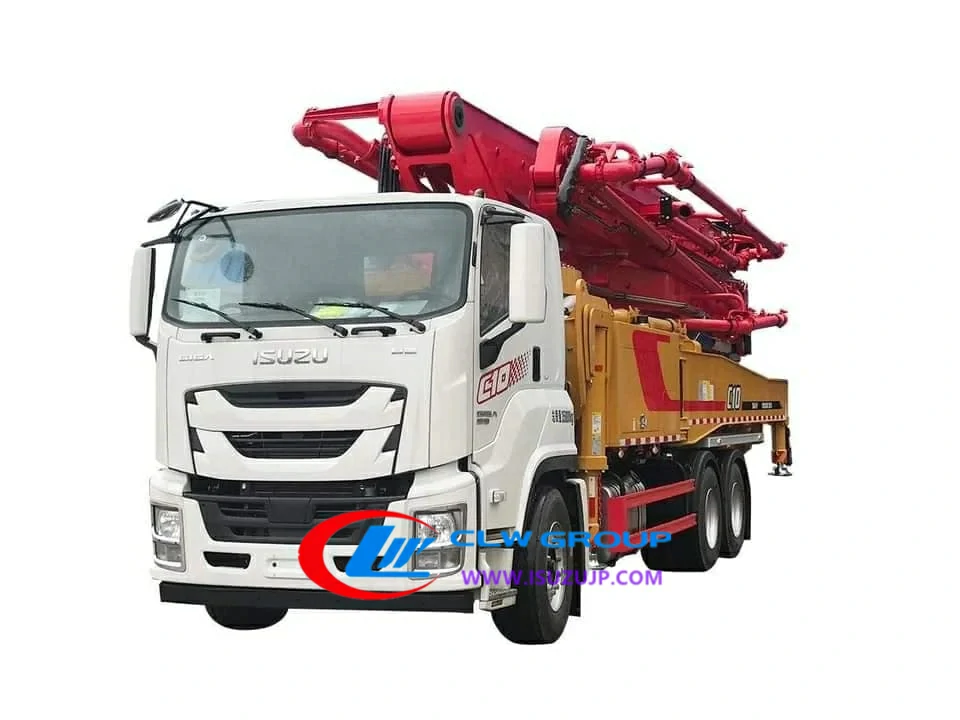

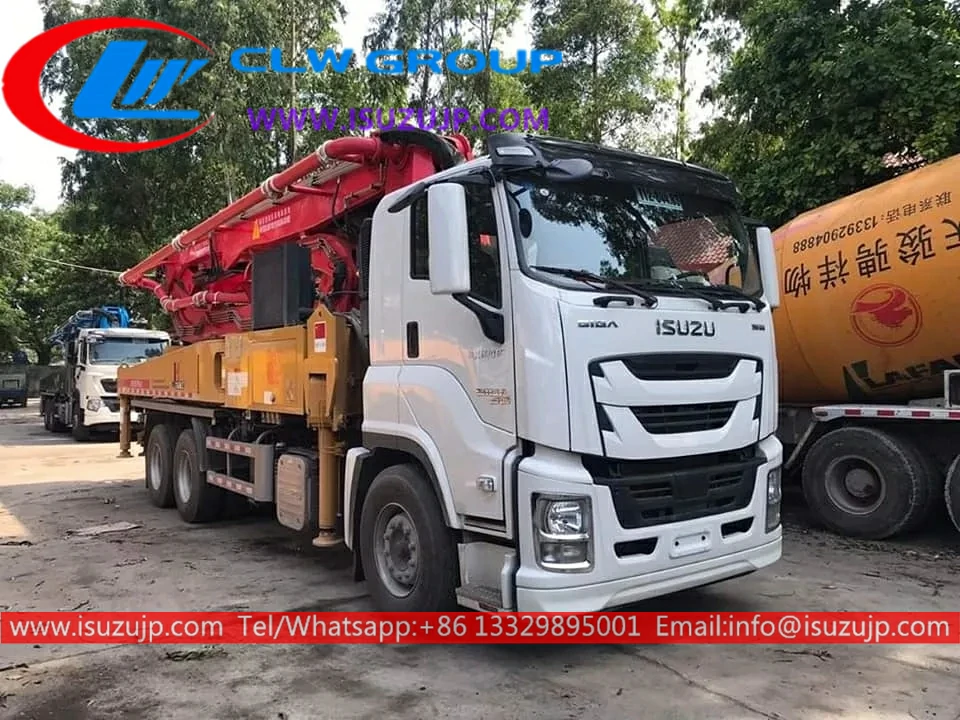

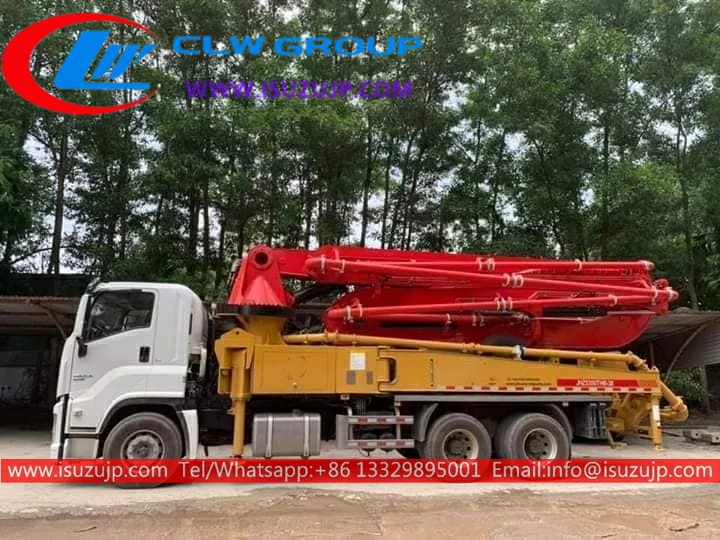

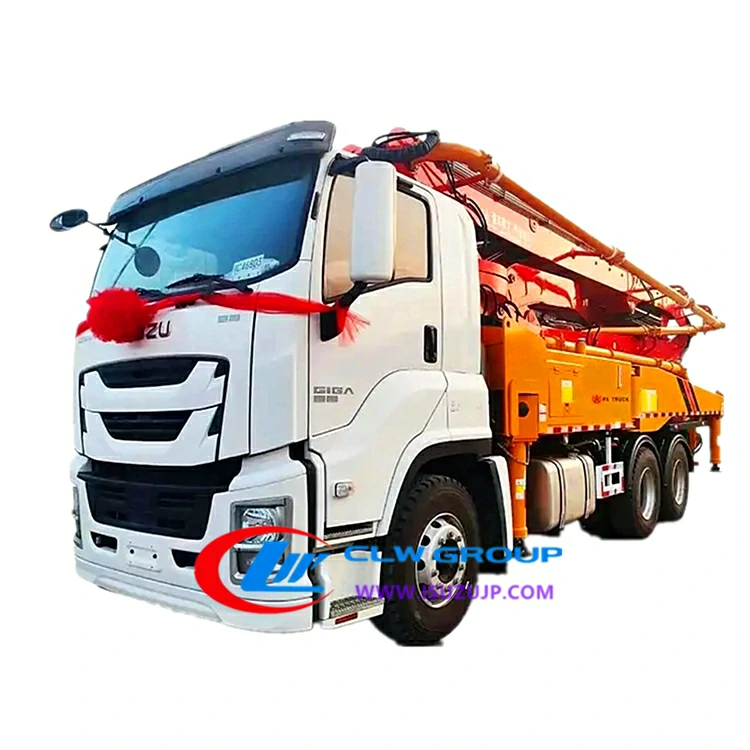

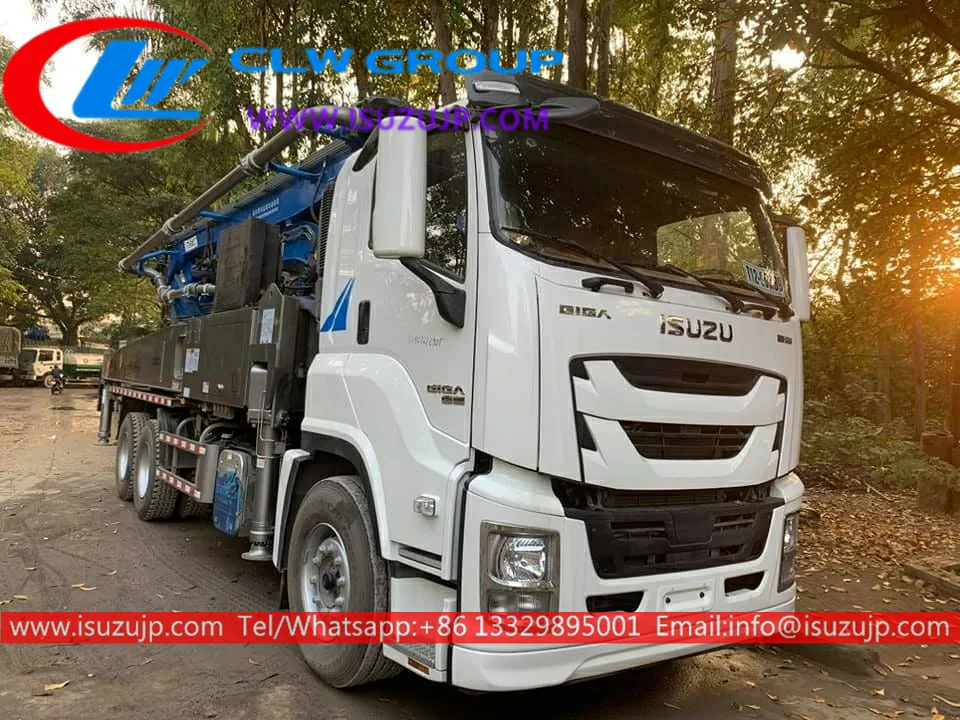

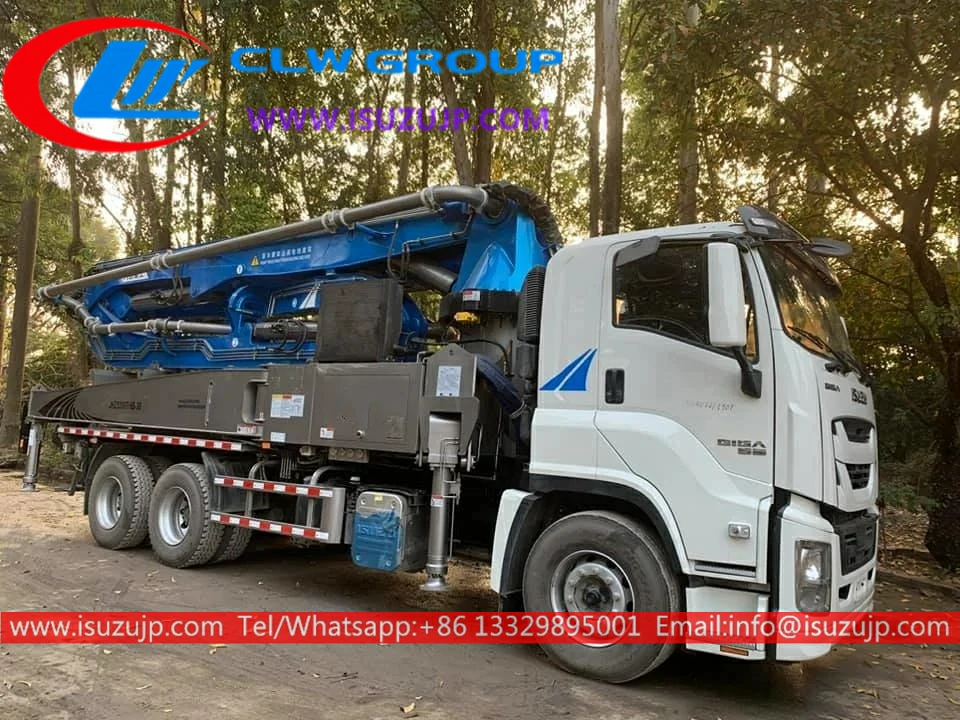

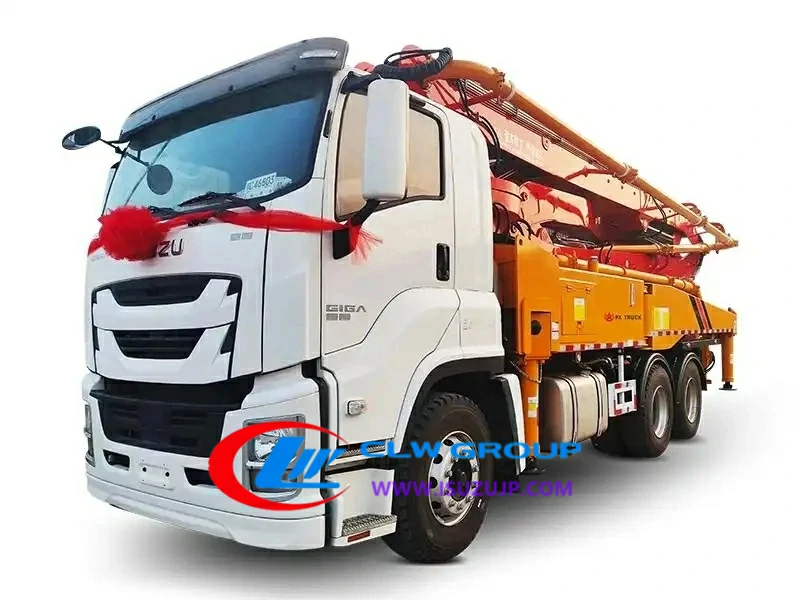

6×4 Isuzu GIGA 52meters cement pump truck Description:
ISUZU GIGA 62meters concrete pump truck also called cement pump truck, cement pumper, concrete pumper, concrete boom pump,pumpcrete truck, truck mounted concrete pump, concrete boom truck, boom pump truck, automatic loading pump truck is used to complete the transportation and fabric operation of the on-site concrete.
Advantage:
- 6×4 ISUZU GIGA heavy-duty, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the truck with pressure protection devices. The Water inlet connector fits both normal water pipes and fire fittings.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification:
| 6×4 Isuzu GIGA 52meters cement pump truck for sale | ||
| 1. CHASSIS | chassis | 10-wheel Isuzu GIGA |
| Emission Standards | Euro V | |
| engine | 6UZ1-TC50 | |
| engine power/speed | 324KW/1900rpm | |
| wheelbase | 4600+1400 | |
| Maximum travel speed (Km/h) | 101 | |
| Vehicle approach/away angle (°) | 17/10 | |
| Tire specifications | 385/65R22.5/315/80R22.5 18PR, 385/65R22.5/12.00R20 18PR | |
| 2. Boom system BOOM SYSTEM | The maximum vertical height of boom (M) | 51.3 |
| Boom horizontal cloth radius (M) | 47.5 | |
| Fabric depth (M) | 36.8 | |
| The rotation angle of each arm (°) | 90/180/180/234/220/110 | |
| Boom control mode | Electricity ratio | |
| Number of booms | 6 | |
| Boom folding method | RZ type | |
| Turret rotation angle (°) | ±240 | |
| Front outrigger span distance (MM) | 9650 | |
| Rear outrigger span distance (MM) | 10310 | |
| The longitudinal distance between the front and rear outriggers (MM) | 9785 | |
| Outrigger opening method | X-R | |
| End hose length (MM) | 3000 | |
| Concrete delivery pipe diameter (MM) | 125 | |
| 3. ELECTRONIC CONTROL SYSTEM | Control Power (V) | 24 |
| control module | Germany ifm ( Germany IFM) | |
| Operating Voltage | 24 | |
| Intermediate appliances | Siemens, Germany | |
| wireless remote | HBC | |
| 4. HYDRAULIC TRANSMISSION SYSTEM | Type of hydraulic system | open |
| System working pressure (Mpa) | 35 | |
| Main hydraulic oil pump | Push | |
| Main oil pump model | Double 190 | |
| Main oil pump displacement | 380 | |
| Suction and return oil filter | dawn | |
| Boom multi-way valve | Norma | |
| Boom balance valve | Hawe | |
| Outrigger multi-way valve | Jon | |
| Cylinder Hydraulic Seals | American Parker | |
| Hydraulic tank volume (L) | 600 | |
| Hydraulic oil cooling method | air cooling | |
| transfer case | Jie Brand | |
| Hose Fittings | Eaton | |
| 5. Cleaning system CLEANING SYSTEM | Hydraulic cleaning | Shanghai Fanbei |
| 6. Dimensions & Weight DIMENSIONS & WEIGHT | The total length of the vehicle is about (MM) | 12500 |
| Overall vehicle width (MM) | 2500 | |
| Total vehicle height (MM) | 4000 | |
| Vehicle mass about (T) | 35 | |
| Concrete distribution valve form | S valve | |
| 7. Pumping system PUMPING SYSTEM
| Maximum theoretical delivery volume (M³) | 180 |
| Maximum concrete outlet pressure high/low pressure (Mpa) | 9.3 | |
| Distribution valve reversing times | 28 | |
| Conveying cylinder inner diameter/stroke | 260*1900 | |
| Maximum feeding height (MM) | 1500 | |
| Hopper volume (M³) | 0.7 | |
| Pumpable concrete slump | 160-220 | |
| Maximum allowable aggregate size (MM) | 40 | |
| Lubrication method | Centralized lubrication | |
