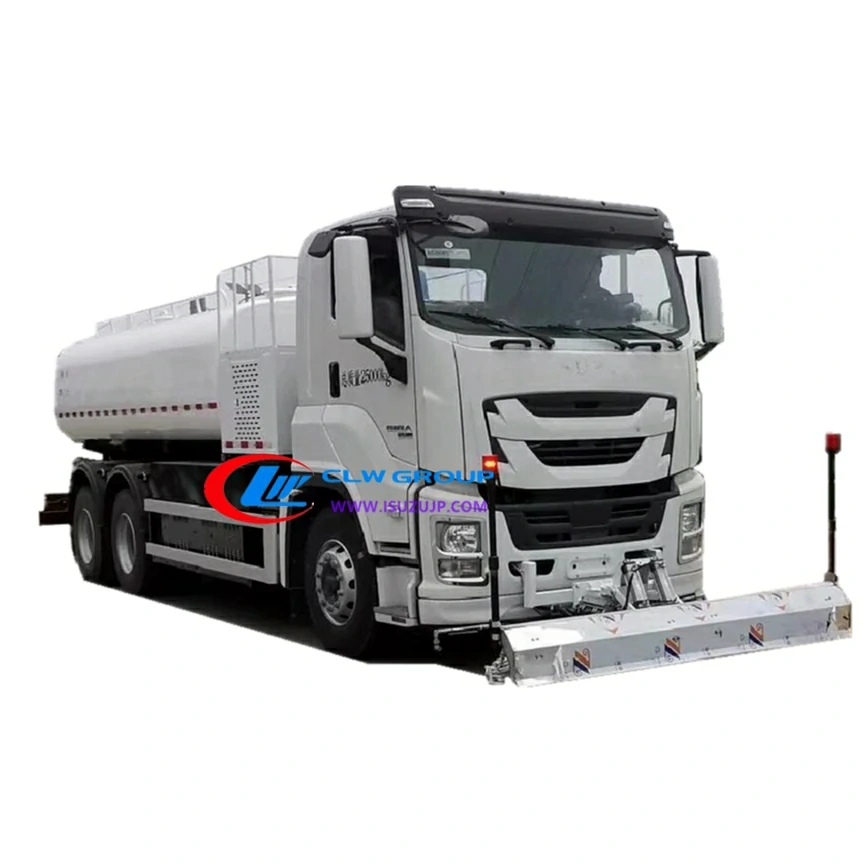

6×4 ISUZU GIGA 12000L street cleaning truck Description:
- ISUZU street cleaning truck also called street washing vehicle, high pressure washing truck, jet cleaning truck, road jetting truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle, road washing truck
- road jetting truck is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.
- The basic accessories for a ISUZU road washing truck are: front stainless steel high pressure washing beam, rear spri
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- 6X4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification:
| 6×4 ISUZU GIGA 12000L street cleaning truck(12000liters) | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 11500X2550X3500 mm | |
| GVW / Kerb Weight | 25,000 kg / 15,850 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | Equippped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 350 (257 KW) | |
| Displacement | 9899 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 9-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4250+1300 mm / 3 | |
| Tyre Specification | 11.00R20, Radial tyres | |
| Tyre Number | 8 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 12,000 Liters (3,000 gallons) |
| High Pressure Pump | Imported Germany high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 40 L/min @ 10MPa | |
| Cleaning Speed | 5-10 km/h | |
| Road Flushing Width | 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine | CUMMINS engine (American brand) 170 Hp / 125 KW | |
| Sprinkling | Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Elevating Platform. High cannon. | |
Working parameter:
| Serial number | project name | unit | Specifications / Technical parameters |
| 1 | Effective volume of tank | m3 | 6-15 |
| 2 | Sprinkler cleaning width | m | 2.5-3.5 |
| 3 | Working speed | Km/h | 5-20 |
| 4 | Low pressure flushing width | m | ≥21 |
| 5 | High pressure cleaning width | m | 3.5 |
| 6 | Water spray | L/m2 | 0.2-2.0 |
| 7 | High pressure flushing system pressure | MPa | ≥10 |
| 8 | High-pressure flushing water flow | L/min | ≥138 |
| 9 | Spray flow | L/min | ≥129 |
| 10 | Water cannon range | m | ≥35 |
| 11 | Self-priming height | m | 6.5 |

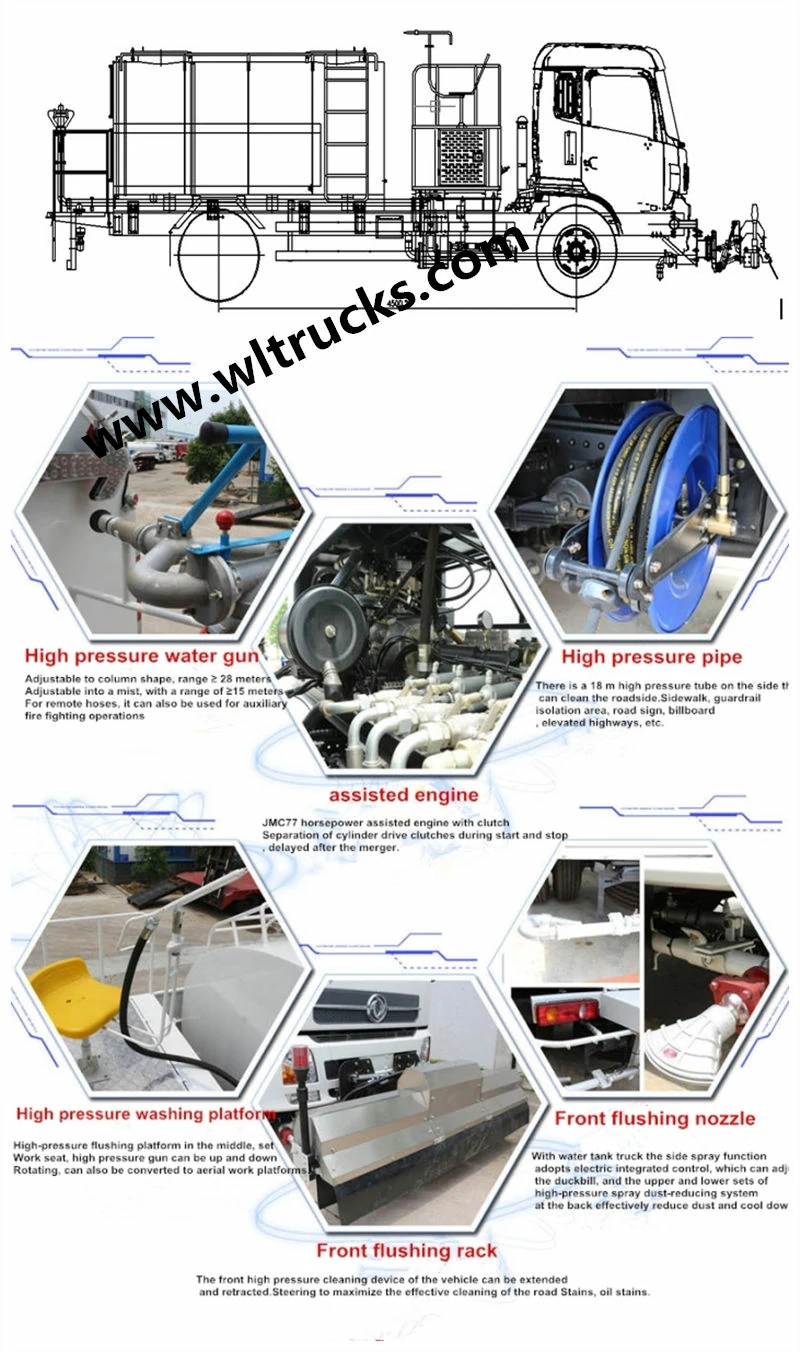

High pressure cleaning truck composition structure:

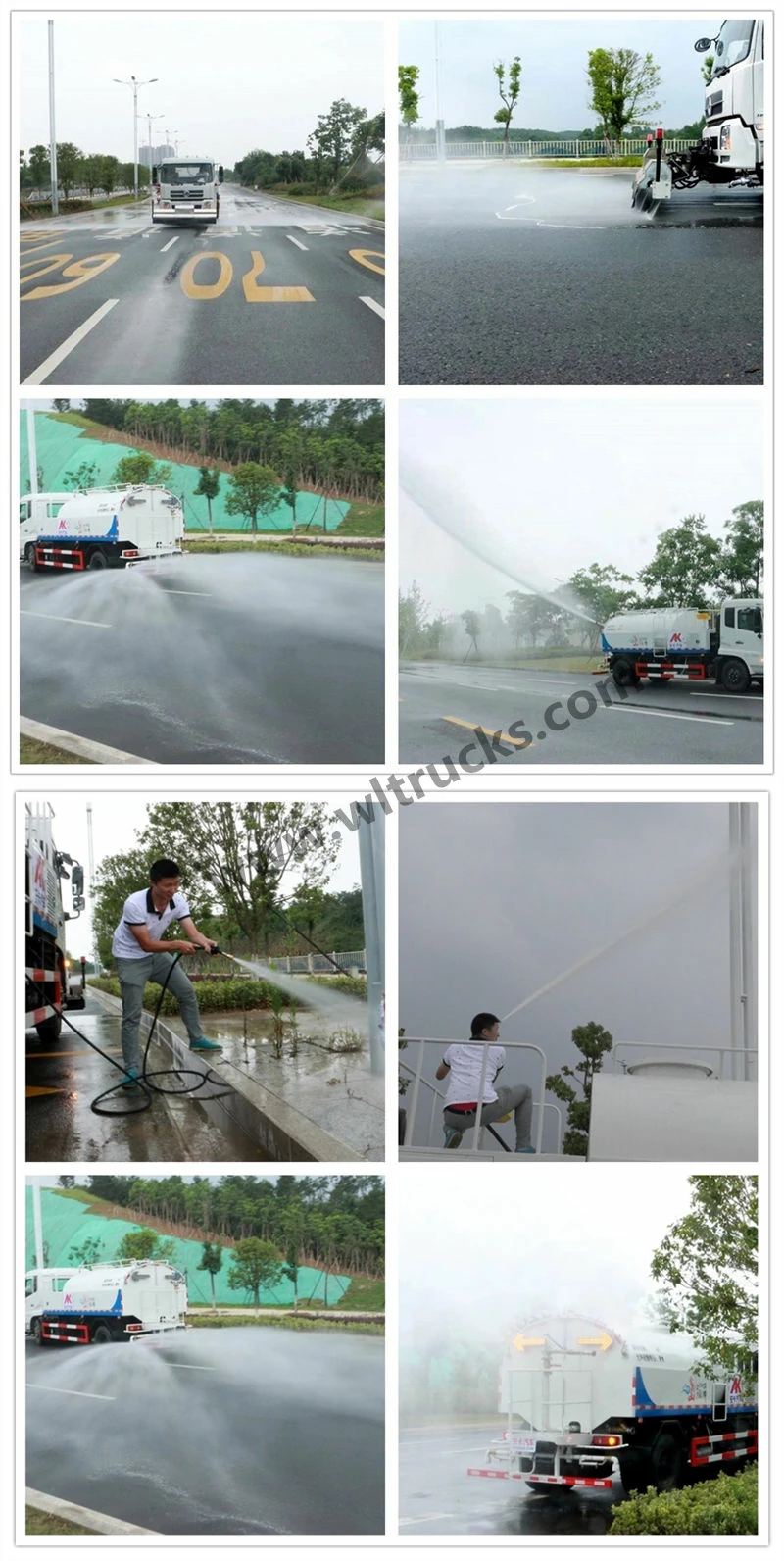

Road jetting truck working photos:
Technical training support:
Part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
