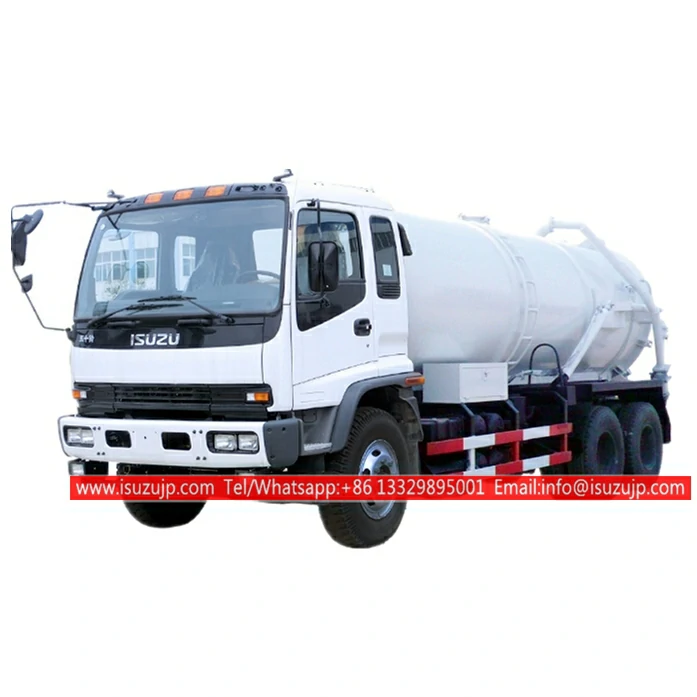

6×4 ISUZU FVZ 18000liters vacuum sewage suction truck Description:
- ISUZU FVZ vacuum sewage suction truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU FVZ chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification:
| 6×4 ISUZU FVZ 18000liters sewage suction vacuum truck(16 ton) | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9800X2500X3700 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 280HP (206 KW) | |
| Displacement | 9980 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 4350+1300 mm / 3 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres (about 4,800 gallons) |
| Tank Material | Carbon steel | |
| Suction Head | 6 m | |
| Vacuum Pump | Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. | |
| Hose | High quality, wire strengthened hose | |
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories: inlet, discharge, anti-fill valve | ||
| Optional | Tank material could be carbon steel, stainless steel Vacuum pump could be imported brand | |
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
