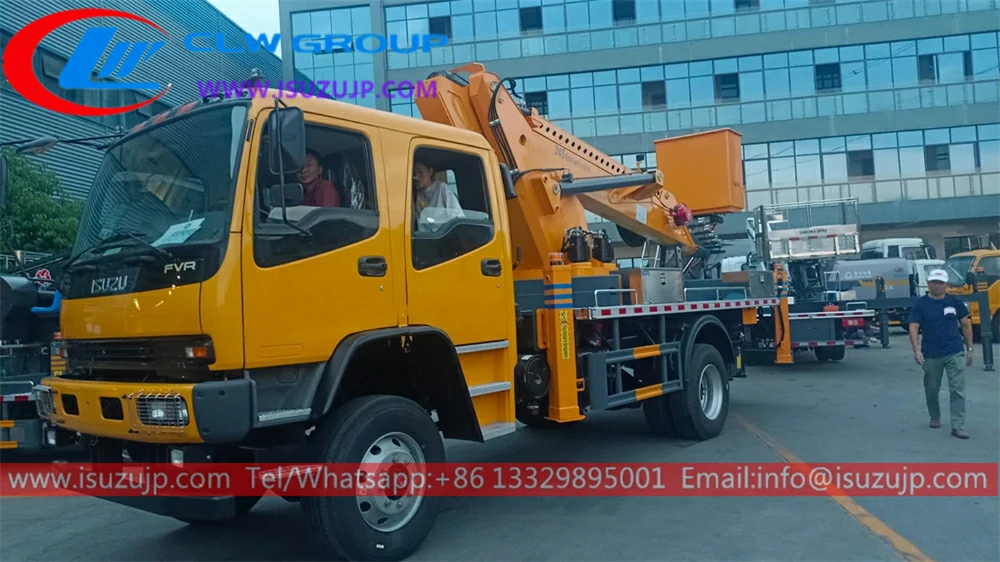

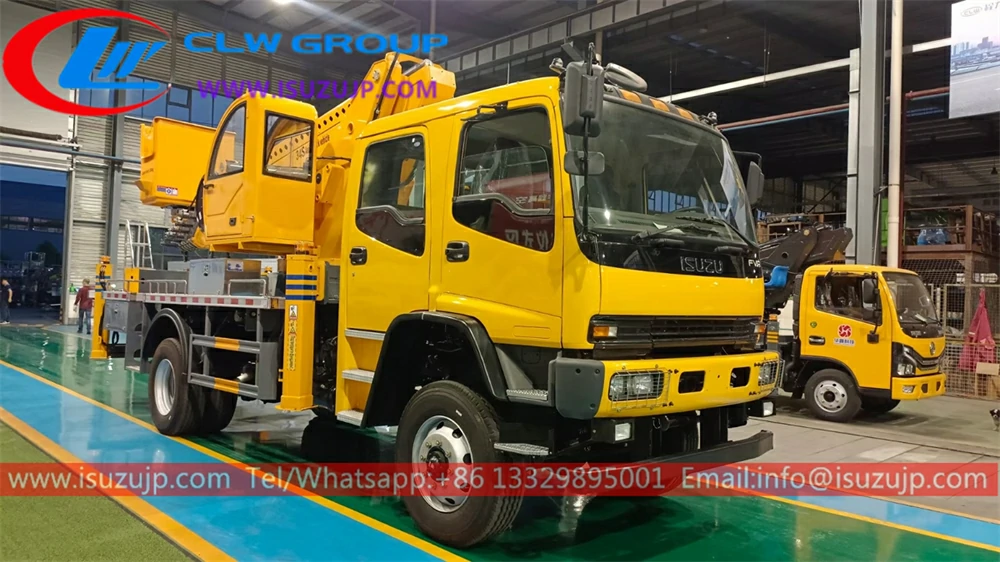

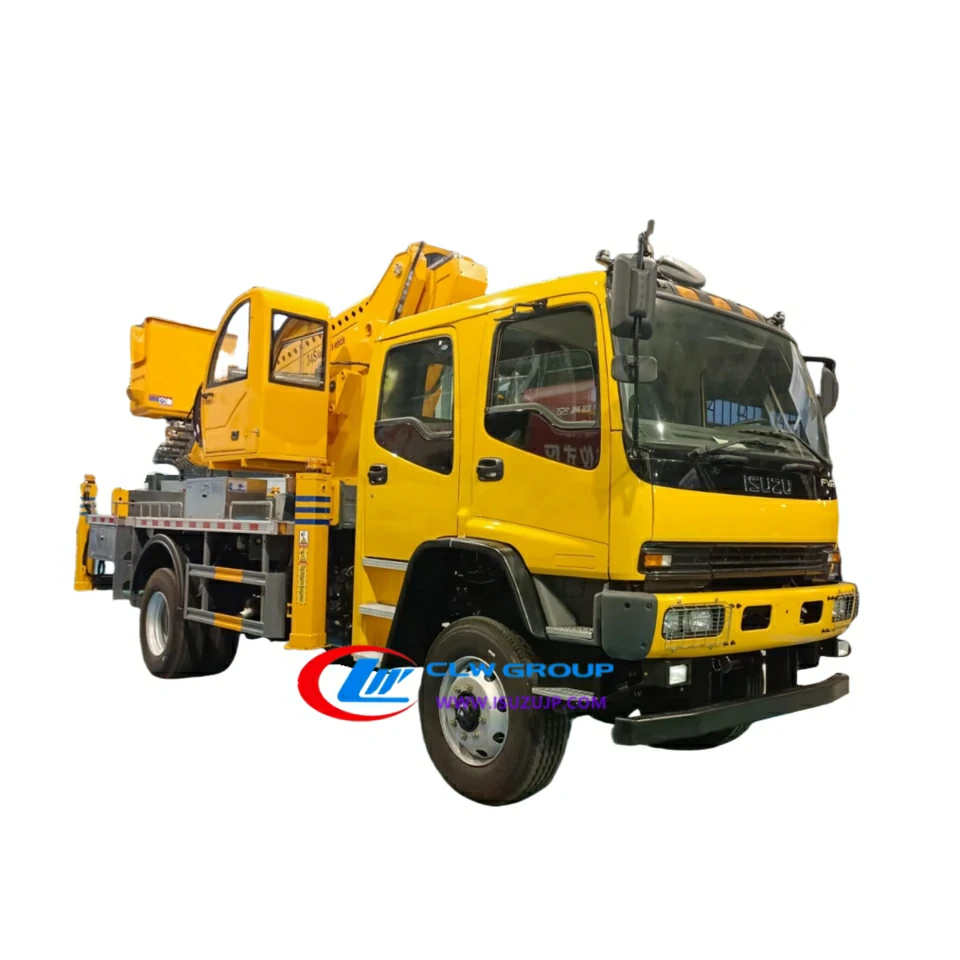

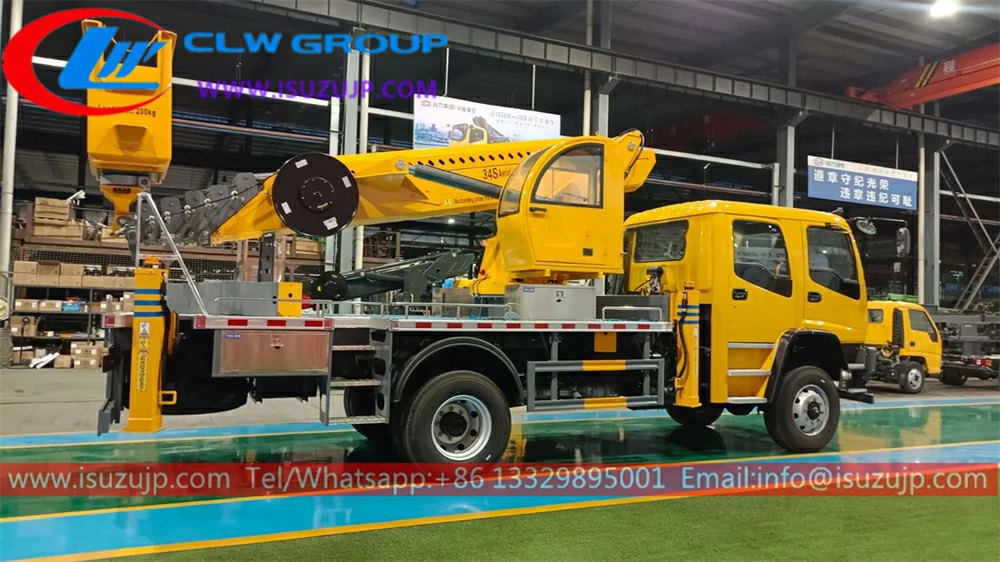

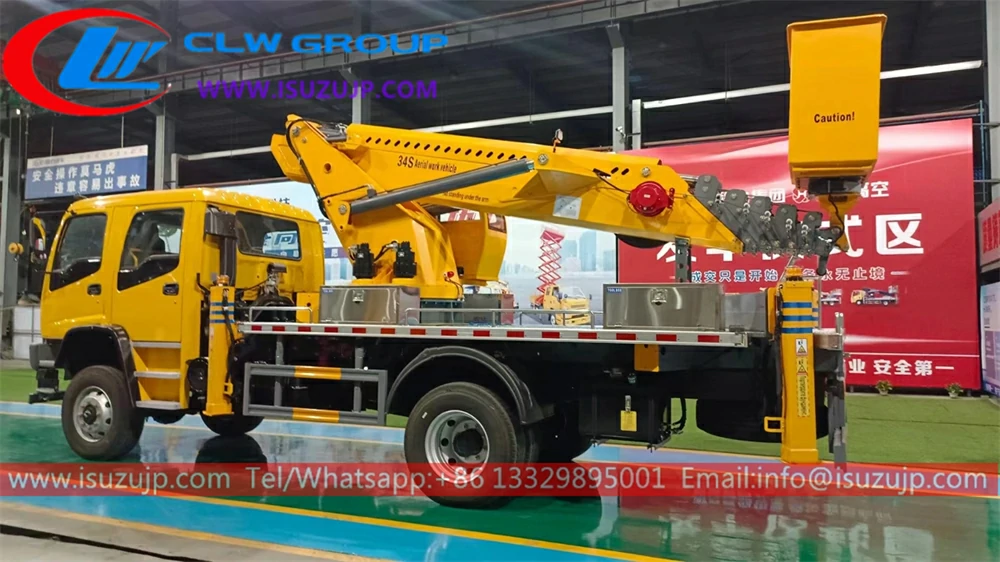

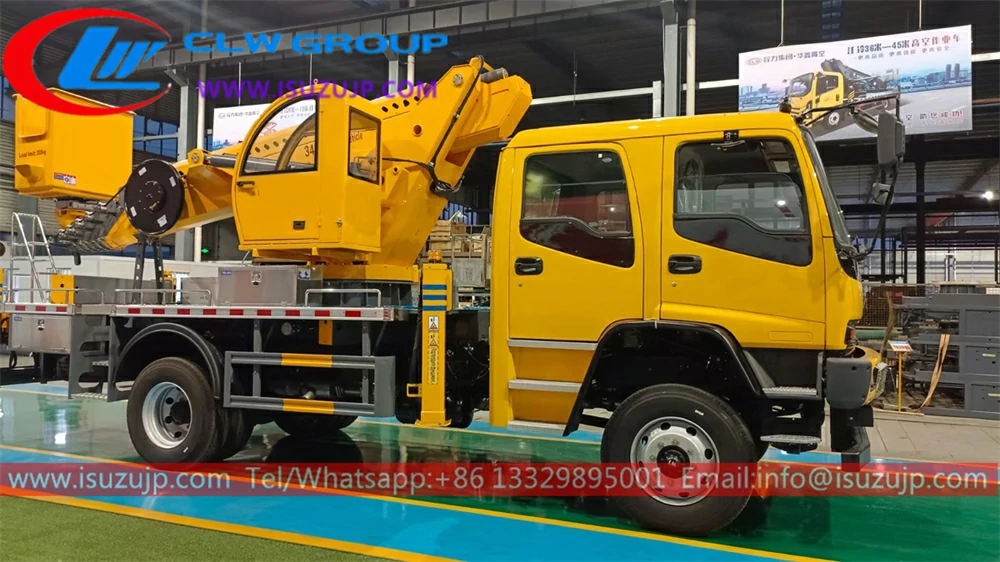

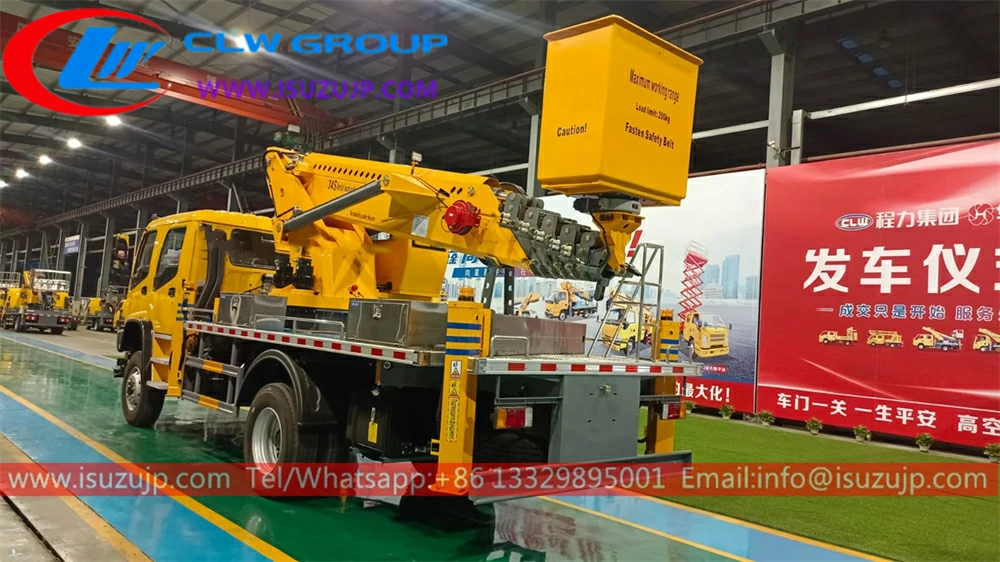

4×4 ISUZU FVR Full Driver double cabin 34 Meters High Altitude Operation Insulation Bucket Truck Description:
- 4×4 ISUZU FVR Full Driver double cabin 34 Meters High Altitude Operation Insulation Bucket Truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck,Hydraulic telescopic boom truck , Truck mounted aerial platform.
- Isuzu Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);can rotate 90 degree in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- Wireless remote control system is available.
Specification:
| Manufacturer | CHENGLI | ||
| Product Name | 4×4 ISUZU FVR Full Driver double cabin 34 Meters High Altitude Operation Insulation Bucket Truck | ||
| Vehicle Brand Series | ISUZU | ||
| Vehicle Model | CLW5180GSD5 | ||
| Production Time | 30 days | ||
| Chassis parameters | Overall dimensions | mm | 9200*2540*3400 |
| Gross weight | kg | 18000 | |
| Kerb weight | 9900 | ||
| Wheelbase | mm | 5000 | |
| Driving type | 4*2 | ||
| Chassis model | ISUZU FVR | ||
| Tire size | 295/80R22.5 | ||
| Number of Tires | 6+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 6KH1 | |
| Type of fuel | Diesel | ||
| Power | 240HP | ||
| Max speed | Km/h | 105 | |
| Emission standard | EURO 5,6 | ||
| Lifting performance | Max Working height | 34m | |
| Max Working radius | 15m | ||
| Hook | 1000kg Suitable for folding arm aerial platform truck | ||
| Bucket/Cage | 200 kg loading capacity | ||
| 1400x1100x800mm | |||
| Boom | Stiff boom Rotation Angle 360 | ||
| Control | Control both on the ground and remote control in cage | ||
| Outrigger | 4 pcs/Adjusted separately | ||
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | ||
| Operation | Hydraulic control lever system | ||
| Control Panel | English | ||
| Emergency pump | Included, When the engine and main pump fail, workers can be sent back to the ground | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Hydraulic system,Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump, Working Lamp, Hand holds, Mudguards and rubber flaps… | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Other Working height (with any option) 2, Fiber-glass bucket 3, Italy imported multi-way valve 4, Optional remote control | ||
Telescopic working platform truck Working parameter:
Manlift boom truck New craft:
Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
An Isuzu aerial truck, also known as an aerial lift truck or cherry picker, is a type of specialized vehicle designed for various tasks that require reaching elevated heights. These trucks are often used in industries such as utilities, telecommunications, construction, and forestry. They are equipped with a hydraulic lift system that includes a bucket or platform, allowing workers to safely reach and perform tasks at significant heights.
Key features of an Isuzu aerial truck might include:
- Hydraulic Lift System: Allows the bucket or platform to be raised and extended to the desired height and angle.
- Stability: Outriggers and stabilizers to ensure the truck remains steady during operation.
- Safety: Equipped with safety harnesses, emergency descent systems, and other safety features to protect workers.
- Versatility: Available in various configurations to suit different applications, such as tree trimming, electrical line maintenance, and sign installation.
- Durability: Built to withstand tough working conditions and frequent use.
If you need specific information about a particular model or want to know about available options and configurations, it would be helpful to refer to Isuzu’s official documentation or contact an authorized Isuzu dealer.
